Technical Specifications
| Chainrings | 40T, custom-alloy |
| Crankset | Custom alloy forged crankarms |
| Chaincase | Integrated Chaincover |
| Chain | KMC CN-HG71 |
| Shift Levers | Microshift SL-SCN05, 5-speed Nexus compatible |
| Cassette | Shimano 30t sprocket |
| Rims | 650b disc, double-wall alloy, pinned, 32h |
| Spokes | DT Swiss Industry |
| Front Tire | Nimbus 2 Sport Reflect, 650Bx2.3 |
| Rear Tire | Nimbus 2 Sport Reflect, 650Bx2.3 |
| Inner Tubes | Schrader, 40mm valve |
| Rear Hub | Shimano Nexus, 5-speed internal gear hub, SG-C7000-5D, 32H, BLACK |
| Front Hub | Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h |
| Saddle | Body Geometry Comfort Gel, 200mm w/ SWAT™ Mount |
| Grips | Body Geometry XC Contour |
| SeatPost | Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm |

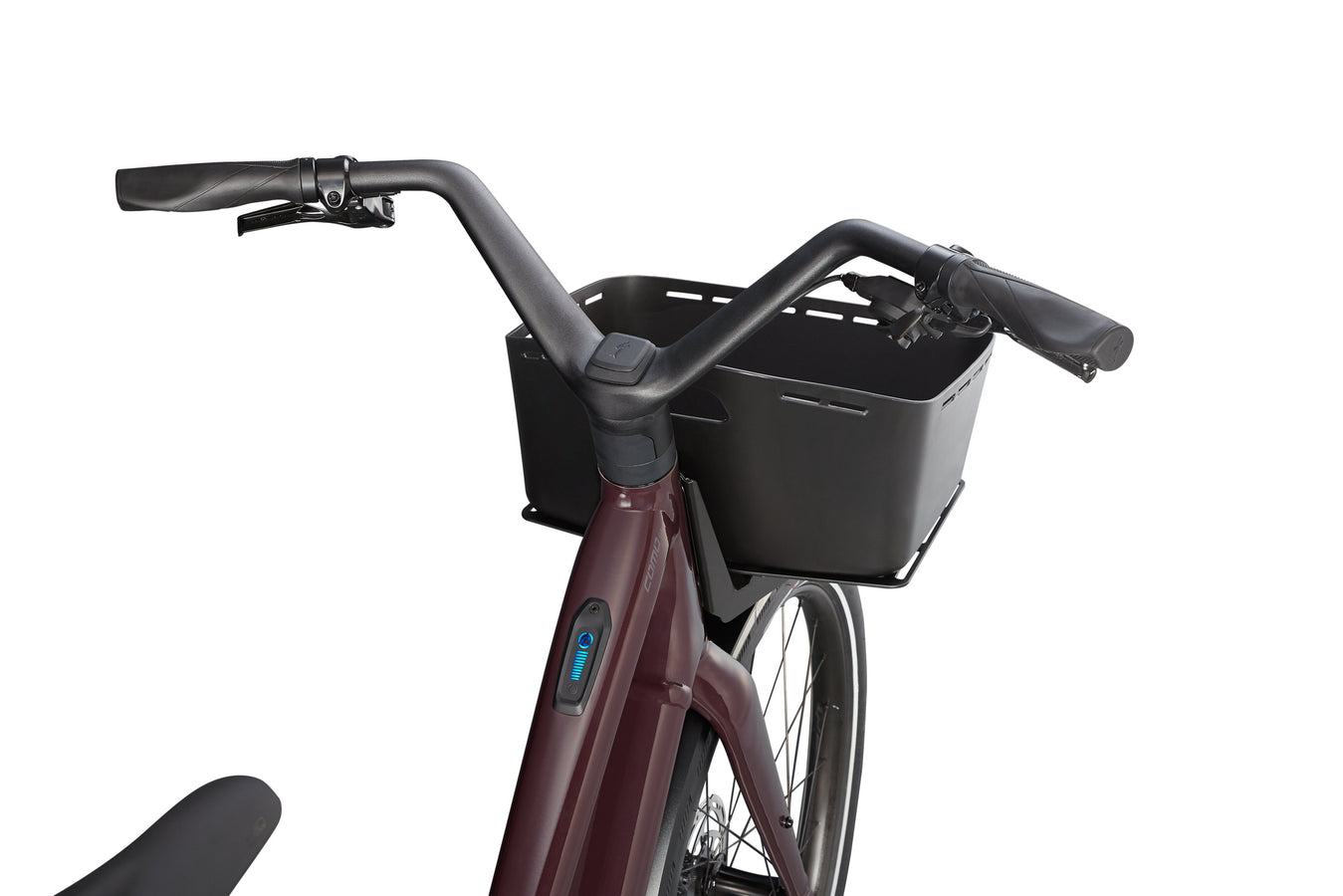

| Handlebars | Specialized handlebar/stem combo, integrated cable routing |
| Wiring Harness | Custom Specialized wiring harness w/ chargeport |
| Charger | Custom charger, 48V System w/ SL system charger plug |

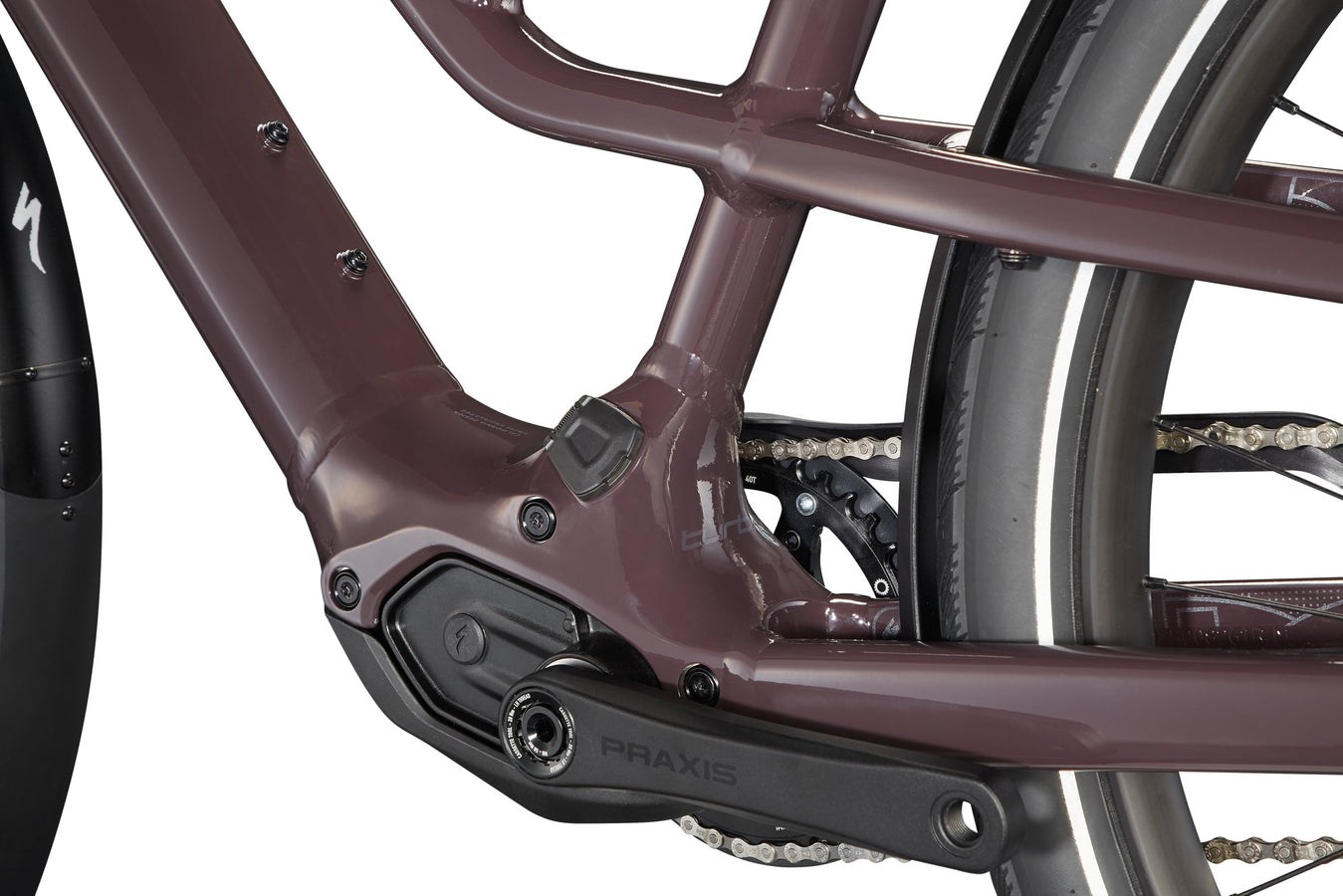

| Motor | Specialized SL 1.1, custom lightweight motor |
| Battery | Specialized SL1-320, fully integrated, 320Wh |

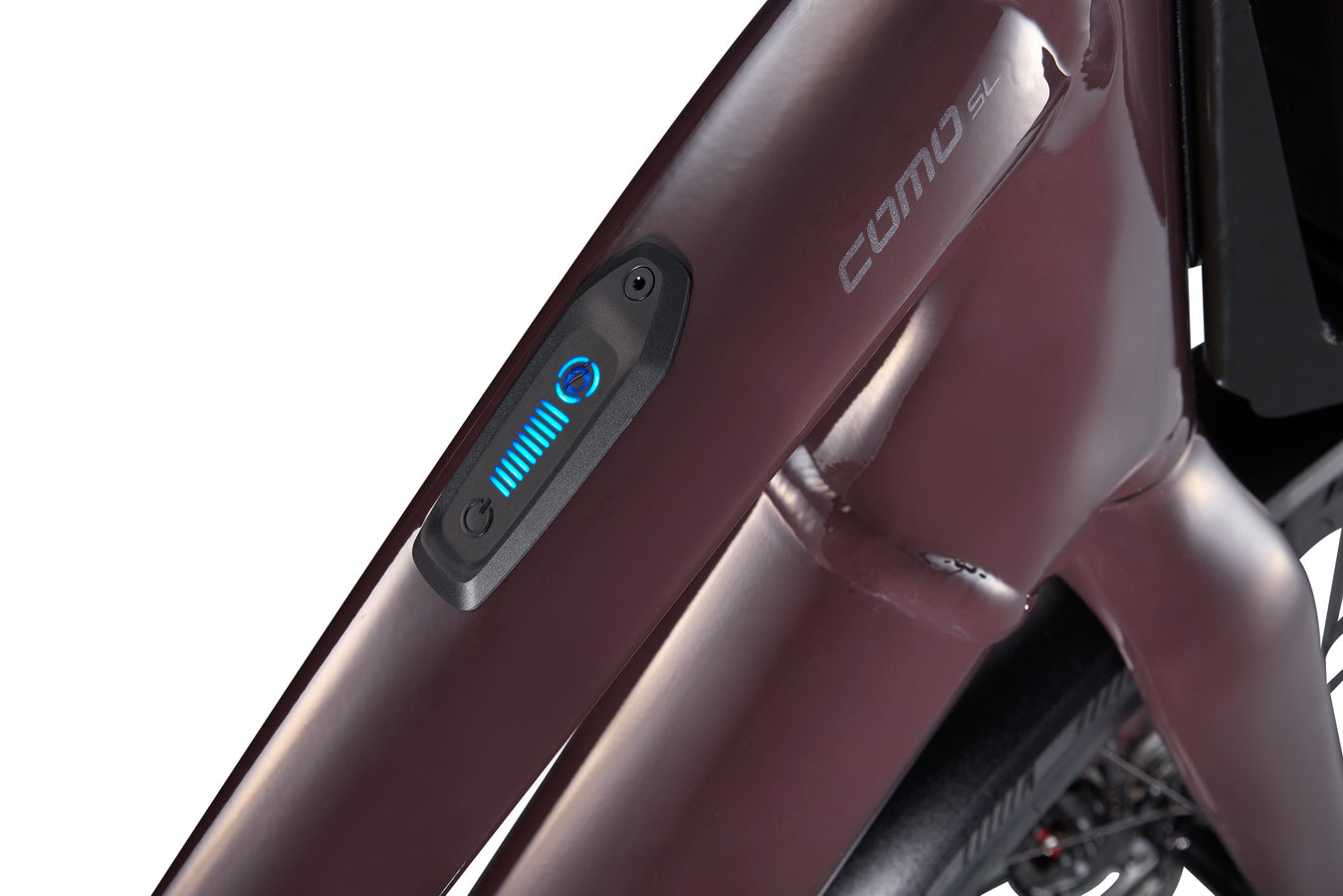

| UI/Remote | Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth® |
| Frame | E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds |
| Seat Binder | Specialized bolt-type, alloy, 38.6mm |
| Fork | Turbo Como SL one-piece-design aluminum fork, 12x110mm thru-axle |
| Bell | Simple bell |
| Kickstand | Specialized Center-Mount, 255mm |
| Pedals | Specialized Commuter w/ grip tape & reflectors |

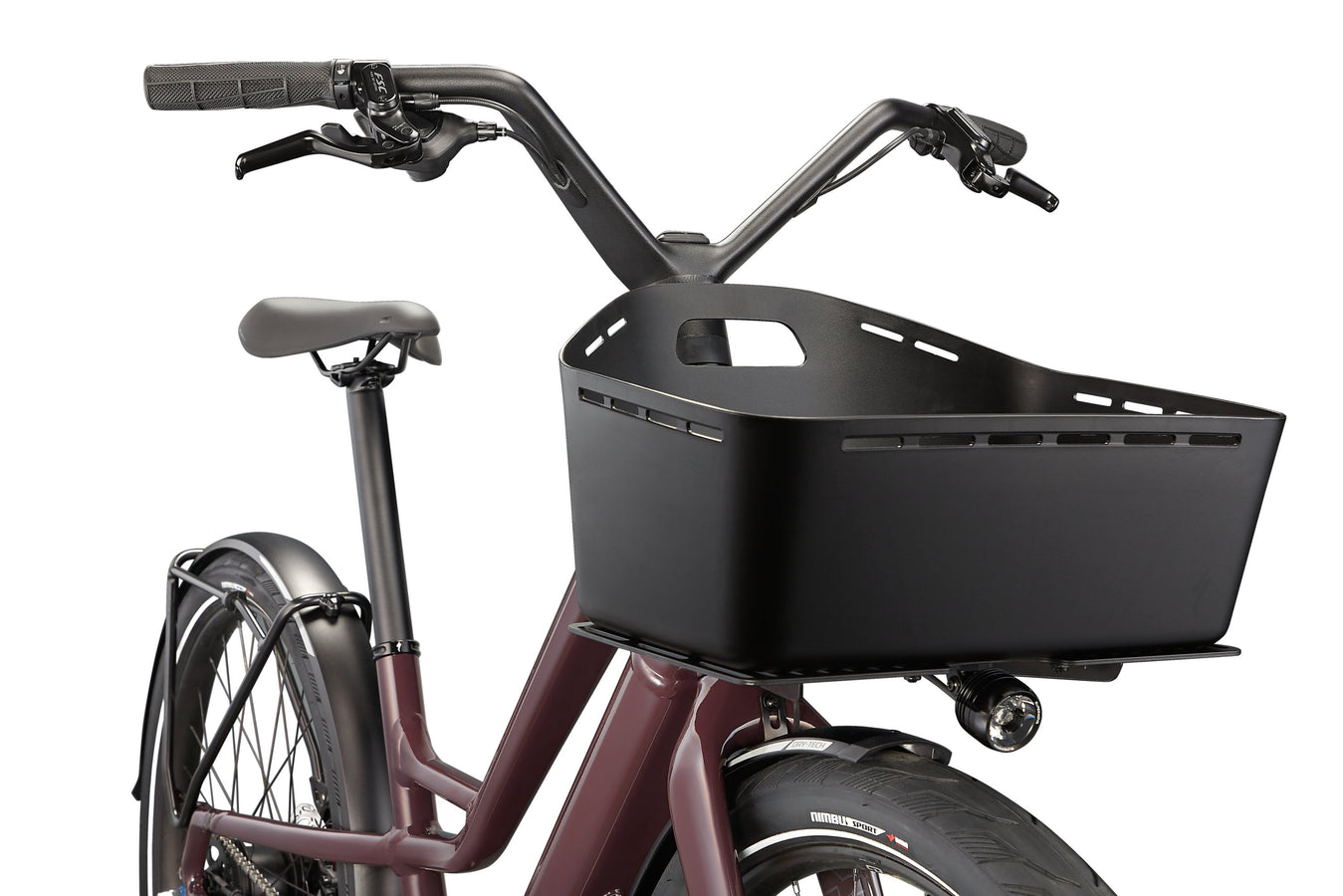

| SWAT | Specialized Como SL front-rack, max. 15kg load, incl. Como SL basket w/cargo-net |
| Fenders | Specialized DRYTECH fenders, 65mm width, stainless steel fenderstays |
| Rack | Specialized Pannier-rack, alloy tubing, max. 20kg load |
| Taillight | Supernova E3, alloy housing, 3-LED, 250-degree visibility, fender mount, 12V |
| Headlight | Supernova Mini2, 235lm, 12V, alloy housing |
| Front Brake | TRP Flow Set Control, hydraulic disc, metal-ceramic pads, flat-mount w/ 160mm CL-rotor |
| Rear Brake | TRP Flow Set Control, hydraulic disc, metal-ceramic pads, flat-mount w/ 160mm CL-rotor |
Technical Specifications
| Chainrings | 40T, custom-alloy |
| Crankset | Custom alloy forged crankarms |
| Chaincase | Integrated Chaincover |
| Chain | KMC CN-HG71 |
| Shift Levers | Microshift SL-SCN05, 5-speed Nexus compatible |
| Cassette | Shimano 30t sprocket |
| Rims | 650b disc, double-wall alloy, pinned, 32h |
| Spokes | DT Swiss Industry |
| Front Tire | Nimbus 2 Sport Reflect, 650Bx2.3 |
| Rear Tire | Nimbus 2 Sport Reflect, 650Bx2.3 |
| Inner Tubes | Schrader, 40mm valve |
| Rear Hub | Shimano Nexus, 5-speed internal gear hub, SG-C7000-5D, 32H, BLACK |
| Front Hub | Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h |
| Saddle | Body Geometry Comfort Gel, 200mm w/ SWAT™ Mount |
| Grips | Body Geometry XC Contour |
| SeatPost | Specialized 2-bolt head, forged alloy, 5mm offset, micro-adjust, 34.9mm |
| Handlebars | Specialized handlebar/stem combo, integrated cable routing |
| Wiring Harness | Custom Specialized wiring harness w/ chargeport |
| Charger | Custom charger, 48V System w/ SL system charger plug |
| Motor | Specialized SL 1.1, custom lightweight motor |
| Battery | Specialized SL1-320, fully integrated, 320Wh |
| UI/Remote | Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth® |
| Frame | E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds |
| Seat Binder | Specialized bolt-type, alloy, 38.6mm |
| Fork | Turbo Como SL one-piece-design aluminum fork, 12x110mm thru-axle |
| Bell | Simple bell |
| Kickstand | Specialized Center-Mount, 255mm |
| Pedals | Specialized Commuter w/ grip tape & reflectors |
| SWAT | Specialized Como SL front-rack, max. 15kg load, incl. Como SL basket w/cargo-net |
| Fenders | Specialized DRYTECH fenders, 65mm width, stainless steel fenderstays |
| Rack | Specialized Pannier-rack, alloy tubing, max. 20kg load |
| Taillight | Supernova E3, alloy housing, 3-LED, 250-degree visibility, fender mount, 12V |
| Headlight | Supernova Mini2, 235lm, 12V, alloy housing |
| Front Brake | TRP Flow Set Control, hydraulic disc, metal-ceramic pads, flat-mount w/ 160mm CL-rotor |
| Rear Brake | TRP Flow Set Control, hydraulic disc, metal-ceramic pads, flat-mount w/ 160mm CL-rotor |
Epic - Geometry
Geometry
| S | M | L | |
|---|---|---|---|
| Stack | 623mm | 641mm | 697mm |
| Reach | 401mm | 426mm | 433mm |
| Front Center | 680mm | 713mm | 742mm |
| Seat Tube Length, Center to Top | 380mm | 390mm | 420mm |
| Top Tube Length, Horizontal | 634mm | 666mm | 694mm |
| Chainstay Length | 484mm | 484mm | 484mm |
| Wheelbase | 1154mm | 1187mm | 1216mm |
| Standover Height | 575mm | 575mm | 600mm |
| Head Tube Length | 190mm | 210mm | 270mm |
| BB Drop | 75mm | 75mm | 75mm |
| BB Height | 280mm | 280mm | 280mm |
| Head Tube Angle | 68deg | 68deg | 68deg |
| Seat Tube Angle, Actual | 69.5deg | 69.5deg | 69.5deg |
Geometry
Geometry
| S | M | L | |
|---|---|---|---|
| Stack | 623mm | 641mm | 697mm |
| Reach | 401mm | 426mm | 433mm |
| Front Center | 680mm | 713mm | 742mm |
| Seat Tube Length, Center to Top | 380mm | 390mm | 420mm |
| Top Tube Length, Horizontal | 634mm | 666mm | 694mm |
| Chainstay Length | 484mm | 484mm | 484mm |
| Wheelbase | 1154mm | 1187mm | 1216mm |
| Standover Height | 575mm | 575mm | 600mm |
| Head Tube Length | 190mm | 210mm | 270mm |
| BB Drop | 75mm | 75mm | 75mm |
| BB Height | 280mm | 280mm | 280mm |
| Head Tube Angle | 68deg | 68deg | 68deg |
| Seat Tube Angle, Actual | 69.5deg | 69.5deg | 69.5deg |
Geometry
