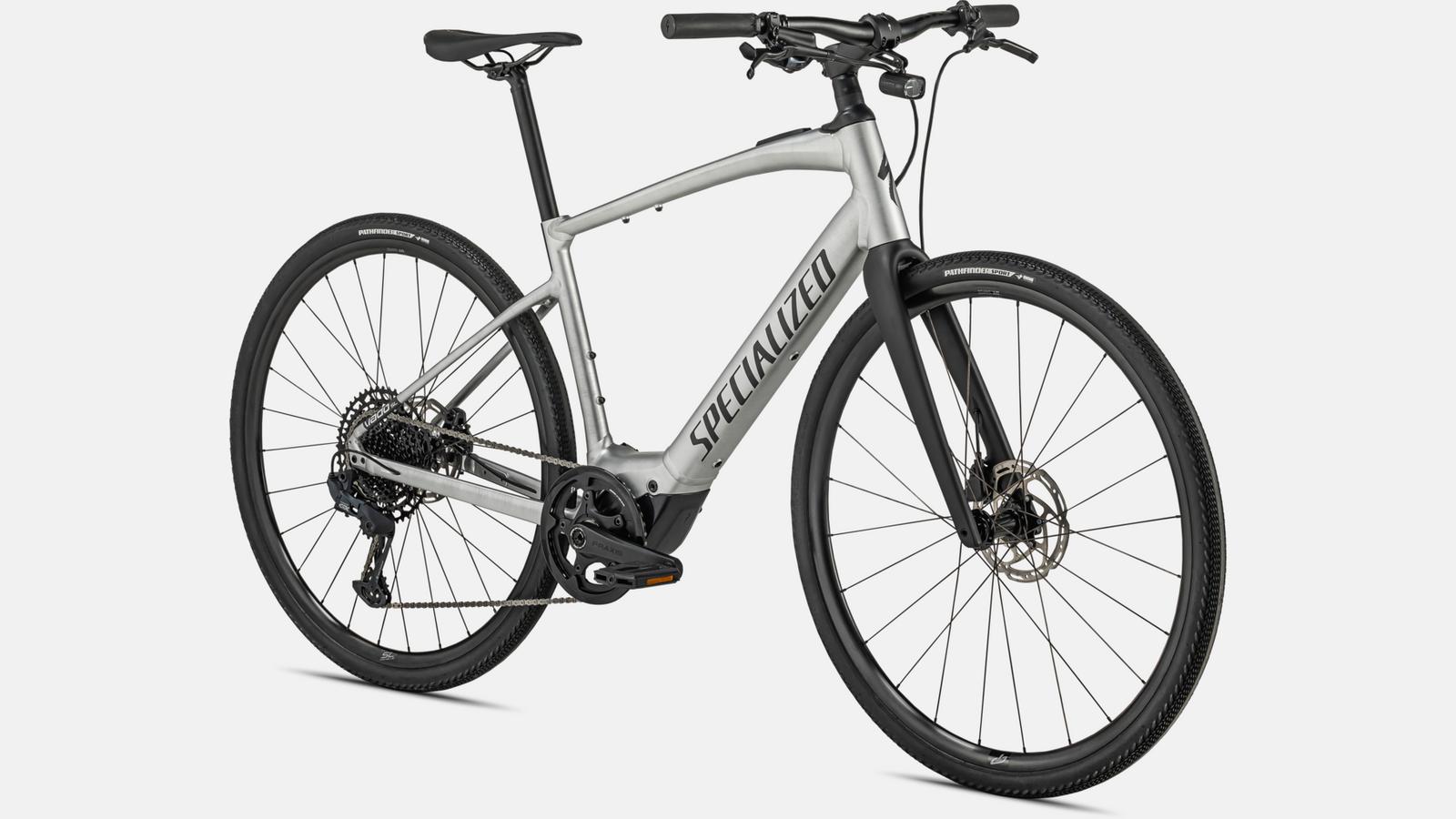

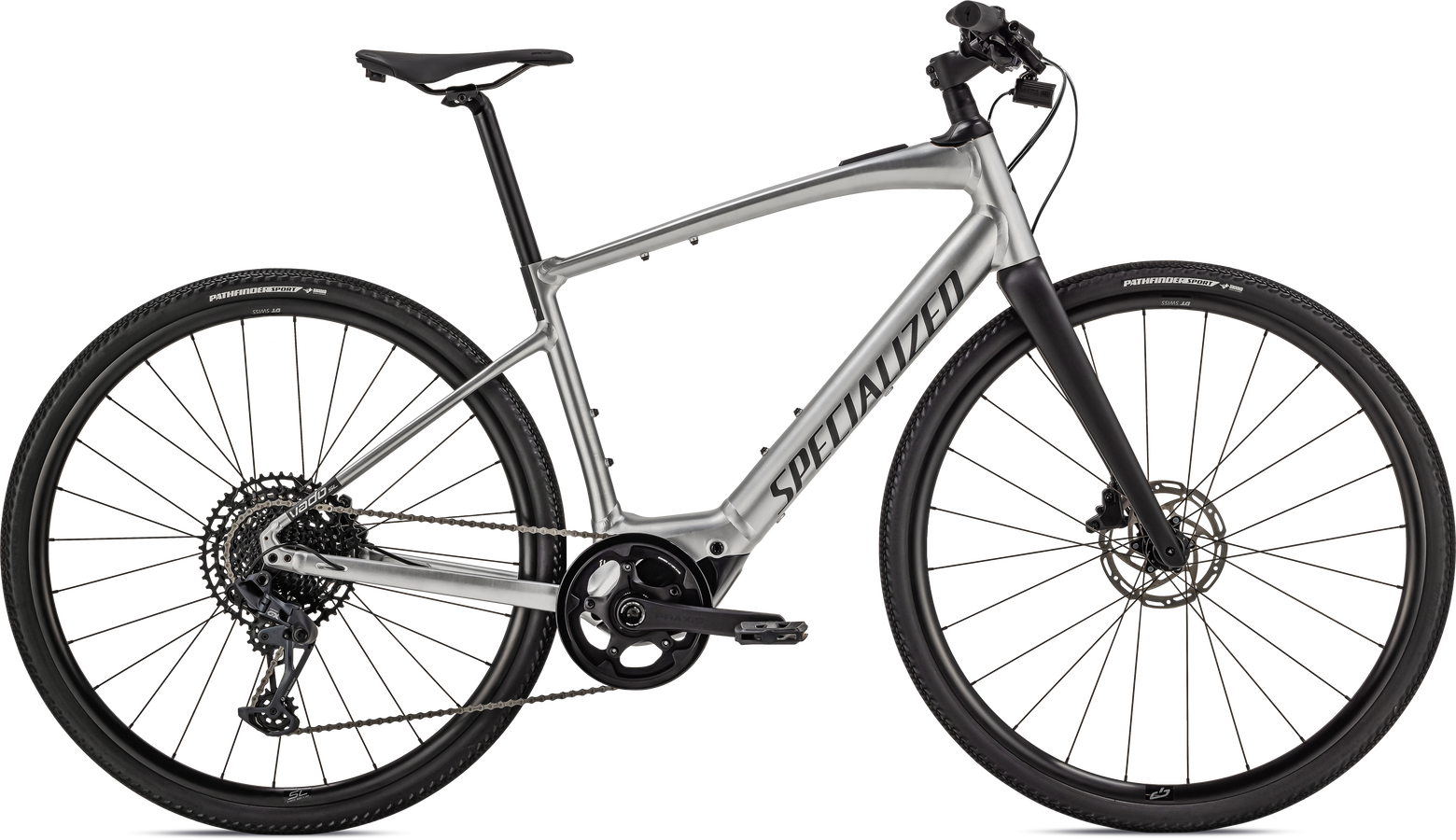

Turbo Vado SL 5.0

Turbo Vado SL 5.0

Part No.: 93922-3102

Notify me when this product is available:

Color
Size

Select a Size

There's no other e-bike out there with ride quality, range, and power like this, at a weight that's light enough to carry. The Turbo Vado SL 5.0 is best for workouts, riding beyond the beaten path, and last-minute adventures. All you need to do... Read More

There's no other e-bike out there with ride quality, range, and power like this, at a weight that's light enough to carry. The Turbo Vado SL 5.0 is best for workouts, riding beyond the beaten path, and last-minute adventures. All you need to do... Read More

wishlist message

Technical Specifications

Saddle Bridge Sport, hollow cr-mo rails, 155mm
SeatPost Specialized, alloy, single bolt, 21mm offset, 27.2mm
Handlebars Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Stem Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount
Grips Specialized Body Geometry Contour, lock-on
Pedals Specialized Commuter w/ grip tape & reflectors
Taillight Specialized integrated saddle mount, LED Technology, 12V
Bell Simple bell
Headlight Lezyne Ebike Power STVZO E115, 310Lumens, 12V
Rear Brake Tektro HD-R510, hydraulic disc, 160mm
Front Brake Tektro HD-R510, hydraulic disc, 160mm
Inner Tubes Presta, 40mm valve, 700x32-50
Rear Hub Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h
Front Hub Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h
Rims DT Swiss R500 disc, 22mm internal width, 23mm internal depth
Spokes DT Swiss Industry
Battery Specialized SL1-320, fully integrated, 320Wh

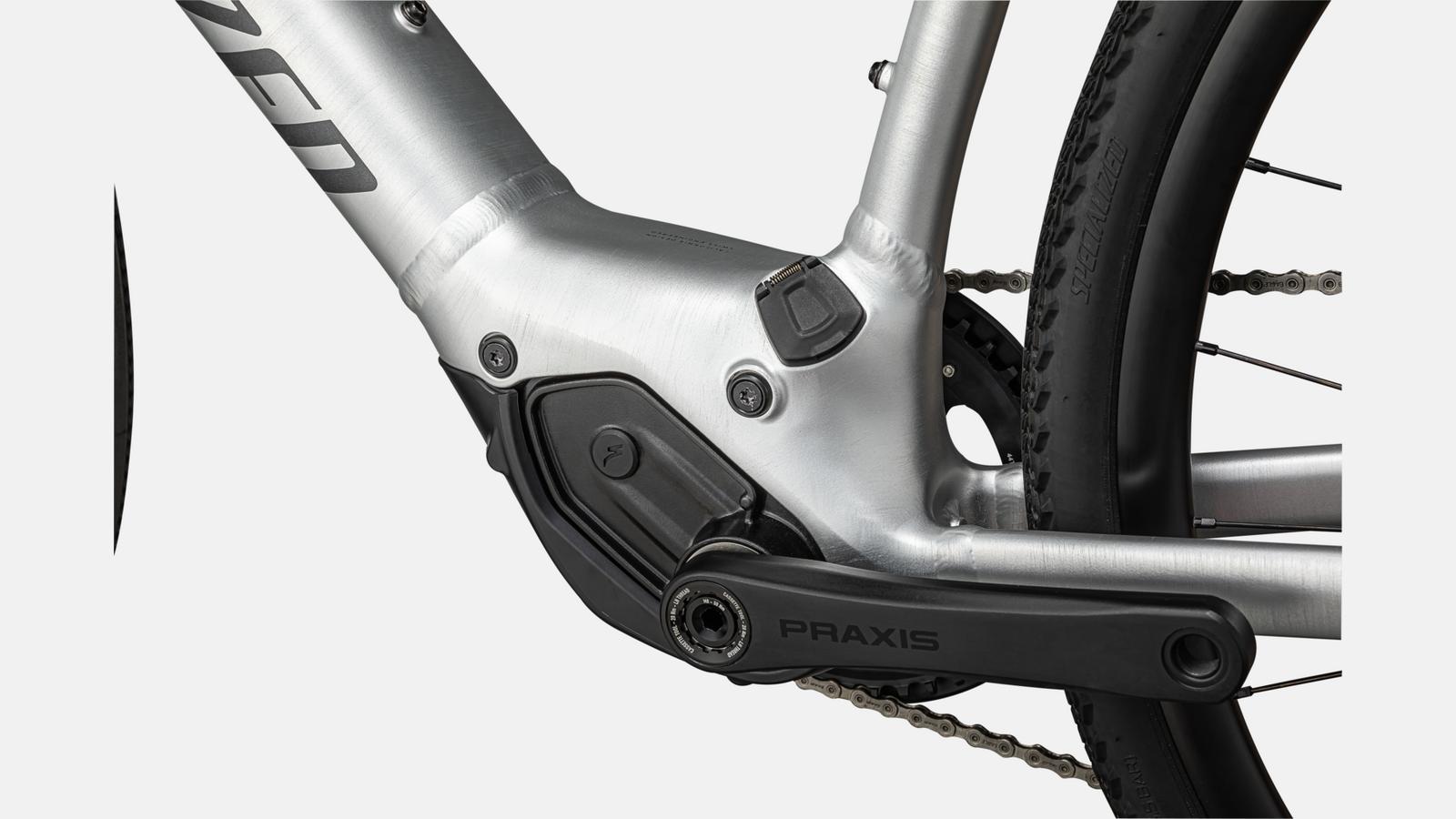

Motor Specialized SL 1.1, custom lightweight motor

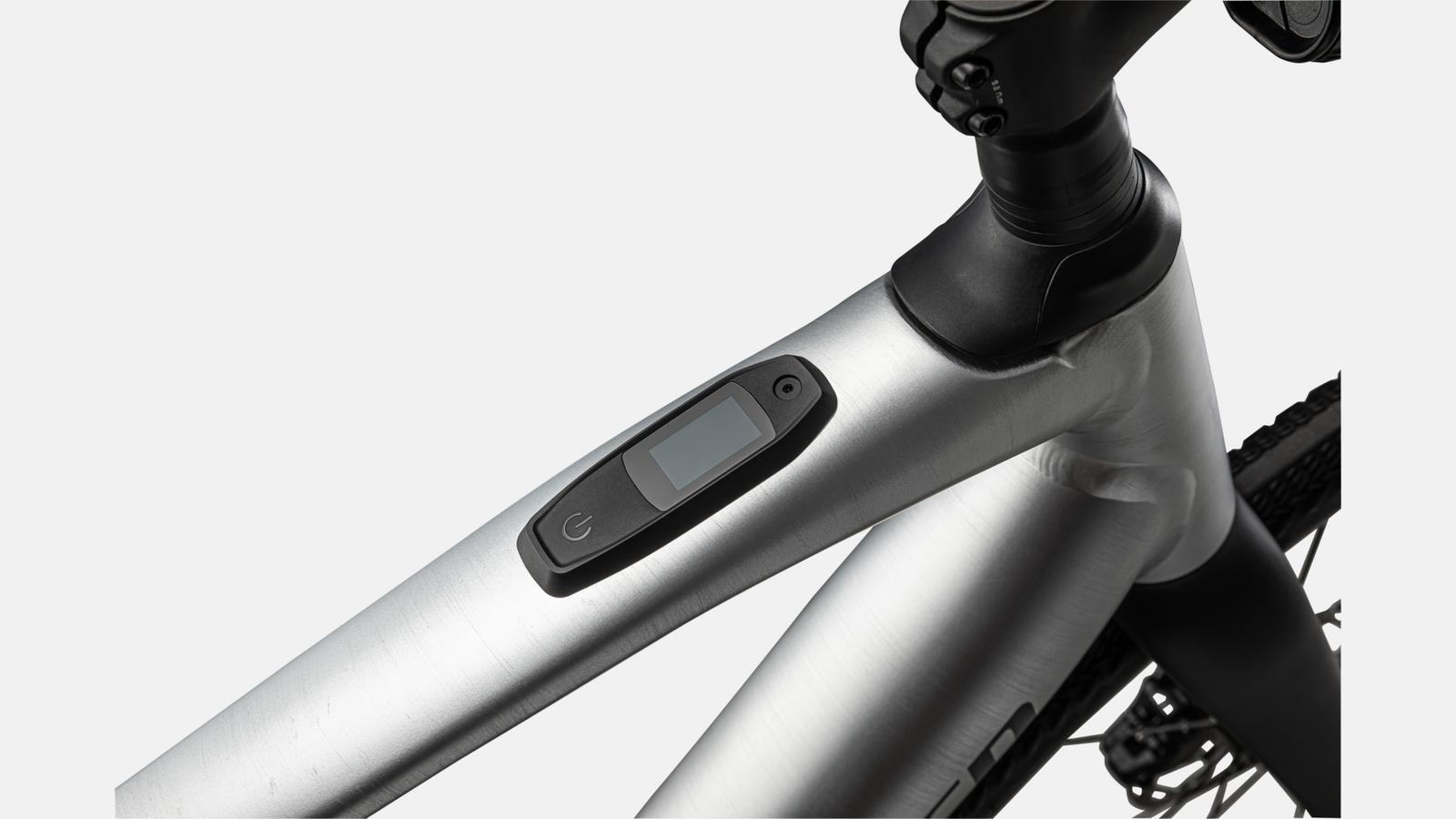

UI/Remote Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Wiring Harness Custom Specialized wiring harness w/ chargeport
Charger Custom charger, 48V System w/ SL system charger plug
Front Tire Specialized Pathfinder Sport, 700x38c
Rear Tire Specialized Pathfinder Sport, 700x38c
Chainrings SRAM X-SYNC 44t, 110BCD
Chain SRAM NX Eagle, 12-speed
Cassette SRAM NX Eagle PG-1230, 12-speed, 11-50t
Rear Derailleur SRAM GX Eagle, 12-speed
Shift Levers SRAM GX Eagle, 12-speed
Crankset Praxis, Forged alloy M30, custom offset
Fork Rigid carbon fork, Boost™ 12x110mm thru-axle, flat mount disc
Seat Binder Integrated w/ frame
Frame E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds

Technical Specifications

Saddle Bridge Sport, hollow cr-mo rails, 155mm
SeatPost Specialized, alloy, single bolt, 21mm offset, 27.2mm
Handlebars Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Stem Specialized Stealth Stem, alloy, 14 deg, 31.8mm, integrated TCD mount
Grips Specialized Body Geometry Contour, lock-on
Pedals Specialized Commuter w/ grip tape & reflectors
Taillight Specialized integrated saddle mount, LED Technology, 12V
Bell Simple bell
Headlight Lezyne Ebike Power STVZO E115, 310Lumens, 12V
Rear Brake Tektro HD-R510, hydraulic disc, 160mm
Front Brake Tektro HD-R510, hydraulic disc, 160mm
Inner Tubes Presta, 40mm valve, 700x32-50
Rear Hub Specialized alloy rear hub disc, Center Lock™, sealed cartridge bearings, 12x148mm, 28h
Front Hub Specialized alloy front hub disc, sealed cartridge bearings, 12x110mm, Center Lock™, 24h
Rims DT Swiss R500 disc, 22mm internal width, 23mm internal depth
Spokes DT Swiss Industry
Battery Specialized SL1-320, fully integrated, 320Wh
Motor Specialized SL 1.1, custom lightweight motor
UI/Remote Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote
Wiring Harness Custom Specialized wiring harness w/ chargeport
Charger Custom charger, 48V System w/ SL system charger plug
Front Tire Specialized Pathfinder Sport, 700x38c
Rear Tire Specialized Pathfinder Sport, 700x38c
Chainrings SRAM X-SYNC 44t, 110BCD
Chain SRAM NX Eagle, 12-speed
Cassette SRAM NX Eagle PG-1230, 12-speed, 11-50t
Rear Derailleur SRAM GX Eagle, 12-speed
Shift Levers SRAM GX Eagle, 12-speed
Crankset Praxis, Forged alloy M30, custom offset
Fork Rigid carbon fork, Boost™ 12x110mm thru-axle, flat mount disc
Seat Binder Integrated w/ frame
Frame E5 Aluminum, bottom bracket motor mount, fully integrated downtube battery, internal cable routing, fender and front rack mounts, Smooth Welds

Epic - Geometry

Geometry

S M L XL
  S M L XL
Crank Length 170mm 172.5mm 172.5mm 175mm
Handlebar Width 680mm 680mm 680mm 680mm
Stem Length 60mm 75mm 75mm 90mm
Saddle Width 155mm 155mm 155mm 155mm
Seatpost Length 350mm 350mm 350mm 350mm
Fork Length (full)
Front-Center
Head-Tube Angle
Head-Tube Length
Trail
Bike Stand-Over Height
Seat-Tube Length
Seat-Tube Angle
Fork Rake/Offset
Stack
B-B Height
B-B Drop
Wheelbase
Top-Tube Length (horizontal)
Reach
Chain-Stay Length

Geometry

Geometry Chart

Geometry

  S M L XL
Crank Length 170mm 172.5mm 172.5mm 175mm
Handlebar Width 680mm 680mm 680mm 680mm
Stem Length 60mm 75mm 75mm 90mm
Saddle Width 155mm 155mm 155mm 155mm
Seatpost Length 350mm 350mm 350mm 350mm
Fork Length (full)
Front-Center
Head-Tube Angle
Head-Tube Length
Trail
Bike Stand-Over Height
Seat-Tube Length
Seat-Tube Angle
Fork Rake/Offset
Stack
B-B Height
B-B Drop
Wheelbase
Top-Tube Length (horizontal)
Reach
Chain-Stay Length

Geometry

Geometry Chart
