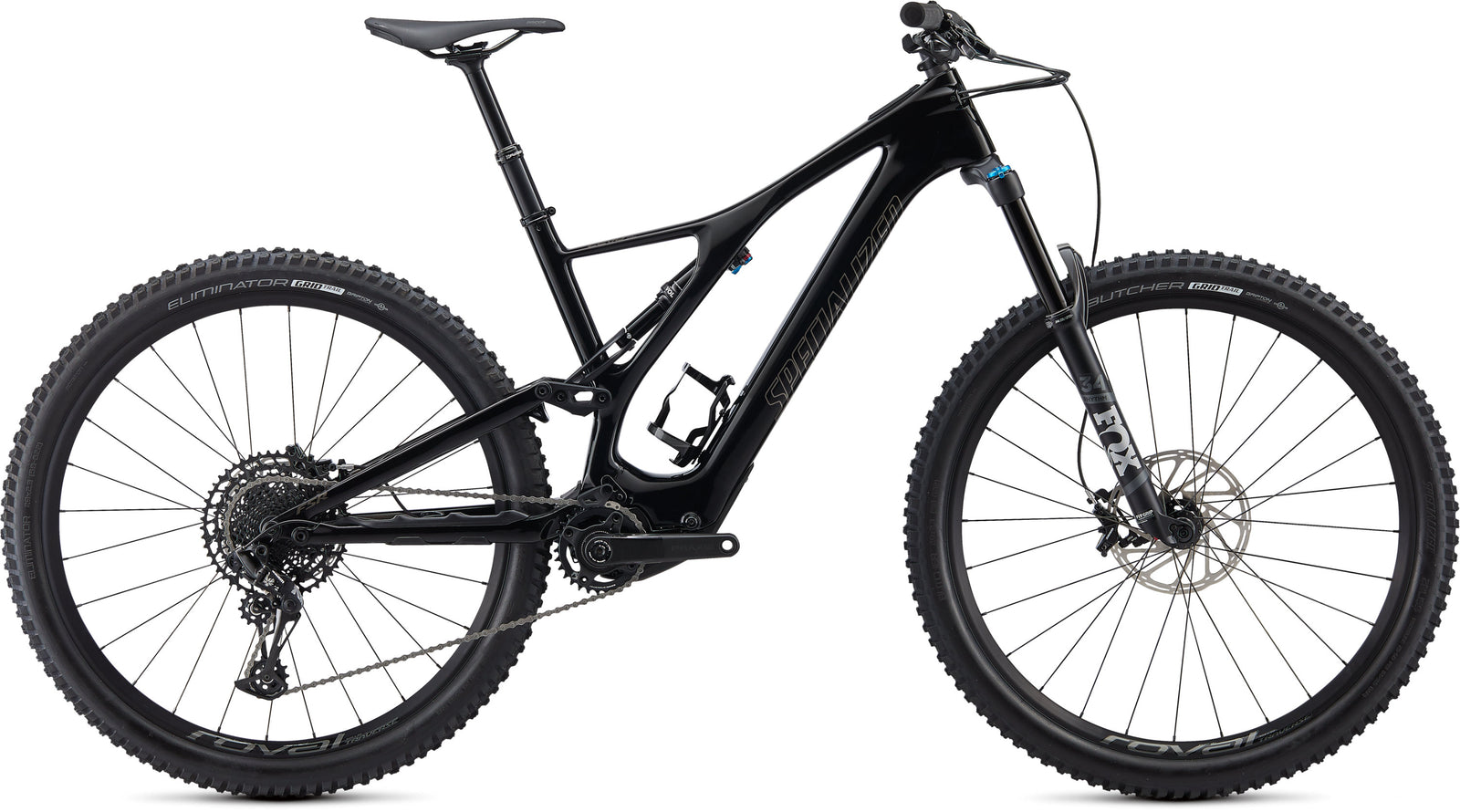

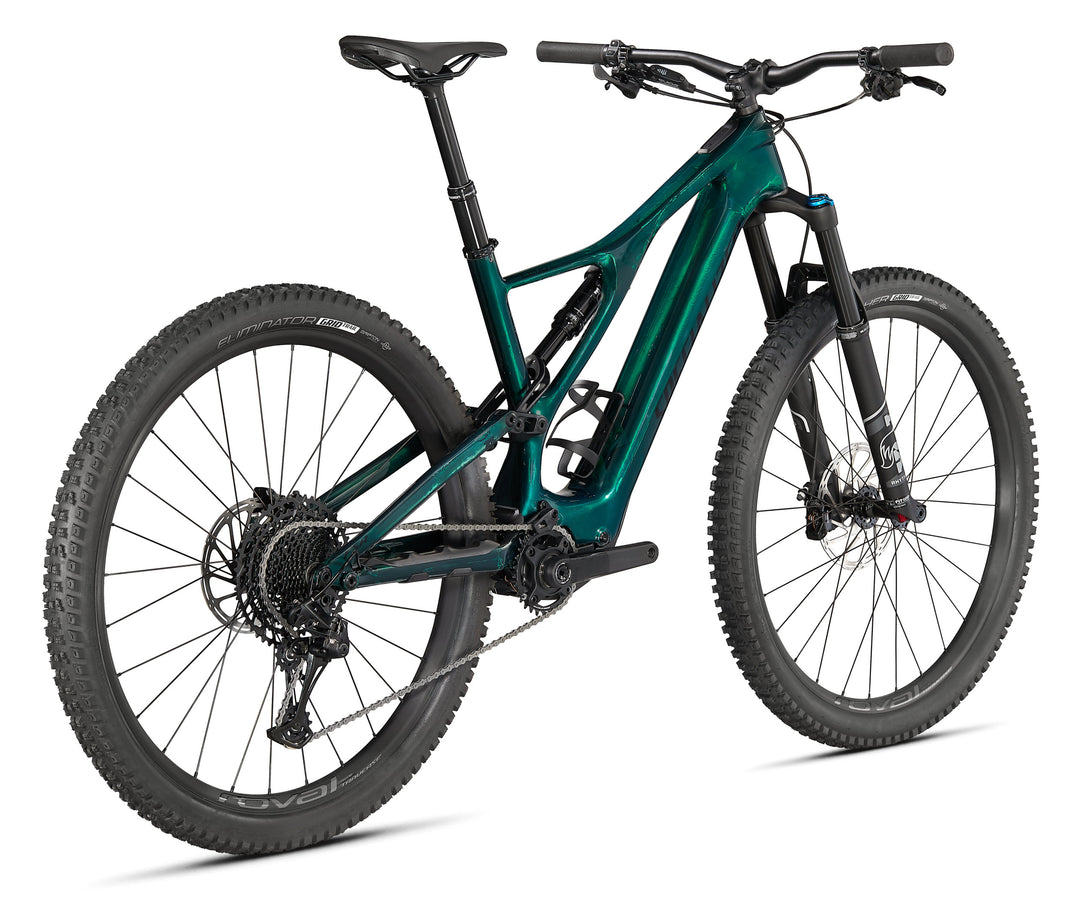

Turbo Levo SL Comp Carbon

Turbo Levo SL Comp Carbon

Part No.: 96821-5302

Notify me when this product is available:

Color
Size

Select a Size

Turbo Levo SL is a new, lightweight breed of eMTB that harnesses the quick and lively ride of our Stumpjumper…and adds just enough power to introduce a whole new dimension of kick ass. The Turbo Levo SL Comp Carbon features a full carbon frame... Read More

Turbo Levo SL is a new, lightweight breed of eMTB that harnesses the quick and lively ride of our Stumpjumper…and adds just enough power to introduce a whole new dimension of kick ass. The Turbo Levo SL Comp Carbon features a full carbon frame... Read More

wishlist message

Technical Specifications

Frame FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Fork Fox Float 34 Rhythm, Grip damper, 150mm, Sweep-Adj, 51mm rake, Kabolt Axle
Seat Binder Specialized bolt-type, alloy, 38.6mm
Rear Brake SRAM Guide RE, metallic pads
Front Brake SRAM Guide RE, 4-piston caliper, hydraulic disc, 200mm
Charger Custom charger, 48V System w/ SL system charger plug

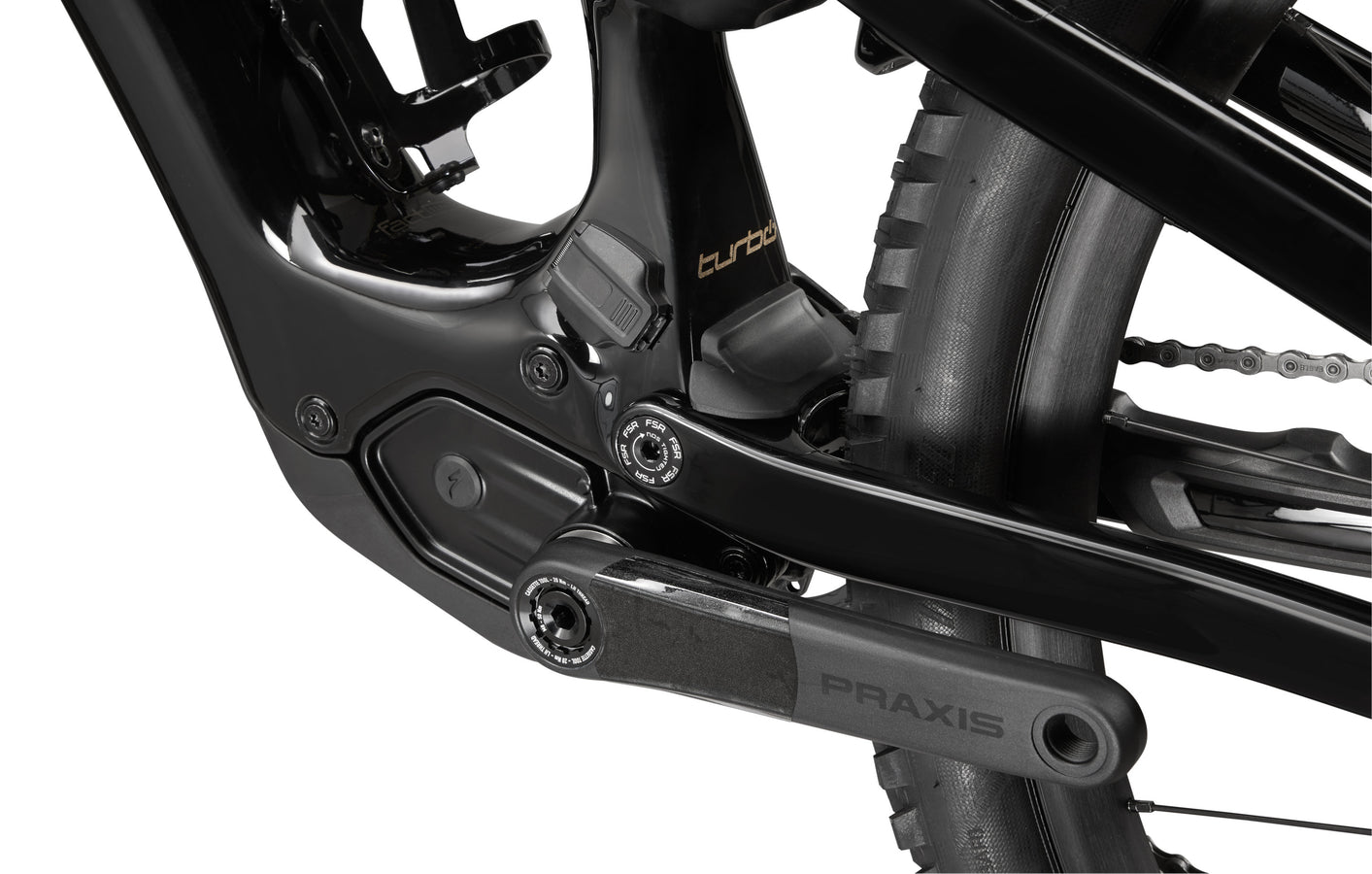

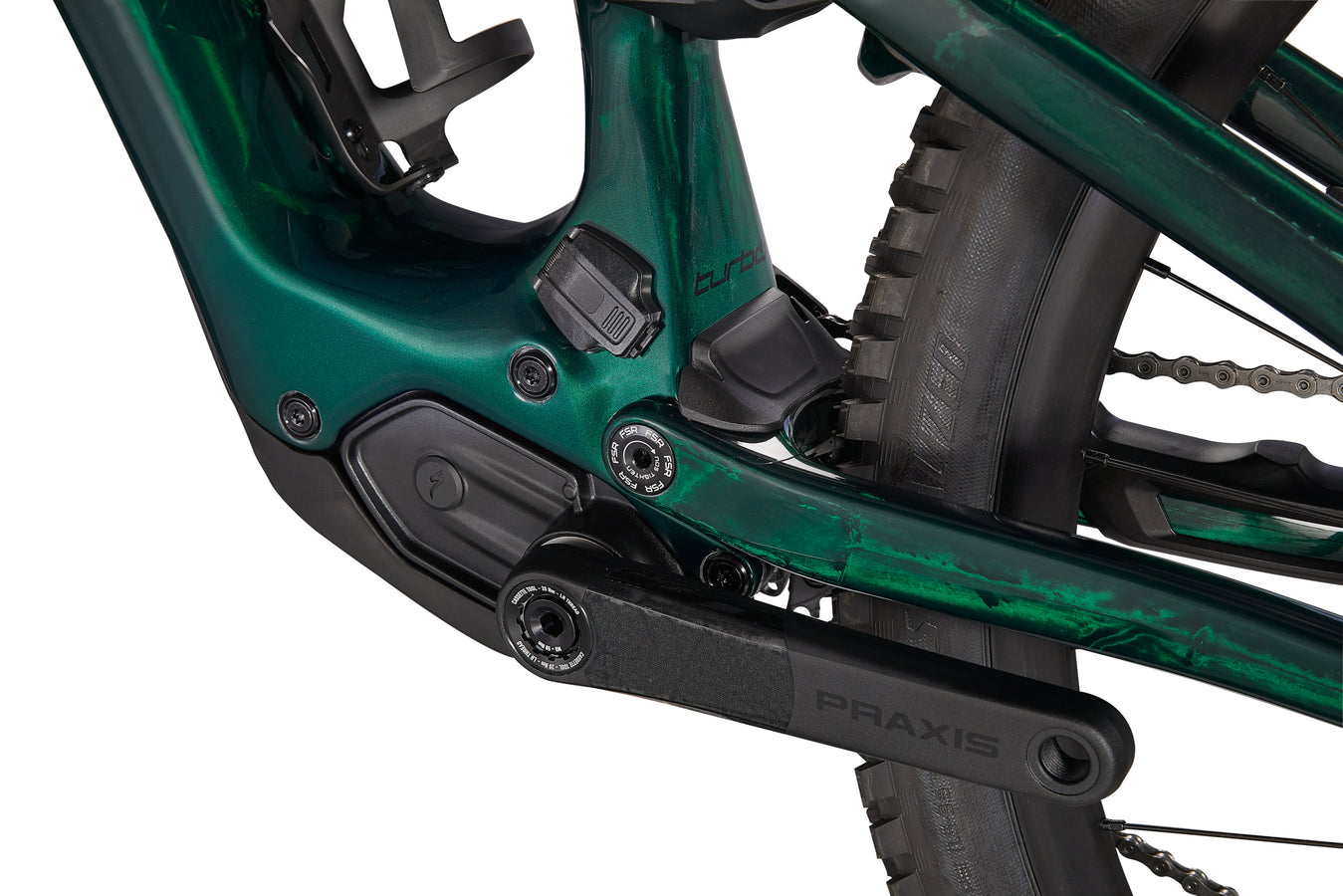

Motor Specialized SL 1.1, custom lightweight motor
Battery Specialized SL1-320, fully integrated, 320Wh

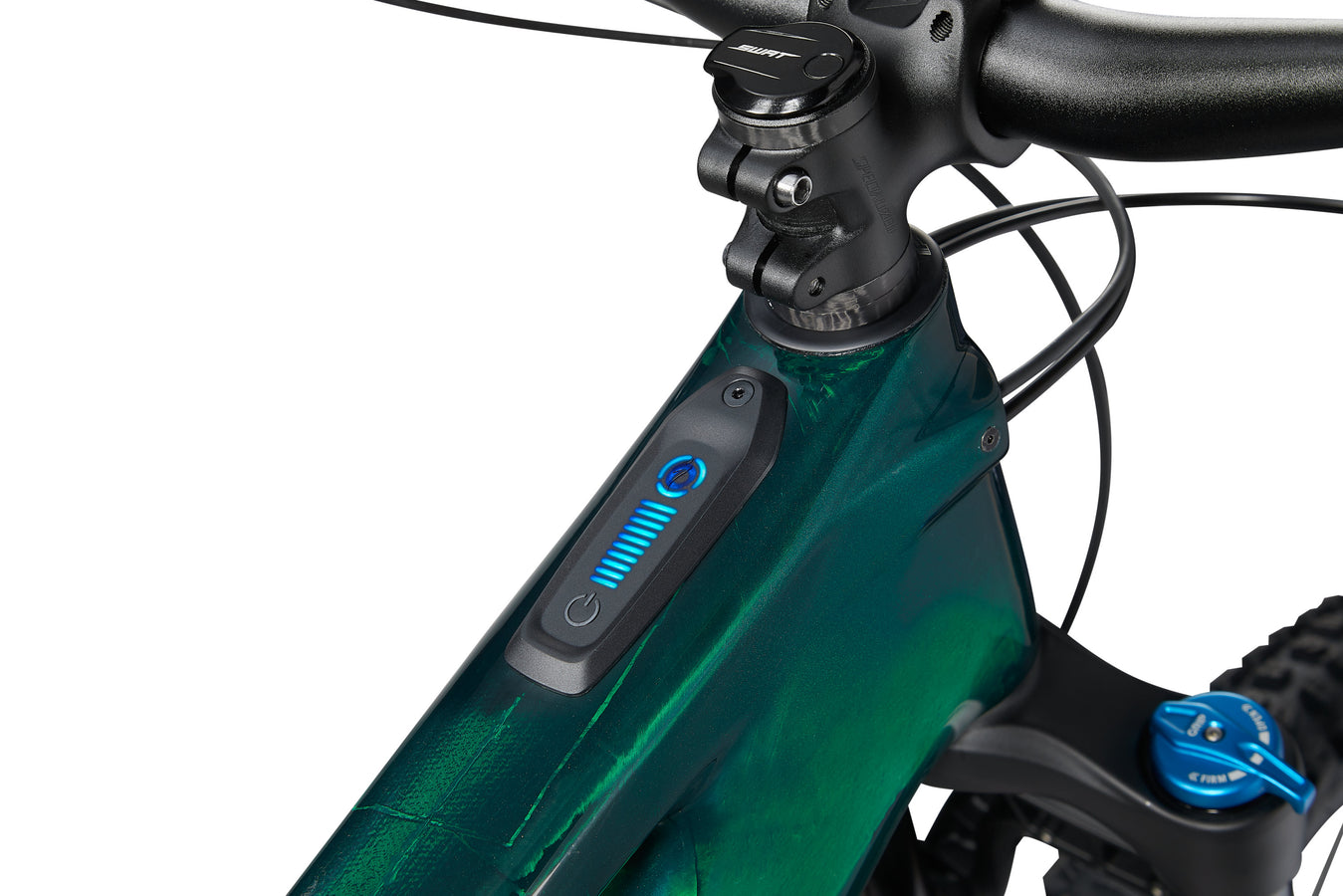

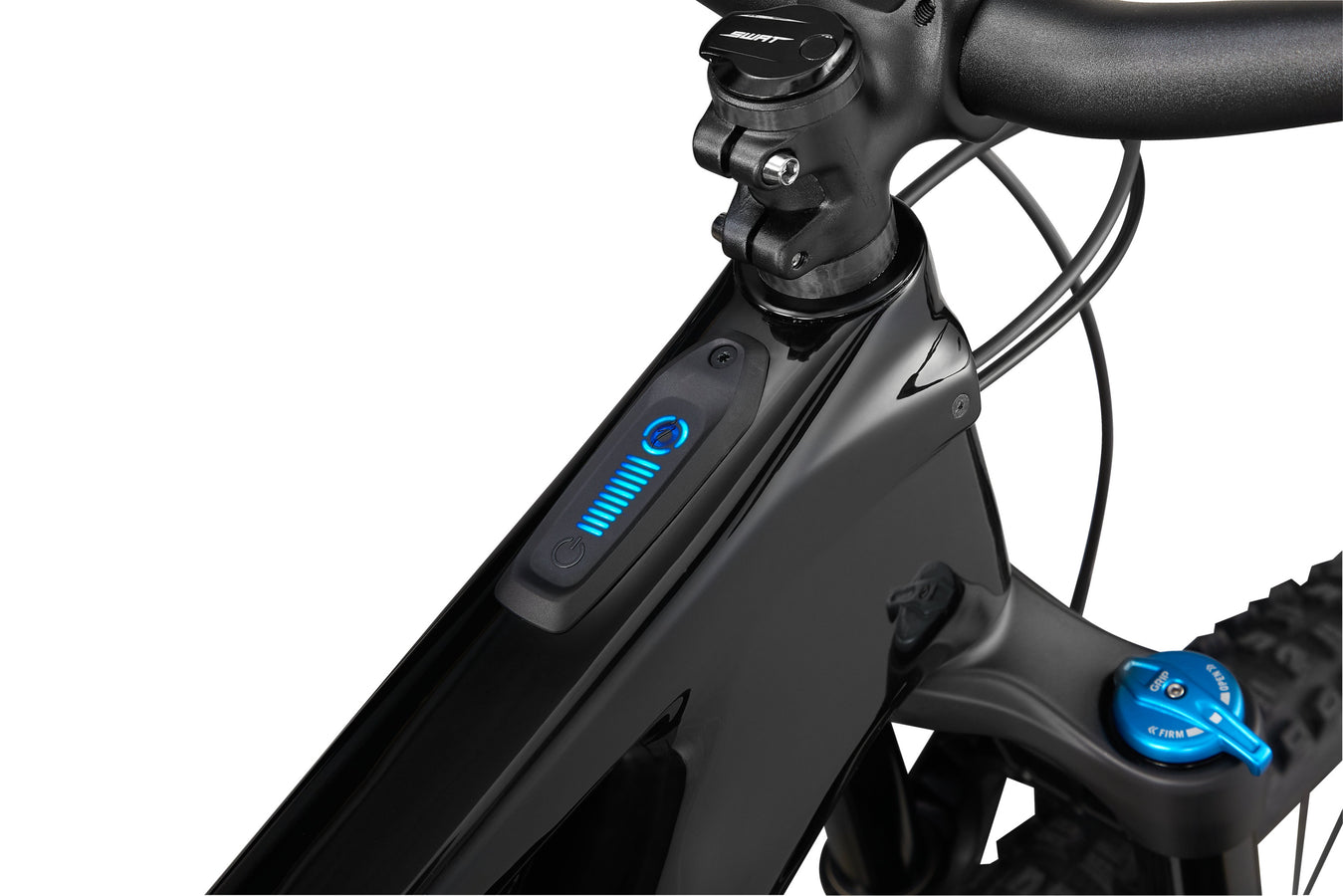

UI/Remote Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Wiring Harness Custom Specialized wiring harness w/ chargeport
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28H
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Rims Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Tire Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Inner Tubes Standard, Presta valve
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Spokes DT Swiss Industry
Chain SRAM NX Eagle, 12-speed
Chainrings SRAM X-Sync Eagle, 94 BCD, 30T
Rear Derailleur SRAM NX Eagle, 12-speed
Shift Levers SRAM NX Eagle, trigger, 12-speed
Cassette SRAM CS PG1230 EAGLE 11-50T
Crankset Praxis, forged M30, custom offset
Saddle Bridge Comp, Hollow Cr-mo rails, 155/143mm

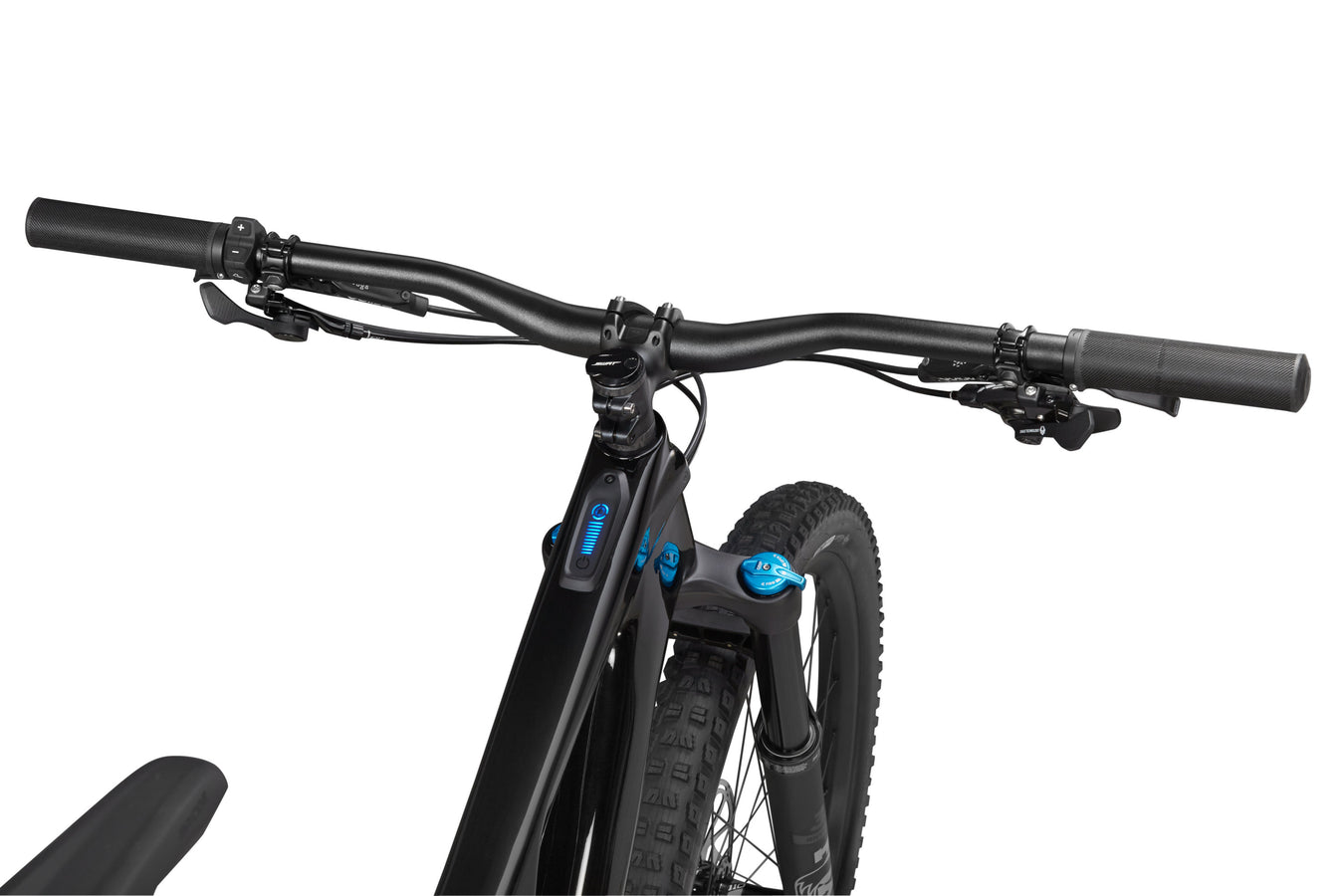

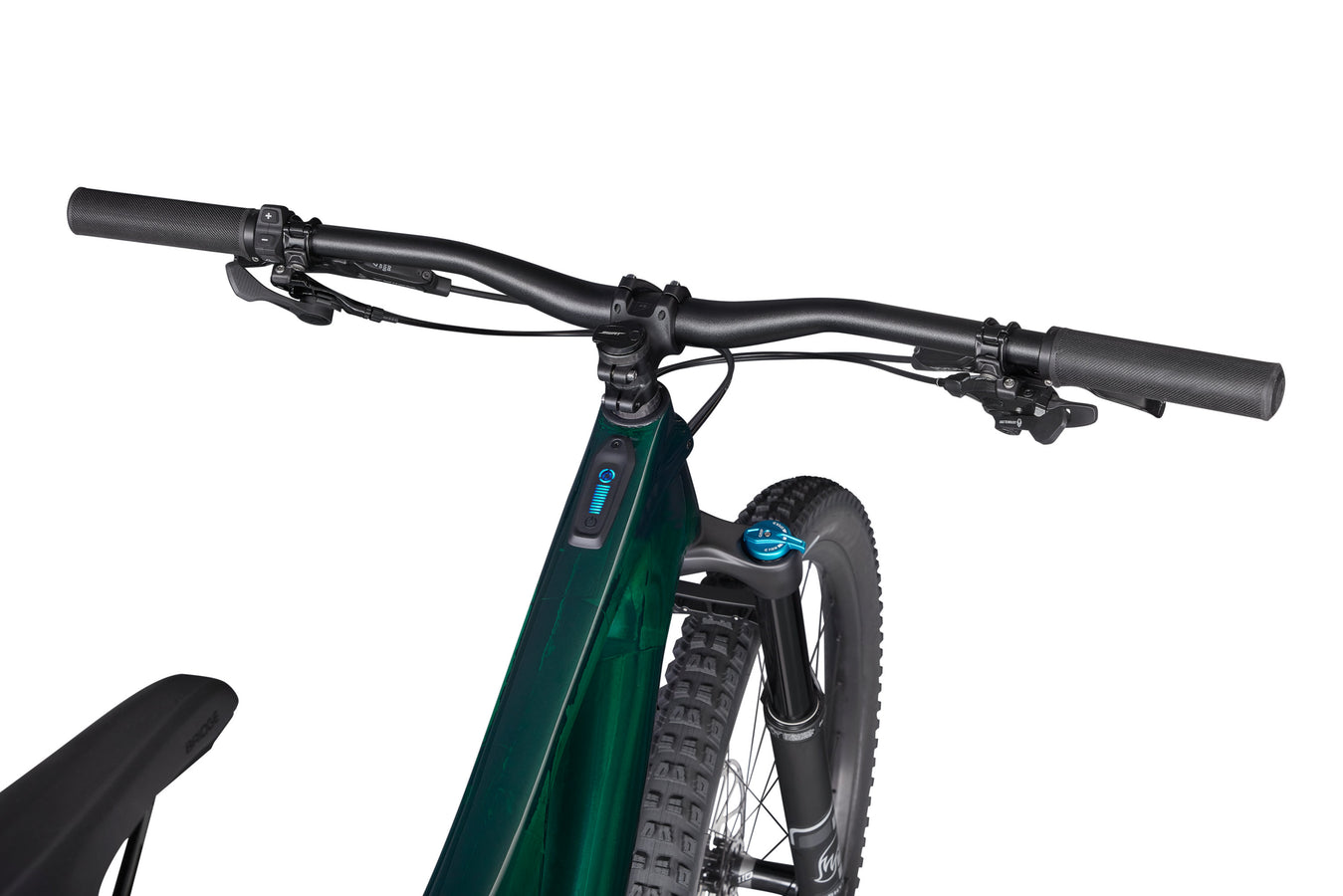

Handlebars Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S 720mm, M-XL 750mm,
SeatPost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S
Tape Specialized Trail Grips
Stem Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
Rear Shock FOX Float DPS Performance, 3-position adjustment, 52.5x210mm, Rx Trail Tune

Technical Specifications

Frame FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Fork Fox Float 34 Rhythm, Grip damper, 150mm, Sweep-Adj, 51mm rake, Kabolt Axle
Seat Binder Specialized bolt-type, alloy, 38.6mm
Rear Brake SRAM Guide RE, metallic pads
Front Brake SRAM Guide RE, 4-piston caliper, hydraulic disc, 200mm
Charger Custom charger, 48V System w/ SL system charger plug
Motor Specialized SL 1.1, custom lightweight motor
Battery Specialized SL1-320, fully integrated, 320Wh
UI/Remote Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Wiring Harness Custom Specialized wiring harness w/ chargeport
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28H
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Rims Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Tire Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Inner Tubes Standard, Presta valve
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Spokes DT Swiss Industry
Chain SRAM NX Eagle, 12-speed
Chainrings SRAM X-Sync Eagle, 94 BCD, 30T
Rear Derailleur SRAM NX Eagle, 12-speed
Shift Levers SRAM NX Eagle, trigger, 12-speed
Cassette SRAM CS PG1230 EAGLE 11-50T
Crankset Praxis, forged M30, custom offset
Saddle Bridge Comp, Hollow Cr-mo rails, 155/143mm
Handlebars Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, S 720mm, M-XL 750mm,
SeatPost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S
Tape Specialized Trail Grips
Stem Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
Rear Shock FOX Float DPS Performance, 3-position adjustment, 52.5x210mm, Rx Trail Tune

Epic - Geometry

Geometry

S M L XL
  S M L XL
Crank Length 165mm 165mm 170mm 170mm
Stem Length 45mm 45mm 45mm 45mm
Handlebar Width 780mm 780mm 780mm 780mm
Saddle Width 155mm 143mm 143mm 143mm
Seatpost Length 125 mm 150 mm 150 mm 170 mm
Stack 606mm 606mm 633mm 647mm
Reach 415mm 435mm 455mm 480mm
Head-Tube Length 95mm 95mm 125mm 140mm
Head-Tube Angle 66deg 66deg 66deg 66deg
B-B Height 348mm 348mm 348mm 348mm
B-B Drop 27mm 27mm 27mm 27mm
Trail 111mm 111mm 111mm 111mm
Fork Length (full) 560mm 560mm 560mm 560mm
Fork Rake/Offset 51mm 51mm 51mm 51mm
Front-Center 729mm 749mm 781mm 812mm
Chain-Stay Length 437mm 437mm 437mm 437mm
Wheelbase 1165mm 1185mm 1217mm 1248mm
Top-Tube Length (horizontal) 574mm 597mm 629mm 663mm
Bike Stand-Over Height 787mm 790mm 807mm 814mm
Seat-Tube Length 390mm 410mm 455mm 505mm
Seat-Tube Angle 75.3deg 75deg 74.6deg 74.2deg
