Technical Specifications
Stem | Alloy Trail Stem, 35mm bar bore |
Saddle | Bridge Comp, Hollow Cr-mo rails, 155/143mm |
Tape | Specialized Trail Grips |

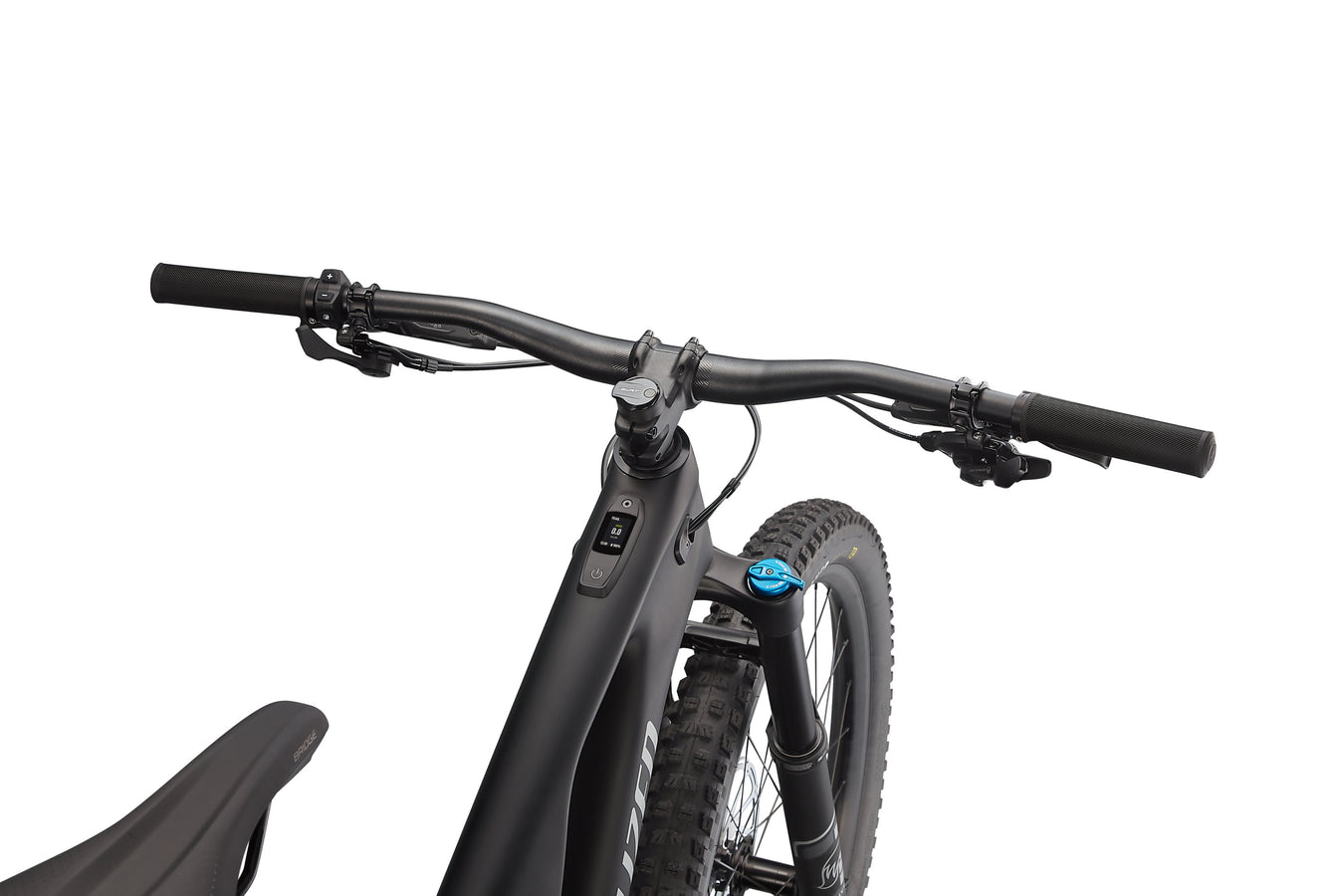

Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width |
SeatPost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1 |
Seat Binder | Alloy, 38.6 |
Seat Binder | Alloy, 38.6mm |
Frame | FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot |
Fork | FOX FLOAT 36 RHYTHM 29, GRIP damper, 44mm offset, 2-position sweep adjust, 15x110mm, 1.5" tapered steerer, 160mm travel |
Rear Hub | Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h |
Front Hub | Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6" |
Spokes | DT Swiss Industry |
Rear Tire | Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6" |
Rims | Specialized 29, hookless alloy, 30mm inner width, tubeless ready |
Inner Tubes | Standard, Presta Valve |
Wiring Harness | Custom Specialized wiring harness |
Charger | Custom charger, 42V4A w/ Rosenberger plug |
Battery | Specialized M3-700, Integrated battery, 700Wh |

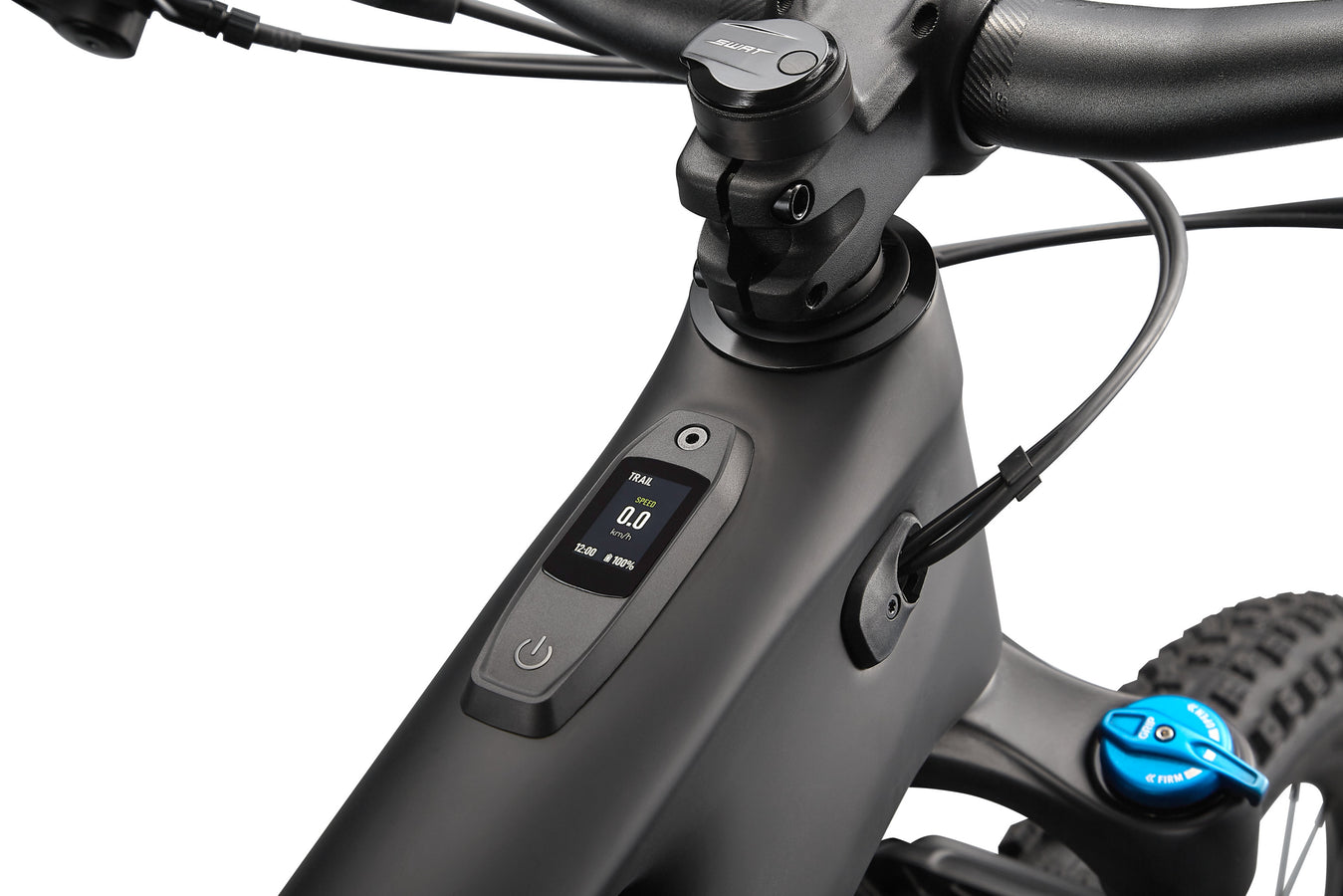

UI/Remote | Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote |

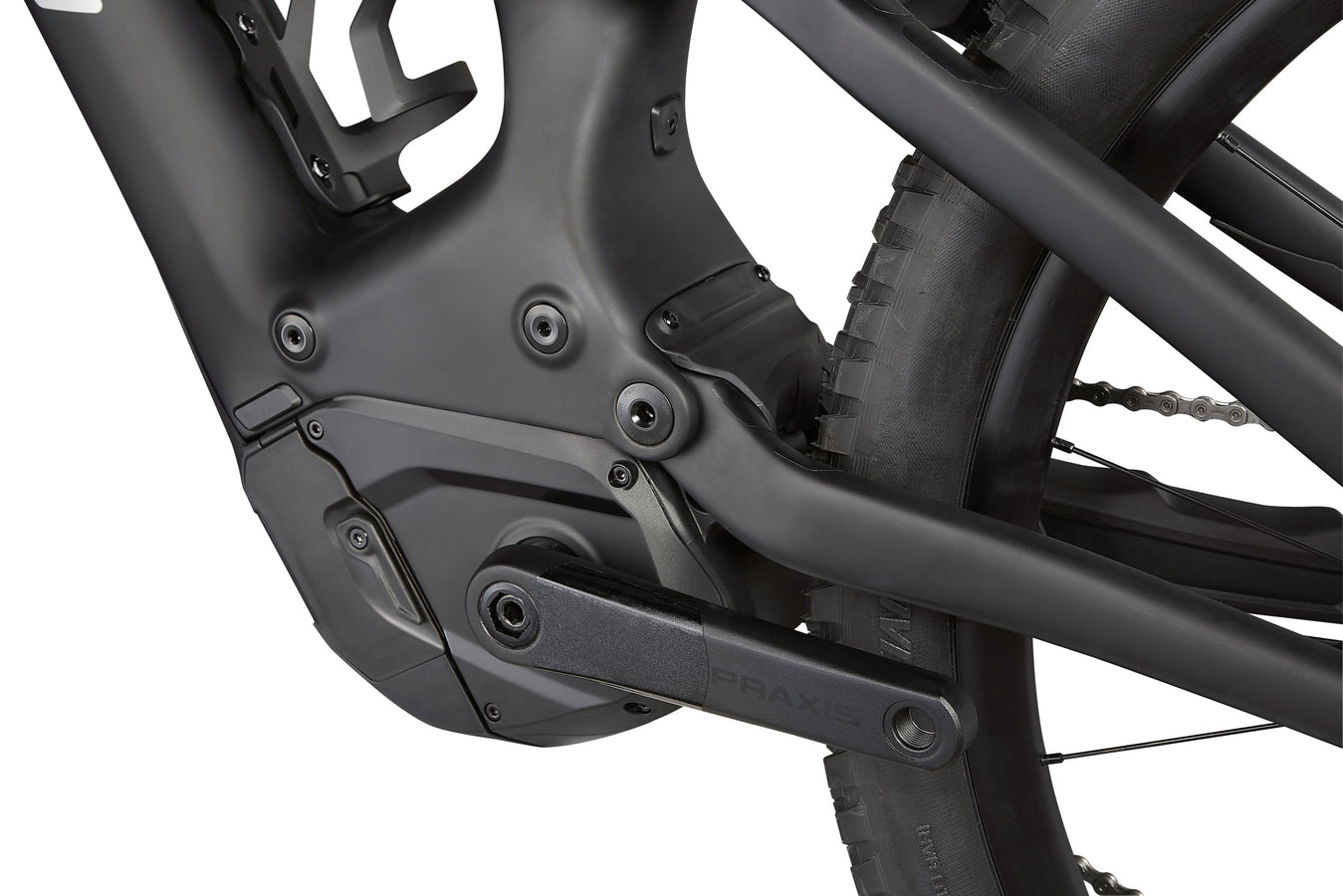

Motor | Specialized Turbo Full Power System 2.2 Motor |
Rear Shock | S1 |
Crankset | Praxis forged M30, custom offset, 160mm |
Rear Derailleur | SRAM GX Eagle, 12-speed |
Shift Levers | SRAM GX Eagle, 12-speed |
Chain | SRAM NX Eagle, 12-speed |
Chainrings | SRAM X-Sync Eagle, 104 BCD, 32T, steel |
Cassette | SRAM XG-1275, 12-speed, 10-52t |
Rear Brake | SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm |
Front Brake | SRAM Code RS, 4-piston caliper, hydraulic disc, S1-S3 |
Rear Brake | SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm |
SWAT | SWAT CC steerer tube integrated tool with chain tool and link |
Technical Specifications
Stem | Alloy Trail Stem, 35mm bar bore |
Saddle | Bridge Comp, Hollow Cr-mo rails, 155/143mm |
Tape | Specialized Trail Grips |
Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width |
SeatPost | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1 |
Seat Binder | Alloy, 38.6 |
Seat Binder | Alloy, 38.6mm |
Frame | FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot |
Fork | FOX FLOAT 36 RHYTHM 29, GRIP damper, 44mm offset, 2-position sweep adjust, 15x110mm, 1.5" tapered steerer, 160mm travel |
Rear Hub | Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h |
Front Hub | Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
Front Tire | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6" |
Spokes | DT Swiss Industry |
Rear Tire | Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6" |
Rims | Specialized 29, hookless alloy, 30mm inner width, tubeless ready |
Inner Tubes | Standard, Presta Valve |
Wiring Harness | Custom Specialized wiring harness |
Charger | Custom charger, 42V4A w/ Rosenberger plug |
Battery | Specialized M3-700, Integrated battery, 700Wh |
UI/Remote | Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth®, w/Handlebar remote |
Motor | Specialized Turbo Full Power System 2.2 Motor |
Rear Shock | S1 |
Crankset | Praxis forged M30, custom offset, 160mm |
Rear Derailleur | SRAM GX Eagle, 12-speed |
Shift Levers | SRAM GX Eagle, 12-speed |
Chain | SRAM NX Eagle, 12-speed |
Chainrings | SRAM X-Sync Eagle, 104 BCD, 32T, steel |
Cassette | SRAM XG-1275, 12-speed, 10-52t |
Rear Brake | SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm |
Front Brake | SRAM Code RS, 4-piston caliper, hydraulic disc, S1-S3 |
Rear Brake | SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm |
SWAT | SWAT CC steerer tube integrated tool with chain tool and link |
Epic - Geometry
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 160mm | 160mm | 160mm | 160mm | 160mm | 160mm |
Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
Stem Length | 40mm | 40mm | 50mm | 50mm | 50mm | 50mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 100mm | 125mm | 150mm | 170mm | 170mm | 190mm |
Stack | 605mm | 617mm | 626mm | 635mm | 644mm | 653mm |
Reach | 412mm | 432mm | 452mm | 477mm | 502mm | 532mm |
Headtube Length | 105mm | 105mm | 115mm | 125mm | 135mm | 145mm |
Headtube Angle | 64.5deg | 64.5deg | 64.5deg | 64.5deg | 64.5deg | 64.5deg |
BB Height | 352mm | 350mm | 350mm | 350mm | 350mm | 350mm |
BB Drop | 25mm | 27mm | 27mm | 27mm | 27mm | 27mm |
Trail | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm |
Fork Length (full) | 557mm | 567mm | 567mm | 567mm | 567mm | 567mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 738mm | 760mm | 784mm | 814mm | 843mm | 878mm |
Chainstay Length | 442mm | 442mm | 442mm | 442mm | 442mm | 442mm |
Wheelbase | 1179mm | 1200mm | 1225mm | 1255mm | 1284mm | 1318mm |
Bike Standover Height | 752mm | 776mm | 783mm | 787mm | 788mm | 790mm |
Seat Tube Length | 380mm | 390mm | 405mm | 425mm | 445mm | 465mm |
Seat Tube Angle | 78deg | 77.2deg | 76.7deg | 76.2deg | 76.2deg | 76.2deg |
Max Seatpost Insertion | 210mm | 220mm | 240mm | 255mm | 275mm | 295mm |
Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
Geometry
Geometry
S1 | S2 | S3 | S4 | S5 | S6 | |
---|---|---|---|---|---|---|
Crank Length | 160mm | 160mm | 160mm | 160mm | 160mm | 160mm |
Handlebar Width | 780mm | 780mm | 780mm | 780mm | 780mm | 780mm |
Stem Length | 40mm | 40mm | 50mm | 50mm | 50mm | 50mm |
Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 100mm | 125mm | 150mm | 170mm | 170mm | 190mm |
Stack | 605mm | 617mm | 626mm | 635mm | 644mm | 653mm |
Reach | 412mm | 432mm | 452mm | 477mm | 502mm | 532mm |
Headtube Length | 105mm | 105mm | 115mm | 125mm | 135mm | 145mm |
Headtube Angle | 64.5deg | 64.5deg | 64.5deg | 64.5deg | 64.5deg | 64.5deg |
BB Height | 352mm | 350mm | 350mm | 350mm | 350mm | 350mm |
BB Drop | 25mm | 27mm | 27mm | 27mm | 27mm | 27mm |
Trail | 130mm | 130mm | 130mm | 130mm | 130mm | 130mm |
Fork Length (full) | 557mm | 567mm | 567mm | 567mm | 567mm | 567mm |
Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 738mm | 760mm | 784mm | 814mm | 843mm | 878mm |
Chainstay Length | 442mm | 442mm | 442mm | 442mm | 442mm | 442mm |
Wheelbase | 1179mm | 1200mm | 1225mm | 1255mm | 1284mm | 1318mm |
Bike Standover Height | 752mm | 776mm | 783mm | 787mm | 788mm | 790mm |
Seat Tube Length | 380mm | 390mm | 405mm | 425mm | 445mm | 465mm |
Seat Tube Angle | 78deg | 77.2deg | 76.7deg | 76.2deg | 76.2deg | 76.2deg |
Max Seatpost Insertion | 210mm | 220mm | 240mm | 255mm | 275mm | 295mm |
Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm |
Geometry
