Stumpjumper EVO Alloy Frameset

Stumpjumper EVO Alloy Frameset

Part No.: 76322-7003

Notify me when this product is available:

Color
Size

Select a Size

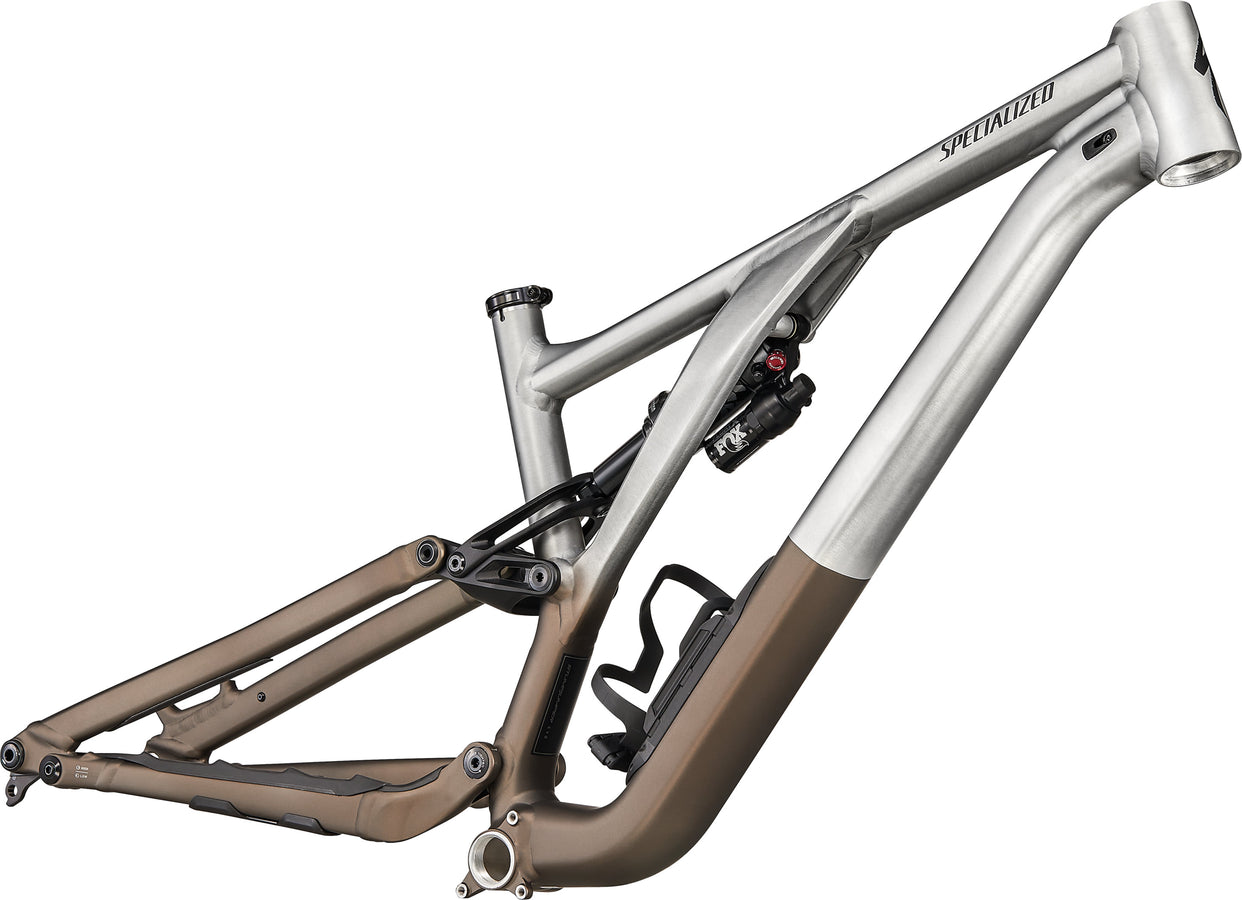

Let's get something clear, the Stumpjumper EVO Alloy isn't a "normal" trail bike. It's built to get gnarly, plain and simple. Featuring the same all-new design as its carbon brethren—including an adjustable head tube angle, 150mm of performance... Read More

Let's get something clear, the Stumpjumper EVO Alloy isn't a "normal" trail bike. It's built to get gnarly, plain and simple. Featuring the same all-new design as its carbon brethren—including an adjustable head tube angle, 150mm of performance... Read More

wishlist message

Technical Specifications

Frame M5 Alloy chassis and rear-end, asymmetrical design, 29" Trail Geometry with S-Sizing, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Seat Binder Alloy, 38.6mm
SWAT SWAT™ Door integration
Rear Shock FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1

Technical Specifications

Frame M5 Alloy chassis and rear-end, asymmetrical design, 29" Trail Geometry with S-Sizing, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Seat Binder Alloy, 38.6mm
SWAT SWAT™ Door integration
Rear Shock FOX FLOAT X Performance, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSR adjustment, S1

Epic - Geometry

Geometry

  S1 S2 S3 S4 S5 S6
Top-tube Length (horizontal) 541mm 564mm 590mm 623mm 647mm 679mm
Reach 410mm 428mm 448mm 475mm 498mm 528mm
Bike Standover Height 746mm 749mm 757mm 760mm 784mm 792mm
Chainstay Length 441mm 441mm 441mm 441mm 451mm 451mm
Front Center 734mm 756mm 780mm 809mm 838mm 873mm
Headtube Length 95mm 95mm 105mm 115mm 125mm 135mm
Stack 614mm 617mm 626mm 635mm 644mm 654mm
BB Height 335mm 340mm 340mm 340mm 340mm 340mm
Max Seatpost Insertion 190mm 190mm 210mm 230mm 250mm 270mm
Min Seatpost Insertion 100mm 100mm 100mm 100mm 100mm 100mm
Headtube Angle 64.5deg 64.5deg 64.5deg 64.5deg 64.5deg 64.5deg
Fork Length (full) 561mm 571mm 571mm 571mm 571mm 571mm
Seat Tube Length 385mm 385mm 405mm 425mm 445mm 465mm
Seat Tube Angle 78deg 77.6deg 77.2deg 76.9deg 77deg 77deg
Wheelbase 1172mm 1195mm 1219mm 1249mm 1288mm 1322mm
BB Drop 40mm 35mm 35mm 35mm 35mm 35mm
Trail 131mm 131mm 131mm 131mm 131mm 131mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm 44mm
