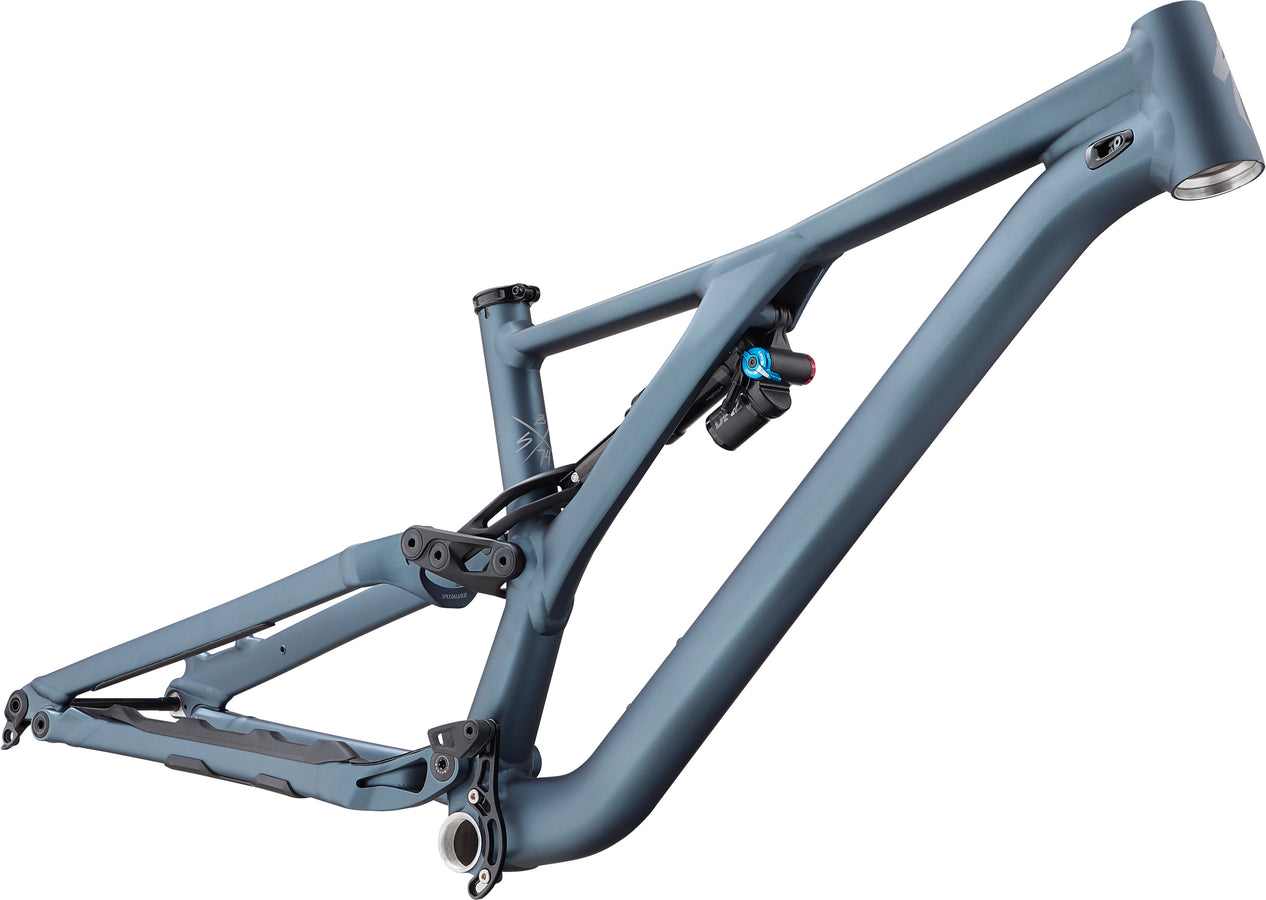

Stumpjumper EVO Alloy 27.5 – Frameset

Part No. 73319-7002

Notify me when this product is available:

Color
Size
Size Chart
The Stumpjumper EVO Alloy 27.5 is designed to conquer the gnarliest trails out there. We paired 150mm of smooth Stumpjumper suspension with seriously slack, long and low geometry. It’s the perfect frame for anyone looking to build an absolute brawler. ONE FRAME, ANY TRAIL The innovative sidearm frame design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we’ve increased both stiffness and performance over bumps. EVO IS FOR SHREDDERS Stumpy EVOs aren’t "normal" trail bikes—they’re built to get gnarly, simple as that. With their slacked-out front-end and longer top tube, EVO models have heavier steering and exceptional front-end traction that beg you to do cutties and boost every lip. Get rowdy. THE PERFECT FOUNDATION • Alloy sidearm frame design offers balanced stiffness and precise handling. • FOX FLOAT DPX2 Performance rear shock is supple and easy to adjust on the fly. • Style-specific sizing lets you choose your frame size based on your riding style. p>

Technical Specifications

Frame M5 alloy frame, asymmetrical design, 27.5 style-specific EVO Trail Geometry, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Rear Shock FOX FLOAT DPX2 Performance, Rx Trail Tune, EVOL Air Sleeve, 3-position adjustment, 210x52.5mm

Technical Specifications

Geometry

Geometry Chart

Geometry

  Size S2 S3
Stack 601mm 610mm
Reach 465mm 490mm
Head-Tube Length 110mm 120mm
Head-Tube Angle 63.5deg 63.5deg
B-B Height 324mm 324mm
B-B Drop 33mm 33mm
Trail 137mm 137mm
Fork Length (Full) 542mm 542mm
Fork Rake/Offset 37mm 37mm
Front-Center 790mm 820mm
Chain-Stay Length 440mm 440mm
Wheelbase 1228mm 1258mm
Top-Tube Length (Horizontal) 615mm 647mm
Bike Stand-Over Height 743mm 764mm
Seat-Tube Length 400mm 450mm
Seat-Tube Angle 76deg 75.6deg
