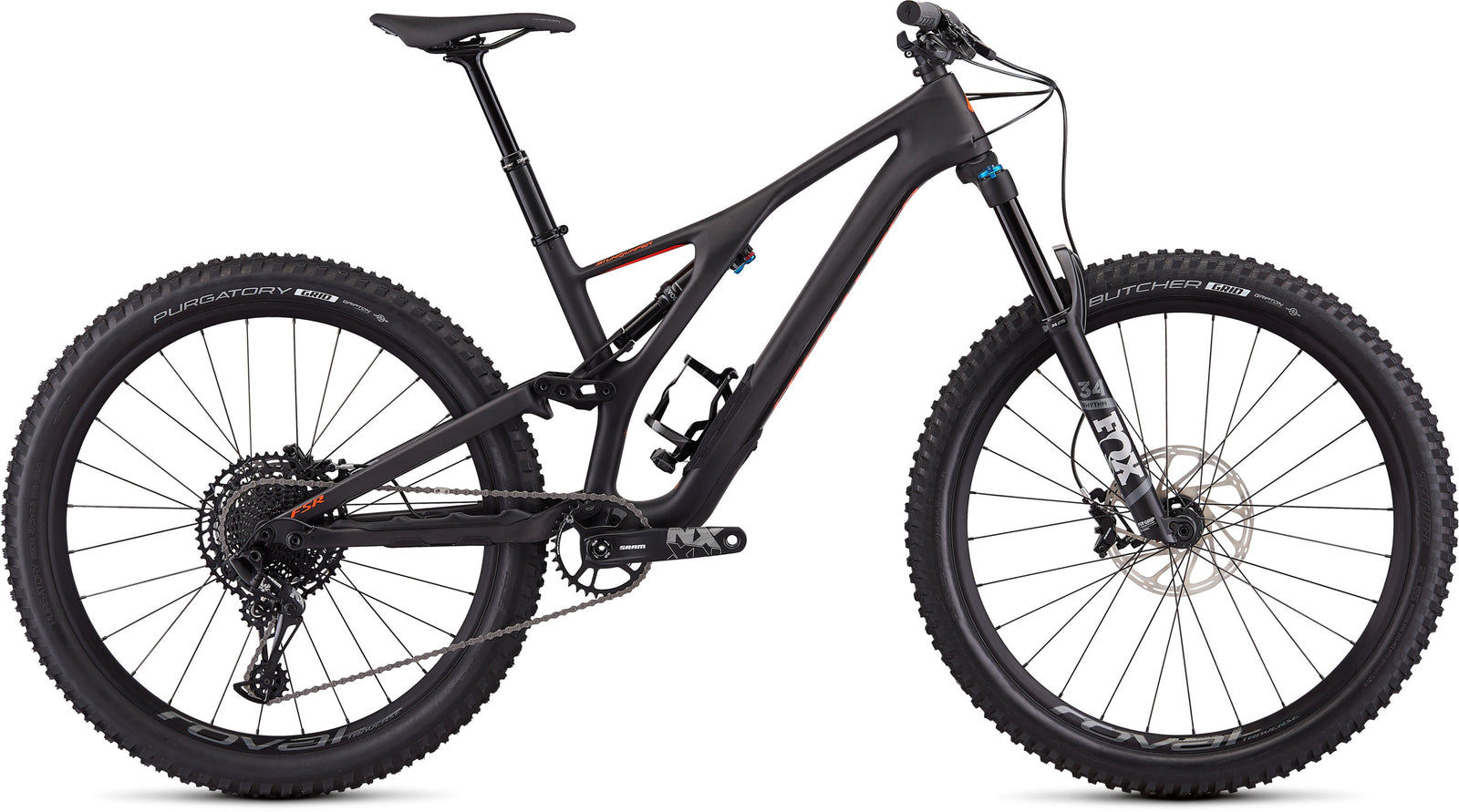

Stumpjumper Comp Carbon 27.5

Stumpjumper Comp Carbon 27.5

Part No.: 93319-5402

Notify me when this product is available:

Color
Size

Select a Size

What do you get when you take an S-Works-level carbon frame and deck it out in a solid list of no-fuss components? You get this bike right here. The Stumpjumper Comp Carbon 27.5 delivers amazing performance on an everyman"s budget. THE ULTIMATE T... Read More
What do you get when you take an S-Works-level carbon frame and deck it out in a solid list of no-fuss components? You get this bike right here. The Stumpjumper Comp Carbon 27.5 delivers amazing performance on an everyman"s budget. THE ULTIMATE T... Read More

wishlist message

Technical Specifications

Frame FACT 11m, full carbon chassis and rear-end, asymmetrical design, 27.5 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Rear Shock FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, 210x52.5mm
Fork FOX FLOAT RHYTHM, 34, GRIP damper, 44mm offset, 2-position sweep adjust, 15x110mm, tapered alloy steerer, 150mm of travel
Stem Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebars Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, XS 720mm, S-XL 750mm,
Grips Specialized Sip grip, half-waffle, S/M
Saddle Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SeatPost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S
Front Brake SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200mm
Rear Brake SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180mm
Rear Derailleur SRAM NX Eagle, 12-speed
Shift Levers SRAM NX Eagle, trigger, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
Chain SRAM NX Eagle, 12-speed
Crankset SRAM NX Eagle, DUB, 170mm
Chainrings Steel, 30T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Rims Roval Traverse 27.5, hookless alloy, 30mm inner width, tubeless ready
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes DT Swiss Industry
Front Tire Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6\"
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6\"

Technical Specifications

Frame FACT 11m, full carbon chassis and rear-end, asymmetrical design, 27.5 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Rear Shock FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, 210x52.5mm
Fork FOX FLOAT RHYTHM, 34, GRIP damper, 44mm offset, 2-position sweep adjust, 15x110mm, tapered alloy steerer, 150mm of travel
Stem Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebars Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, XS 720mm, S-XL 750mm,
Grips Specialized Sip grip, half-waffle, S/M
Saddle Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SeatPost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S
Front Brake SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200mm
Rear Brake SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180mm
Rear Derailleur SRAM NX Eagle, 12-speed
Shift Levers SRAM NX Eagle, trigger, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
Chain SRAM NX Eagle, 12-speed
Crankset SRAM NX Eagle, DUB, 170mm
Chainrings Steel, 30T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Rims Roval Traverse 27.5, hookless alloy, 30mm inner width, tubeless ready
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes DT Swiss Industry
Front Tire Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6\"
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6\"

Epic - Geometry

Geometry

XS S M L XL
  XS S M L XL
Stack 581mm 592mm 596mm 623mm 637mm
Reach 405mm 415mm 435mm 455mm 480mm
Head-Tube Length 100mm 105mm 110mm 140mm 155mm
Head-Tube Angle 66.5deg 65.5deg 65.5deg 65.5deg 65.5deg
B-B Height 325mm 336mm 336mm 336mm 336mm
B-B Drop 28mm 21mm 21mm 21mm 21mm
Trail 103mm 112mm 112mm 112mm 112mm
Fork Length (Full) 522mm 542mm 542mm 542mm 542mm
Fork Rake/Offset 46mm 46mm 46mm 46mm 46mm
Front-Center 696mm 726mm 748mm 780mm 812mm
Chain-Stay Length 432mm 432mm 432mm 432mm 432mm
Wheelbase 1127mm 1157mm 1179mm 1212mm 1243mm
Top-Tube Length (Horizontal) 544mm 570mm 595mm 627mm 660mm
Bike Stand-Over Height 742mm 739mm 743mm 758mm 774mm
Seat-Tube Length 380mm 380mm 410mm 455mm 505mm
Seat-Tube Angle 76.5deg 75.3deg 75deg 74.6deg 74.2deg

Geometry

Geometry Chart

Geometry

  XS S M L XL
Stack 581mm 592mm 596mm 623mm 637mm
Reach 405mm 415mm 435mm 455mm 480mm
Head-Tube Length 100mm 105mm 110mm 140mm 155mm
Head-Tube Angle 66.5deg 65.5deg 65.5deg 65.5deg 65.5deg
B-B Height 325mm 336mm 336mm 336mm 336mm
B-B Drop 28mm 21mm 21mm 21mm 21mm
Trail 103mm 112mm 112mm 112mm 112mm
Fork Length (Full) 522mm 542mm 542mm 542mm 542mm
Fork Rake/Offset 46mm 46mm 46mm 46mm 46mm
Front-Center 696mm 726mm 748mm 780mm 812mm
Chain-Stay Length 432mm 432mm 432mm 432mm 432mm
Wheelbase 1127mm 1157mm 1179mm 1212mm 1243mm
Top-Tube Length (Horizontal) 544mm 570mm 595mm 627mm 660mm
Bike Stand-Over Height 742mm 739mm 743mm 758mm 774mm
Seat-Tube Length 380mm 380mm 410mm 455mm 505mm
Seat-Tube Angle 76.5deg 75.3deg 75deg 74.6deg 74.2deg

Geometry

Geometry Chart
