Stumpjumper Comp Alloy 27.5

Part No. 93319-5002

Notify me when this product is available:

Color
Size
Size Chart

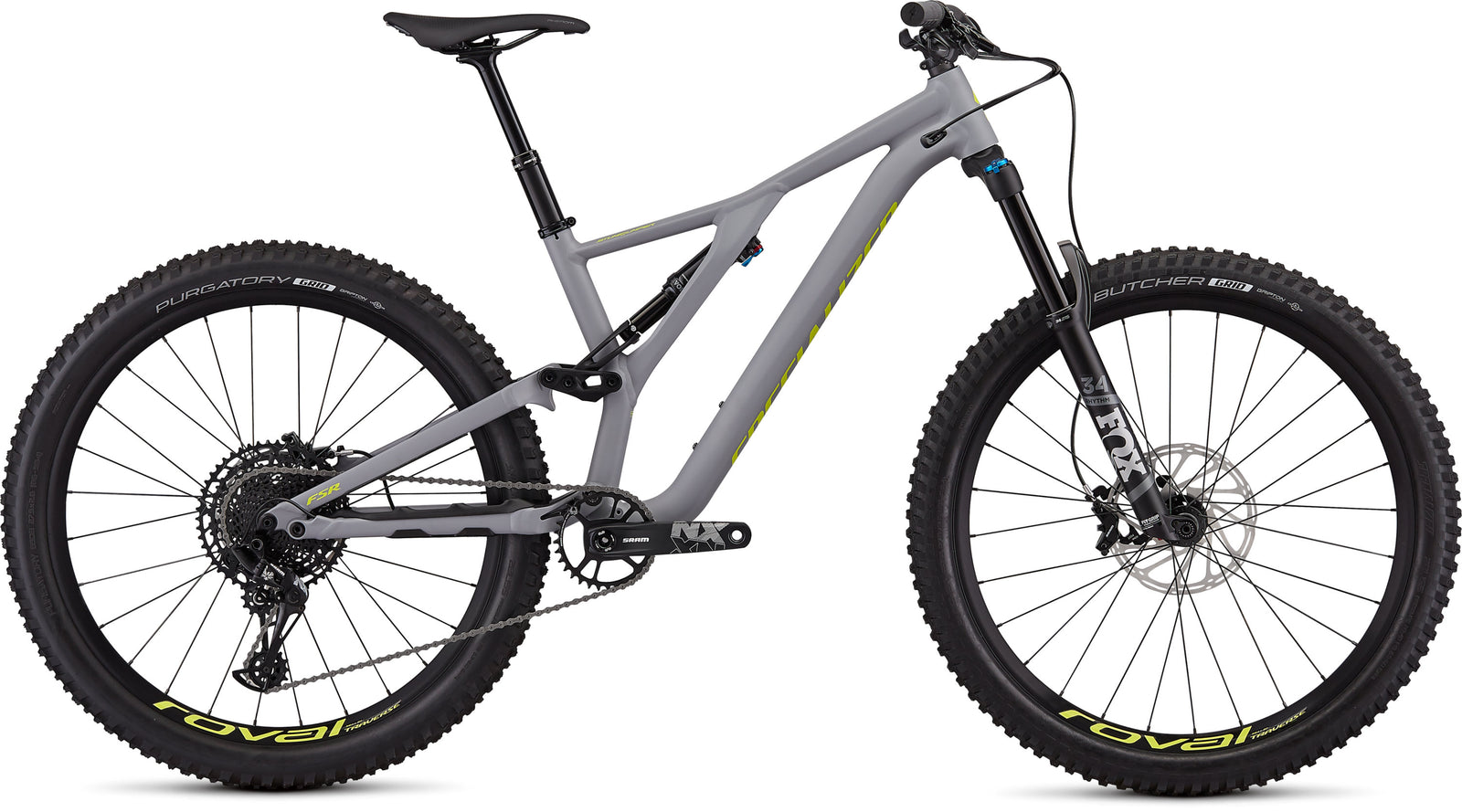

The Stumpjumper Comp Alloy 27.5 combines the balanced stiffness and incredible precision of our sidearm frame design with a 12-speed SRAM NX Eagle drivetrain. The end result is a bike that outperforms its price tag by a wide margin. THE ULTIMATE TRAIL BIKE The innovative sidearm frame design makes a lighter, better-handling bike. By directly connecting all three mounting points of the rear-end and shock to the frame, we’ve increased both stiffness and performance over bumps. PERFECTLY-BALANCED SUSPENSION Our in-house suspension-tuning team develops custom shock tunes, perfectly paired to each bike’s kinematics. We call this Rx Tune and while it’s not the easy way to build a suspension bike, it’s worth it. You feel Rx Tune as perfectly-balanced suspension. Total control. MASSIVE BANG FOR YOUR BUCK • Sidearm frame design offers balanced stiffness and precise handling. • FOX DPS Performance rear shock delivers perfectly-dialed rear suspension. • NX Eagle 12-speed drivetrain gives you single-ring simplicity and gearing to spare.

Technical Specifications

Frame M5 alloy chassis and rear-end, asymmetrical design, 27.5 Trail Geometry, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Rear Shock FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, 210x52.5mm
Fork FOX FLOAT RHYTHM, 34, GRIP damper, 44mm offset, 2-position sweep adjust, 15x110mm, tapered alloy steerer, 150mm of travel
Stem Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebars Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, XS 720mm, S-XL 750mm,
Grips Specialized Sip grip, half-waffle, S/M
Saddle Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SeatPost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S
Front Brake SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200mm
Rear Brake SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180mm
Rear Derailleur SRAM NX Eagle, 12-speed
Shift Levers SRAM NX Eagle, trigger, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
Chain SRAM NX Eagle, 12-speed
Crankset SRAM NX Eagle, DUB, 170mm
Chainrings Steel, 30T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Rims Roval Traverse 27.5, hookless alloy, 30mm inner width, tubeless ready
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes DT Swiss Industry
Front Tire Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6\"
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6\"

Technical Specifications

Geometry

Geometry Chart

Geometry

  Size XS S M L XL
Stack 581mm 592mm 596mm 623mm 637mm
Reach 405mm 415mm 435mm 455mm 480mm
Head-Tube Length 100mm 105mm 110mm 140mm 155mm
Head-Tube Angle 66.5deg 65.5deg 65.5deg 65.5deg 65.5deg
B-B Height 325mm 336mm 336mm 336mm 336mm
B-B Drop 28mm 21mm 21mm 21mm 21mm
Trail 103mm 112mm 112mm 112mm 112mm
Fork Length (Full) 522mm 542mm 542mm 542mm 542mm
Fork Rake/Offset 46mm 46mm 46mm 46mm 46mm
Front-Center 696mm 726mm 748mm 780mm 812mm
Chain-Stay Length 432mm 432mm 432mm 432mm 432mm
Wheelbase 1127mm 1157mm 1179mm 1212mm 1243mm
Top-Tube Length (Horizontal) 544mm 570mm 595mm 627mm 660mm
Bike Stand-Over Height 742mm 752mm 757mm 769mm 770mm
Seat-Tube Length 380mm 380mm 410mm 455mm 505mm
Seat-Tube Angle 76.5deg 75.3deg 75deg 74.6deg 74.2deg
