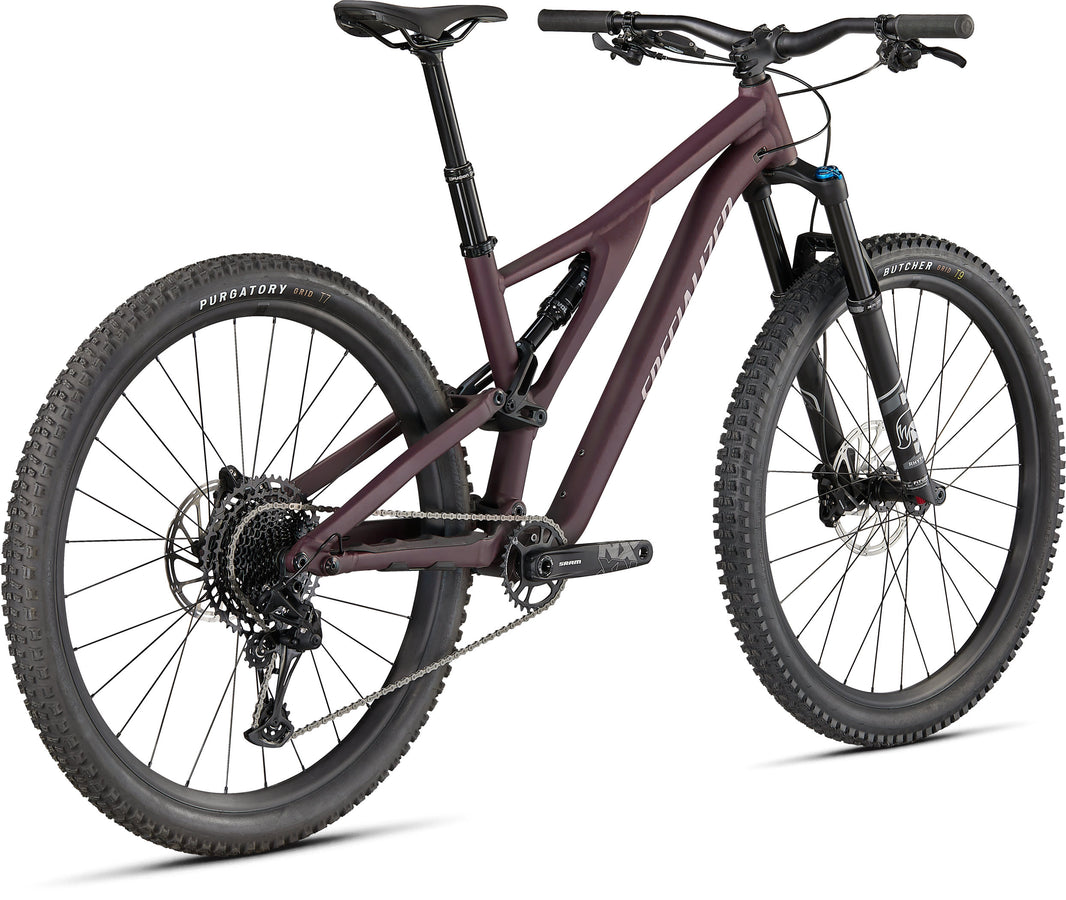

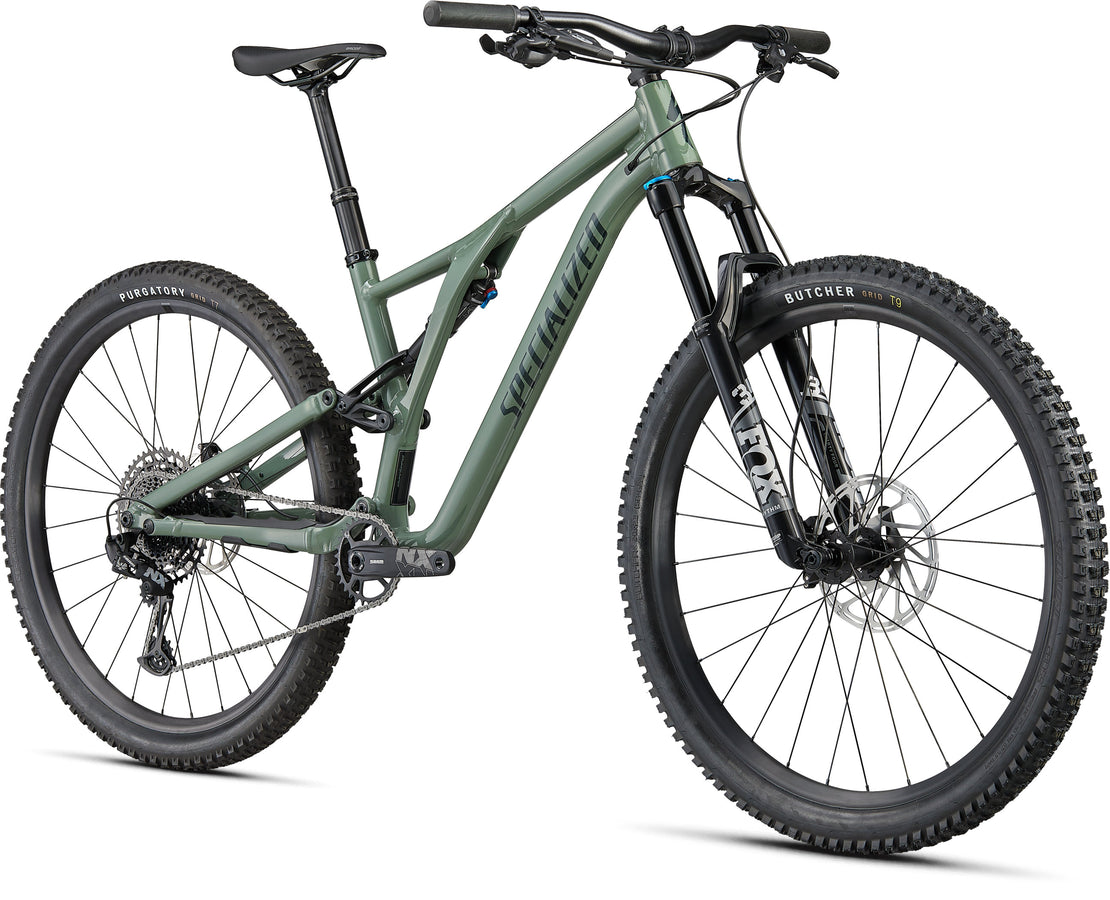

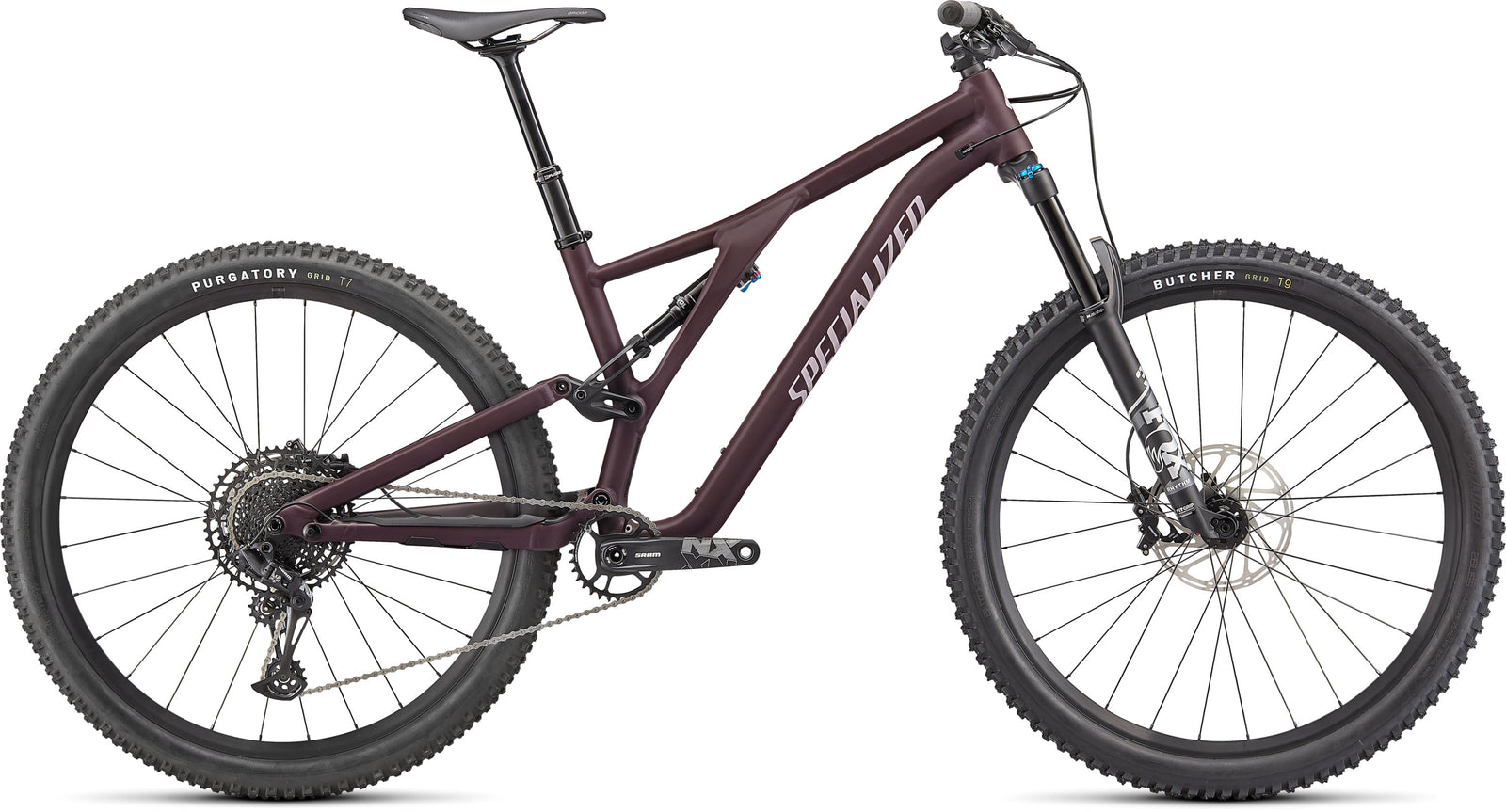

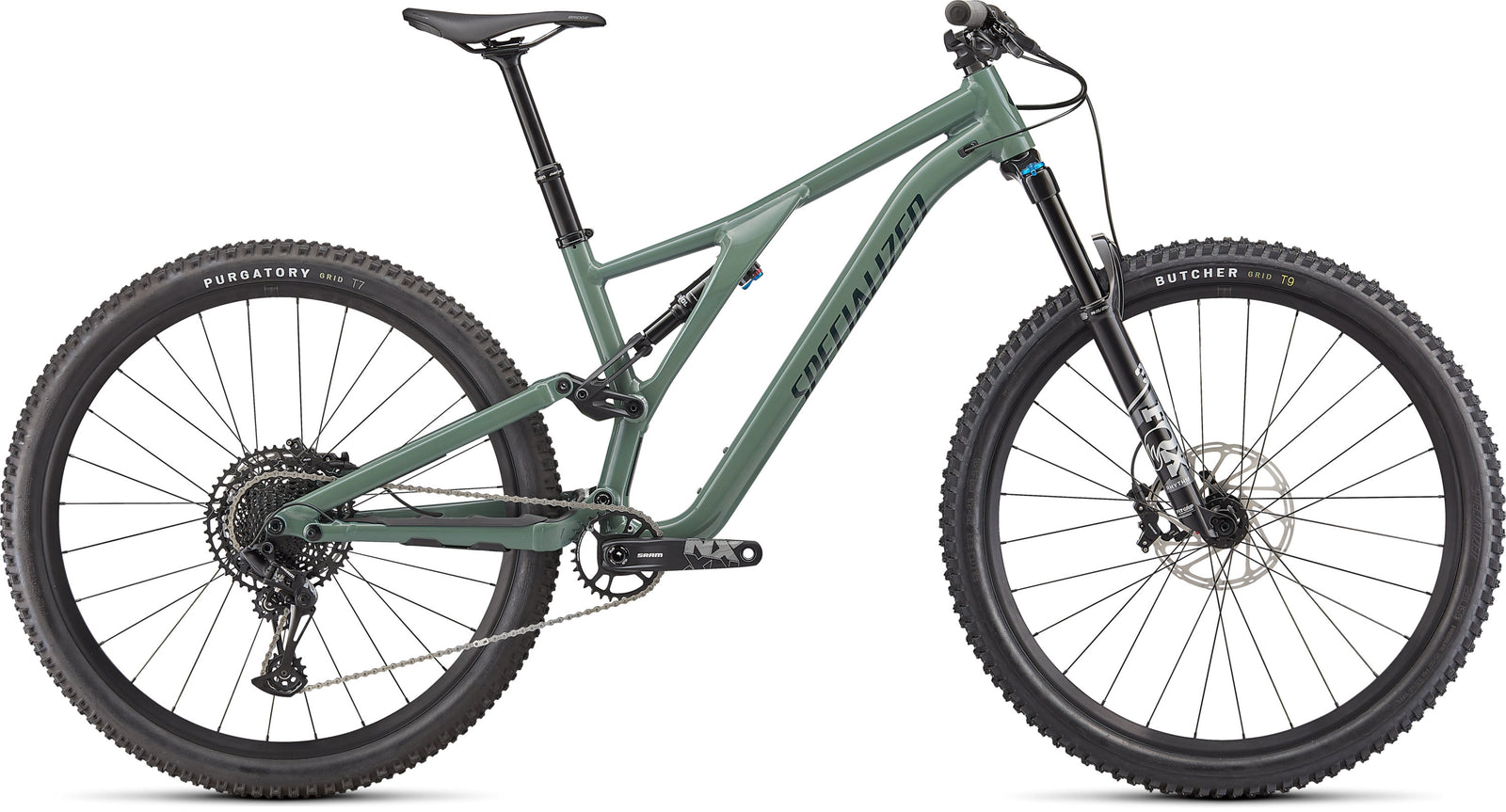

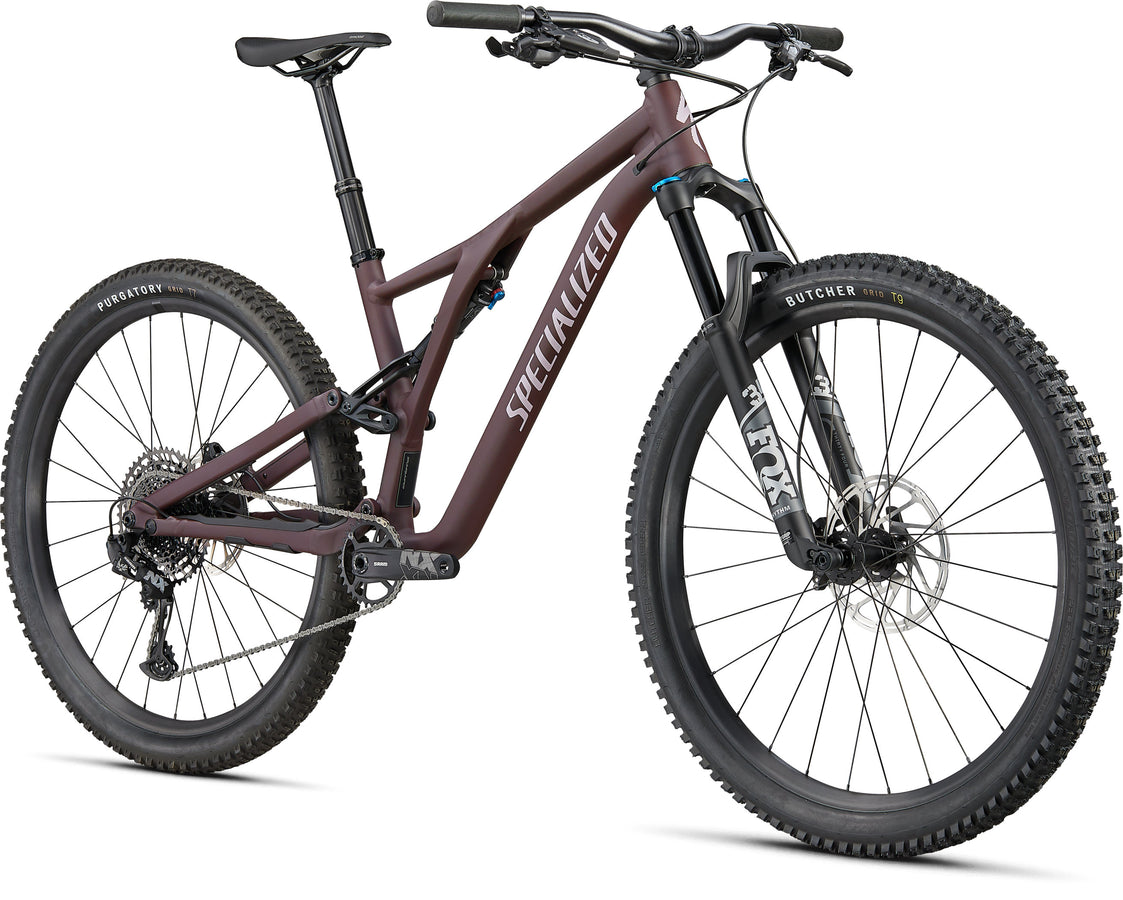

Stumpjumper Comp Alloy

Stumpjumper Comp Alloy

Part No.: 93321-5201

Notify me when this product is available:

Color
Size

Select a Size

Metal fans rejoice! The Stumpjumper Comp Alloy rocks on, with one of the most advanced alloy frames ever developed. From the frame’s asymmetrical design, taking in the refined suspension kinematics and all-new geometry, to a build kit that stri... Read More

Metal fans rejoice! The Stumpjumper Comp Alloy rocks on, with one of the most advanced alloy frames ever developed. From the frame’s asymmetrical design, taking in the refined suspension kinematics and all-new geometry, to a build kit that stri... Read More

wishlist message

Technical Specifications

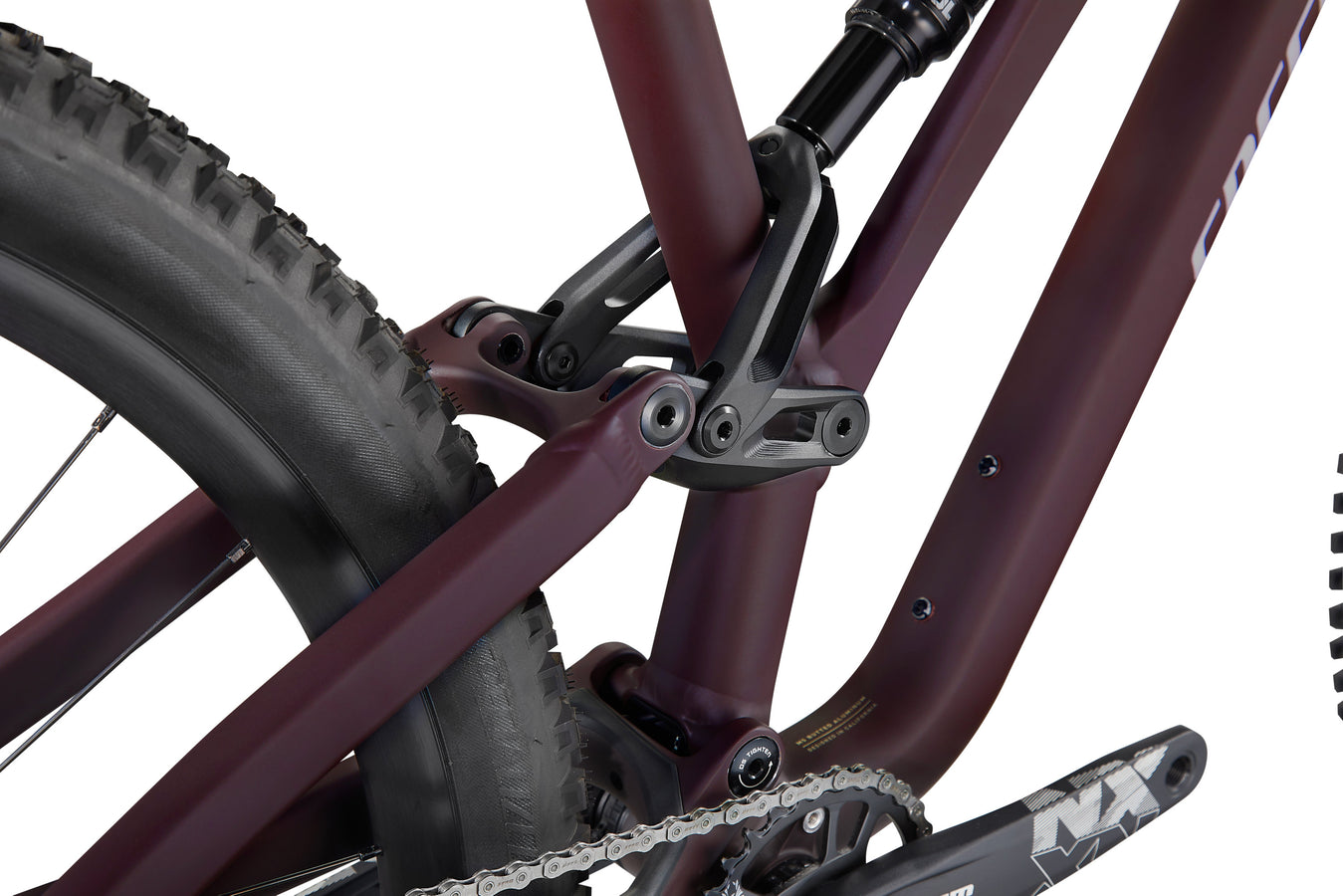

Frame Alloy chassis and rear-end, asymmetrical design, 29 Trail Geometry, horst pivot BB adjustment, threaded BB, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
Seat Binder Alloy, 38.6mm

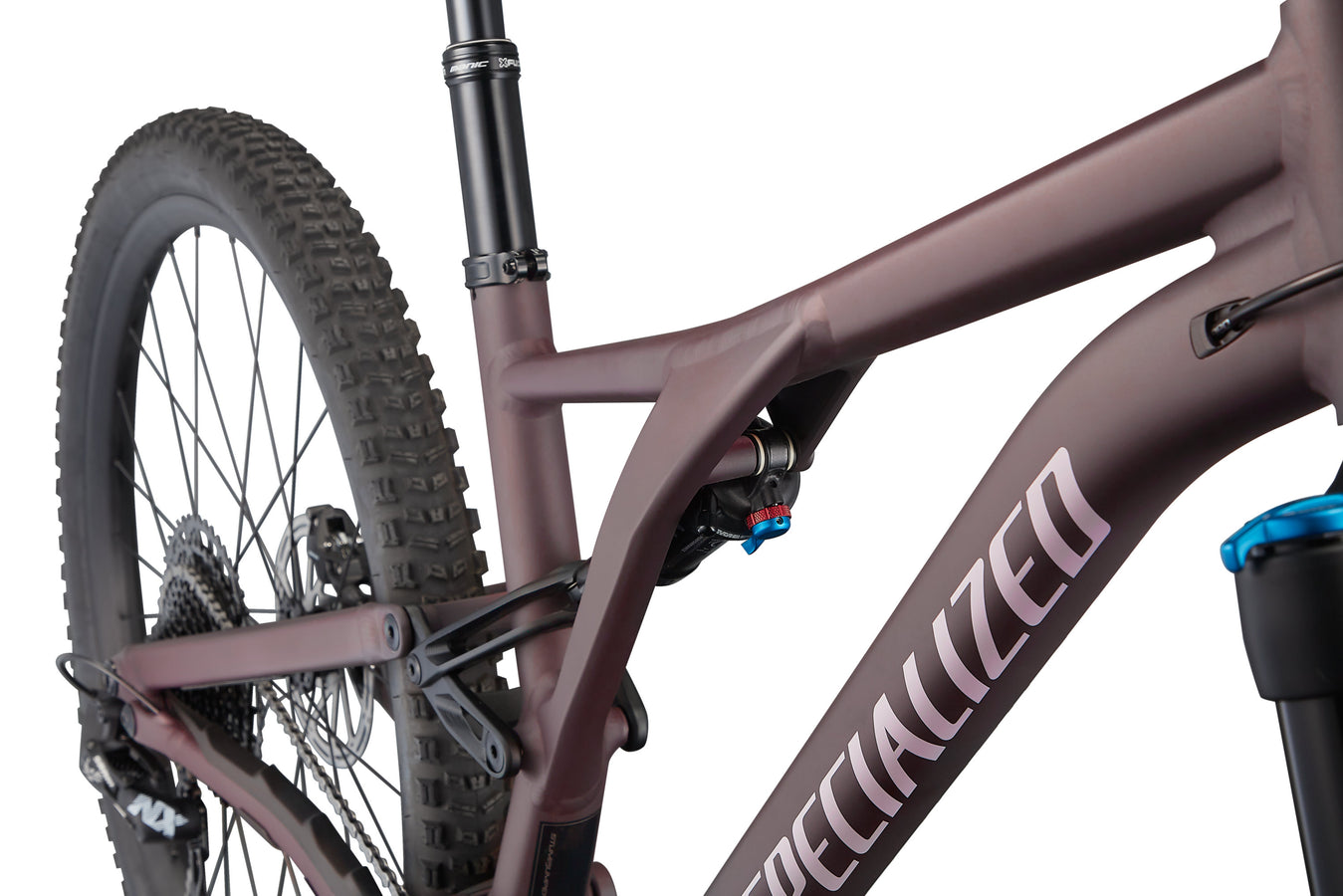

Rear Shock FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, S1
Fork FOX FLOAT 34 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset,140mm of travel
Stem Alloy Trail Stem, 35mm bar bore

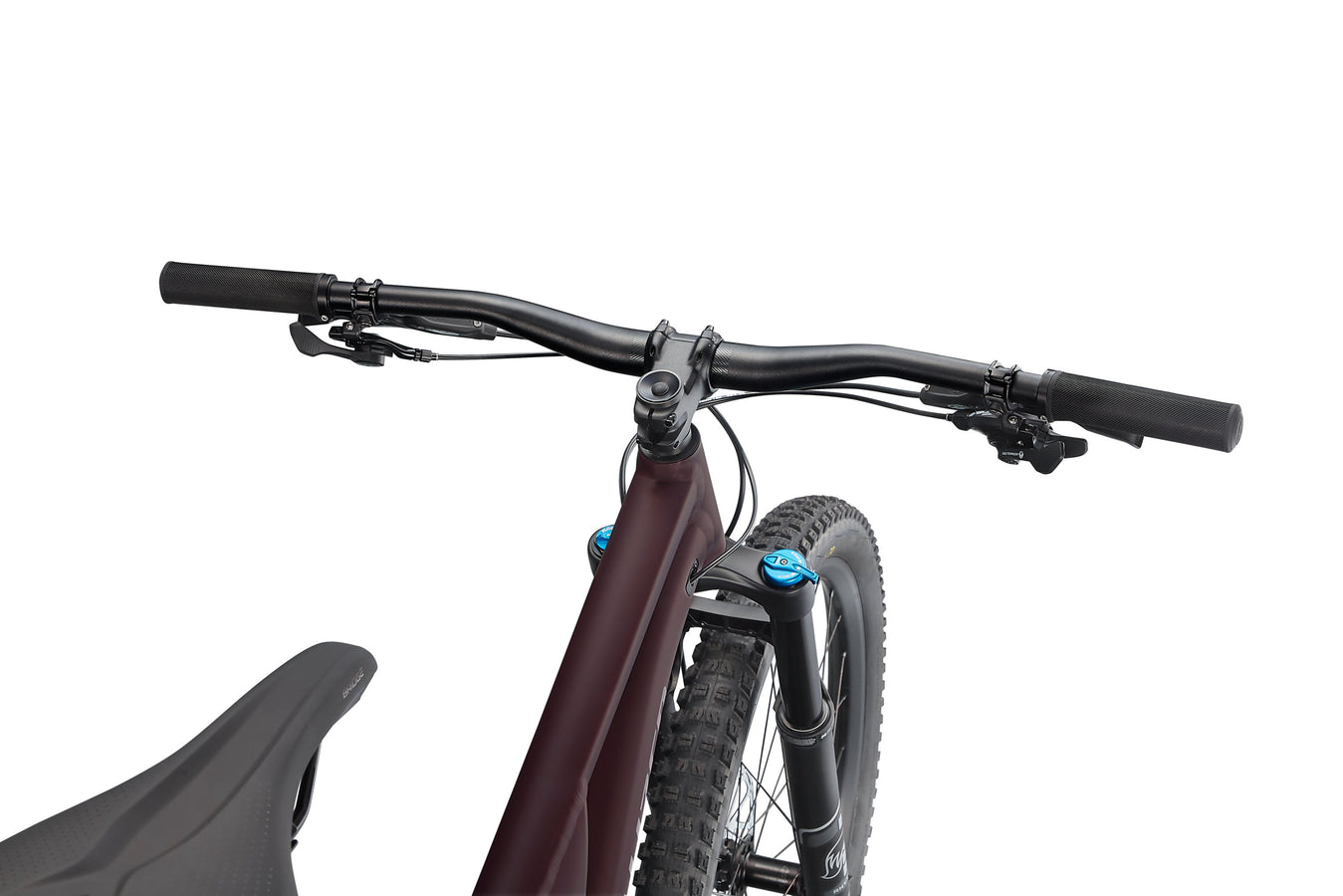

Handlebars Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Tape Specialized Trail Grips
Saddle Bridge Comp, Hollow Cr-mo rails, 155/143mm
SeatPost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1
Front Brake SRAM G2 R, 4-piston caliper, hydraulic disc, 200mm
Rear Brake SRAM G2 R, 4-piston caliper, hydraulic disc, 180mm
Rear Derailleur SRAM NX Eagle, 12-speed
Shift Levers SRAM NX Eagle, trigger, 12-speed
Cassette SRAM NX Eagle PG-1230, 12-speed, 11-50t
Chain SRAM NX Eagle, 12-speed
Crankset SRAM NX Eagle, DUB, S1
Chainrings Steel, 30T
Bottom Bracket SRAM DUB, BSA 73mm, threaded
Rims Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Hub Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes DT Swiss Industry
Front Tire Butcher, GRID casing, GRIPTON® T7 compound, 29x2.3"
Rear Tire Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"
Inner Tubes Standard, Presta valve

Technical Specifications

Frame Alloy chassis and rear-end, asymmetrical design, 29 Trail Geometry, horst pivot BB adjustment, threaded BB, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
Seat Binder Alloy, 38.6mm
Rear Shock FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, S1
Fork FOX FLOAT 34 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset,140mm of travel
Stem Alloy Trail Stem, 35mm bar bore
Handlebars Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
Tape Specialized Trail Grips
Saddle Bridge Comp, Hollow Cr-mo rails, 155/143mm
SeatPost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1
Front Brake SRAM G2 R, 4-piston caliper, hydraulic disc, 200mm
Rear Brake SRAM G2 R, 4-piston caliper, hydraulic disc, 180mm
Rear Derailleur SRAM NX Eagle, 12-speed
Shift Levers SRAM NX Eagle, trigger, 12-speed
Cassette SRAM NX Eagle PG-1230, 12-speed, 11-50t
Chain SRAM NX Eagle, 12-speed
Crankset SRAM NX Eagle, DUB, S1
Chainrings Steel, 30T
Bottom Bracket SRAM DUB, BSA 73mm, threaded
Rims Specialized 29, hookless alloy, 30mm inner width, tubeless ready
Front Hub Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes DT Swiss Industry
Front Tire Butcher, GRID casing, GRIPTON® T7 compound, 29x2.3"
Rear Tire Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"
Inner Tubes Standard, Presta valve

Epic - Geometry

Geometry

  S1 S2 S3 S4 S5 S6
Crank Length 165mm 170mm 170mm 170mm 170mm 175mm
Handlebar Width 780mm 780mm 780mm 780mm 780mm 780mm
Stem Length 40mm 40mm 50mm 50mm 50mm 50mm
Saddle Width 155mm 155mm 143mm 143mm 143mm 143mm
Seatpost Length 100mm 125mm 150mm 170mm 170mm 190mm
Stack (Low BB) 618mm 613mm 623mm 631mm 639mm 649mm
Stack (High BB) 614mm 609mm 618mm 627mm 640mm 644mm
Reach (Low BB) 410mm 430mm 450mm 475mm 500mm 530mm
Reach (High BB) 416mm 435mm 455mm 480mm 505mm 535mm
Headtube Length 100mm 100mm 110mm 120mm 130mm 140mm
Headtube Angle (Low BB) 65deg 65deg 65deg 65deg 65deg 65deg
Headtube Angle (High BB) 65.5deg 65.5deg 65.5deg 65.5deg 65.5deg 65.5deg
BB Height (Low BB) 327mm 332mm 332mm 332mm 332mm 332mm
BB Height (High BB) 334mm 339mm 339mm 339mm 339mm 339mm
BB Drop (Low BB) 47mm 42mm 42mm 42mm 42mm 42mm
BB Drop (High BB) 40mm 35mm 35mm 35mm 35mm 35mm
Trail (Low BB) 126mm 126mm 126mm 126mm 126mm 126mm
Trail (High BB) 122mm 122mm 122mm 122mm 122mm 122mm
Fork Length (full) 550mm 550mm 550mm 550mm 550mm 550mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm 44mm
Front Center 726mm 746mm 770mm 799mm 828mm 863mm
Chainstay Length (Low BB) 444mm 444mm 444mm 444mm 454mm 454mm
Chainstay Length (High BB) 440mm 440mm 440mm 440mm 450mm 450mm
Wheelbase (Low BB) 1168mm 1188mm 1212mm 1241mm 1280mm 1315mm
Wheelbase (High BB) 1164mm 1184mm 1208mm 1237mm 1276mm 1311mm
Top-tube Length (horizontal) 545mm 563mm 586mm 615mm 643mm 676mm
Bike Standover Height 742mm 742mm 750mm 753mm 777mm 784mm
Seat Tube Length 385mm 385mm 405mm 425mm 445mm 465mm
Seat Tube Angle (Low BB) 77.7deg 77.7deg 77.5deg 77.2deg 77deg 76.9deg
Seat Tube Angle (High BB) 78.2deg 78.2deg 77.9deg 77.7deg 77.5deg 77.3deg
Max Seatpost Insertion 190mm 190mm 210mm 230mm 250mm 270mm
Min Seatpost Insertion 100mm 100mm 100mm 100mm 100mm 100mm
