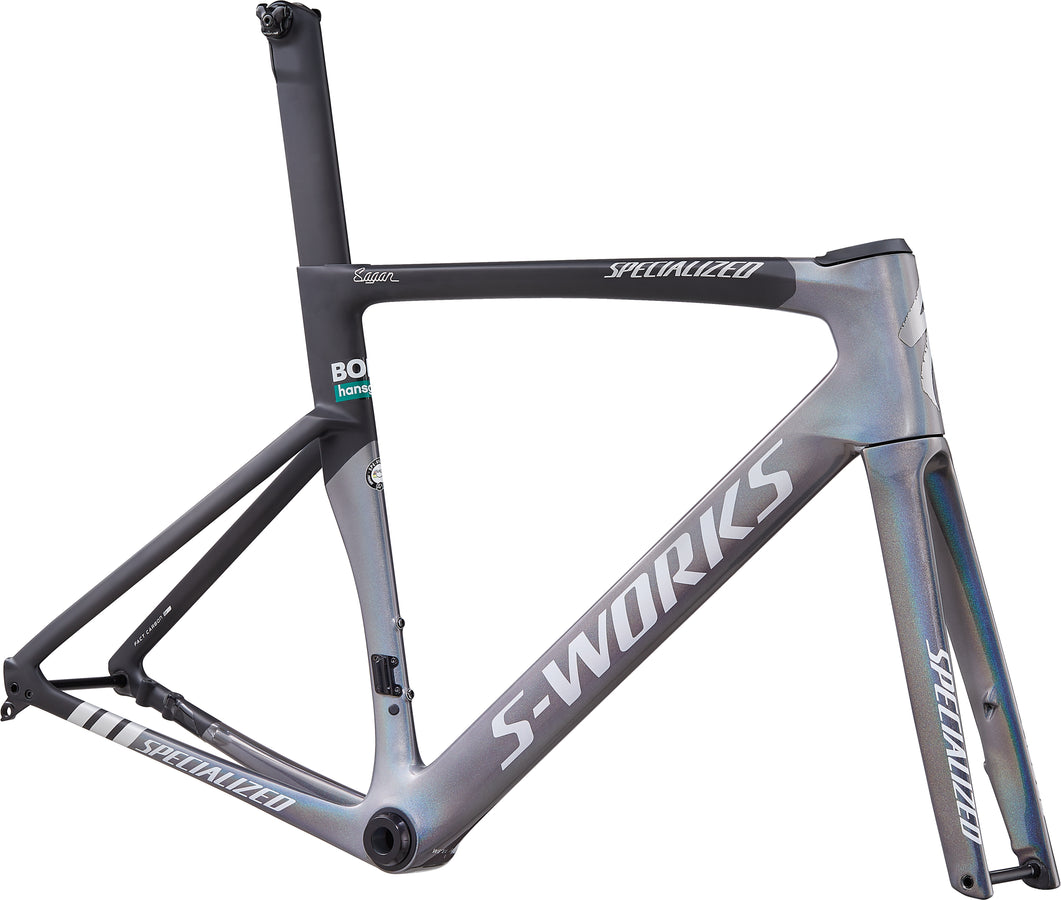

S-Works Venge Frameset – Sagan Collection Mirror LTD

Part No. 77820-0054

Color
Size
Size Chart
Sale

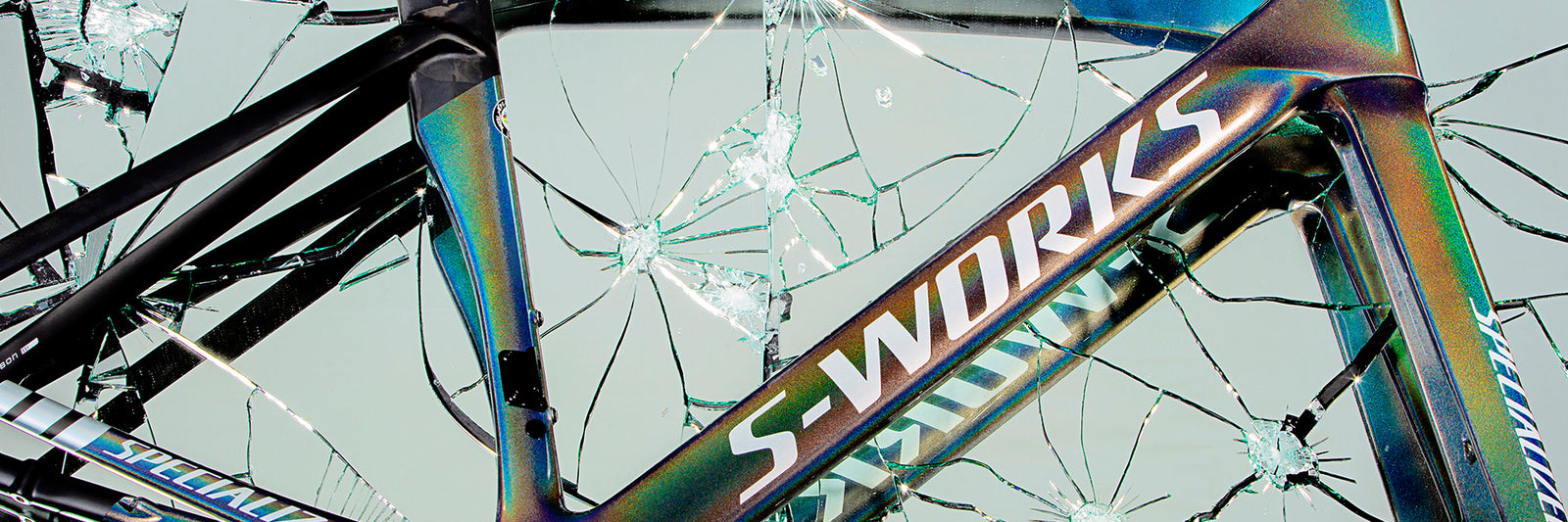

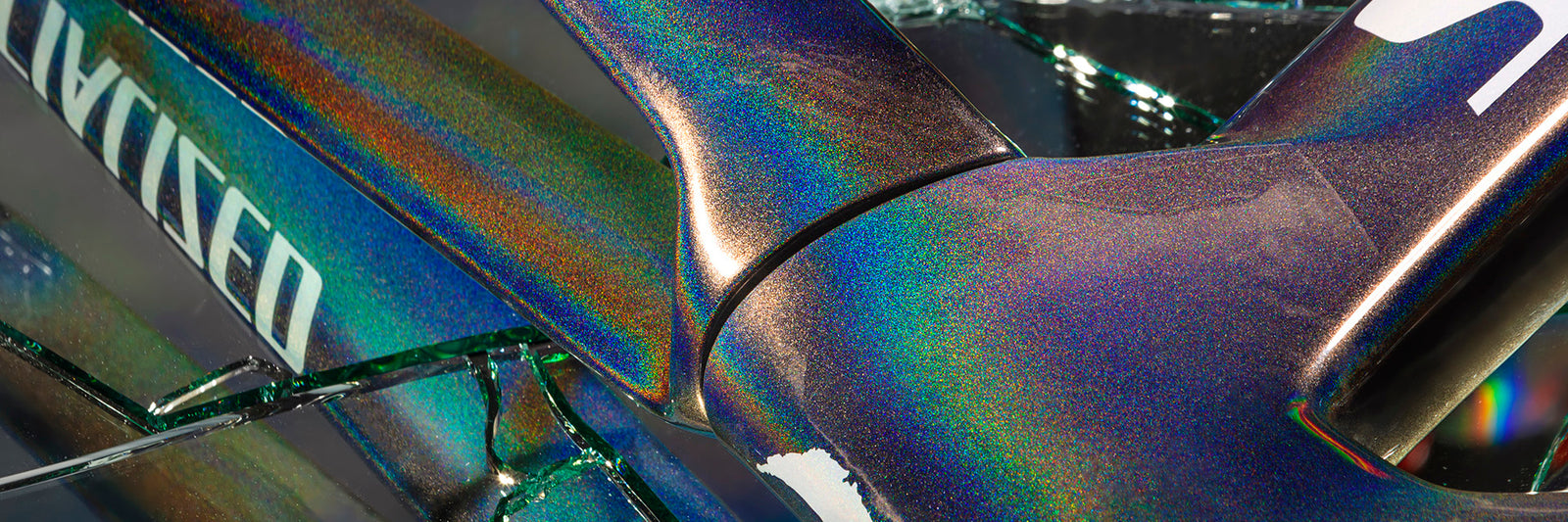

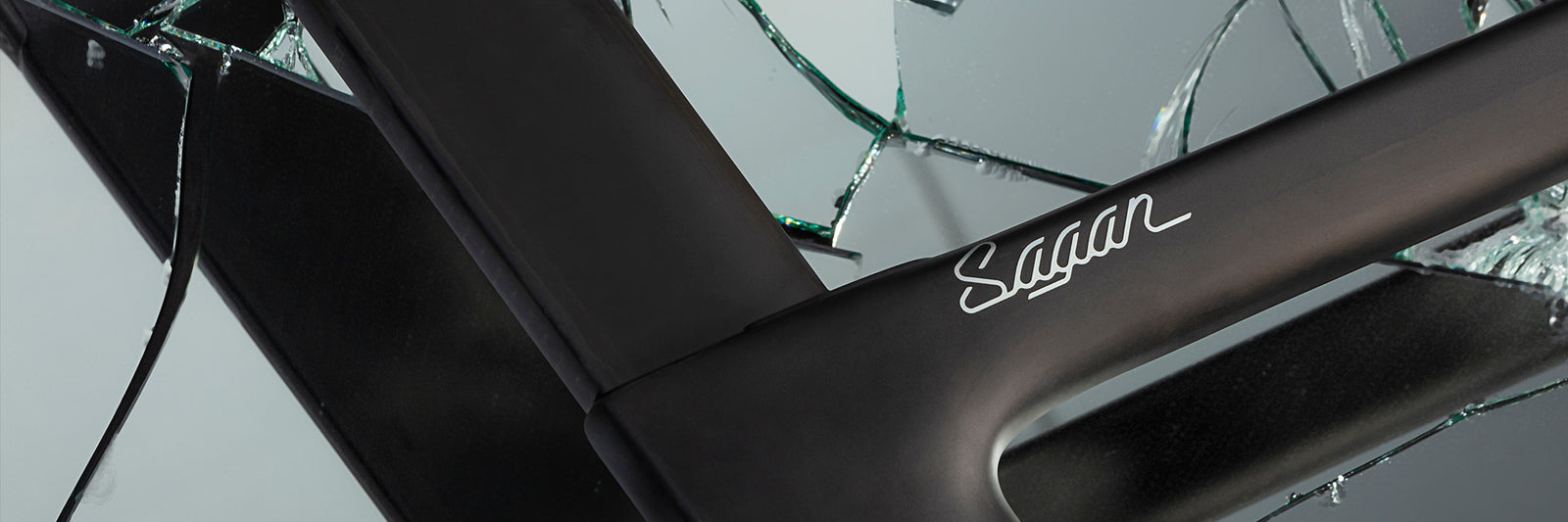

For years Peter"s been chasing rainbows—some years successfully, others just out of reach. But, in the process, he’s the one rider in the peloton that everyone is always looking for. Sometimes he’s at the front of the race in the spotlight, wreaking havoc. While other times, he’s hiding in the pack like a panther waiting for the right moment to attack. With the Sagan Collection S-Works Venge Replica frame, we"ve taken the undertones of the Underexposed collection and the loud-side of the Overexposed collection and combined them into one. This showcases the two sides of Peter on a bike that he"ll be racing for all of 2019. It"s time to start chasing your own rainbows with the Sagan Collection.
  • Our quest for the perfect tube shapes didn’t start in the Win Tunne, but with a new piece of technology, the FreeFoil Shape Library. Our engineers wrote an optimization algorithm and utilized a supercomputer to help create new airfoil shapes with different weights, surface areas, and structural targets. Armed with this library of shapes, we could plug them into the different parts of the bike and test a variety of configurations to determine the fastest setup in the Win Tunnel.
  • Compared to the fastest aero road bike to date (the Venge ViAS), and many others in the space that we won"t name here, the new Venge is eight seconds faster over 40km at zero degrees of yaw.
  • While the Rider-First Engineered™ tubes greatly contribute to the reduction in weight, they also generate a higher a higher stiffness-to-weight ratio and provide 40% more compliance than the ViAS—no matter the frame. And we can"t forget the 32mm-wide tire clearance for further compliance.
  • The new cockpit, developed in partnership with our World Tour teams, features a stem with a higher stiffness than anything we’ve ever tested, new bars that are faster, lighter, stiffer, and feature a textured pattern on the tops for extra grip and control.
  • Not only did we make the Venge more aero than the ViAS, but we also took 460 grams out of the module weight. This means we saved 240g in the frame, 25g in the fork, 107g in the cockpit, 25g in the seatpost, and 63g in small parts—making it the fastest option when you need to go up, down, and all around.

Technical Specifications

Frame S-Works FACT 11r carbon, Rider-First Engineered™, Win Tunnel Engineered, internal electric only cable routing, OSBB, 12x142mm thru-axle, flat-mount disc
Fork S-Works FACT carbon, 100x12mm thru-axle, flat-mount disc
SeatPost 2019 S-Works Venge aero seatpost, FACT carbon, Di2-compatible
Bottom Bracket OSBB, CeramicSpeed bearings

Technical Specifications

Geometry

Geometry Chart

Geometry

  Size 49 52 54 56 58 61
Stack 504mm 517mm 534mm 555mm 581mm 602mm
Reach 378mm 383mm 387mm 398mm 405mm 411mm
Head-Tube Length 104mm 115mm 133mm 153mm 180mm 200mm
Head-Tube Angle 71.75deg 72.5deg 73deg 73.5deg 73.5deg 74deg
B-B Height 266mm 266mm 268mm 268mm 268mm 268mm
B-B Drop 74mm 74mm 72mm 72mm 72mm 72mm
Trail 63mm 58mm 58mm 55mm 55mm 52mm
Fork Length (Full) 363mm 363mm 363mm 363mm 363mm 363mm
Fork Rake/Offset 47mm 47mm 44mm 44mm 44mm 44mm
Front-Center 574mm 577mm 579mm 591mm 606mm 613mm
Chain-Stay Length 410mm 410mm 410mm 410mm 410mm 410mm
Wheelbase 972mm 975mm 978mm 991mm 1005mm 1012mm
Top-Tube Length (Horizontal) 508mm 531mm 540mm 562mm 577mm 595mm
Bike Stand-Over Height 736mm 756mm 773mm 795mm 817mm 841mm
Seat-Tube Length 455mm 480mm 495mm 518mm 537mm 567mm
Seat-Tube Angle 75.5deg 74deg 74deg 73.5deg 73.5deg 73deg
