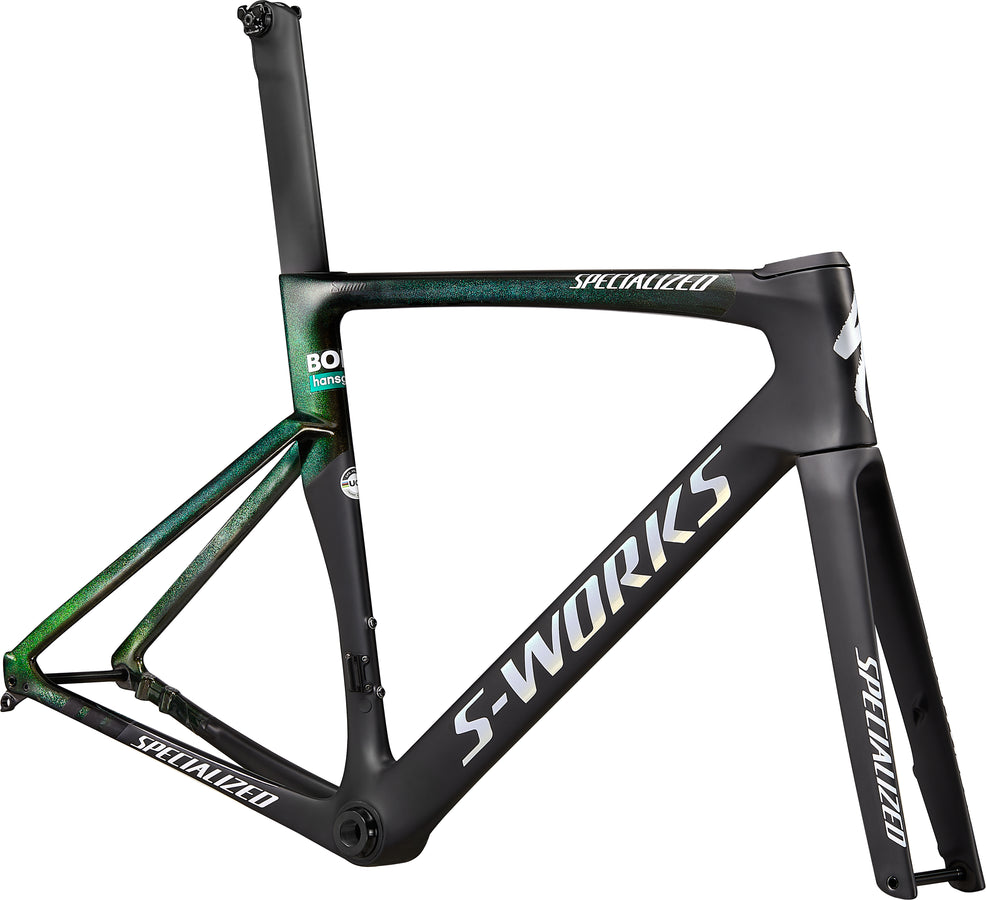

S-Works Venge Frameset - Sagan Collection: Deconstructivism

Part No. 77820-0552

Color
Size
Size Chart
Sometimes an act of creation begins with an act of destruction. For the new Sagan Collection, the rainbow has been deconstructed—broken down to its core components to celebrate a rider defined by much more than rainbow stripes. As Peter begins a new season in search of more iconic victories, we begin with the absence of color on the fastest bike in the peloton. Or do we? Bring this S-Works Venge frameset into the sunlight and shimmering green highlights explode from beneath its stealthy exterior, a reminder of Peter"s unprecedented success at Le Tour. Surprisingly, our quest for the perfect tube shapes didn"t start in the Win Tunnel. It started with a new piece of technology, the FreeFoil Shape Library. Our engineers wrote an optimization algorithm and utilized a supercomputer (yes, we used an actual supercomputer) to help create new airfoil shapes with different weights, surface areas, and structural targets. Armed with this library of shapes, all with different aspect ratios, we could plug them into the different parts of the bike and test a variety of configurations to determine the fastest setup in the Win Tunnel. Compared to the fastest aero road bike to date (the Venge ViAS), and many others in the space that we won"t name here, the new Venge is eight seconds faster over 40km at zero degrees of yaw. It"s also faster out on the road in all wind conditions—not just in the tunnel. *All bikes were tested with the same fit dimensions, and with the following components—Roval CLX 64 wheels, Turbo Cotton 26mm tires, Shimano"s newest Di2 groupset, two water bottles, an S-Works Power saddle, and their respective spec"d cockpits. And while it"s cool that the new Venge is more aero, there are other factors to fast. Striking the perfect combination of weight and aerodynamics plays a crucial role in a bike"s overall performance. A bike that"s strictly aero will feel great on the flats, but it"ll suffer on the climbs and in quick accelerations. A bike that"s strictly lightweight, however, will suffer on everything but the steepest climbs. So, not only did we make the Venge more aero than the ViAS, but we also took 460 grams out of the module weight. This means we saved 240g in the frame, 25g in the fork, 107g in the cockpit, 25g in the seatpost, and 63g in small parts. So no matter the course, the Venge will prove to be the fastest option when you need to go up, down, and all around. Much of this weight savings comes from our Rider-First Engineered™ tubes. We implemented much of the discovery from the new Tarmac"s development, like different layup schedules and materials, and this culminated in a Venge that"s not only lighter, but one that also has a higher stiffness-to-weight ratio and 40% more compliance than the ViAS—no matter the frame size. And while you can"t always see these changes, all it takes is one ride to feel the quick accelerations and the bump-eating compliance. Of course, we didn"t stop there. The geometry got an update, and now, it"s based on over 40,000 Retül data points, as well as professional rider input. This enabled us to implement a Performance Road Geometry that perfectly combines a responsive front-end with a short wheelbase, and this delivers instantaneous response and optimal power transfer. Last, but certainly not least, the Venge houses some exciting new features. The new cockpit, developed in partnership with our World Tour teams, features a stem with a higher stiffness than anything we"ve ever tested, new bars that are faster, lighter, stiffer, and feature a textured pattern on the tops for extra grip and control. Next up is tire clearance—it has no problem clearing 32mm-wide tires. And, finally, we"ve put our Shimano A-Junction in the seatpost, making it easy to charge, check battery levels, and for team mechanics to make adjustments.
  • The Rider-First Engineered™, FACT 11r frame not only makes the Venge the most aerodynamic road bike we’ve ever created, but it"s also lightweight and stiff in all the right places. Every tube shape, trailing edge, and design cue was influenced by hours of testing in our Win Tunnel, CFD, 3D-printed prototypes, and real-world rider feedback. Ultimately, this resulted in the fastest road bike we’ve ever made.
  • Designed in our Win Tunnel, the fork features a top-end, S-Works FACT 11r carbon construction that helps to cut through air like a hot knife through butter.
  • A legendary CeramicSpeed bottom bracket ensures that you"re making every precious last watt count.

Technical Specifications

Frame S-Works FACT 11r carbon, Rider-First Engineered™, Win Tunnel Engineered, internal electric only cable routing, OSBB, 12x142mm thru-axle, flat-mount disc
Fork S-Works FACT carbon, 100x12mm thru-axle, flat-mount disc
Stem Venge integrated stem, 6-degree
SeatPost 2019 S-Works Venge aero seatpost, FACT carbon, Di2-compatible
Bottom Bracket OSBB, CeramicSpeed bearings

Technical Specifications

Geometry

Geometry Chart

Geometry

  Size 49 52 54 56 58
Stack 504mm 517mm 534mm 555mm 581mm
Reach 378mm 383mm 387mm 398mm 405mm
HeadTubeLength 104mm 115mm 133mm 153mm 180mm
HeadTubeAngle 71.75deg 72.5deg 73deg 73.5deg 73.5deg
BBHeight 266mm 266mm 268mm 268mm 268mm
BBDrop 74mm 74mm 72mm 72mm 72mm
Trail 63mm 58mm 58mm 55mm 55mm
ForkLength,Full 363mm 363mm 363mm 363mm 363mm
ForkRake/Offset 47mm 47mm 44mm 44mm 44mm
FrontCenter 574mm 577mm 579mm 591mm 606mm
ChainstayLength 410mm 410mm 410mm 410mm 410mm
Wheelbase 972mm 975mm 978mm 991mm 1005mm
TopTubeLength(Horizontal) 508mm 531mm 540mm 562mm 577mm
BikeStandoverHeight 736mm 756mm 773mm 795mm 817mm
SeatTubeLength 455mm 480mm 495mm 518mm 537mm
SeatTubeAngle 75.5deg 74deg 74deg 73.5deg 73.5deg
