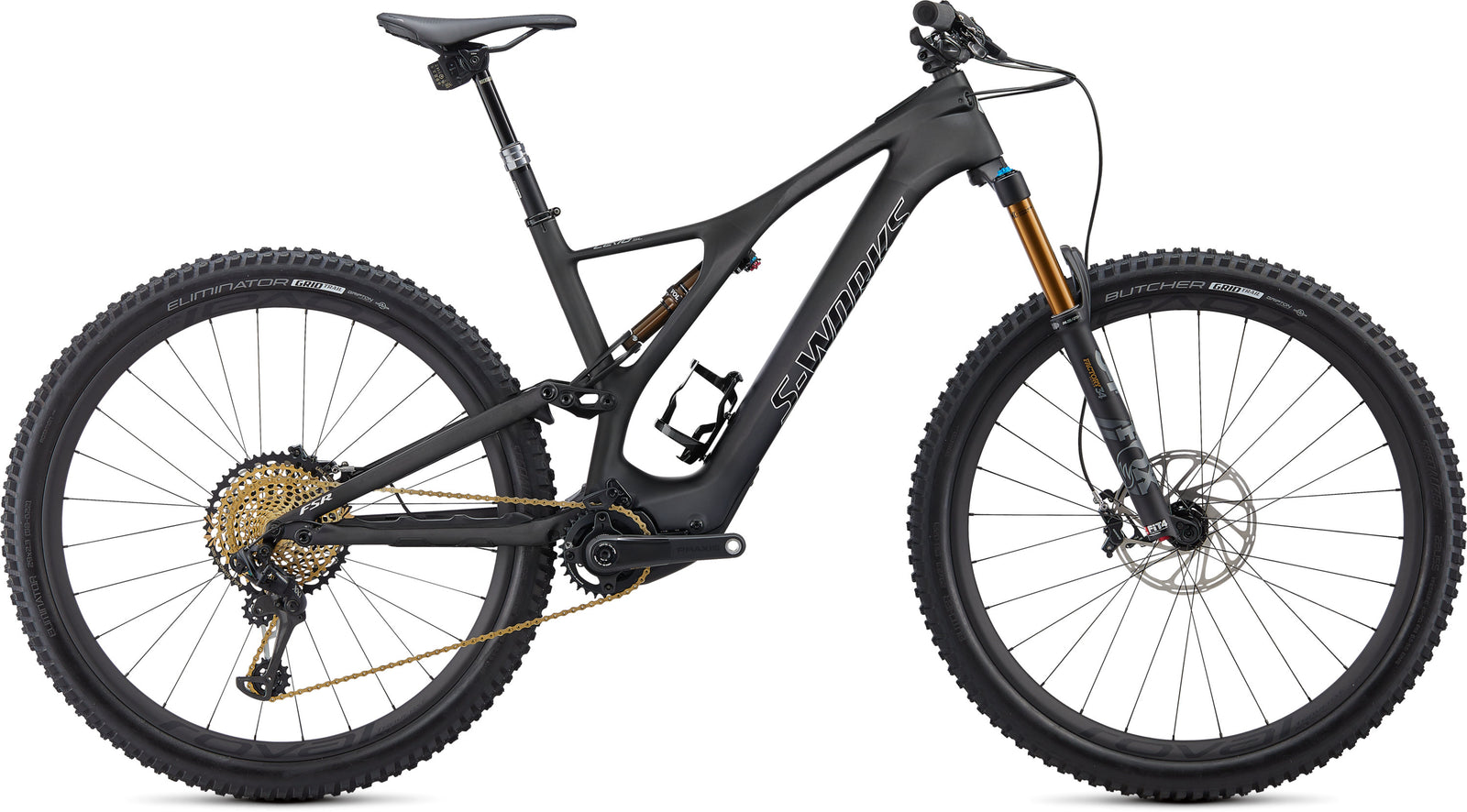

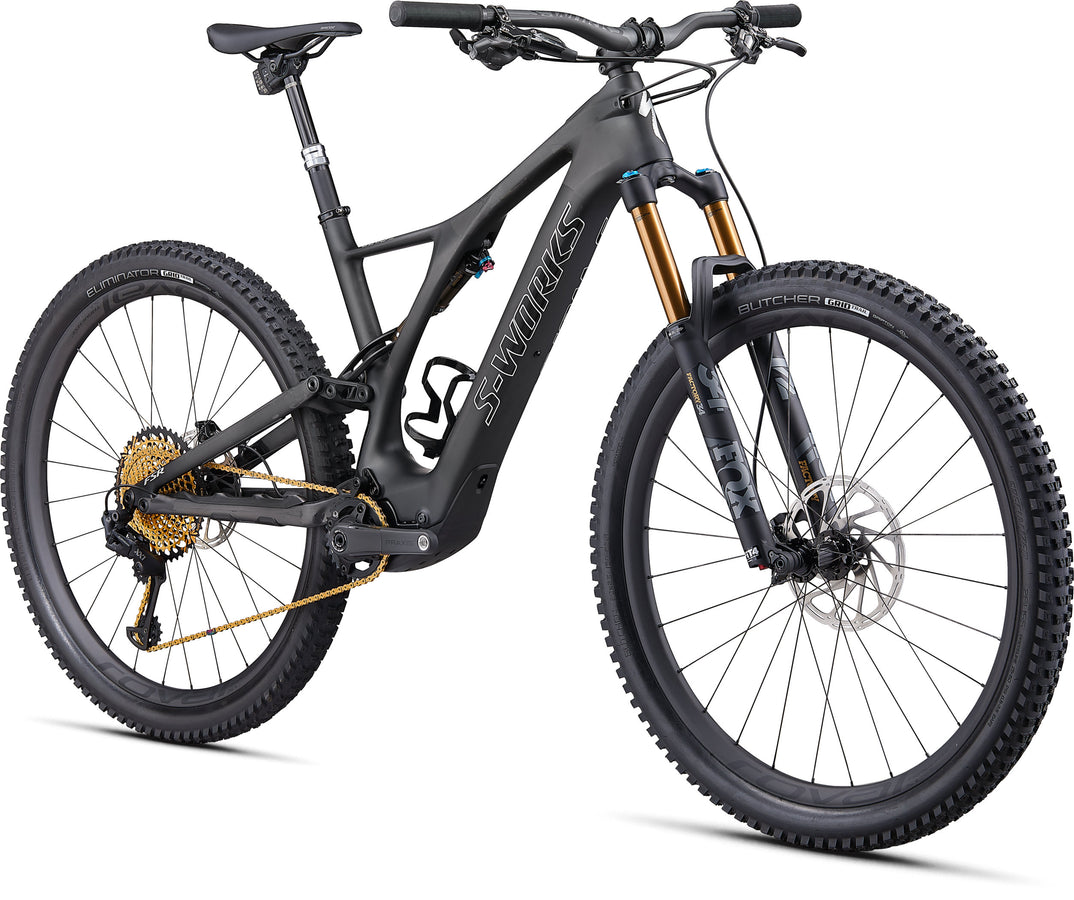

S-Works Turbo Levo SL

S-Works Turbo Levo SL

Part No.: 96820-0004

Notify me when this product is available:

Color
Size

Select a Size

The Turbo Levo SL is a new, lightweight breed of eMTB that harnesses the quick and lively ride of our Stumpjumper...and adds just enough power to introduce a whole new dimension of kick ass. The top-shelf S-Works Turbo Levo SL features a carbon... Read More

The Turbo Levo SL is a new, lightweight breed of eMTB that harnesses the quick and lively ride of our Stumpjumper...and adds just enough power to introduce a whole new dimension of kick ass. The top-shelf S-Works Turbo Levo SL features a carbon... Read More

wishlist message

Technical Specifications

Pedals
Battery Specialized SL1-320, fully integrated, 320Wh
Motor Specialized SL 1.1, custom lightweight motor
Wiring Harness Custom Specialized wiring harness w/ chargeport
Charger Custom charger, 48V System w/ SL system charger plug

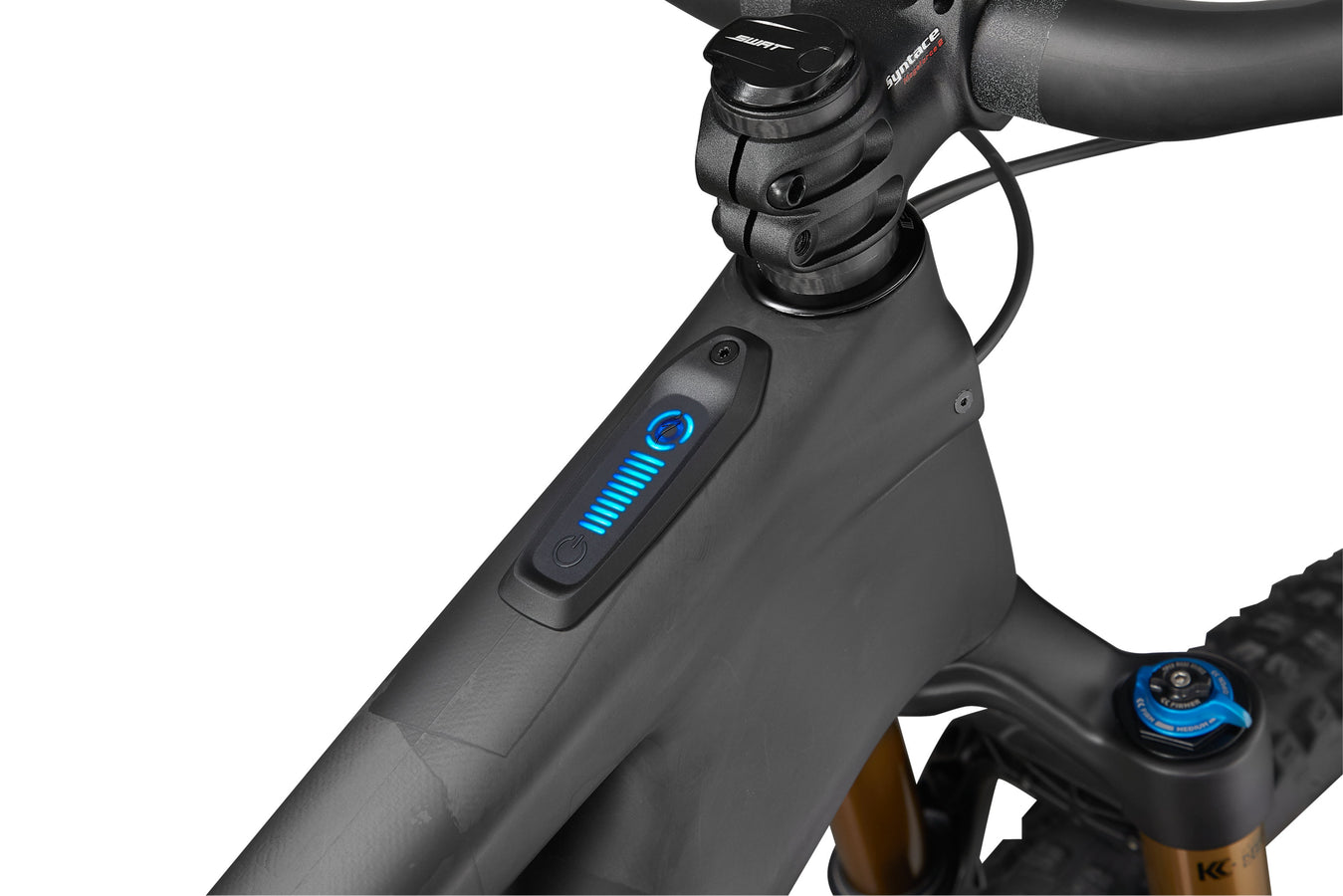

UI/Remote Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Rear Hub Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing
Front Hub Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Rims Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h
Inner Tubes Standard, Presta valve
Front Tire Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Front Wheel Traverse SL 29
Rear Wheel Traverse SL 29
Spokes DT Competition Race
Saddle Bridge, 155/143mm, Hollow Ti-rails
Tape Specialized Trail Grips

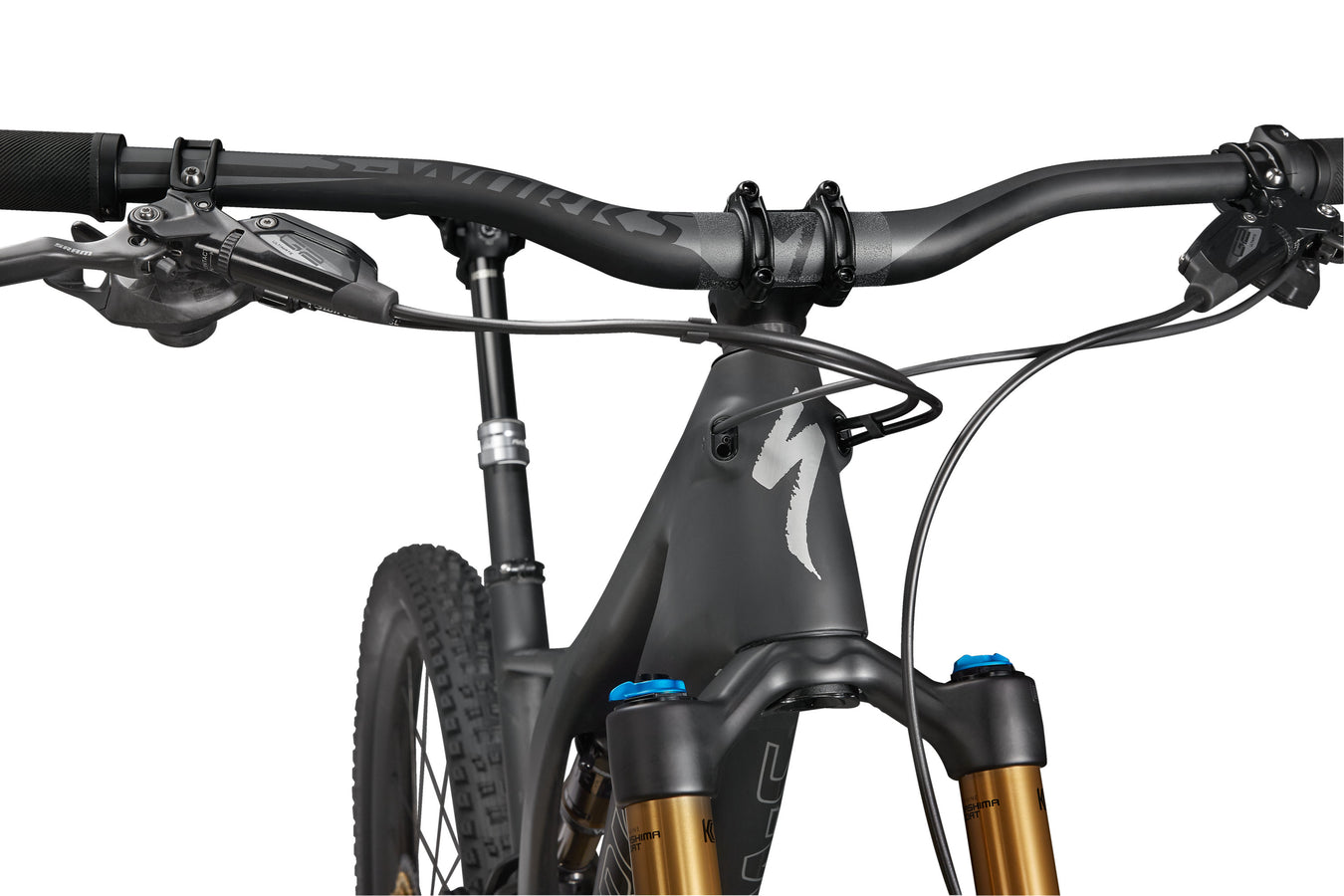

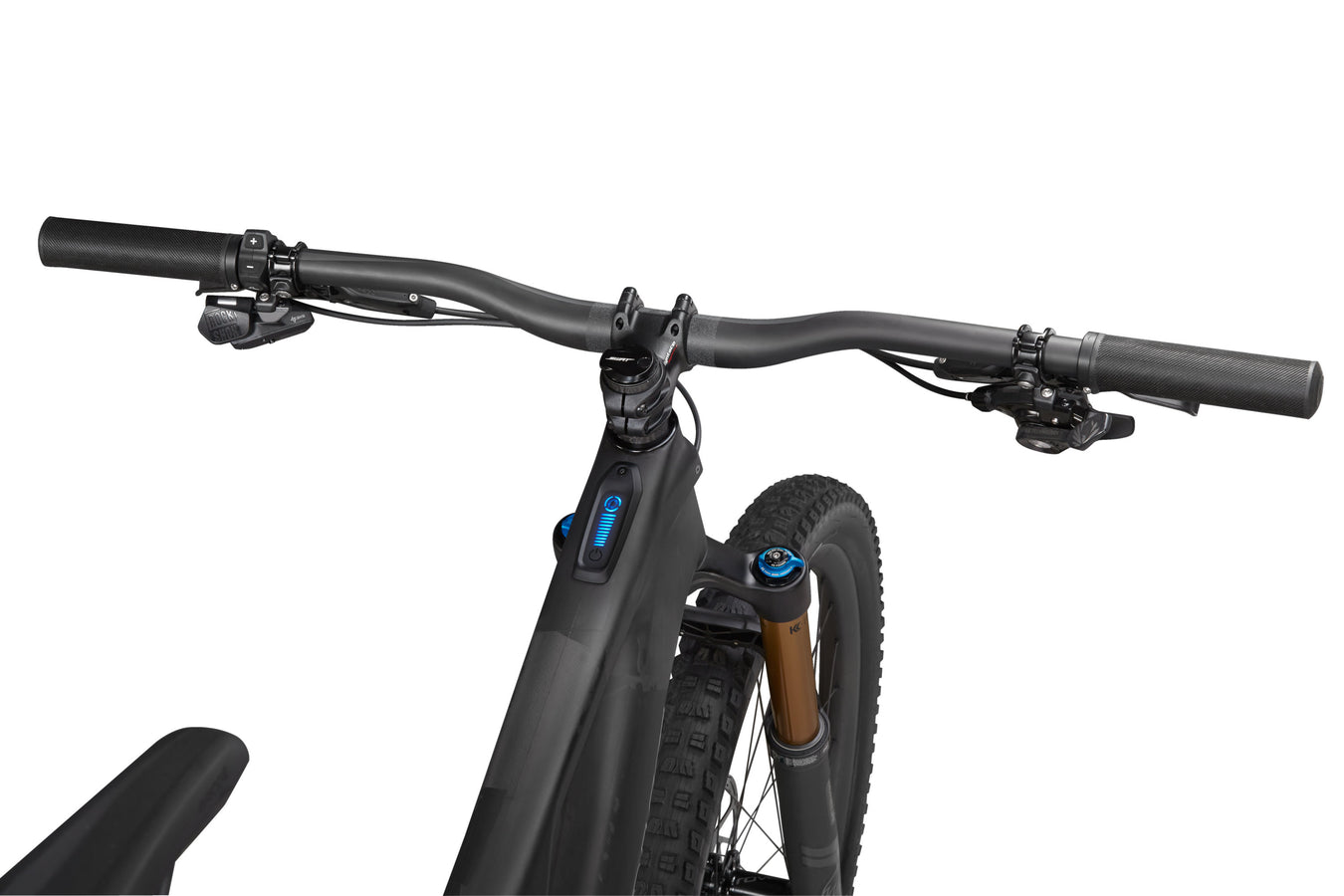

Handlebars Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm
Stem Syntace MegaForce 2, 6-degree, 31.8mm clamp
SeatPost RockShox Reverb AXS, 30.9mm, S
Chainrings SRAM X-Sync Eagle, 94 BCD, 30T
Cassette SRAM XG-1299 Eagle, 10-50t
Shift Levers SRAM XX1 Eagle, trigger, 12-speed
Rear Derailleur SRAM XX1 Eagle, 12-speed
Chain SRAM XX1 Eagle, 12-speed
Crankset Praxis, carbon M30, custom offset
Front Brake SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 200mm
Rear Brake SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 180mm
Frame FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Fork FOX Factory 34 FLOAT 29, Kashima Coating, FIT4 damper, 51mm offset, 3-position adjustment, 15x110mm, tapered alloy steerer, 150mm of travel
Seat Binder Specialized Ti-bolt-type, alloy, 38.6mm
Rear Shock FOX FLOAT DPS Factory, Kashima coating, 3-position adjustment, 52.5x210mm, Rx Trail Tune

Technical Specifications

Pedals
Battery Specialized SL1-320, fully integrated, 320Wh
Motor Specialized SL 1.1, custom lightweight motor
Wiring Harness Custom Specialized wiring harness w/ chargeport
Charger Custom charger, 48V System w/ SL system charger plug
UI/Remote Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
Rear Hub Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing
Front Hub Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.3"
Rims Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h
Inner Tubes Standard, Presta valve
Front Tire Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Front Wheel Traverse SL 29
Rear Wheel Traverse SL 29
Spokes DT Competition Race
Saddle Bridge, 155/143mm, Hollow Ti-rails
Tape Specialized Trail Grips
Handlebars Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 31.8mm
Stem Syntace MegaForce 2, 6-degree, 31.8mm clamp
SeatPost RockShox Reverb AXS, 30.9mm, S
Chainrings SRAM X-Sync Eagle, 94 BCD, 30T
Cassette SRAM XG-1299 Eagle, 10-50t
Shift Levers SRAM XX1 Eagle, trigger, 12-speed
Rear Derailleur SRAM XX1 Eagle, 12-speed
Chain SRAM XX1 Eagle, 12-speed
Crankset Praxis, carbon M30, custom offset
Front Brake SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 200mm
Rear Brake SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 180mm
Frame FACT 11m full carbon, 29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel
Fork FOX Factory 34 FLOAT 29, Kashima Coating, FIT4 damper, 51mm offset, 3-position adjustment, 15x110mm, tapered alloy steerer, 150mm of travel
Seat Binder Specialized Ti-bolt-type, alloy, 38.6mm
Rear Shock FOX FLOAT DPS Factory, Kashima coating, 3-position adjustment, 52.5x210mm, Rx Trail Tune

Epic - Geometry

Geometry

S M L XL
  S M L XL
Crank Length 165mm 165mm 170mm 170mm
Stem Length 40mm 40mm 50mm 50mm
Handlebar Width 780mm 780mm 780mm 780mm
Saddle Width 155mm 143mm 143mm 143mm
Seatpost Length 125mm 150mm 170mm 170mm
Stack 606mm 606mm 633mm 647mm
Reach 415mm 435mm 455mm 480mm
Head-Tube Length 95mm 95mm 125mm 140mm
Head-Tube Angle 66deg 66deg 66deg 66deg
B-B Height 348mm 348mm 348mm 348mm
B-B Drop 27mm 27mm 27mm 27mm
Trail 111mm 111mm 111mm 111mm
Fork Length (full) 560mm 560mm 560mm 560mm
Fork Rake/Offset 51mm 51mm 51mm 51mm
Front-Center 729mm 749mm 781mm 812mm
Chain-Stay Length 437mm 437mm 437mm 437mm
Wheelbase 1165mm 1185mm 1217mm 1248mm
Top-Tube Length (horizontal) 574mm 597mm 629mm 663mm
Bike Stand-Over Height 787mm 790mm 807mm 814mm
Seat-Tube Length 390mm 410mm 455mm 505mm
Seat-Tube Angle 75.3deg 75deg 74.6deg 74.2deg

Geometry

Geometry Chart

Geometry

  S M L XL
Crank Length 165mm 165mm 170mm 170mm
Stem Length 40mm 40mm 50mm 50mm
Handlebar Width 780mm 780mm 780mm 780mm
Saddle Width 155mm 143mm 143mm 143mm
Seatpost Length 125mm 150mm 170mm 170mm
Stack 606mm 606mm 633mm 647mm
Reach 415mm 435mm 455mm 480mm
Head-Tube Length 95mm 95mm 125mm 140mm
Head-Tube Angle 66deg 66deg 66deg 66deg
B-B Height 348mm 348mm 348mm 348mm
B-B Drop 27mm 27mm 27mm 27mm
Trail 111mm 111mm 111mm 111mm
Fork Length (full) 560mm 560mm 560mm 560mm
Fork Rake/Offset 51mm 51mm 51mm 51mm
Front-Center 729mm 749mm 781mm 812mm
Chain-Stay Length 437mm 437mm 437mm 437mm
Wheelbase 1165mm 1185mm 1217mm 1248mm
Top-Tube Length (horizontal) 574mm 597mm 629mm 663mm
Bike Stand-Over Height 787mm 790mm 807mm 814mm
Seat-Tube Length 390mm 410mm 455mm 505mm
Seat-Tube Angle 75.3deg 75deg 74.6deg 74.2deg
