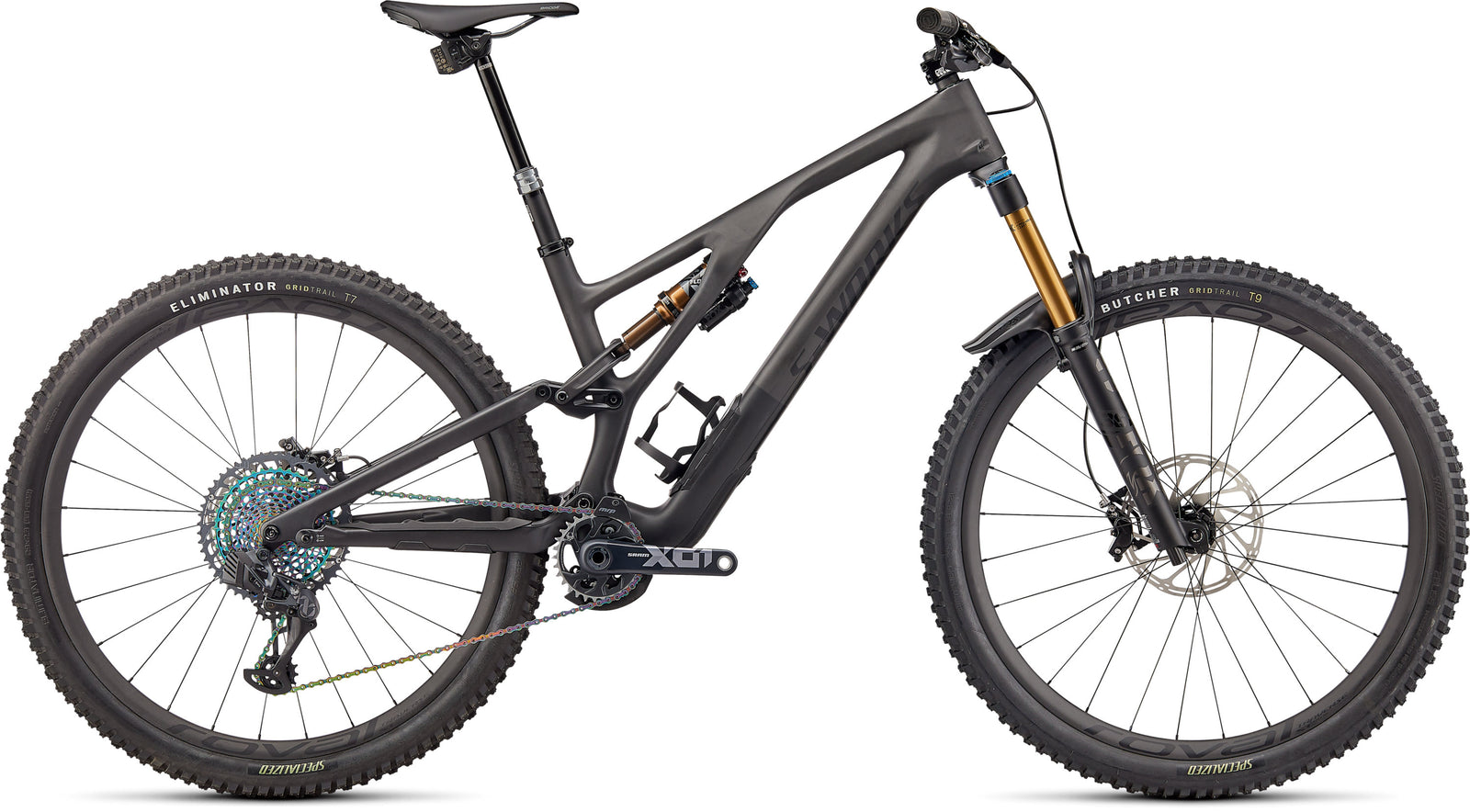

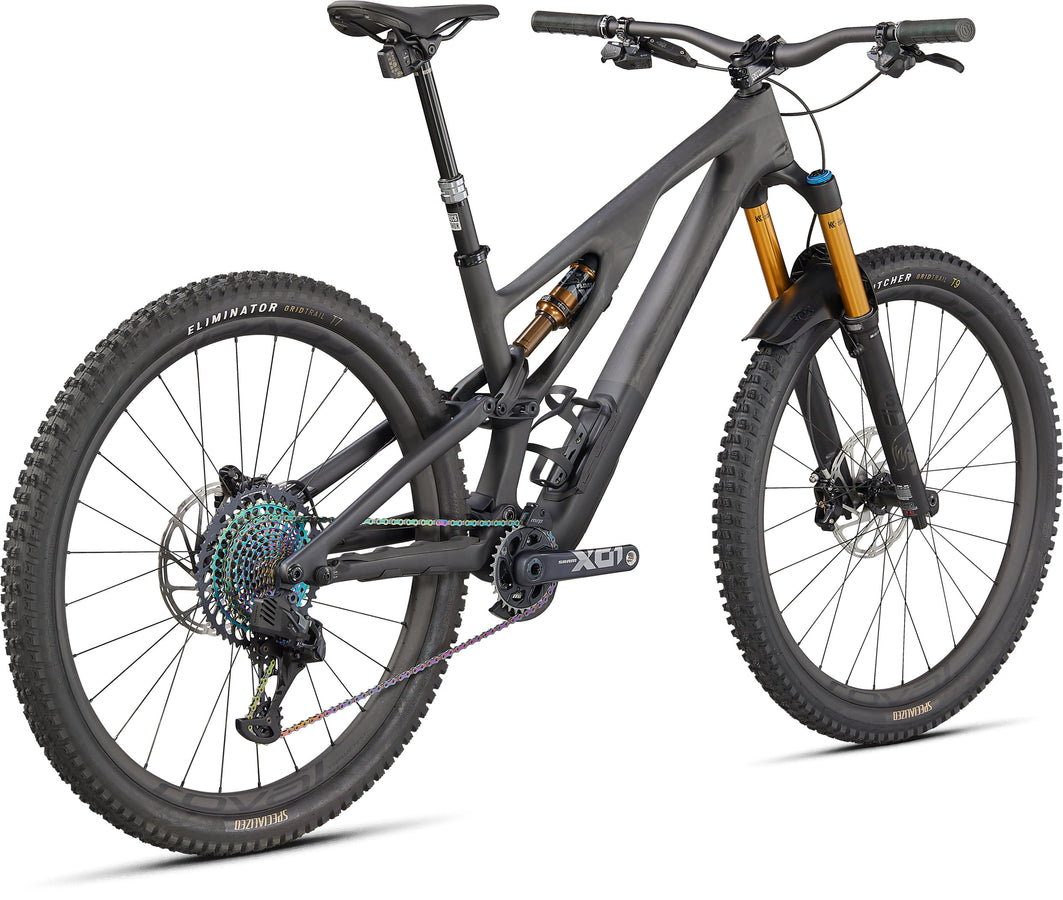

S-Works Stumpjumper EVO

S-Works Stumpjumper EVO

Part No.: 96322-0001

Notify me when this product is available:

Color
Size

Select a Size

The S-Works Stumpjumper EVO is much more than just a trail bike; it’s a shred-sled built to full-send down the gnarliest trails. Featuring an all-new design, with an adjustable head tube angle, 150mm of performance tuned travel, and the adaptab... Read More

The S-Works Stumpjumper EVO is much more than just a trail bike; it’s a shred-sled built to full-send down the gnarliest trails. Featuring an all-new design, with an adjustable head tube angle, 150mm of performance tuned travel, and the adaptab... Read More

wishlist message

Technical Specifications

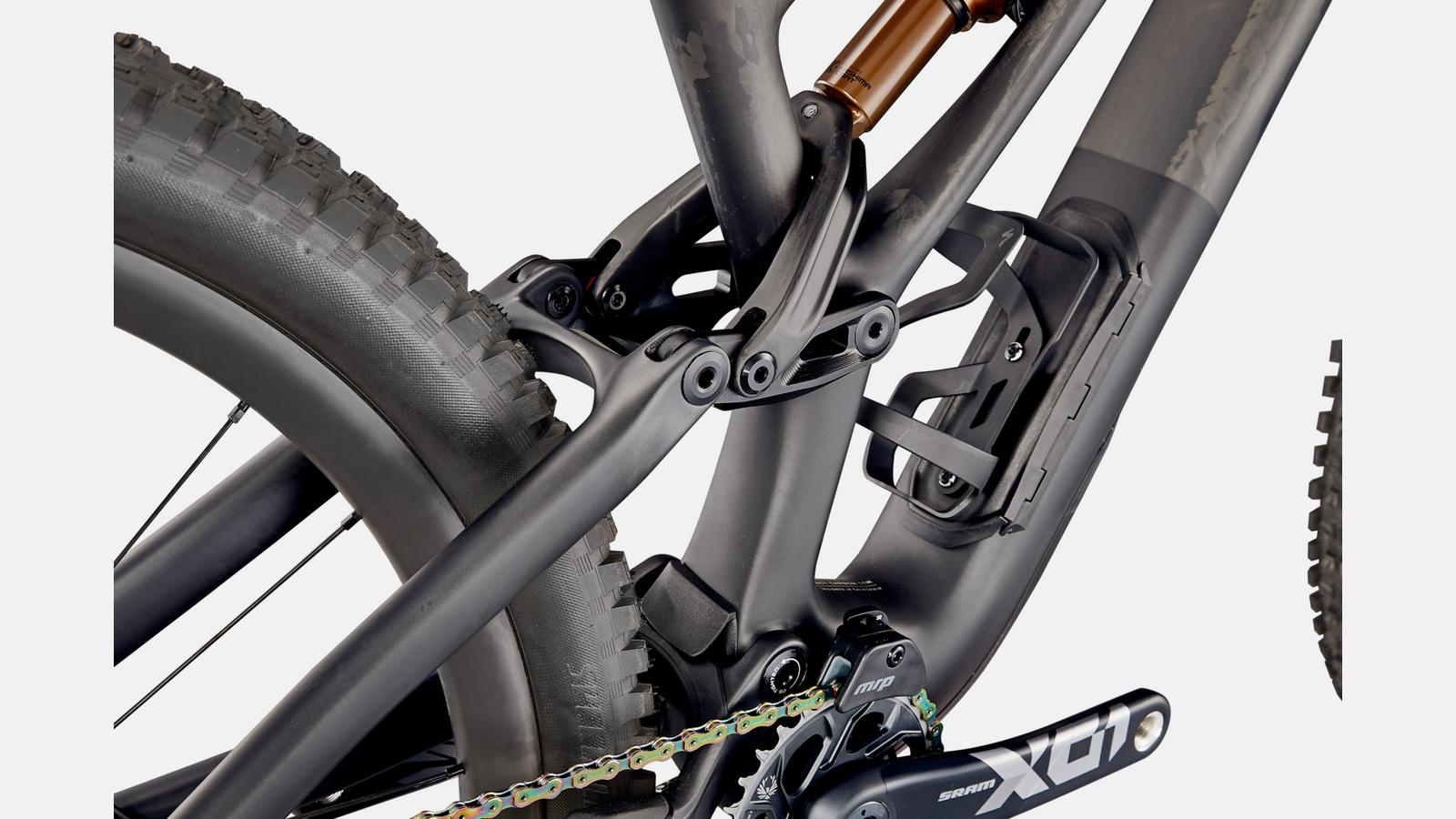

Frame FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
SWAT Increased-volume SWAT™ Door integration with 22oz SWAT™ Bladder
Seat Binder Alloy, 38.6mm
Rear Shock FOX FLOAT X Factory, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, S1
Fork FOX FLOAT 36 Factory, GRIP2 damper, 15x110mm, 44mm offset, S1
Stem Deity, 35.0mm

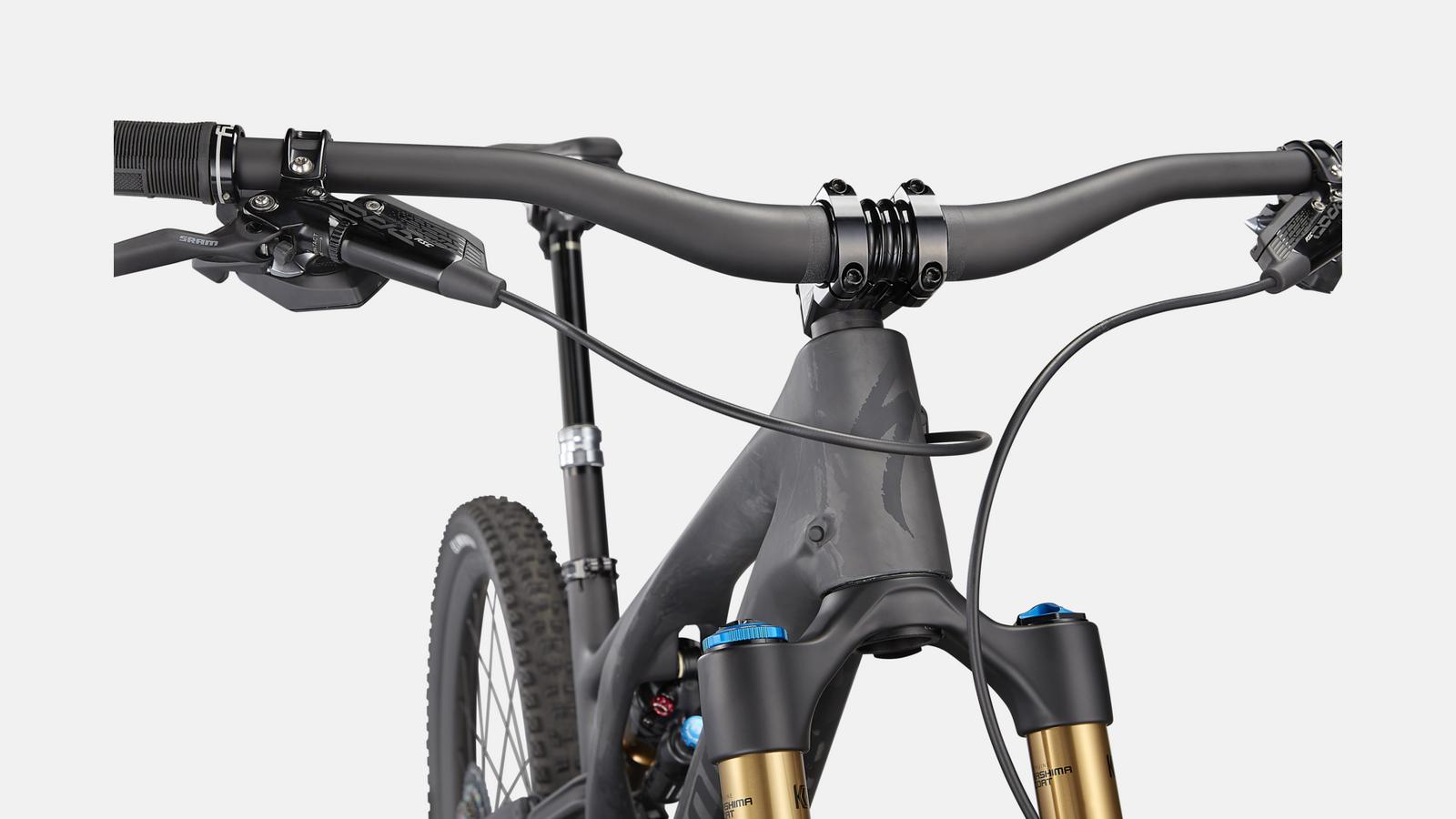

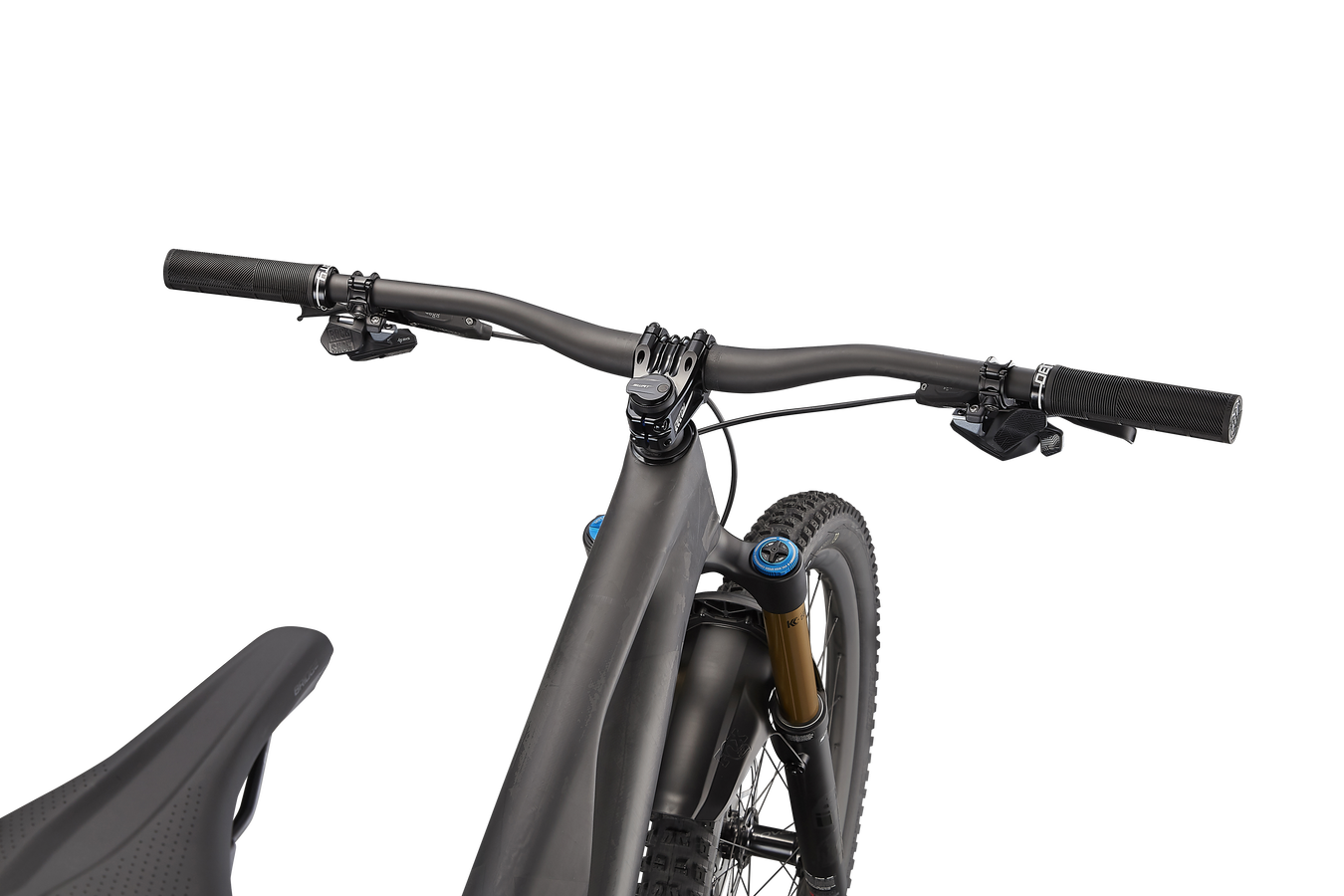

Handlebars Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
Grips Deity, Knuckleduster, Black
Saddle Bridge, 155/143mm, Hollow Ti-rails
SeatPost RockShox Reverb AXS, 30.9, 1X remote, (S1
Front Brake SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
Rear Brake SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
Rear Derailleur SRAM XX1 Eagle AXS
Shift Levers SRAM Eagle AXS Rocker Paddle
Cassette Sram XG-1299, 12-Speed, 10-52t
Chain SRAM XX1 Eagle
Crankset SRAM X01 Eagle, DUB, S1
Chainrings Alloy, 30T
Bottom Bracket SRAM DUB, BSA 73mm, threaded
Rims Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h
Front Hub Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing
Rear Hub Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing
Spokes DT Competition Race
Front Tire Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3"
Inner Tubes Standard, Presta valve

Technical Specifications

Frame FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
SWAT Increased-volume SWAT™ Door integration with 22oz SWAT™ Bladder
Seat Binder Alloy, 38.6mm
Rear Shock FOX FLOAT X Factory, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, S1
Fork FOX FLOAT 36 Factory, GRIP2 damper, 15x110mm, 44mm offset, S1
Stem Deity, 35.0mm
Handlebars Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
Grips Deity, Knuckleduster, Black
Saddle Bridge, 155/143mm, Hollow Ti-rails
SeatPost RockShox Reverb AXS, 30.9, 1X remote, (S1
Front Brake SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
Rear Brake SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
Rear Derailleur SRAM XX1 Eagle AXS
Shift Levers SRAM Eagle AXS Rocker Paddle
Cassette Sram XG-1299, 12-Speed, 10-52t
Chain SRAM XX1 Eagle
Crankset SRAM X01 Eagle, DUB, S1
Chainrings Alloy, 30T
Bottom Bracket SRAM DUB, BSA 73mm, threaded
Rims Roval Traverse SL 29, hookless carbon, 30mm inner width, 2Bliss Ready, hand-built, 28h
Front Hub Roval Traverse SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing
Rear Hub Roval Traverse SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing
Spokes DT Competition Race
Front Tire Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3"
Inner Tubes Standard, Presta valve

Epic - Geometry

Geometry

  S1 S2 S3 S4 S5 S6
Seat Tube Angle 78deg 77.6deg 77.2deg 76.9deg 77deg 77deg
Max Seatpost Insertion 180mm 180mm 200mm 220mm 240mm 260mm
Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm 80mm
Stack 613mm 617mm 626mm 635mm 644mm 654mm
Reach 408mm 428mm 448mm 475mm 498mm 528mm
Headtube Length 95mm 95mm 105mm 115mm 125mm 135mm
Headtube Angle 64.5deg 64.5deg 64.5deg 64.5deg 64.5deg 64.5deg
BB Height 335mm 340mm 340mm 340mm 340mm 340mm
BB Drop 40mm 35mm 35mm 35mm 35mm 35mm
Trail 131mm 131mm 131mm 131mm 131mm 131mm
Fork Length (full) 561mm 571mm 571mm 571mm 571mm 571mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm 44mm
Front Center 732mm 756mm 780mm 809mm 838mm 873mm
Chainstay Length 438mm 438mm 438mm 438mm 448mm 448mm
Wheelbase 1167mm 1191mm 1216mm 1247mm 1285mm 1319mm
Top-tube Length (horizontal) 538mm 564mm 590mm 623mm 647mm 679mm
Bike Standover Height 733mm 764mm 763mm 762mm 767mm 770mm
Seat Tube Length 385mm 385mm 405mm 425mm 445mm 465mm
