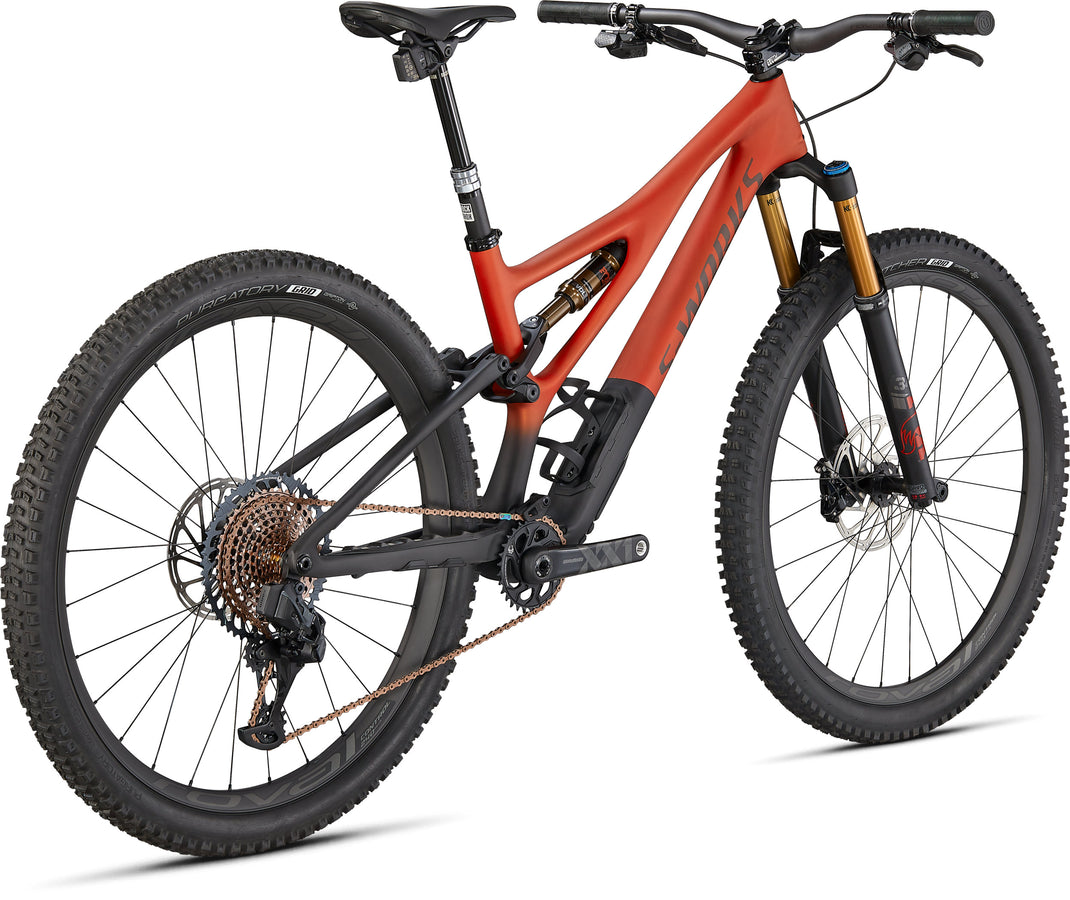

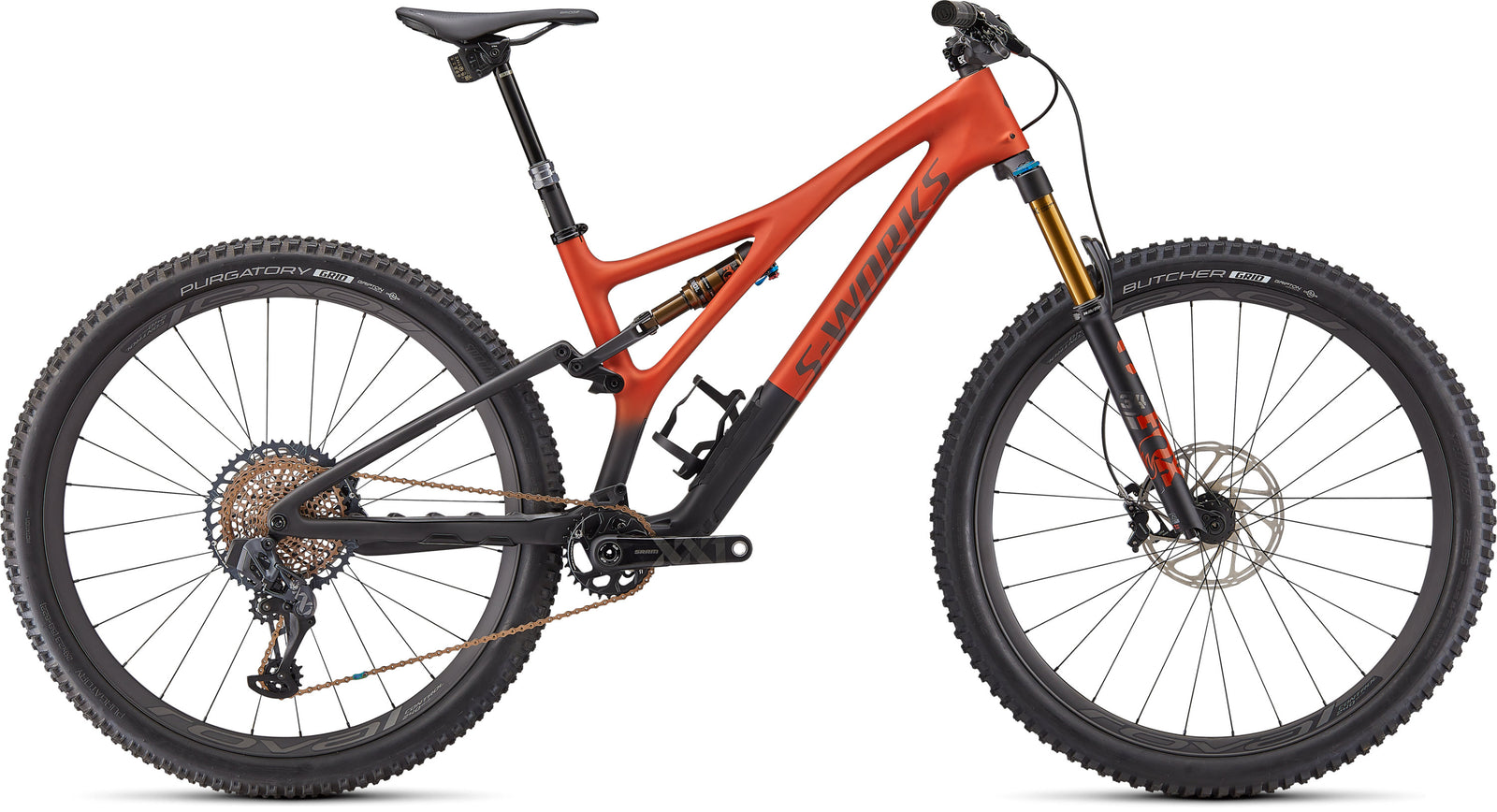

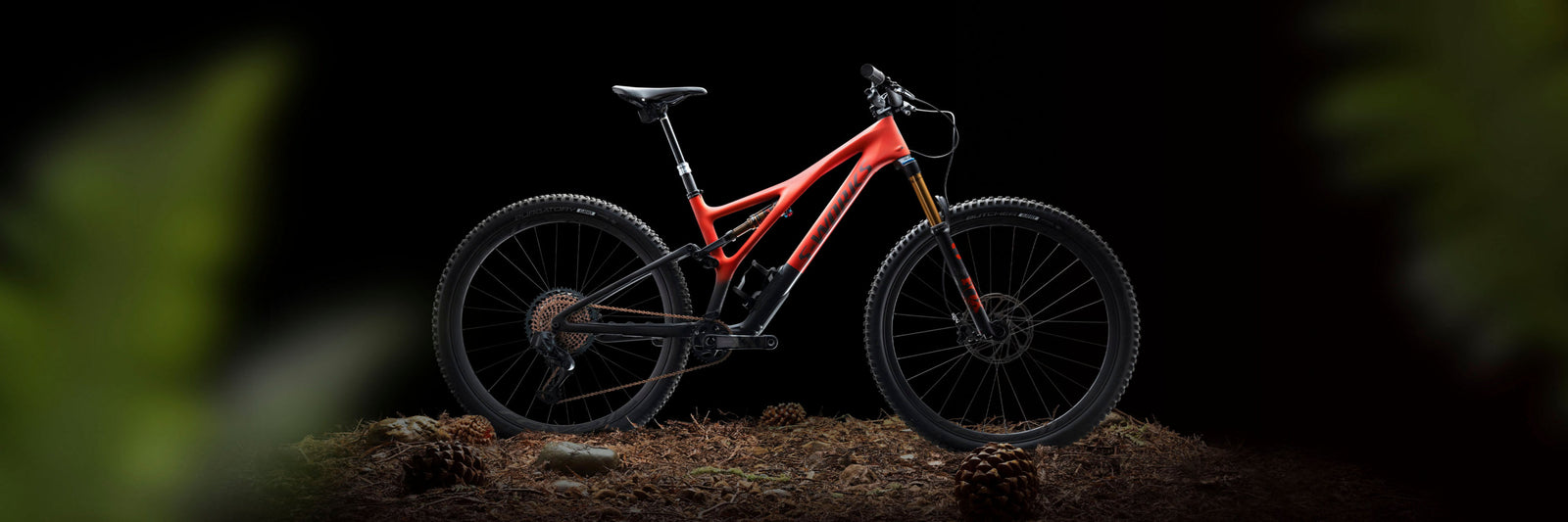

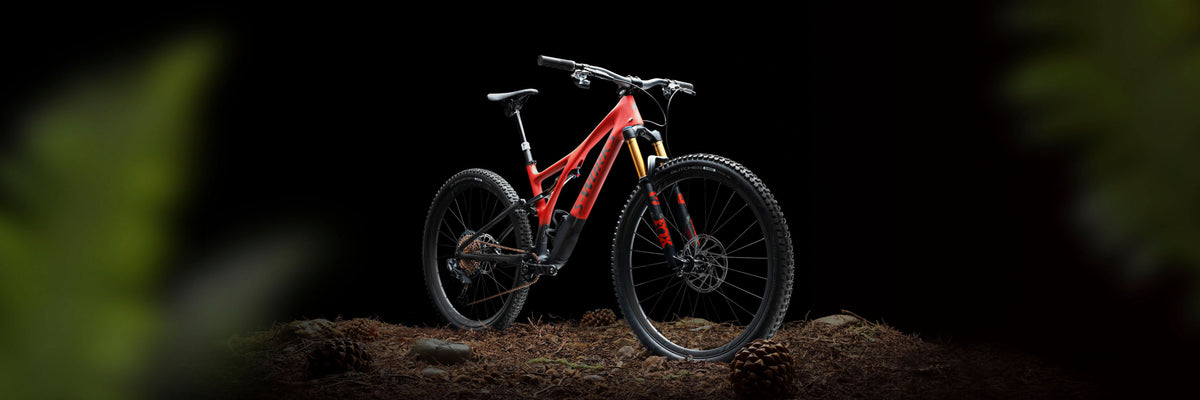

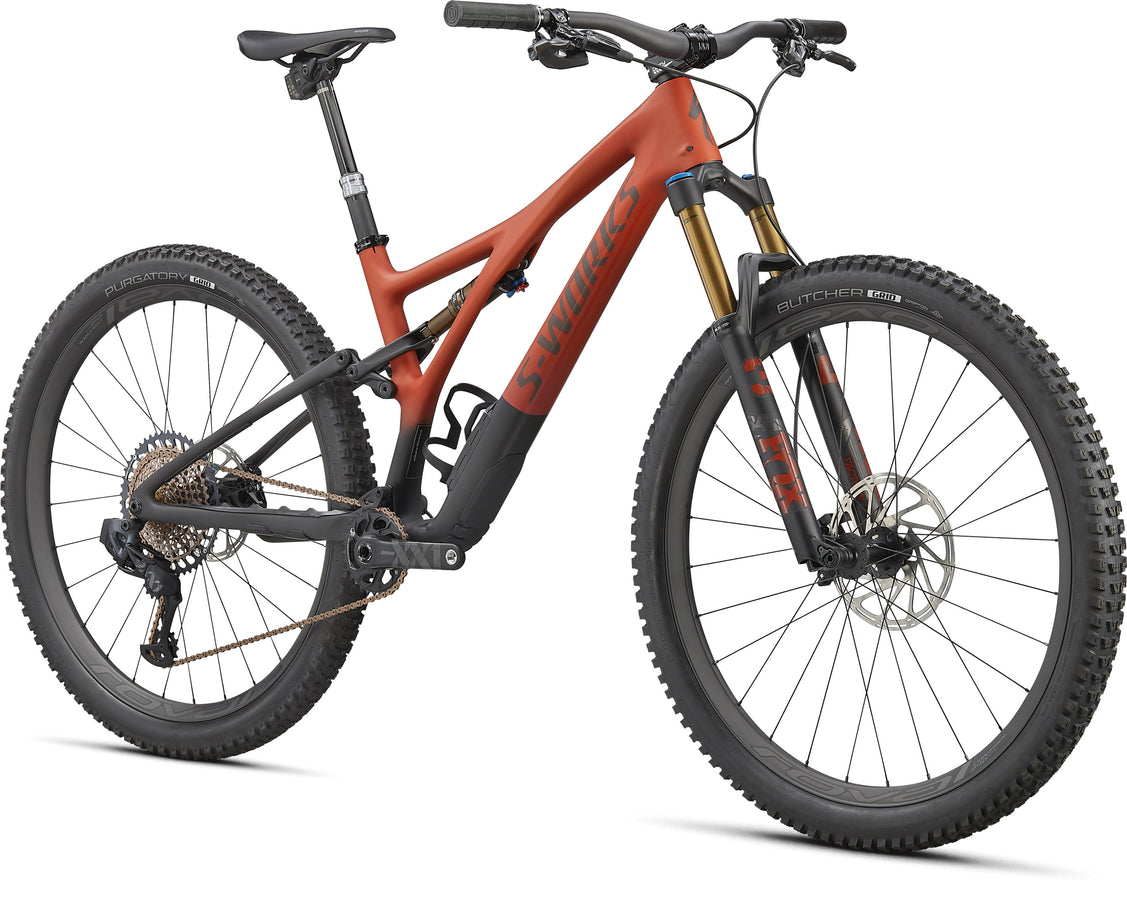

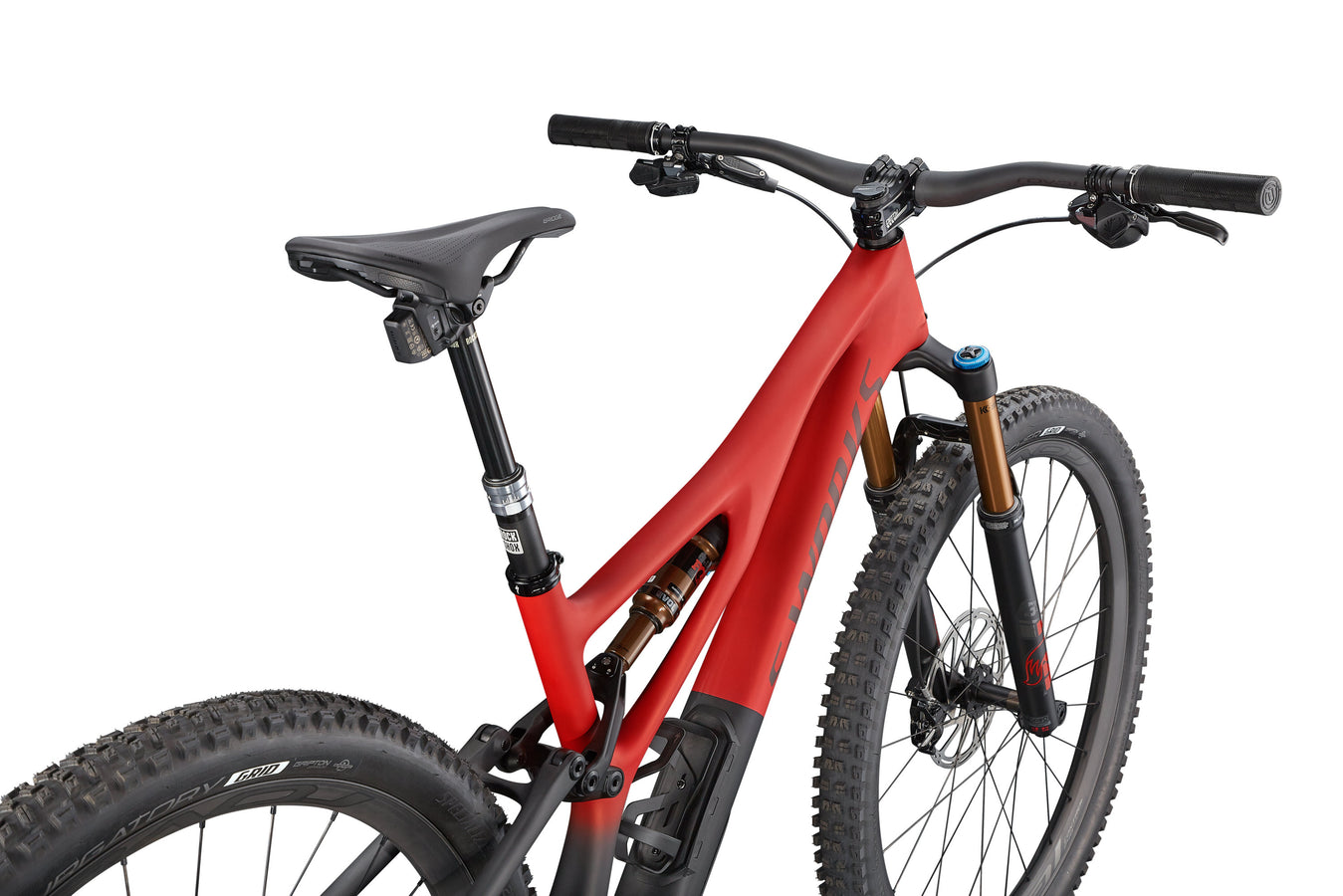

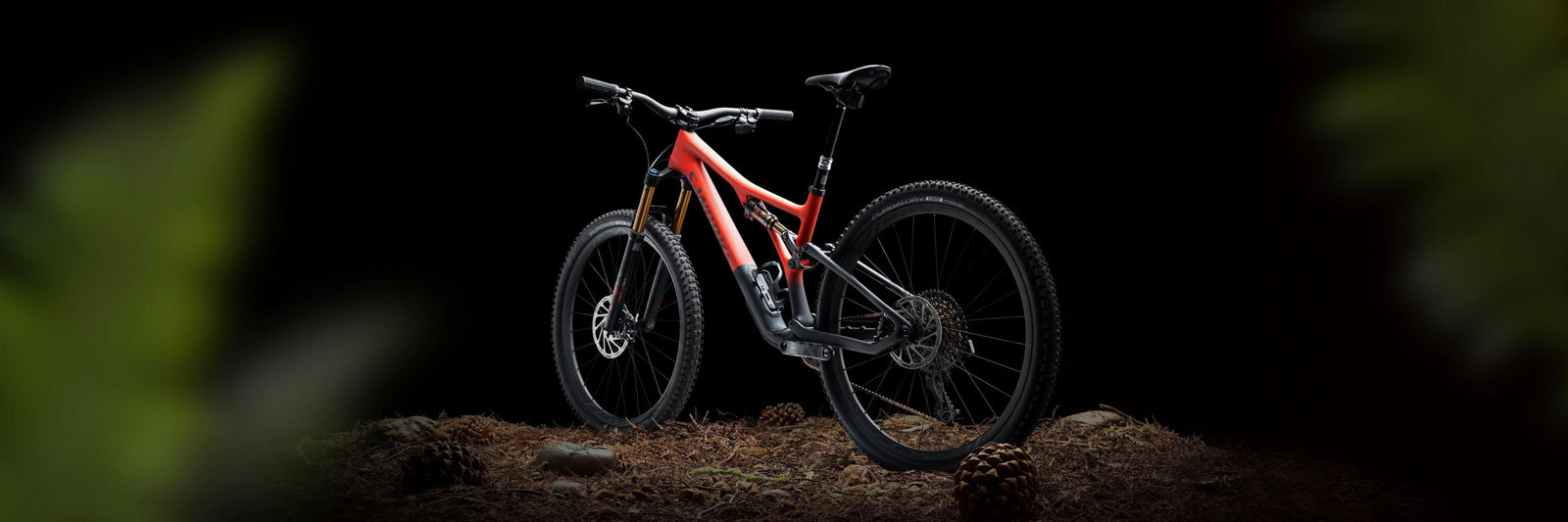

S-Works Stumpjumper

S-Works Stumpjumper

Part No.: 93321-0001

Notify me when this product is available:

Color
Size

Select a Size

When we say "The Ultimate Trail Bike," we mean it—the all-new Stumpjumper is everything you could ever ask for in a trail-ripping steed. Want a bike that climbs with ease? The Stumpjumper delivers, thanks to a ground-up suspension redesign and ... Read More

When we say "The Ultimate Trail Bike," we mean it—the all-new Stumpjumper is everything you could ever ask for in a trail-ripping steed. Want a bike that climbs with ease? The Stumpjumper delivers, thanks to a ground-up suspension redesign and ... Read More

wishlist message

Technical Specifications

SWAT SWAT™ Door integration

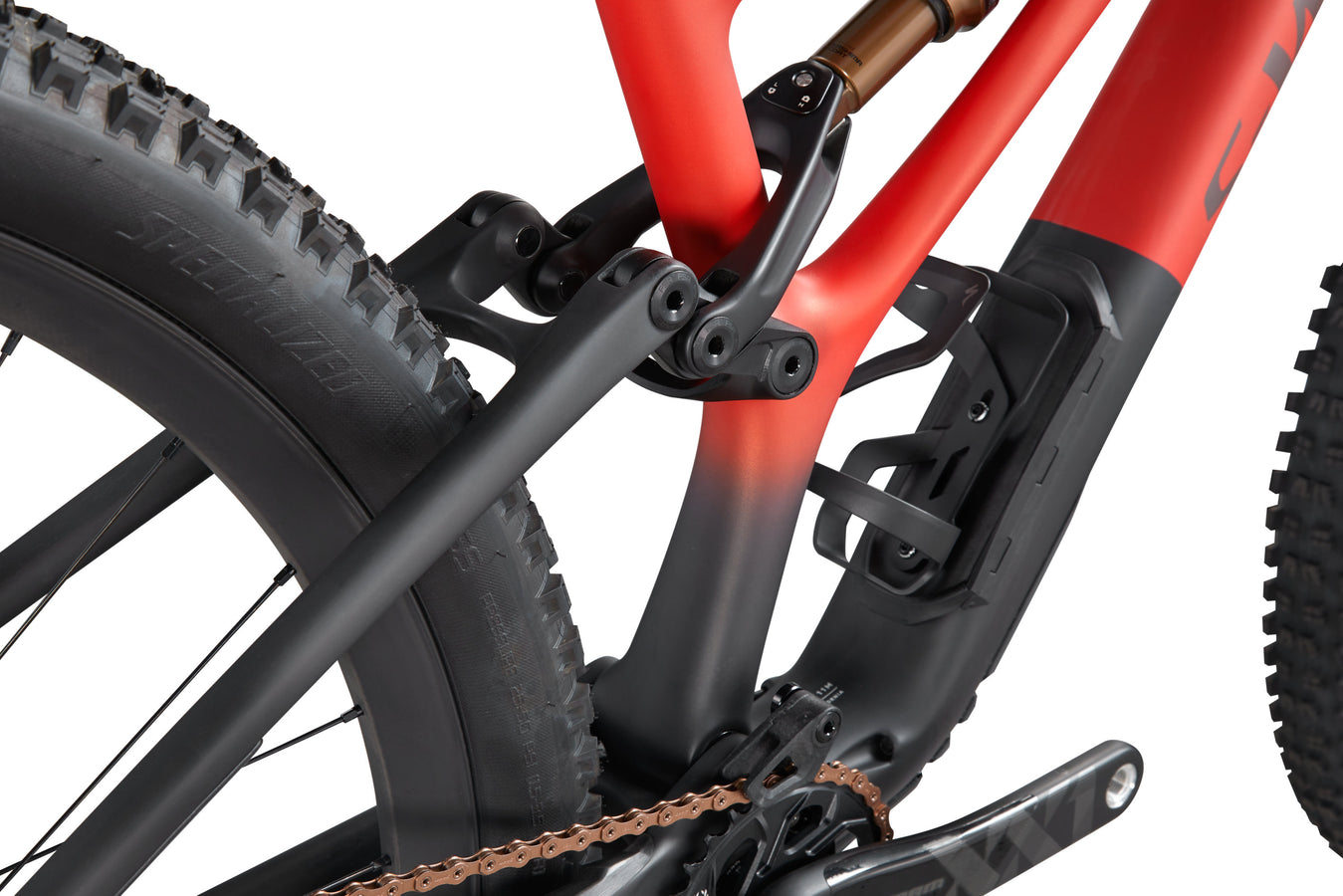

Frame FACT 11m carbon chassis and rear-end, carbon shock extension, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
Seat Binder Alloy, 38.6

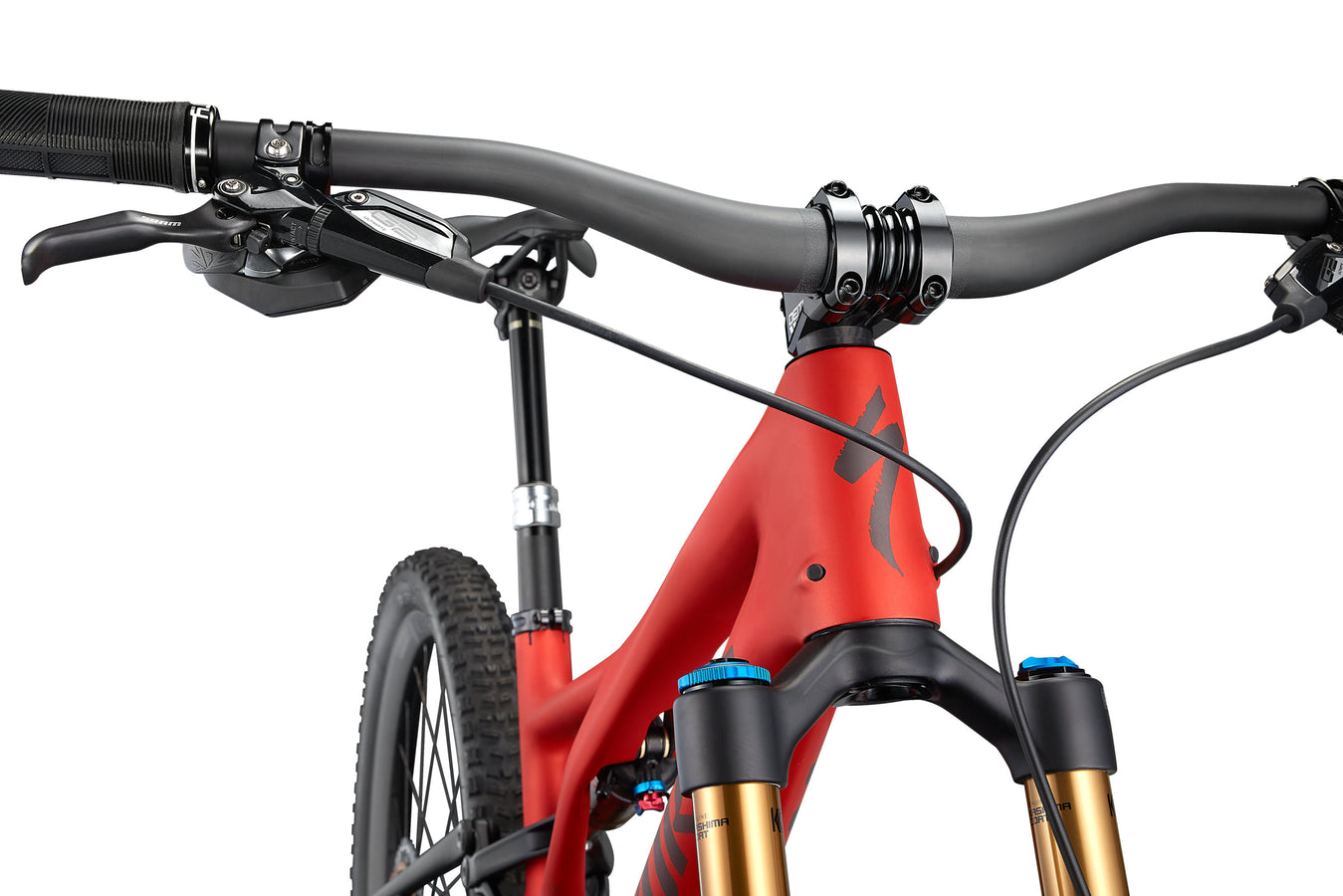

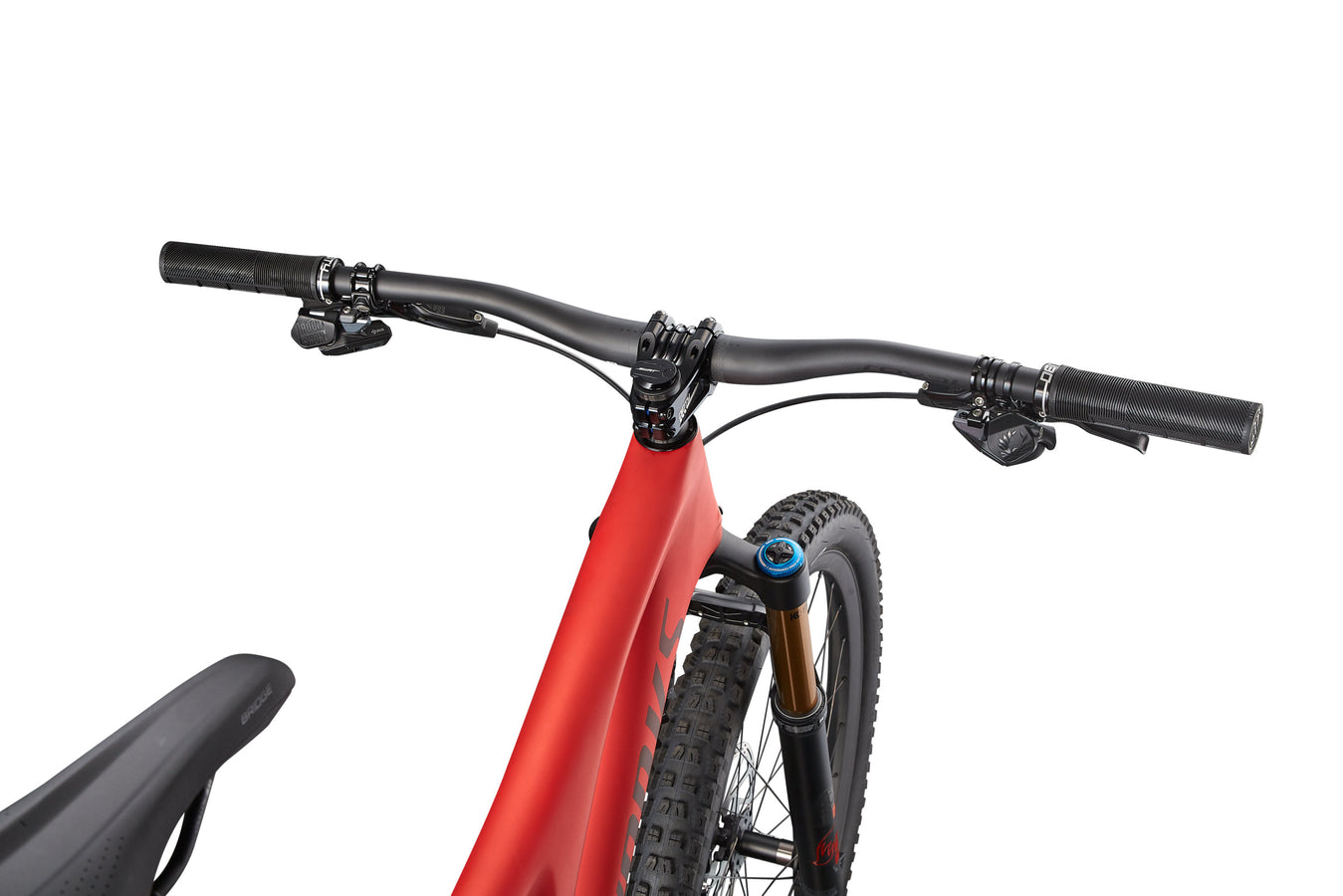

Handlebars Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 35mm
Stem Deity Copperhead, 35.0mm
SeatPost RockShox Reverb AXS, 30.9, 1X remote, (S1
Saddle Bridge, 155/143mm, Hollow Ti-rails
Grips Deity, Knuckleduster, Black
Chainrings Steel, 30t
Cassette SRAM XG-1299 Eagle, 10-52t
Crankset SRAM XX1 Eagle, DUB, S1
Rear Derailleur SRAM XX1 Eagle AXS
Chain SRAM XX1, 12 speed
Shift Levers SRAM XX1 Eagle AXS
Bottom Bracket SRAM DUB, BSA 73mm, threaded
Fork FOX FLOAT 34 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel
Rear Shock FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm
Rear Hub DT Swiss 240, Ratchet EXP, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Inner Tubes Standard, Presta valve
Front Hub DT Swiss 240, sealed cartridge bearings, 15x110mm spacing, 28h
Spokes DT Swiss Competition Race
Front Tire Butcher, GRID casing, GRIPTON® compound, 29x2.3\"
Rear Tire Purgatory, GRID Casing, GRIPTON® compound, 29x2.3\"
Rims Roval Control 240, hookless carbon, 29mm inner width, hand-built, 2Bliss Ready
Front Brake SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 200mm
Rear Brake SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 180mm

Technical Specifications

SWAT SWAT™ Door integration
Frame FACT 11m carbon chassis and rear-end, carbon shock extension, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
Seat Binder Alloy, 38.6
Handlebars Specialized Trail, FACT Carbon, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm, 35mm
Stem Deity Copperhead, 35.0mm
SeatPost RockShox Reverb AXS, 30.9, 1X remote, (S1
Saddle Bridge, 155/143mm, Hollow Ti-rails
Grips Deity, Knuckleduster, Black
Chainrings Steel, 30t
Cassette SRAM XG-1299 Eagle, 10-52t
Crankset SRAM XX1 Eagle, DUB, S1
Rear Derailleur SRAM XX1 Eagle AXS
Chain SRAM XX1, 12 speed
Shift Levers SRAM XX1 Eagle AXS
Bottom Bracket SRAM DUB, BSA 73mm, threaded
Fork FOX FLOAT 34 Factory, GRIP2 damper, Kashima Coating, 15x110mm, 44mm offset, 140mm of travel
Rear Shock FOX FLOAT DPS Factory, Rx Trail Tune, EVOL Air sleeve, Kashima Coat, 3-position adjustment w/ Open Mode Adjustment, 190x45mm
Rear Hub DT Swiss 240, Ratchet EXP, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Inner Tubes Standard, Presta valve
Front Hub DT Swiss 240, sealed cartridge bearings, 15x110mm spacing, 28h
Spokes DT Swiss Competition Race
Front Tire Butcher, GRID casing, GRIPTON® compound, 29x2.3\"
Rear Tire Purgatory, GRID Casing, GRIPTON® compound, 29x2.3\"
Rims Roval Control 240, hookless carbon, 29mm inner width, hand-built, 2Bliss Ready
Front Brake SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 200mm
Rear Brake SRAM G2 ULTIMATE, 4-piston caliper, hydraulic disc, 180mm

Epic - Geometry

Geometry

  S1 S2 S3 S4 S5 S6
Crank Length 165mm 170mm 170mm 170mm 170mm 175mm
Stem Length 35mm 35mm 50mm 50mm 50mm 50mm
Handlebar Width 780mm 780mm 780mm 780mm 780mm 780mm
Wheelbase 1152mm 1175mm 1200mm 1228mm 1268mm 1302mm
Chainstay Length 432mm 432mm 432mm 432mm 442mm 442mm
Front Center 724mm 746mm 770mm 800mm 829mm 863mm
Stack (Low BB) 614mm 613mm 622mm 632mm 641mm 650mm
Seat Tube Length 385mm 385mm 405mm 425mm 445mm 465mm
Bike Standover Height 730mm 734mm 744mm 749mm 757mm 757mm
Headtube Length 95mm 100mm 110mm 120mm 130mm 140mm
Headtube Angle (Low BB) 65° 65° 65° 65° 65° 65°
Min Seatpost Insertion 80mm 80mm 80mm 80mm 80mm 80mm
Max Seatpost Insertion 220mm 220mm 240mm 260mm 280mm 300mm
Headtube Angle (High BB) 65.5° 65.5° 65.5° 65.5° 65.5° 65.5°
Seatpost Length 100 mm 125 mm 150 mm 170 mm 170 mm 170 mm
Saddle Width 155mm 155mm 143mm 143mm 143mm 143mm
Trail (Low BB) 126mm 126mm 126mm 126mm 126mm 126mm
Trail (High BB) 123mm 123mm 123mm 123mm 123mm 123mm
BB Drop (High BB) 40mm 35mm 35mm 35mm 35mm 35mm
Top-tube Length (horizontal) 563mm 583mm 605mm 632mm 660mm 692mm
BB Height (High BB) 335mm 340mm 340mm 340mm 340mm 340mm
BB Drop (Low BB) 47mm 42mm 42mm 42mm 42mm 42mm
Stack (High BB) 610mm 609mm 618mm 627mm 636mm 646mm
BB Height (Low BB) 328mm 333mm 333mm 333mm 333mm 333mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm 44mm
Seat Tube Angle (High BB) 76.5° 76.5° 76.5° 76.5° 76.5° 76.5°
Reach (Low BB) 410mm 430mm 450mm 475mm 500mm 530mm
Seat Tube Angle (Low BB) 76° 76° 76° 76° 76° 76°
Fork Length (full) 550mm 550mm 550mm 550mm 550mm 550mm
Reach (High BB) 415mm 435mm 455mm 480mm 505mm 535mm
