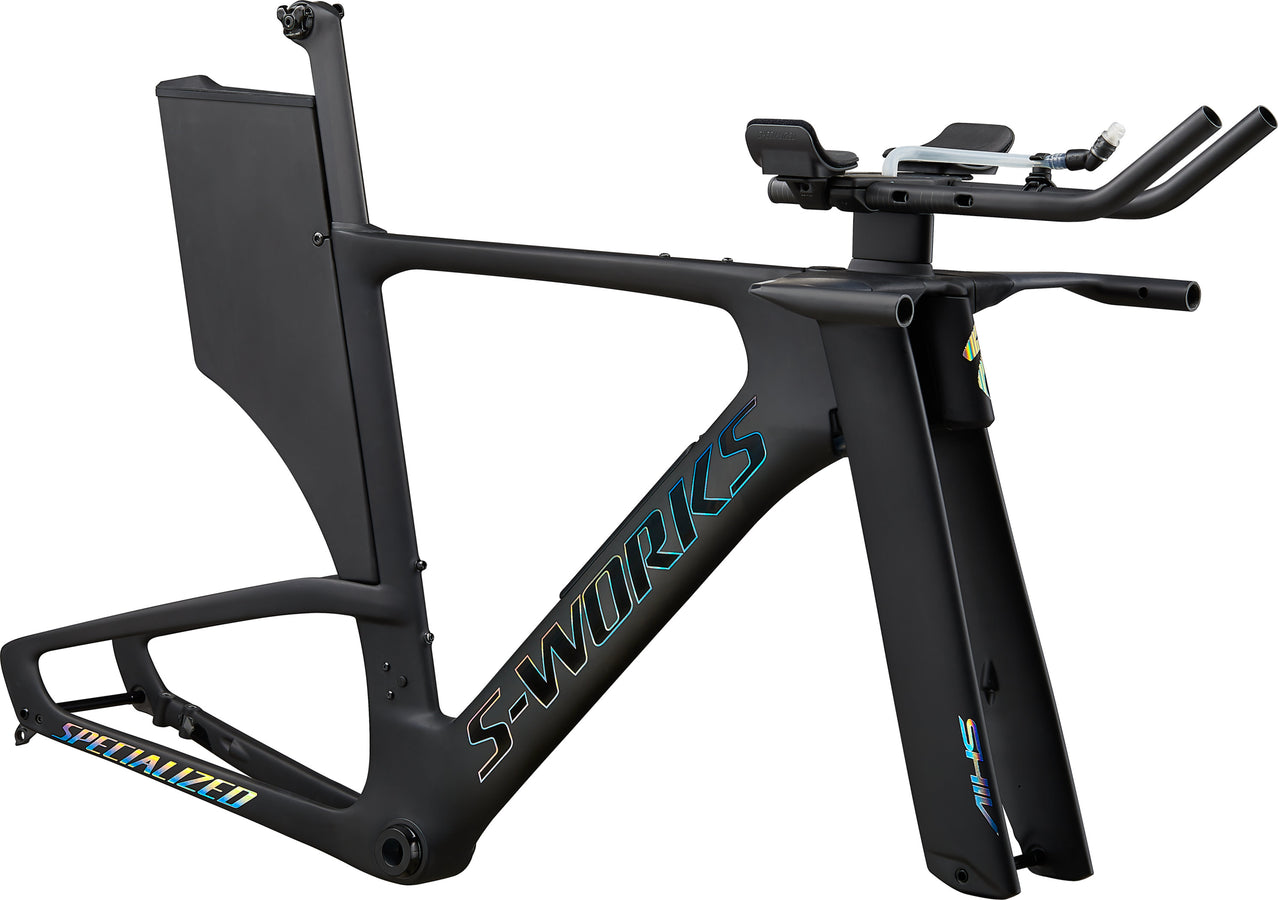

S-Works Shiv Disc Module

S-Works Shiv Disc Module

Part No.: 77419-0102

Color
Size

Select a Size

We"ve never been ones for dogmatic rules. And with a little defiance of the UCI"s rule book, the Shiv sets the new standard for speed—again. It keeps its aero, fuel, and fit focus, but does so in an entirely new and novel way. Yes, it has disc bra... Read More
We"ve never been ones for dogmatic rules. And with a little defiance of the UCI"s rule book, the Shiv sets the new standard for speed—again. It keeps its aero, fuel, and fit focus, but does so in an entirely new and novel way. Yes, it has disc bra... Read More

wishlist message

Technical Specifications

Frame S-Works FACT 11r carbon, FACT IS construction, crosswind-optimized airfoils, OSBB, Integrated Fit System, Integrated Nutrition and Hydration Fuelcell, flat-mount disc brakes
Fork FACT carbon, integrated Fit System, flat-mount disc, 12x100mm thru-axle
Handlebars Specialized Shiv Aerobar, carbon, variable stack adjust
Tape Roubaix S-Wrap
SeatPost Shiv Disc Carbon Post, 25 Forward Offset and 0mm Offset
Bottom Bracket OSBB, CeramicSpeed bearings

Technical Specifications

Frame S-Works FACT 11r carbon, FACT IS construction, crosswind-optimized airfoils, OSBB, Integrated Fit System, Integrated Nutrition and Hydration Fuelcell, flat-mount disc brakes
Fork FACT carbon, integrated Fit System, flat-mount disc, 12x100mm thru-axle
Handlebars Specialized Shiv Aerobar, carbon, variable stack adjust
Tape Roubaix S-Wrap
SeatPost Shiv Disc Carbon Post, 25 Forward Offset and 0mm Offset
Bottom Bracket OSBB, CeramicSpeed bearings

Epic - Geometry

Geometry

XS S M L
  XS S M L
EFFECTIVE REACH TO CENTER OF PAD, REARWARD POSITION 308mm 321mm 341mm 361mm
EFFECTIVE REACH TO CENTER OF PAD, FORWARD POSITION 525mm 541mm 556mm 576mm
EFFECTIVE STACK TO PAD HOLDER, LOWEST POSITION 556mm 561mm 585mm 617mm
EFFECTIVE STACK TO PAD HOLDER, HIGHEST POSITION 671mm 676mm 700mm 732mm
Stack 484mm 490mm 514mm 546mm
Reach 372mm 386mm 401mm 421mm
Head-Tube Length 70mm 70mm 94mm 127mm
Head-Tube Angle 70.25deg 72deg 72deg 72deg
B-B Height 265mm 265mm 265mm 265mm
B-B Drop 72mm 72mm 72mm 72mm
Trail 68mm 57mm 62mm 62mm
Fork Length (Full) 385mm 385mm 385mm 385mm
Fork Rake/Offset 50mm 50mm 45mm 45mm
Front-Center 578mm 579mm 596mm 627mm
Chain-Stay Length 415mm 415mm 415mm 415mm
Wheelbase 982mm 983mm 1001mm 1031mm
Top-Tube Length (Horizontal) 484mm 499mm 520mm 547mm
Bike Stand-Over Height 752mm 774mm 798mm 830mm
Seat-Tube Length 490mm 522mm 547mm 580mm
Seat-Tube Angle 77deg 77deg 77deg 77deg
