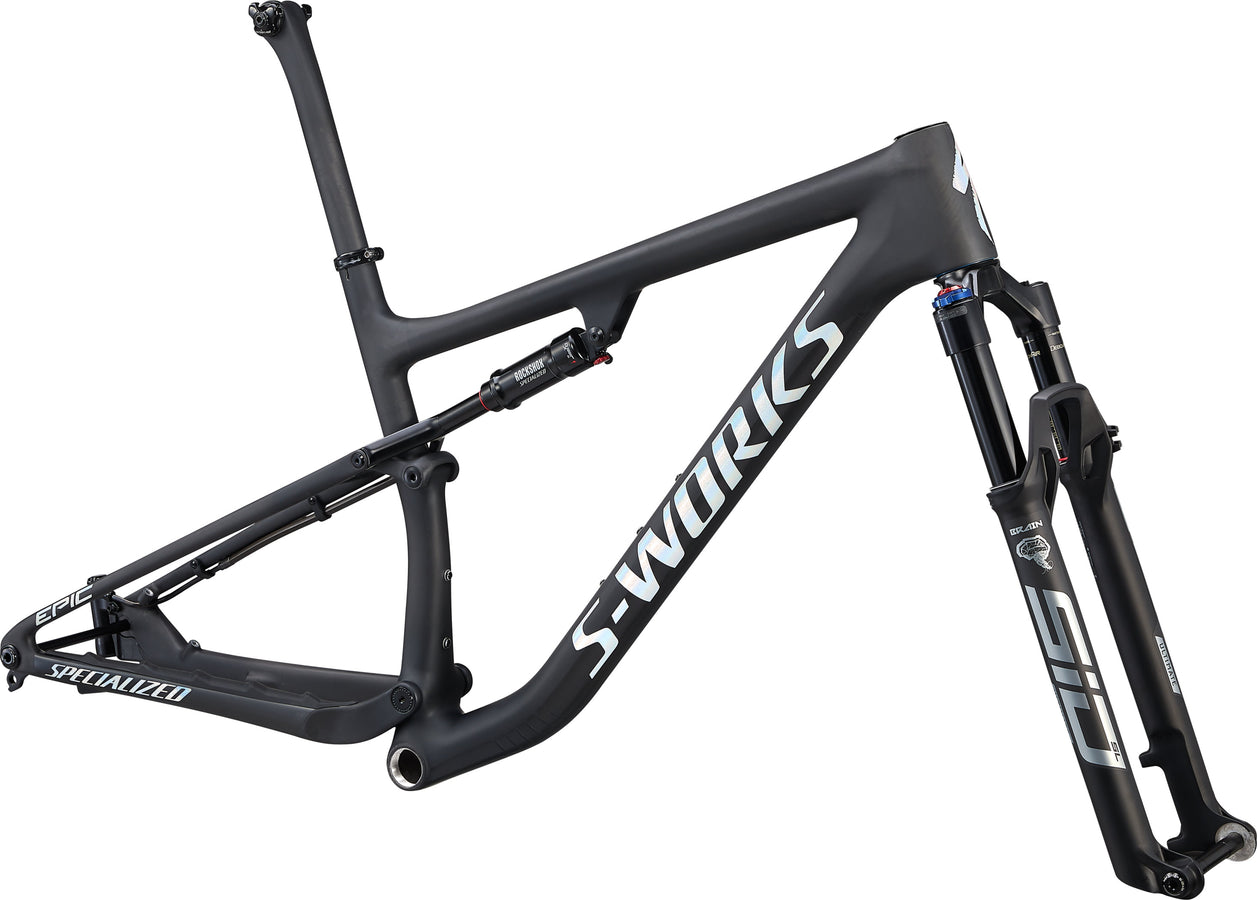

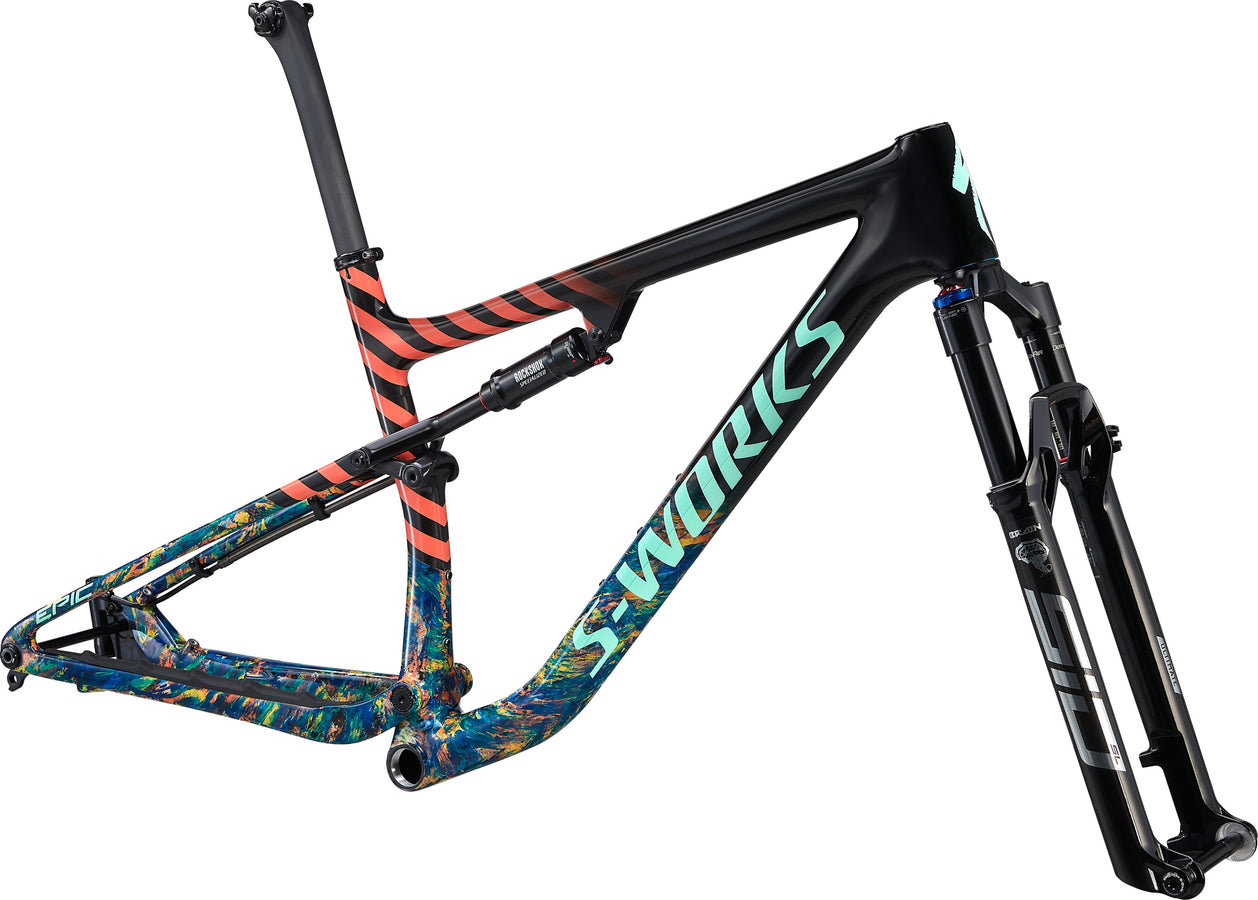

S-Works Epic Frameset

Part No. 77620-0301

Notify me when this product is available:

Color
Size
Size Chart
Don"t worry, we get it...your training buddies all think you"re a bit "particular". You may or may not have stockpiled your favorite grips just in case they ever get replaced by a new model. Perhaps your trailside toolbox would make a quality control engineer blush. Whatever the case, you won"t find any judgement here. Instead, the endlessly engineered S-Works Epic frameset is here for you to let your discerning tastes run wild. We sweated every last detail when designing the S-Works frame, from an endlessly refined layup schedule that re-examined every last ply of FACT 12m carbon to optimize weight savings and ride dynamics to the weight-shedding carbon shock link, all so that you focus on the rest, knowing that you"re starting with the most capable canvas in the world. A Smarter BRAIN True to form, the latest Epic continues the tradition, taking advantage of the most efficient Brain suspension we"ve ever created to ensure it"s always on a first-name-basis with fast. Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alike—all more smoothly than ever. Frame-Changer Re-engineered hand-in-hand with the new Epic, the latest BRAIN design resets the expectation for efficiency, employing a new race-tuned pedaling platform to ensure every watt possible is translated into forward motion, while handily soaking up momentum-killing chatter and big hits alike—all more smoothly than ever. Perfectly matched to the frame"s BRAIN system, the S-Works Epic frameset"s Position-Sensitive BRAIN fork benefits from RockShox"s latest SID Ulitmate SL chassis for next-level steering stiffness that still manages to keep the gram count to a minimum.
  • If speed could talk, it’d introduce itself as the all-new S-Works Epic frame. Offering 100-millimeters of brilliantly efficient Brain-controlled travel, the S-Work Epic increases rear-triangle stiffness for peerless power transfer, while the use of FACT 12m carbon, a dedicated layup and a full carbon shock link also make it the lightest full suspension frame we’ve ever created, all while offering the most capable handling in an Epic yet. Nice to meet you, speed.
  • Pairing 100 millimeters of the most efficent travel on earth with RockShox"s svelte-yet-stiff SID SL Ultimate chassis, the RockShox SID SL Ultimate BRAIN fork serves as the pinnacle of XC-race supsension perfection.

Technical Specifications

Frame S-Works FACT 12m Carbon, Modern XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Rear Shock RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integraded Extension, 265x52.5mm
Fork RockShox SID SL ULTIMATE BRAIN, Top-Adjust Brain damper, Debon Air, 15x110mm, 44mm offset, 100mm Travel
SeatPost S-Works FACT carbon, 10mm setback, 30.9mm

Technical Specifications

Geometry

Geometry Chart

Geometry

  Size XS S M L XL
Stack 596mm 586mm 591mm 605mm 623mm
Reach 390mm 415mm 445mm 470mm 495mm
Head-Tube Length 95mm 95mm 100mm 115mm 135mm
Head-Tube Angle 67.5deg 67.5deg 67.5deg 67.5deg 67.5deg
B-B Height 314mm 324mm 324mm 324mm 324mm
B-B Drop 58mm 48mm 48mm 48mm 48mm
Trail 106mm 106mm 106mm 106mm 106mm
Fork Length (Full) 505mm 505mm 505mm 505mm 505mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm
Front-Center 663mm 687mm 719mm 750mm 782mm
Chain-Stay Length 433mm 433mm 433mm 433mm 433mm
Wheelbase 1090mm 1116mm 1148mm 1179mm 1211mm
Bike Stand-Over Height 740mm 763mm 766mm 776mm 788mm
Seat-Tube Length 375mm 400mm 430mm 470mm 520mm
Seat-Tube Angle 76.5deg 75.8deg 75.5deg 75.5deg 75.5deg
Top-Tube Length (Horizontal) 533mm 563mm 598mm 626mm 656mm
