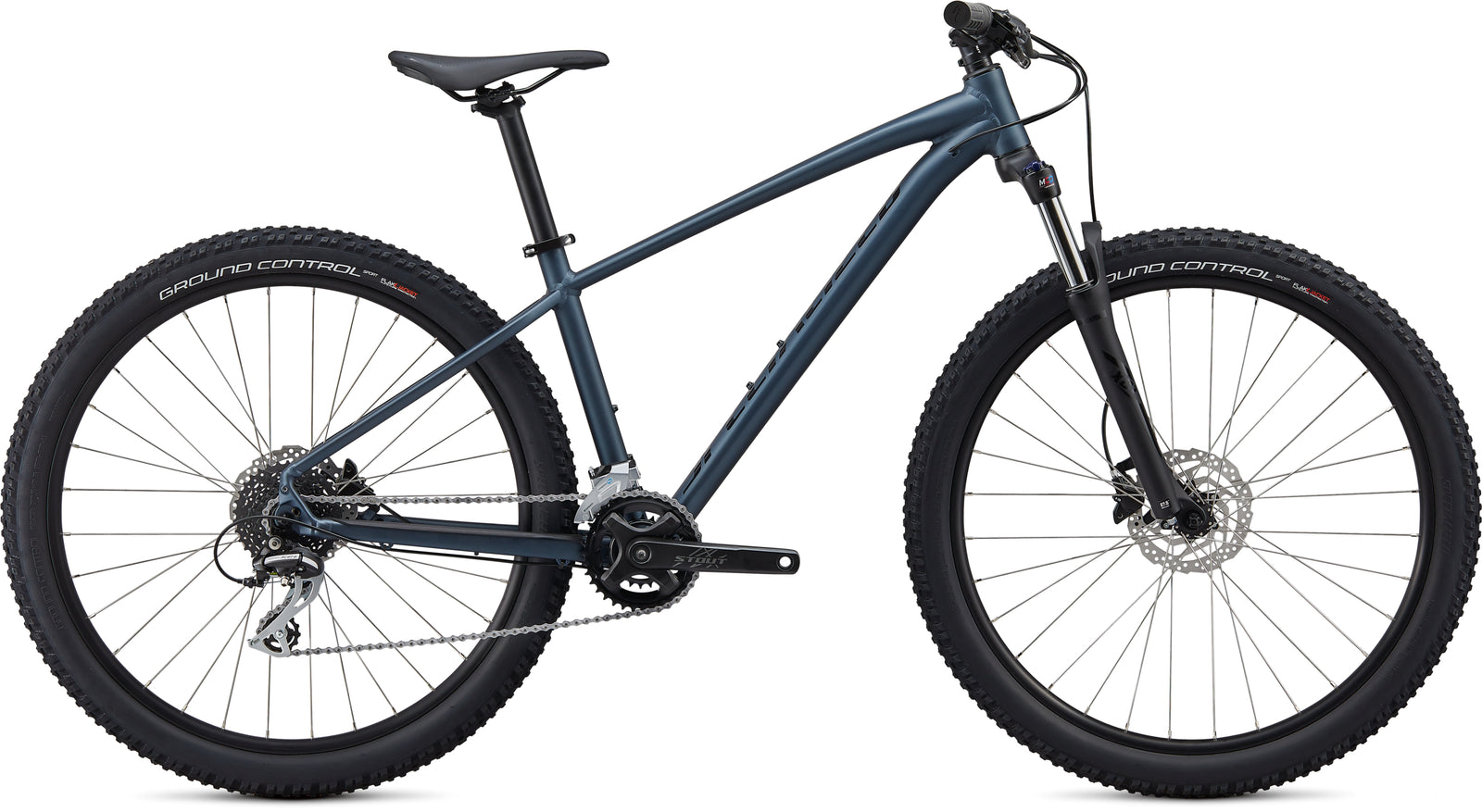

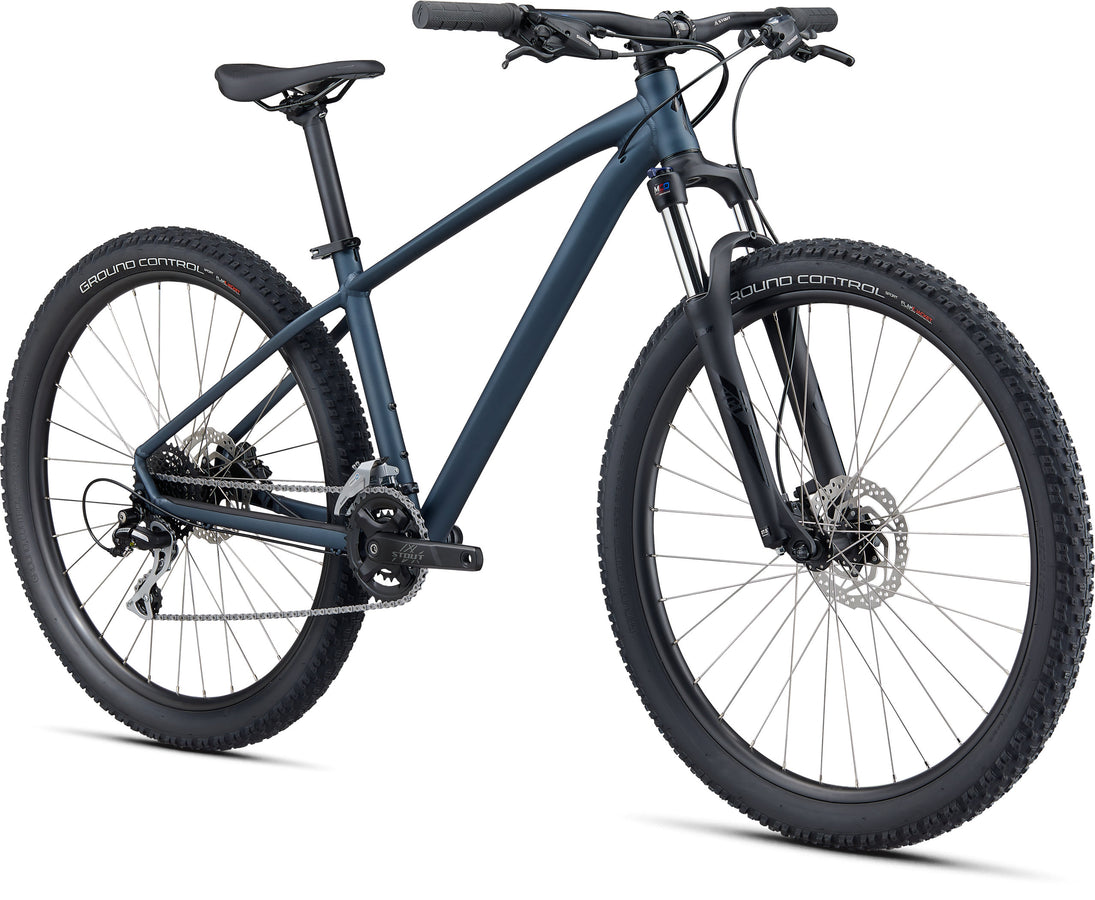

Pitch Sport

Pitch Sport

Part No.: 95520-6101

Notify me when this product is available:

Color
Size

Select a Size

That spot where the bike path turns from concrete to dirt? The Pitch Sport is made to explore beyond, with a sturdy aluminum frame, smooth-riding front suspension, grippy tires for loose surfaces, and sure-stopping hydraulic disc brakes to keep yo... Read More
That spot where the bike path turns from concrete to dirt? The Pitch Sport is made to explore beyond, with a sturdy aluminum frame, smooth-riding front suspension, grippy tires for loose surfaces, and sure-stopping hydraulic disc brakes to keep yo... Read More

wishlist message

Technical Specifications

Frame A1 Premium Aluminum, Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger
Fork SR SunTour XCT 30 w/ MCD lock out, Rx Tune, coil spring, 42mm offset, 80/90/100mm of travel of (size-specific)
Stem Stout 3D-forged alloy, 31.8mm, 6-degree rise
Handlebars Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Grips Specialized MTB Grip, lock-on
SeatPost Alloy, 12mm offset, 2-bolt clamp, 30.9mm
Front Brake Shimano BR-MT200, hydraulic disc, 160/180mm
Rear Brake Shimano BR-MT200, hydraulic disc, 160mm
Front Derailleur Shimano Altus FD-M315
Rear Derailleur Shimano Acera, 8-speed
Shift Levers Shimano EF505, hydraulic, 8-speed
Cassette Sunrace, 8-speed, 11-34t
Chain KMC X8 EPT, anti-rust coating, 8-speed w/ reusable Missing Link™
Crankset Stout 2x, forged alloy
Chainrings 36/22T
Bottom Bracket Square-tapered, 73mm, internal bearings
Rims Stout Trail 27.5, alloy, disc-specific, double-wall, 25mm internal width, 32h
Front Hub Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 32h
Rear Hub Shimano FH-TX505, Center Lock™ disc, 9x135mm spacing, quick-release, 32h
Spokes Stainless, 14g
Front Tire Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3\"
Rear Tire Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3\"

Technical Specifications

Frame A1 Premium Aluminum, Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger
Fork SR SunTour XCT 30 w/ MCD lock out, Rx Tune, coil spring, 42mm offset, 80/90/100mm of travel of (size-specific)
Stem Stout 3D-forged alloy, 31.8mm, 6-degree rise
Handlebars Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Grips Specialized MTB Grip, lock-on
SeatPost Alloy, 12mm offset, 2-bolt clamp, 30.9mm
Front Brake Shimano BR-MT200, hydraulic disc, 160/180mm
Rear Brake Shimano BR-MT200, hydraulic disc, 160mm
Front Derailleur Shimano Altus FD-M315
Rear Derailleur Shimano Acera, 8-speed
Shift Levers Shimano EF505, hydraulic, 8-speed
Cassette Sunrace, 8-speed, 11-34t
Chain KMC X8 EPT, anti-rust coating, 8-speed w/ reusable Missing Link™
Crankset Stout 2x, forged alloy
Chainrings 36/22T
Bottom Bracket Square-tapered, 73mm, internal bearings
Rims Stout Trail 27.5, alloy, disc-specific, double-wall, 25mm internal width, 32h
Front Hub Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 32h
Rear Hub Shimano FH-TX505, Center Lock™ disc, 9x135mm spacing, quick-release, 32h
Spokes Stainless, 14g
Front Tire Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3\"
Rear Tire Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3\"

Epic - Geometry

Geometry

XS S M L XL
  XS S M L XL
Stack 562mm 562mm 585mm 604mm 618mm
Reach 380mm 400mm 420mm 440mm 460mm
Head-Tube Length 95mm 95mm 100mm 120mm 135mm
Head-Tube Angle 68.5deg 68.5deg 68.5deg 68.5deg 68.5deg
B-B Height 310mm 310mm 310mm 310mm 310mm
B-B Drop 43mm 43mm 43mm 43mm 43mm
Trail 94mm 94mm 94mm 94mm 94mm
Fork Length (Full) 475mm 475mm 495mm 495mm 495mm
Fork Rake/Offset 42mm 42mm 42mm 42mm 42mm
Front-Center 631mm 651mm 680mm 708mm 733mm
Chain-Stay Length 435mm 435mm 435mm 435mm 435mm
Wheelbase 1063mm 1083mm 1112mm 1139mm 1165mm
Top-Tube Length (Horizontal) 542mm 572mm 599mm 625mm 649mm
Bike Stand-Over Height 660mm 690mm 739mm 766mm 808mm
Seat-Tube Length 310mm 360mm 415mm 450mm 510mm
Seat-Tube Angle 74deg 73deg 73deg 73deg 73deg
