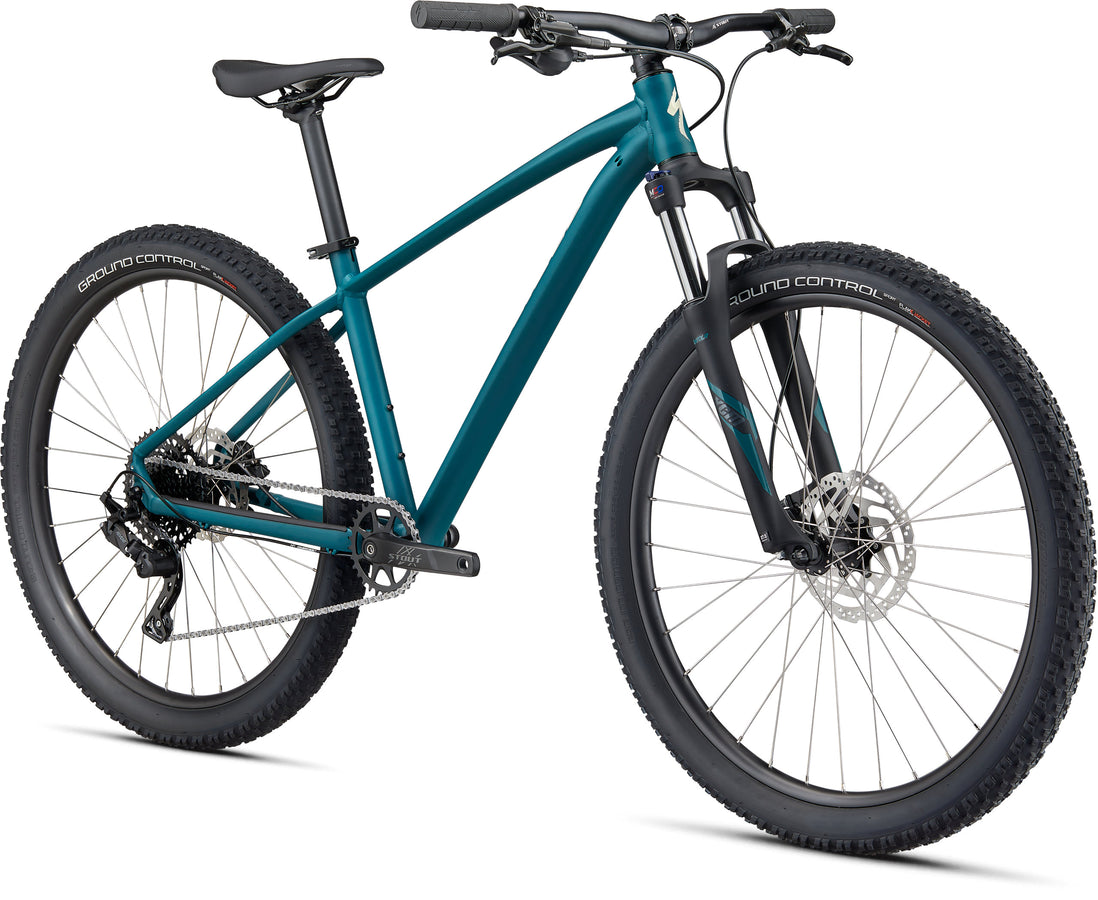

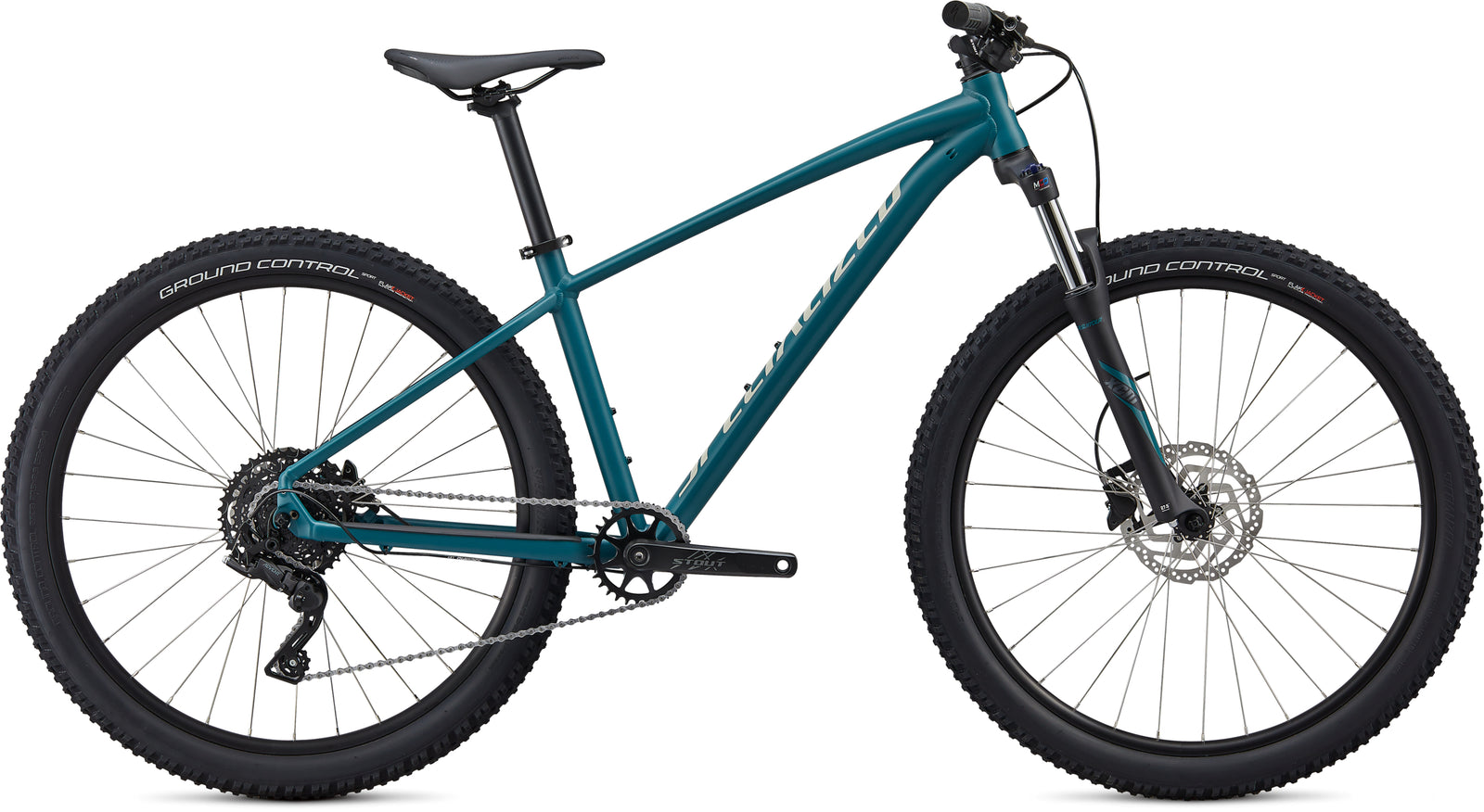

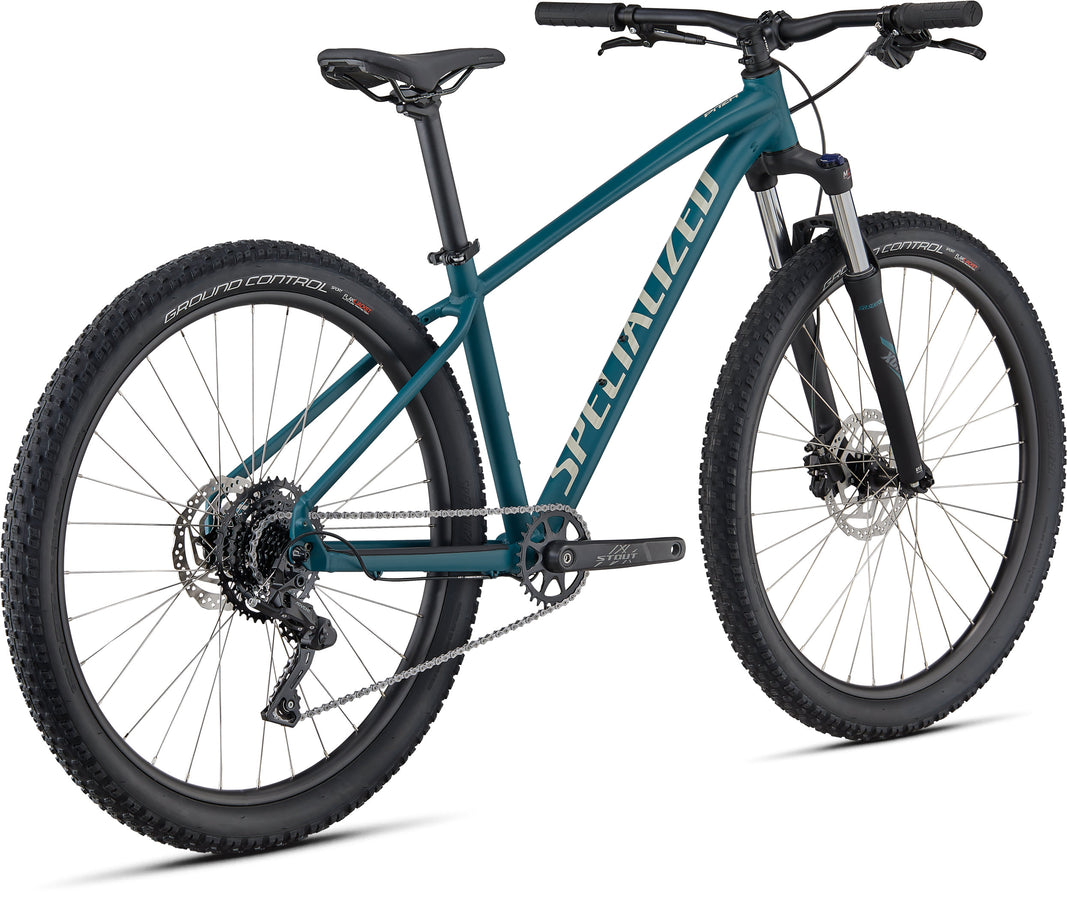

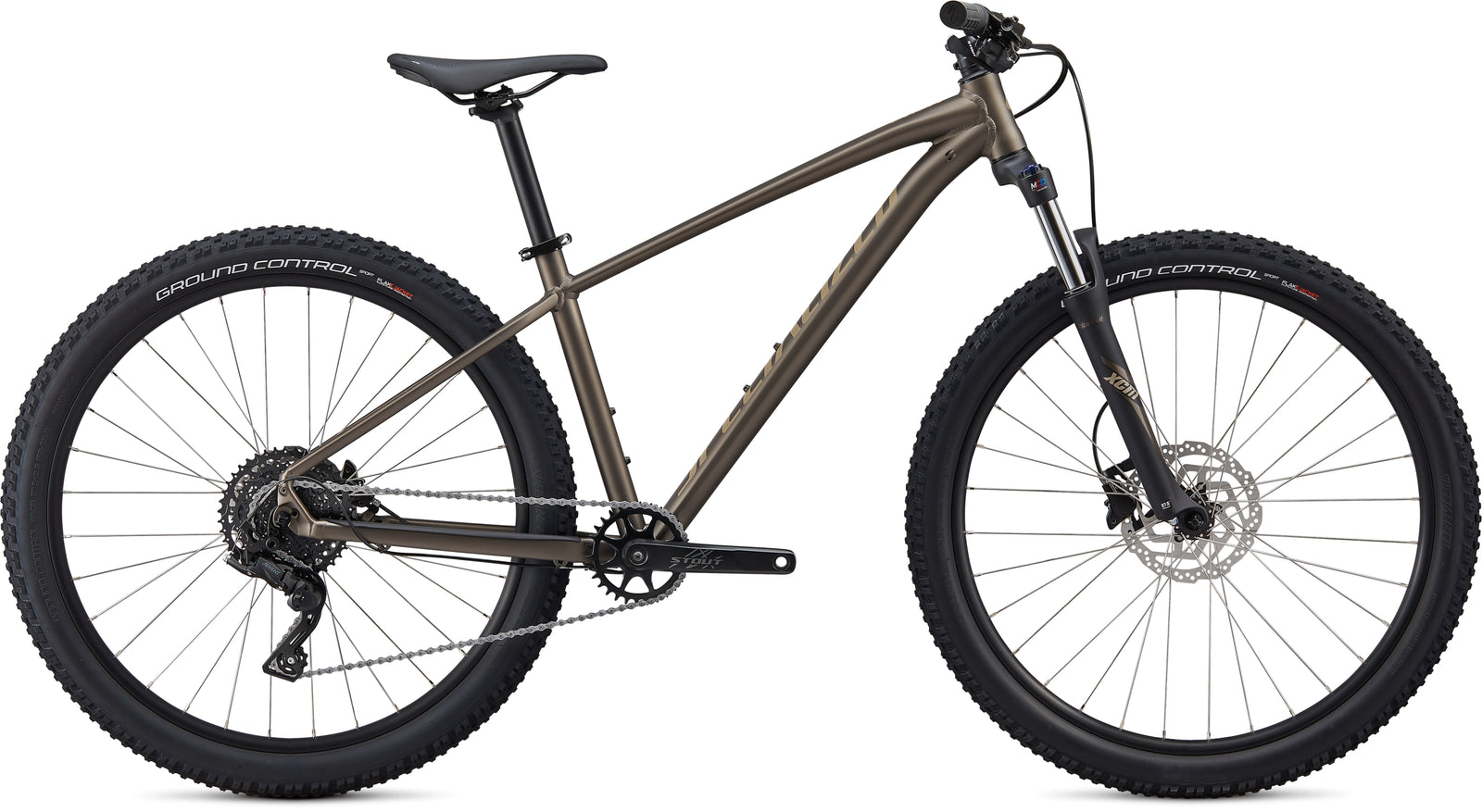

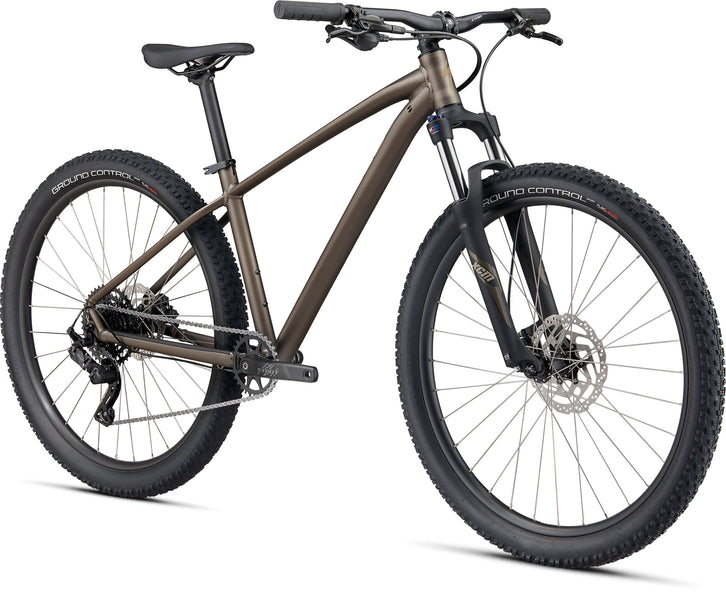

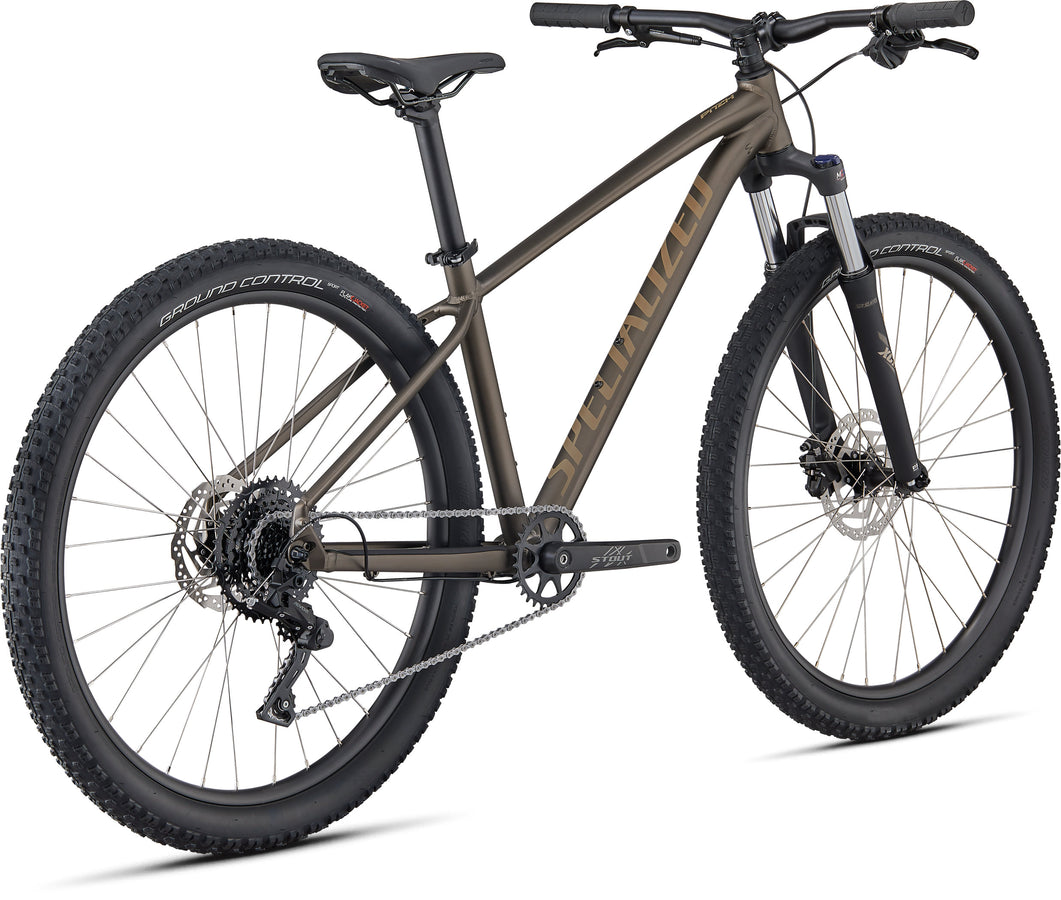

Pitch Comp 1X

Part No. 95520-5001

Notify me when this product is available:

Color
Size
Size Chart
The rugged Pitch Comp 1X is built to get you way out there and back on every adventure. We relentlessly refined the Pitch’s handling for an exquisite balance of an agile, playful feel, with stability at speed, all in a proven frame design with durable performance parts. THE SWEET SPOT What to pick, the nimble 26-inch wheel size or the fast-rolling 29er? Neither, we said. The the sweet spot for many riders, and trails, is right in between, so the Pitch rolls on 27.5-inch wheels that offer a 29er’s confident handling in a tighter, lighter package. STRENGTH AND GRACE The A1 Premium Aluminum frame is pretty much the definition of strong. But that doesn’t mean it rides like a brute. Our engineers carefully optimized the shape of every tube to ensure it offers a smooth, comfortable, confident ride even on the bumpiest trails. TOP-CLASS PARTS SR Suntour XCM suspension fork with custom Multi-Circuit damping. Wide-range MicroSHIFT drivetrain handles even the steepest climbs. Meaty Ground Control Sport tires offer grip and control in any trail condition.

Technical Specifications

Frame A1 Premium Aluminum, Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger
Fork SR Suntour XCM 27.5 w/HLO, coil, custom Multi-Circuit damping, 80/100mm of travel (size-specific)
Stem Stout 3D-forged alloy, 31.8mm, 6-degree rise
Handlebars Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Grips Specialized MTB Grip, lock-on
SeatPost Alloy, 12mm offset, 2-bolt clamp, 30.9mm
Front Brake Shimano BR-MT200, hydraulic disc, 180/160mm
Rear Brake Shimano BR-MT200, hydraulic disc, 160mm
Rear Derailleur microSHIFT Advent, 1x9 w/ clutch
Shift Levers microSHIFT Advent, 9-speed
Cassette microSHIFT Advent, 9-speed, 11-42t
Chain KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™
Crankset Stout 1x, forged alloy
Chainrings 30T
Bottom Bracket Square-tapered, 73mm, internal bearings
Rims Stout Trail 27.5, alloy, disc-specific, double-wall, 25mm internal width, 32h
Front Hub Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 32h
Rear Hub Shimano FH-TX505, Center Lock™ disc, 9x135mm spacing, quick-release, 32h
Spokes Stainless, 14g
Front Tire Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3\"
Rear Tire Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3\"

Technical Specifications

Geometry

Geometry Chart

Geometry

  Size XS S M L XL
Stack 562mm 562mm 585mm 604mm 618mm
Reach 380mm 400mm 420mm 440mm 460mm
Head-Tube Length 95mm 95mm 100mm 120mm 135mm
Head-Tube Angle 68.5deg 68.5deg 68.5deg 68.5deg 68.5deg
B-B Height 310mm 310mm 310mm 310mm 310mm
B-B Drop 43mm 43mm 43mm 43mm 43mm
Trail 94mm 94mm 94mm 94mm 94mm
Fork Length (Full) 475mm 475mm 495mm 495mm 495mm
Fork Rake/Offset 42mm 42mm 42mm 42mm 42mm
Front-Center 631mm 651mm 680mm 708mm 733mm
Chain-Stay Length 435mm 435mm 435mm 435mm 435mm
Wheelbase 1063mm 1083mm 1112mm 1139mm 1165mm
Top-Tube Length (Horizontal) 542mm 572mm 599mm 625mm 649mm
Bike Stand-Over Height 660mm 690mm 739mm 766mm 808mm
Seat-Tube Length 310mm 360mm 415mm 450mm 510mm
Seat-Tube Angle 74deg 73deg 73deg 73deg 73deg
