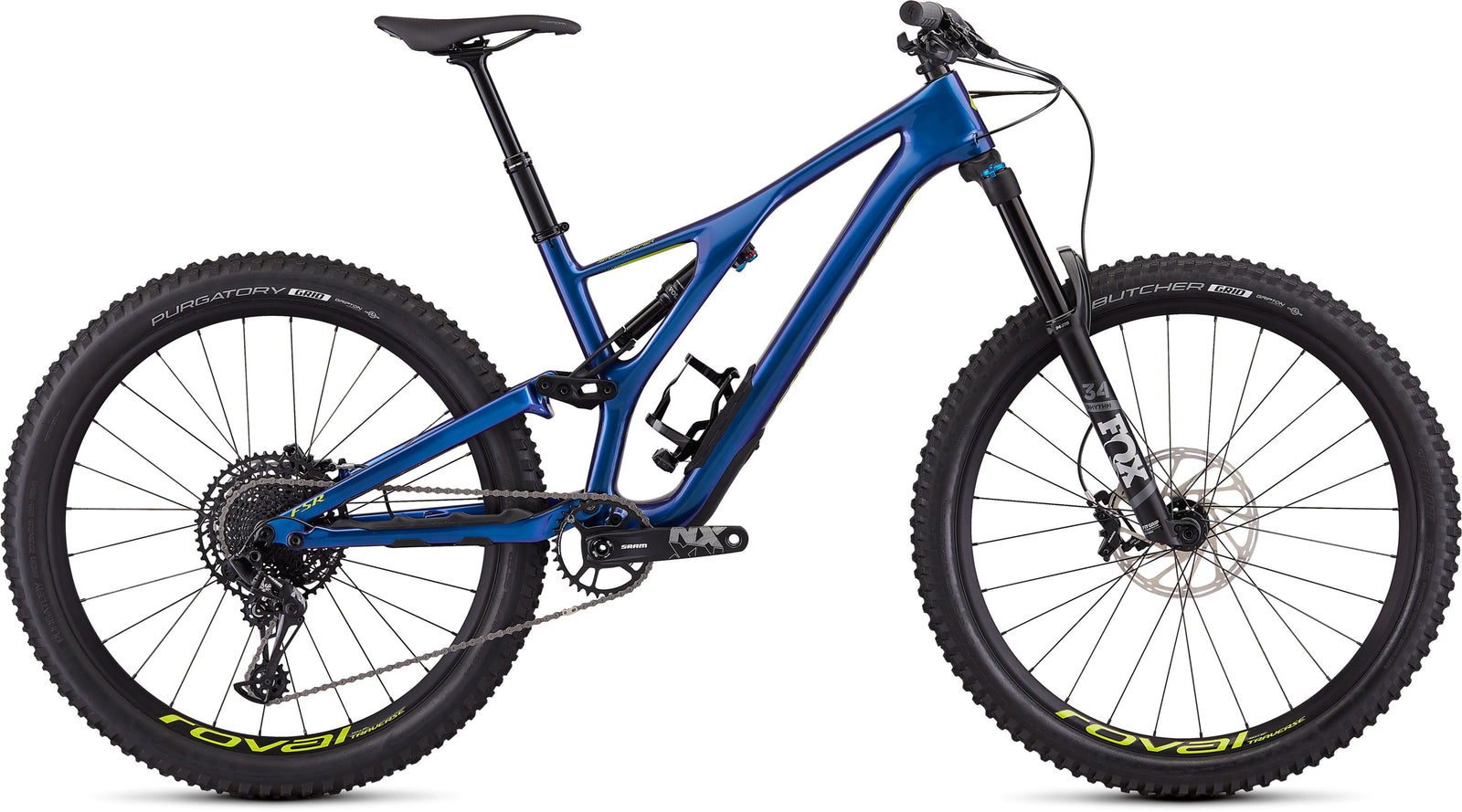

Men's Stumpjumper Comp Carbon 27.5—12-speed

Part No. 93319-5502

Notify me when this product is available:

Color
Size
Size Chart
Don"t worry, S-Works doesn"t get to have all of the fun—the new Stumpjumper Comp Carbon 27.5 features the same frame with a full 11m carbon chassis and rear-end as its older brother, but with a solid list of no-fuss components, including a SRAM NX Eagle 12-speed groupset, for an everyman"s budget. Our design goal for the new Stumpjumper was simple—build the ultimate trail bike, one that feels telepathic. And it turns out that this feeling all comes down to stiffness. Think of it this way: when the frame"s telling your hands one thing and your feet another, your brain gets confused with the imbalance and the bike feels unstable. In order to fix this, we had to get to work on dialing-in the materials, shapes, and the layout. We started by creating our own mountain-specific stiffness test, and then we looked at the layout with Finite Element Analysis (FEA) to see where we could get the biggest stiffness improvements. This led to a big discovery: The Large and X-Large frames needed more front-end stiffness while the Smalls and Mediums were just fine. We were able to create a frame design that was 20% more efficient. And in the end, this proved to be one of the lightest trail frames on the market, today. When designing the frame with the stiffness targets being a main goal, we developed a radical new sidearm design. The front-end and rear-end are connected at three points, and the sidearm helps keep all these points super stiff and connected, all while taking about 100 grams out of the rear-end. More explicitly, this minimizes frame flex when the rear suspension is active. We continued down the suspension path with a custom Rx Trail Tune on both the fork and rear shock. Suspension performance is highly dependent on frame, wheel, and rider size, so we use our Rx Tune to get each bike to land in the middle of the adjustment spectrum, and this gives you the biggest possible range to fine-tune your ride. Another focal point of the tune was matching the suspension characteristics between wheel sizes—we developed a specific Rx Tune for each platform. So, no matter what wheel size you prefer, you"ll get perfectly linear suspension. Steps were also taken to make this bike easy to live with. Threaded bottom brackets make a triumphant return, and we made room for up to a 2.8" tire. You"re also free to run whatever aftermarket rear shock you want, since we"re using standard metric shocks. We revamped the SWAT™ box, too, making it sleeker, lighter, and with more volume. And customization is furthered with a Flip Chip that lets you to dial-in your Stumpy to your riding style. Switch it from High to Low and it drops your bottom bracket 6mm and slackens the head tube by half-a-degree. Little details also jump out to surprise you, like a newly designed ribbed chainstay protector that makes chain slap a thing of the past and nearly silences the drivetrain. Lastly, we seriously couldn"t make cable routing any easier on carbon models. Full tubes can be found throughout the carbon frame, so all you have to do is push the cable and it"ll come out the other end. No more lazy loop, hidden stashes of magnets, pokey spokes, or pillows to cry in. The build on this Comp model comes with a list of components that deliver undeniable quality, like a 12-speed SRAM NX Eagle drivetrain, SRAM Guide R disc brakes, FOX front and rear suspension, and Roval Traverse 27.5 wheels.
  • The Stumpjumper"s asymmetrical, FACT 11m carbon fiber construction is lightweight, stiff, and ready to take on the trail. It"s built off our 27.5 Trail Geometry, so it"s just the right amount of both capable and comfortable. And with SWAT™ integration in the down tube, a threaded BB, easy cable routing, and an all new chain silencer, it"s ready for anything the trail, or you, throw at it.
  • The FOX DPS Performance rear shock features our Rx Trail Tune, ensuring that no matter the wheel or frame size, your bike is dialed-in perfectly.
  • SRAM"s 12-speed NX Eagle groupset features a wide gear range that delivers climbing and descending efficiency in spades.

Technical Specifications

Frame FACT 11m, full carbon chassis and rear-end, asymmetrical design, 27.5 Trail Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
Fork FOX FLOAT Rhythm, 34, GRIP Damper, 44mm offset, 2-position sweep adjust, 15x110mm, tapered alloy steerer, 150mm of travel
Rear Shock FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, 210x52.5mm
Handlebars Specialized Trail, 6061 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 31.8mm clamp, XS 720mm, S-XL 750mm,
Stem Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
Grips Specialized Sip grip, half-waffle, S/M
Saddle Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S
Front Brake SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 200mm
Rear Brake SRAM Guide R, hydraulic disc, organic pads, Guide S4 4-piston caliper, 180mm
Shift Levers SRAM NX Eagle, trigger, 12-speed
Rear Derailleur SRAM NX Eagle, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
Crankset SRAM NX Eagle, DUB, 170mm
Chainrings Steel, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Chain SRAM NX Eagle, 12-speed
Rims Roval Traverse 27.5, hookless alloy, 30mm inner width, tubeless ready, 28h
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
Spokes DT Swiss Industry
Front Tire Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6\"
Rear Tire Purgatory, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.6\"

Technical Specifications

Geometry

Geometry Chart

Geometry

  Size S M L XL
Stack 592mm 596mm 623mm 637mm
Reach 415mm 435mm 455mm 480mm
Head-Tube Length 105mm 110mm 140mm 155mm
Head-Tube Angle 65.5deg 65.5deg 65.5deg 65.5deg
B-B Height 336mm 336mm 336mm 336mm
B-B Drop 21mm 21mm 21mm 21mm
Trail 112mm 112mm 112mm 112mm
Fork Length (Full) 542mm 542mm 542mm 542mm
Fork Rake/Offset 46mm 46mm 46mm 46mm
Front-Center 726mm 748mm 780mm 812mm
Chain-Stay Length 432mm 432mm 432mm 432mm
Wheelbase 1157mm 1179mm 1212mm 1243mm
Top-Tube Length (Horizontal) 570mm 595mm 627mm 660mm
Bike Stand-Over Height 739mm 743mm 758mm 774mm
Seat-Tube Length 380mm 410mm 455mm 505mm
Seat-Tube Angle 75.3deg 75deg 74.6deg 74.2deg
