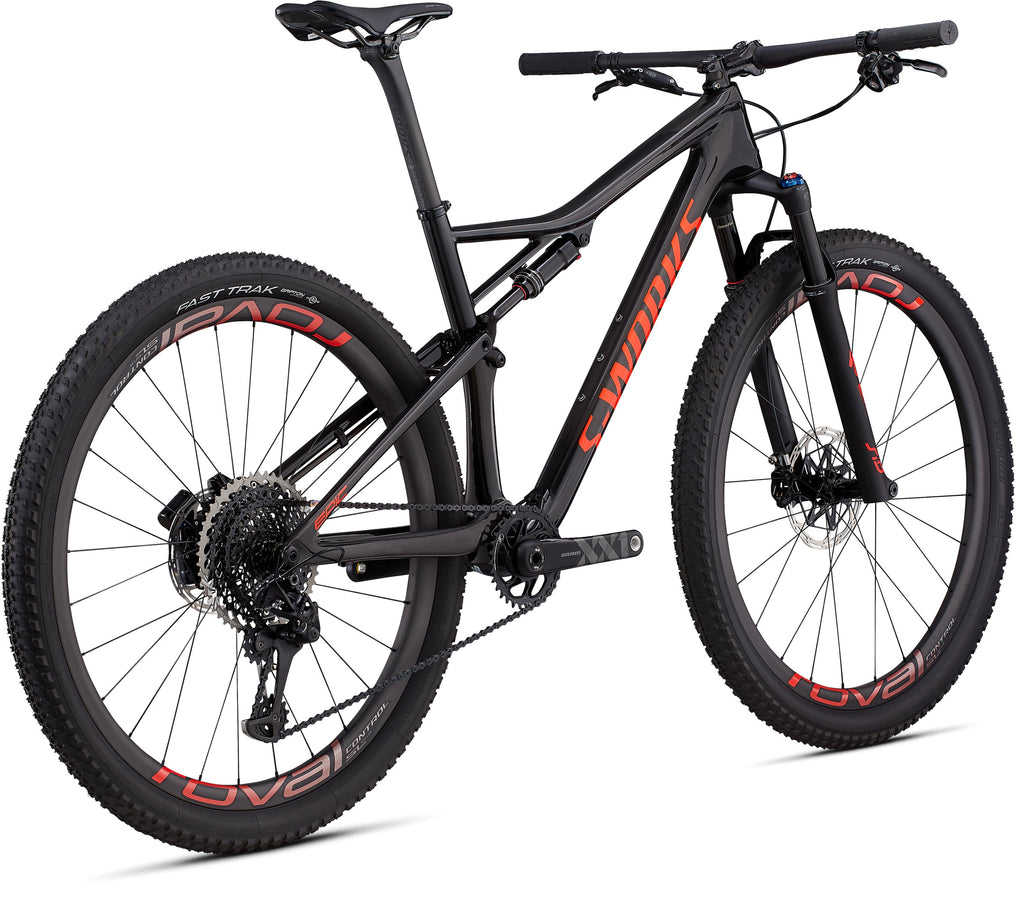

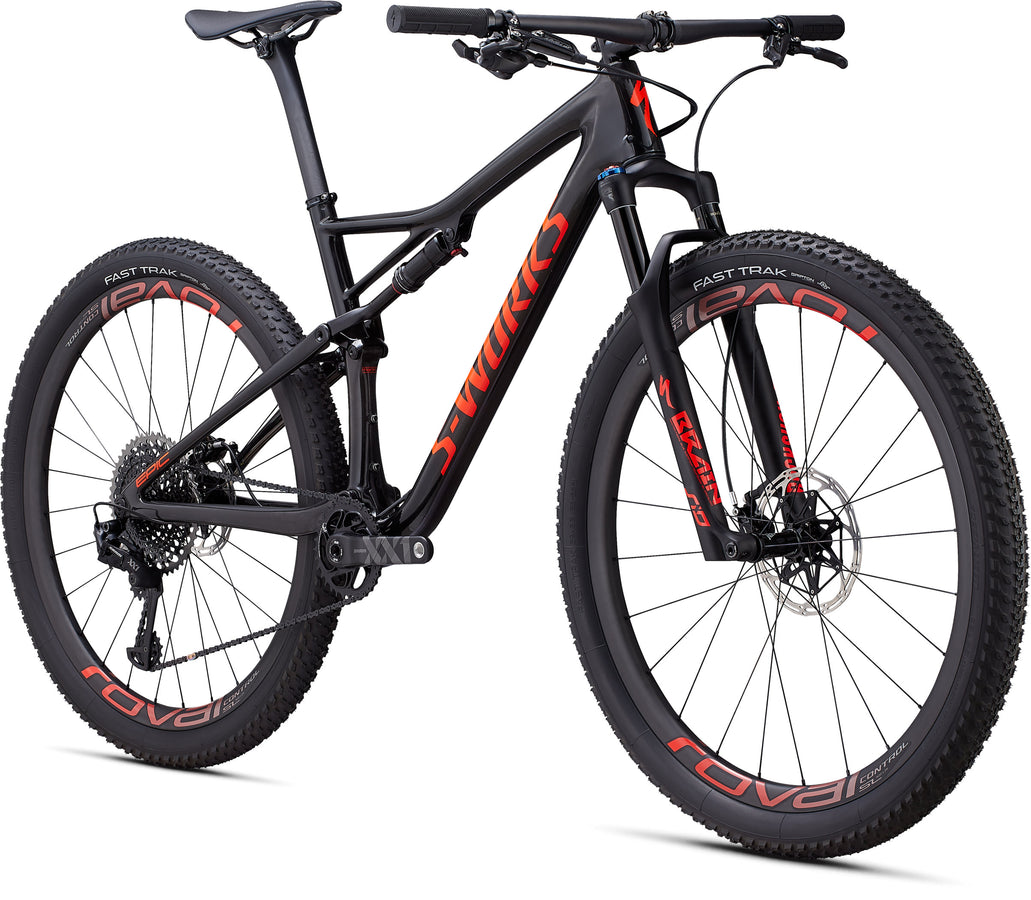

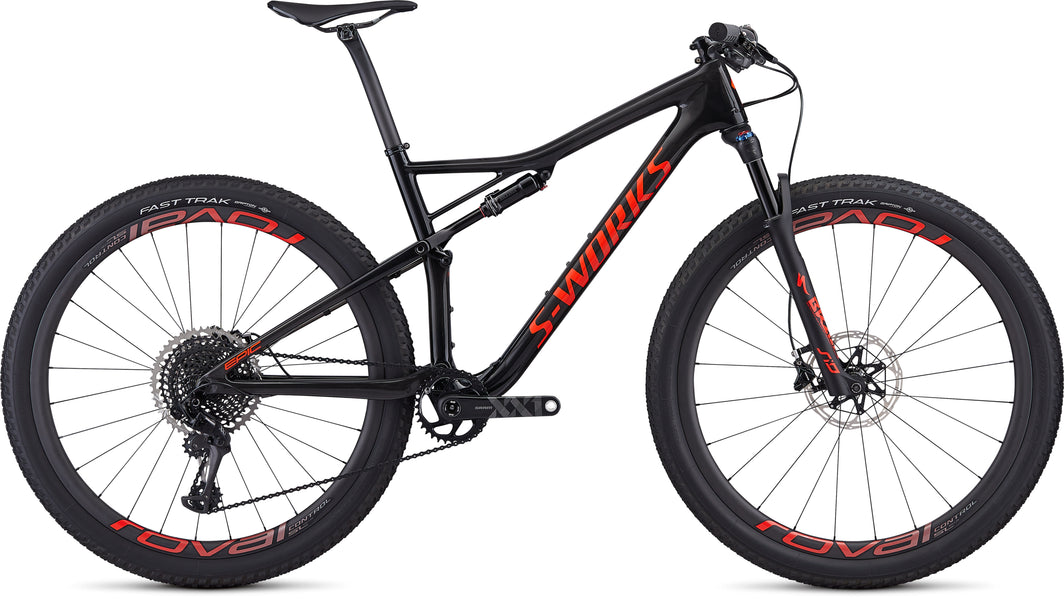

Men's S-Works Epic

Men's S-Works Epic

Part No.: 90319-0102

Notify me when this product is available:

Color
Size

Select a Size

With more World Championship titles, Olympic medals, and Cape Epic wins than you can count, the S-Works Epic truly is the fastest XC bike on the planet. Fast and flat, rowdy and technical, punchy and hard—no matter the course, it"s the best tool t... Read More
With more World Championship titles, Olympic medals, and Cape Epic wins than you can count, the S-Works Epic truly is the fastest XC bike on the planet. Fast and flat, rowdy and technical, punchy and hard—no matter the course, it"s the best tool t... Read More

wishlist message

Technical Specifications

Frame S-Works FACT 12m, XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Fork RockShox SID WC Brain 29, top-adjust Brain Fade, tapered carbon crown and steerer, 15x110mm Maxle® Stealth thru-axle, 42mm offset, 100mm of travel
Rear Shock Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
Handlebars S-Works Carbon Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 750mm, 31.8mm
Stem S-Works SL, alloy, titanium bolts, 6-degree rise
Grips Specialized Sip grip, half-waffle, S/M
Saddle Body Geometry Phenom Pro, carbon fiber rails, carbon fiber base, 143mm
Seatpost S-Works FACT carbon, 10mm setback, 30.9mm
Front Brake SRAM Level Ultimate, hydraulic disc
Rear Brake SRAM Level Ultimate, hydraulic disc
Shift Levers SRAM XX1 Eagle, trigger, 12-speed
Rear Derailleur SRAM XX1 Eagle, 12-speed
Cassette SRAM XG-1295 Eagle, 12-speed, 10-50t
Crankset SRAM XX1 Eagle, Boost™ 148, DUB, 170/175mm
Chainrings SRAM Eagle, alloy, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Chain SRAM XX1 Eagle, 12-speed
Rims Roval Control SL, hookless carbon, 25mm internal width, tubeless-ready, hand-built
Front Hub Roval Control SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h
Rear Hub Roval Control SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes DT Swiss Industry
Front Tire Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"
Rear Tire Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.1\"

Technical Specifications

Frame S-Works FACT 12m, XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Fork RockShox SID WC Brain 29, top-adjust Brain Fade, tapered carbon crown and steerer, 15x110mm Maxle® Stealth thru-axle, 42mm offset, 100mm of travel
Rear Shock Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
Handlebars S-Works Carbon Mini Rise, 6-degree upsweep, 8-degree backsweep, 10mm rise, 750mm, 31.8mm
Stem S-Works SL, alloy, titanium bolts, 6-degree rise
Grips Specialized Sip grip, half-waffle, S/M
Saddle Body Geometry Phenom Pro, carbon fiber rails, carbon fiber base, 143mm
Seatpost S-Works FACT carbon, 10mm setback, 30.9mm
Front Brake SRAM Level Ultimate, hydraulic disc
Rear Brake SRAM Level Ultimate, hydraulic disc
Shift Levers SRAM XX1 Eagle, trigger, 12-speed
Rear Derailleur SRAM XX1 Eagle, 12-speed
Cassette SRAM XG-1295 Eagle, 12-speed, 10-50t
Crankset SRAM XX1 Eagle, Boost™ 148, DUB, 170/175mm
Chainrings SRAM Eagle, alloy, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Chain SRAM XX1 Eagle, 12-speed
Rims Roval Control SL, hookless carbon, 25mm internal width, tubeless-ready, hand-built
Front Hub Roval Control SL, sealed cartridge bearings, 15mm thru-axle, 110mm spacing, 24h
Rear Hub Roval Control SL, DT Swiss Star Ratchet, 54t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes DT Swiss Industry
Front Tire Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"
Rear Tire Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.1\"

Epic - Geometry

Geometry

S M L XL
  S M L XL
Stack 588mm 597mm 611mm 630mm
Reach 408mm 433mm 456mm 475mm
Head-Tube Length 95mm 105mm 120mm 140mm
Head-Tube Angle 69.5deg 69.5deg 69.5deg 69.5deg
B-B Height 332mm 332mm 332mm 332mm
B-B Drop 38.9mm 38.9mm 38.9mm 38.9mm
Trail 94mm 94mm 94mm 94mm
Fork Length (Full) 506mm 506mm 506mm 506mm
Fork Rake/Offset 42mm 42mm 42mm 42mm
Front-Center 659mm 687mm 715mm 742mm
Chain-Stay Length 438mm 438mm 438mm 438mm
Wheelbase 1094mm 1123mm 1151mm 1177mm
Top-Tube Length (Horizontal) 568mm 596mm 623mm 647mm
Bike Stand-Over Height 764mm 770mm 776mm 799mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Seat-Tube Angle 74.75deg 74.75deg 74.75deg 74.75deg

Geometry

Geometry Chart

Geometry

  S M L XL
Stack 588mm 597mm 611mm 630mm
Reach 408mm 433mm 456mm 475mm
Head-Tube Length 95mm 105mm 120mm 140mm
Head-Tube Angle 69.5deg 69.5deg 69.5deg 69.5deg
B-B Height 332mm 332mm 332mm 332mm
B-B Drop 38.9mm 38.9mm 38.9mm 38.9mm
Trail 94mm 94mm 94mm 94mm
Fork Length (Full) 506mm 506mm 506mm 506mm
Fork Rake/Offset 42mm 42mm 42mm 42mm
Front-Center 659mm 687mm 715mm 742mm
Chain-Stay Length 438mm 438mm 438mm 438mm
Wheelbase 1094mm 1123mm 1151mm 1177mm
Top-Tube Length (Horizontal) 568mm 596mm 623mm 647mm
Bike Stand-Over Height 764mm 770mm 776mm 799mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Seat-Tube Angle 74.75deg 74.75deg 74.75deg 74.75deg

Geometry

Geometry Chart
