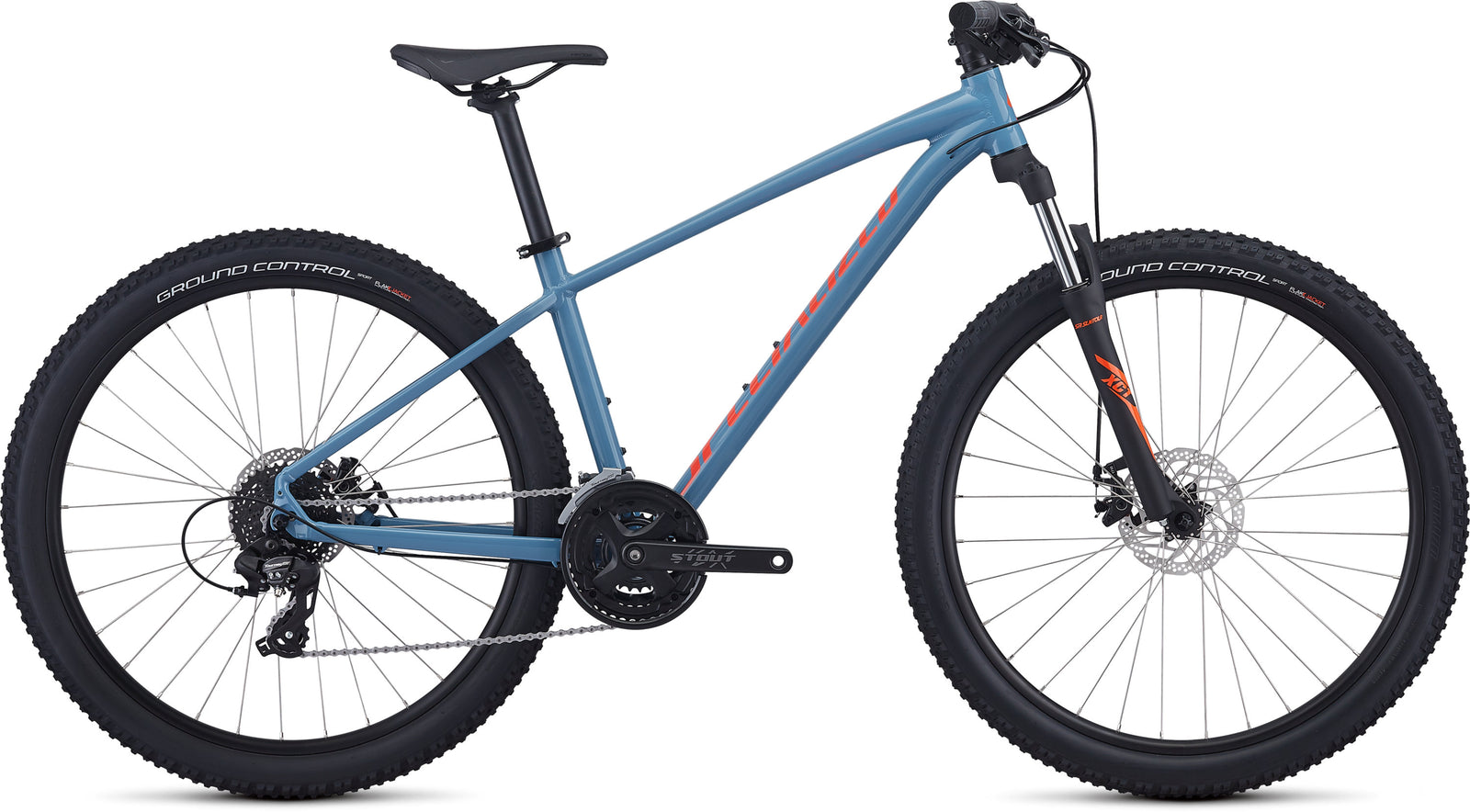

Men's Pitch

Men's Pitch

Part No.: 85519-7002

Notify me when this product is available:

Color
Size

Select a Size

We"ve all felt the compulsion to break-free from our day-to-day routine, especially when it comes to riding. Sure, laps around town are fun, but compared to the freedom of getting out in the woods or on country roads, life on the pavement starts t... Read More
We"ve all felt the compulsion to break-free from our day-to-day routine, especially when it comes to riding. Sure, laps around town are fun, but compared to the freedom of getting out in the woods or on country roads, life on the pavement starts t... Read More

wishlist message

Technical Specifications

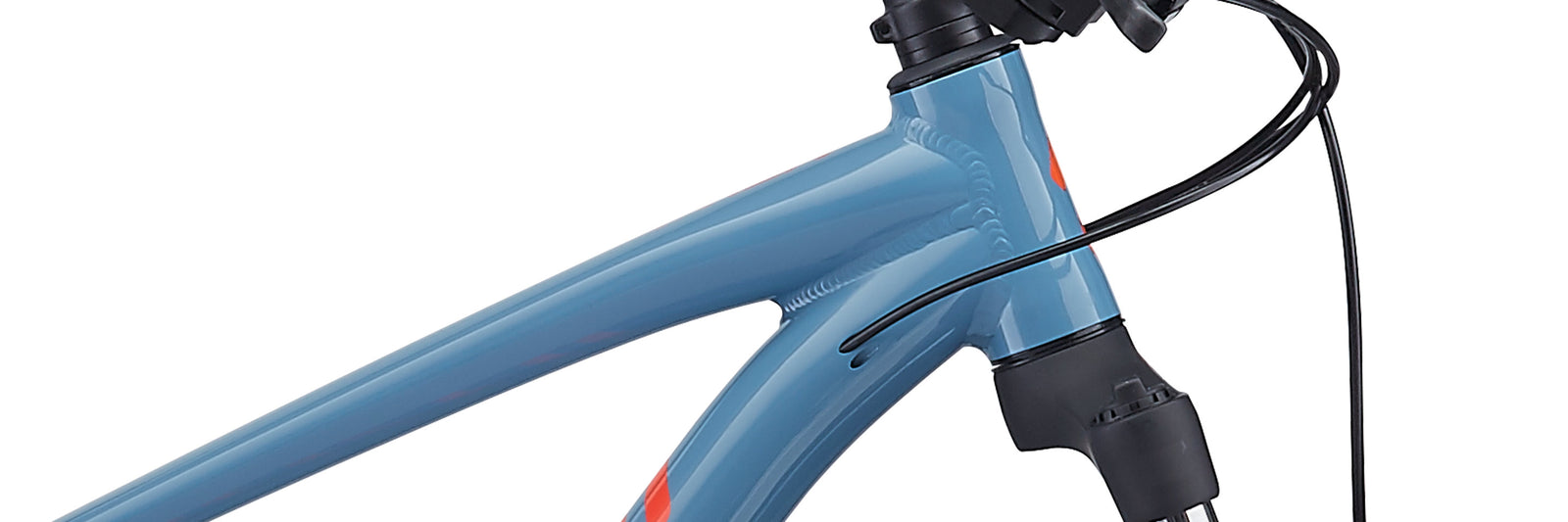

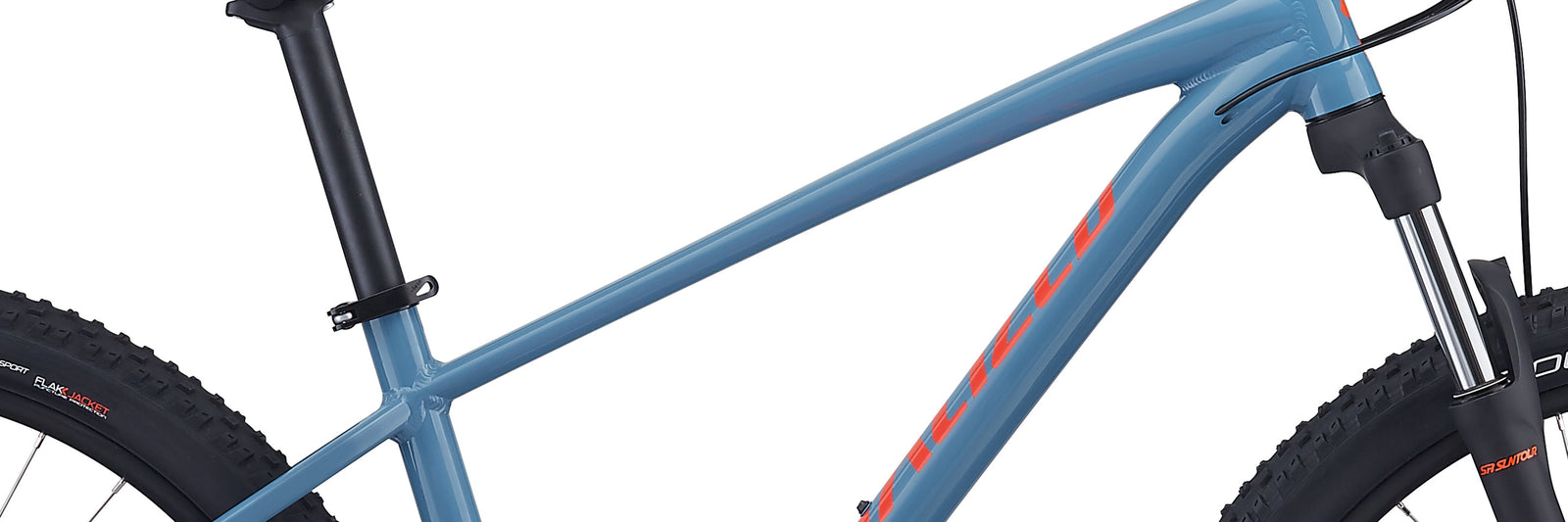

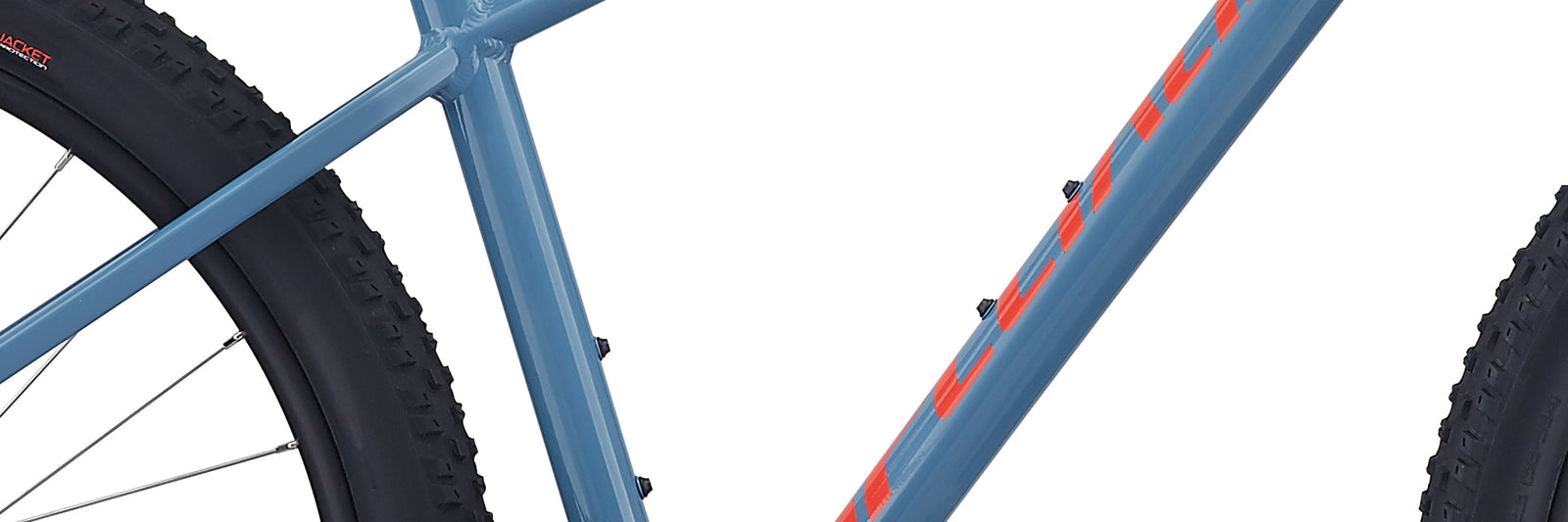

Frame A1 Premium Aluminum, Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger

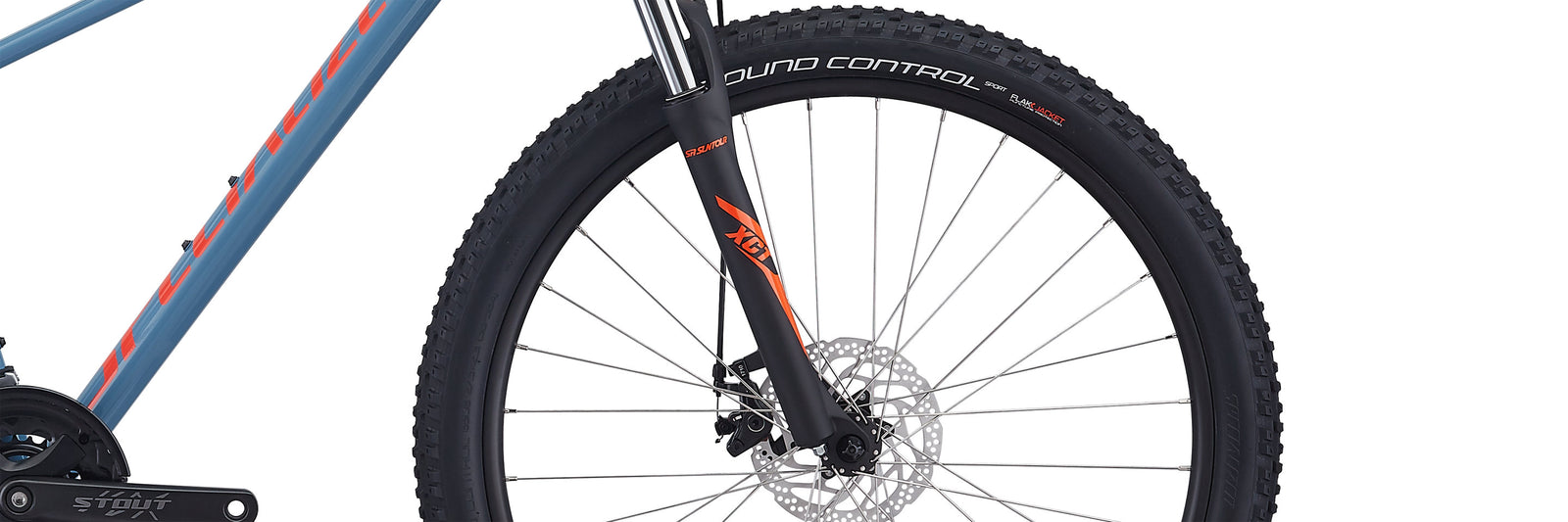

Fork SR Suntour XCT 27.5, coil, 80/100mm of travel (size-specific)
Handlebars Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Stem Stout 3D-forged alloy, 31.8mm, 6-degree rise
Grips Specialized MTB Grip, lock-on
Saddle Henge Sport, steel rails, 143mm
Seatpost Alloy, 12mm offset, 2-bolt clamp, 30.9mm
Front Brake Radius CX7, mechanical disc, 160mm
Rear Brake Radius CX7, mechanical disc, 160mm
Shift Levers Shimano Tourney, EZ-Fire Plus, 8-speed
Front Derailleur Shimano Tourney TX, 3-speed

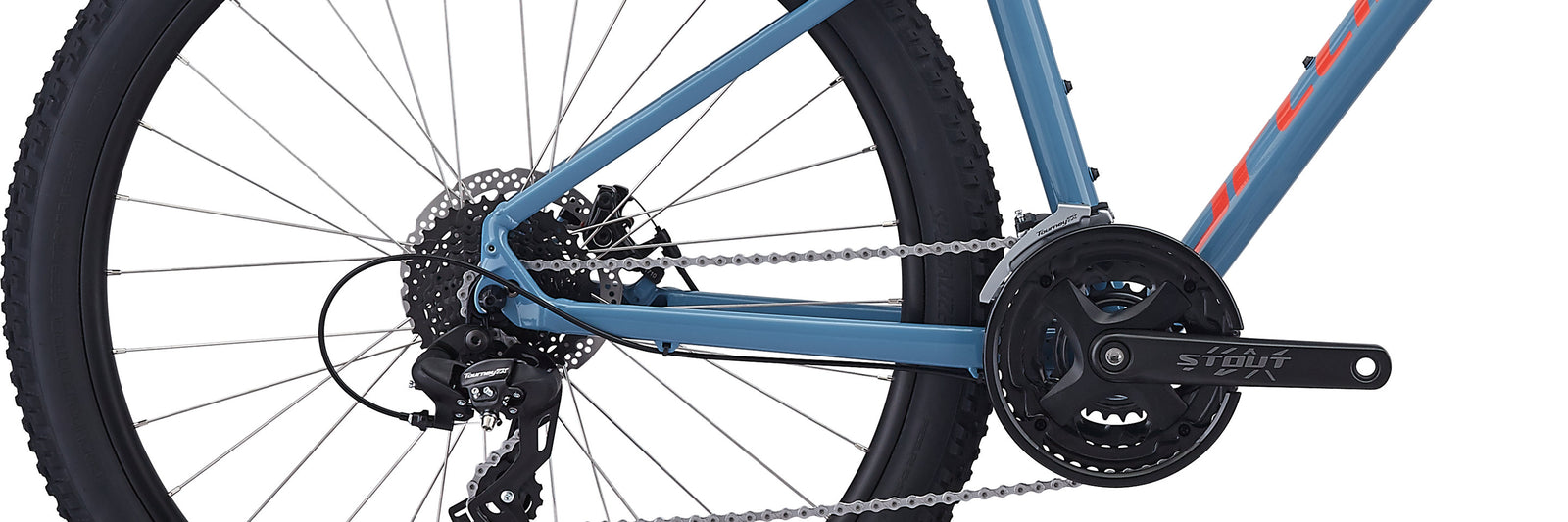

Rear Derailleur Shimano Tourney TX, 8-speed
Cassette SunRace, 8-speed, 11-34t

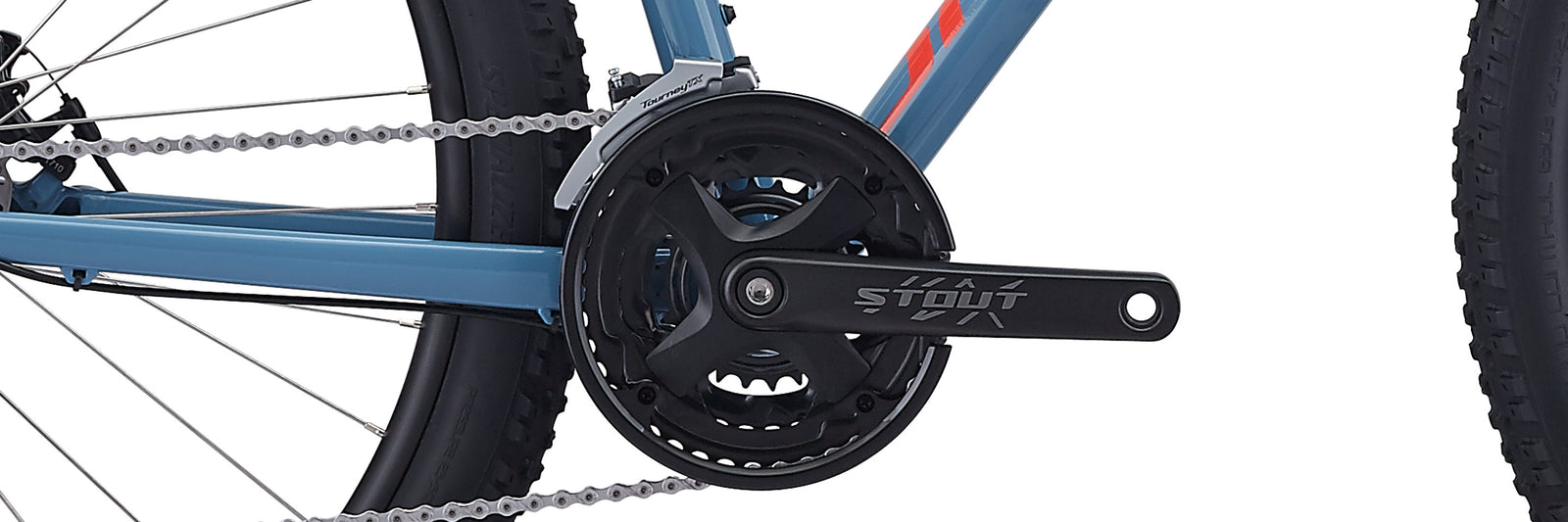

Crankset Stout, forged alloy, 3x8
Chainrings Steel, 44/34/24
Bottom Bracket Square taper, 73mm, internal bearings
Chain KMC X8EPT, 8-speed, anti-corrosion coating w/ reusable Missing Link™
Rims Stout Trail 27.5, alloy, disc-specific, double-wall, 25mm internal width, 32h
Front Hub Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 32h
Rear Hub Shimano FH-TX505, Center Lock™ disc, 9x135mm spacing, quick-release, 32h
Spokes Stainless, 14g
Front Tire Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3\"
Rear Tire Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3\"

Technical Specifications

Frame A1 Premium Aluminum, Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger
Fork SR Suntour XCT 27.5, coil, 80/100mm of travel (size-specific)
Handlebars Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
Stem Stout 3D-forged alloy, 31.8mm, 6-degree rise
Grips Specialized MTB Grip, lock-on
Saddle Henge Sport, steel rails, 143mm
Seatpost Alloy, 12mm offset, 2-bolt clamp, 30.9mm
Front Brake Radius CX7, mechanical disc, 160mm
Rear Brake Radius CX7, mechanical disc, 160mm
Shift Levers Shimano Tourney, EZ-Fire Plus, 8-speed
Front Derailleur Shimano Tourney TX, 3-speed
Rear Derailleur Shimano Tourney TX, 8-speed
Cassette SunRace, 8-speed, 11-34t
Crankset Stout, forged alloy, 3x8
Chainrings Steel, 44/34/24
Bottom Bracket Square taper, 73mm, internal bearings
Chain KMC X8EPT, 8-speed, anti-corrosion coating w/ reusable Missing Link™
Rims Stout Trail 27.5, alloy, disc-specific, double-wall, 25mm internal width, 32h
Front Hub Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 32h
Rear Hub Shimano FH-TX505, Center Lock™ disc, 9x135mm spacing, quick-release, 32h
Spokes Stainless, 14g
Front Tire Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3\"
Rear Tire Ground Control Sport, 60 TPI, wire bead, Flak Jacket Flat protection, 27.5 x 2.3\"

Epic - Geometry

Geometry

XS S M L XL
  XS S M L XL
Stack 562mm 562mm 585mm 604mm 618mm
Reach 380mm 400mm 420mm 440mm 460mm
Head-Tube Length 95mm 95mm 100mm 120mm 135mm
Head-Tube Angle 68.5deg 68.5deg 68.5deg 68.5deg 68.5deg
B-B Height 310mm 310mm 310mm 310mm 310mm
B-B Drop 43mm 43mm 43mm 43mm 43mm
Trail 94mm 94mm 94mm 94mm 94mm
Fork Length (Full) 475mm 475mm 495mm 495mm 495mm
Fork Rake/Offset 42mm 42mm 42mm 42mm 42mm
Front-Center 631mm 651mm 680mm 708mm 733mm
Chain-Stay Length 435mm 435mm 435mm 435mm 435mm
Wheelbase 1063mm 1083mm 1112mm 1139mm 1165mm
Top-Tube Length (Horizontal) 542mm 572mm 599mm 625mm 649mm
Bike Stand-Over Height 660mm 690mm 739mm 766mm 808mm
Seat-Tube Length 310mm 360mm 415mm 450mm 510mm
Seat-Tube Angle 74deg 73deg 73deg 73deg 73deg

Geometry

Geometry Chart

Geometry

  XS S M L XL
Stack 562mm 562mm 585mm 604mm 618mm
Reach 380mm 400mm 420mm 440mm 460mm
Head-Tube Length 95mm 95mm 100mm 120mm 135mm
Head-Tube Angle 68.5deg 68.5deg 68.5deg 68.5deg 68.5deg
B-B Height 310mm 310mm 310mm 310mm 310mm
B-B Drop 43mm 43mm 43mm 43mm 43mm
Trail 94mm 94mm 94mm 94mm 94mm
Fork Length (Full) 475mm 475mm 495mm 495mm 495mm
Fork Rake/Offset 42mm 42mm 42mm 42mm 42mm
Front-Center 631mm 651mm 680mm 708mm 733mm
Chain-Stay Length 435mm 435mm 435mm 435mm 435mm
Wheelbase 1063mm 1083mm 1112mm 1139mm 1165mm
Top-Tube Length (Horizontal) 542mm 572mm 599mm 625mm 649mm
Bike Stand-Over Height 660mm 690mm 739mm 766mm 808mm
Seat-Tube Length 310mm 360mm 415mm 450mm 510mm
Seat-Tube Angle 74deg 73deg 73deg 73deg 73deg
