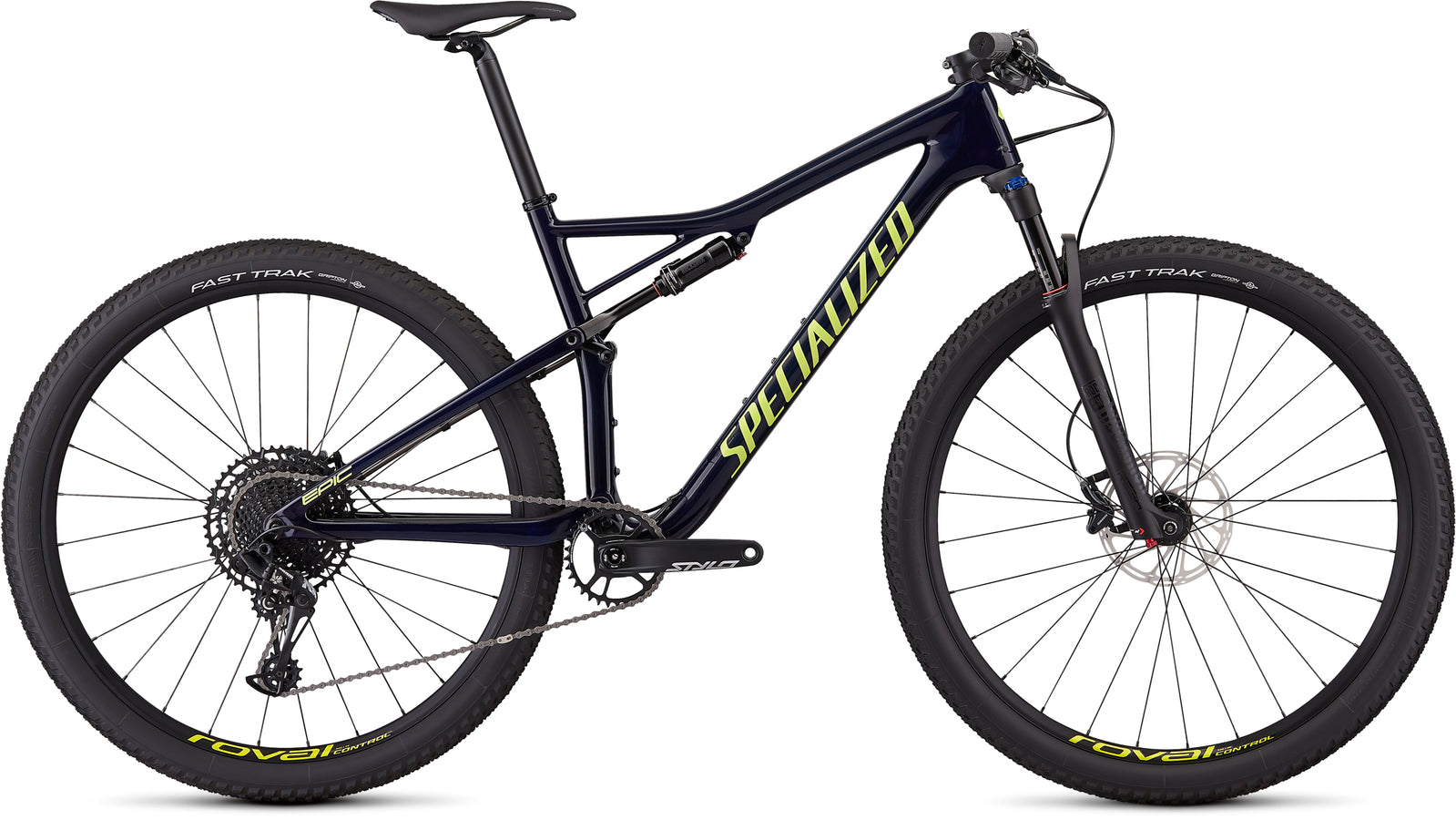

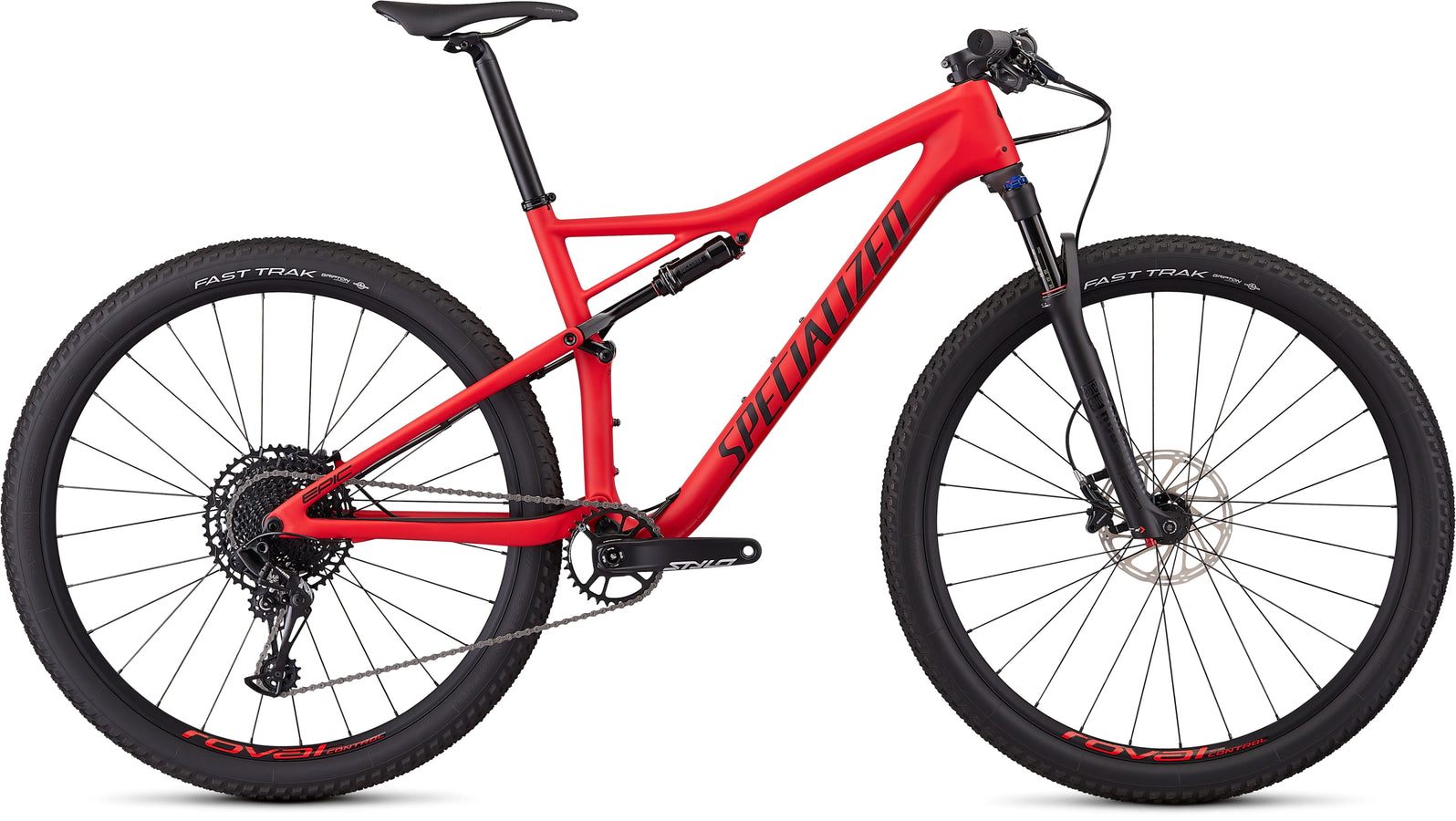

Men's Epic Comp Carbon

Men's Epic Comp Carbon

Part No.: 90319-5202

Notify me when this product is available:

Color
Size

Select a Size

A perfect introduction to your world of XC riding and racing, the Epic Comp Carbon features all of the same frame technologies that are found in its older siblings, only with a build that lets you give racing a try without breaking the bank. Ra... Read More
A perfect introduction to your world of XC riding and racing, the Epic Comp Carbon features all of the same frame technologies that are found in its older siblings, only with a build that lets you give racing a try without breaking the bank. Ra... Read More

wishlist message

Technical Specifications

Frame Specialized FACT 11m, XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Fork RockShox Reba RL 29, Motion Control damper, 42mm offset, 15x110mm thru-axle, 100mm of travel

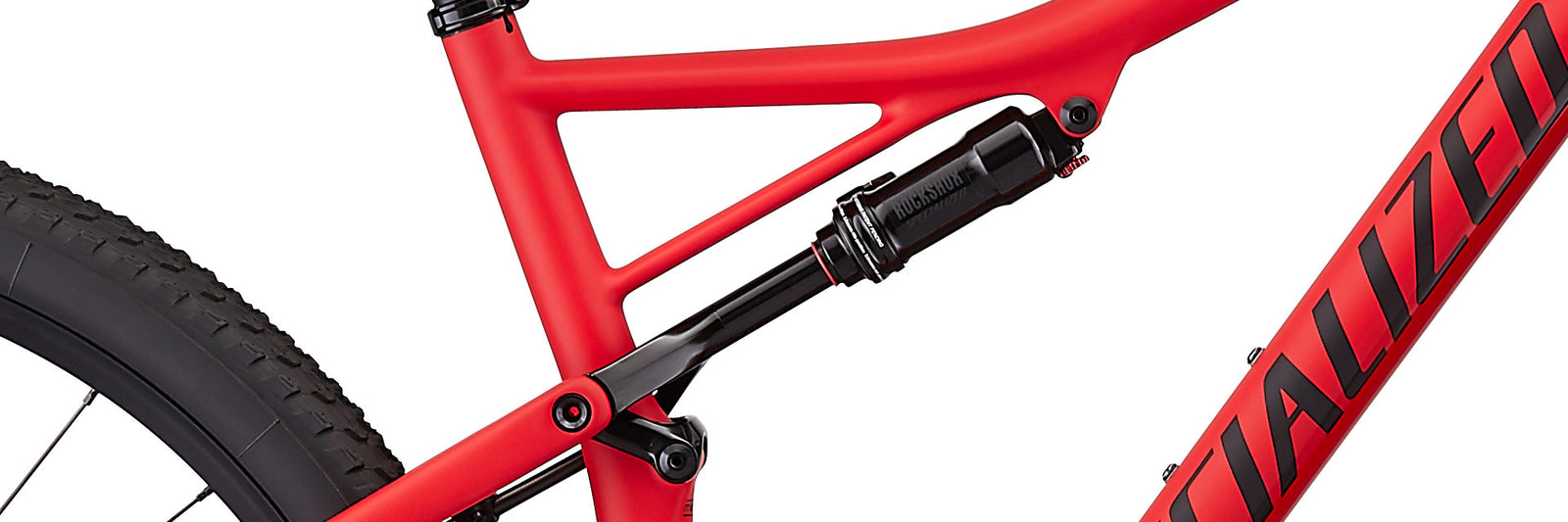

Rear Shock Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
Handlebars Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Grips Specialized Sip grip, half-waffle, S/M
Saddle Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost Alloy, single-bolt, 30.9mm
Front Brake SRAM Level TL, hydraulic disc
Rear Brake SRAM Level TL, hydraulic disc
Shift Levers SRAM NX Eagle, trigger, 12-speed

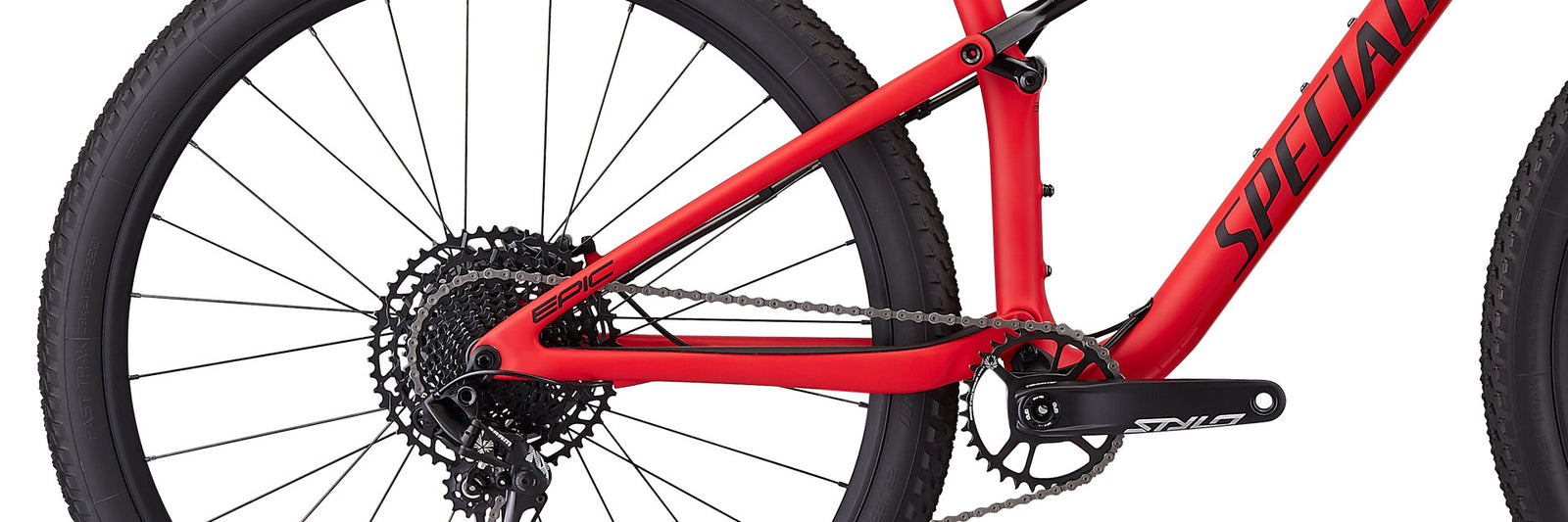

Rear Derailleur SRAM NX Eagle, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
Crankset Truvativ STYLO, DUB
Chainrings SRAM Eagle, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Chain SRAM NX Eagle, 12-speed
Rims Specialized Alloy, Tubeless Ready, 25mm internal width, 28h
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
Spokes DT Swiss Industry
Front Tire Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"
Rear Tire Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.1\"

Technical Specifications

Frame Specialized FACT 11m, XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Fork RockShox Reba RL 29, Motion Control damper, 42mm offset, 15x110mm thru-axle, 100mm of travel
Rear Shock Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
Handlebars Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Grips Specialized Sip grip, half-waffle, S/M
Saddle Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost Alloy, single-bolt, 30.9mm
Front Brake SRAM Level TL, hydraulic disc
Rear Brake SRAM Level TL, hydraulic disc
Shift Levers SRAM NX Eagle, trigger, 12-speed
Rear Derailleur SRAM NX Eagle, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
Crankset Truvativ STYLO, DUB
Chainrings SRAM Eagle, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Chain SRAM NX Eagle, 12-speed
Rims Specialized Alloy, Tubeless Ready, 25mm internal width, 28h
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
Spokes DT Swiss Industry
Front Tire Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"
Rear Tire Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.1\"

Epic - Geometry

Geometry

S M L XL
  S M L XL
Stack 588mm 597mm 611mm 630mm
Reach 408mm 433mm 456mm 475mm
Head-Tube Length 95mm 105mm 120mm 140mm
Head-Tube Angle 69.5deg 69.5deg 69.5deg 69.5deg
B-B Height 332mm 332mm 332mm 332mm
B-B Drop 38.9mm 38.9mm 38.9mm 38.9mm
Trail 94mm 94mm 94mm 94mm
Fork Length (Full) 506mm 506mm 506mm 506mm
Fork Rake/Offset 42mm 42mm 42mm 42mm
Front-Center 659mm 687mm 715mm 742mm
Chain-Stay Length 438mm 438mm 438mm 438mm
Wheelbase 1094mm 1123mm 1151mm 1177mm
Top-Tube Length (Horizontal) 568mm 596mm 623mm 647mm
Bike Stand-Over Height 764mm 770mm 776mm 799mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Seat-Tube Angle 74.75deg 74.75deg 74.75deg 74.75deg

Geometry

Geometry Chart

Geometry

  S M L XL
Stack 588mm 597mm 611mm 630mm
Reach 408mm 433mm 456mm 475mm
Head-Tube Length 95mm 105mm 120mm 140mm
Head-Tube Angle 69.5deg 69.5deg 69.5deg 69.5deg
B-B Height 332mm 332mm 332mm 332mm
B-B Drop 38.9mm 38.9mm 38.9mm 38.9mm
Trail 94mm 94mm 94mm 94mm
Fork Length (Full) 506mm 506mm 506mm 506mm
Fork Rake/Offset 42mm 42mm 42mm 42mm
Front-Center 659mm 687mm 715mm 742mm
Chain-Stay Length 438mm 438mm 438mm 438mm
Wheelbase 1094mm 1123mm 1151mm 1177mm
Top-Tube Length (Horizontal) 568mm 596mm 623mm 647mm
Bike Stand-Over Height 764mm 770mm 776mm 799mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Seat-Tube Angle 74.75deg 74.75deg 74.75deg 74.75deg
