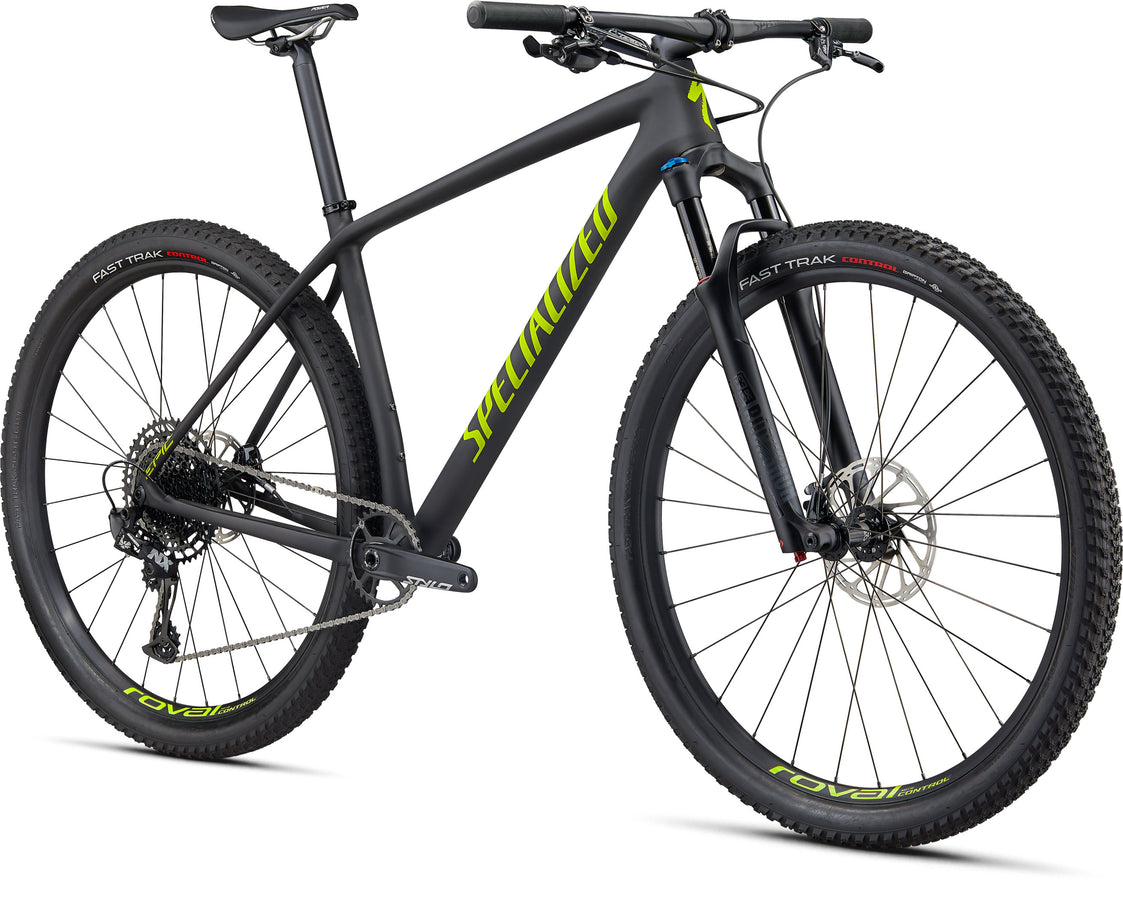

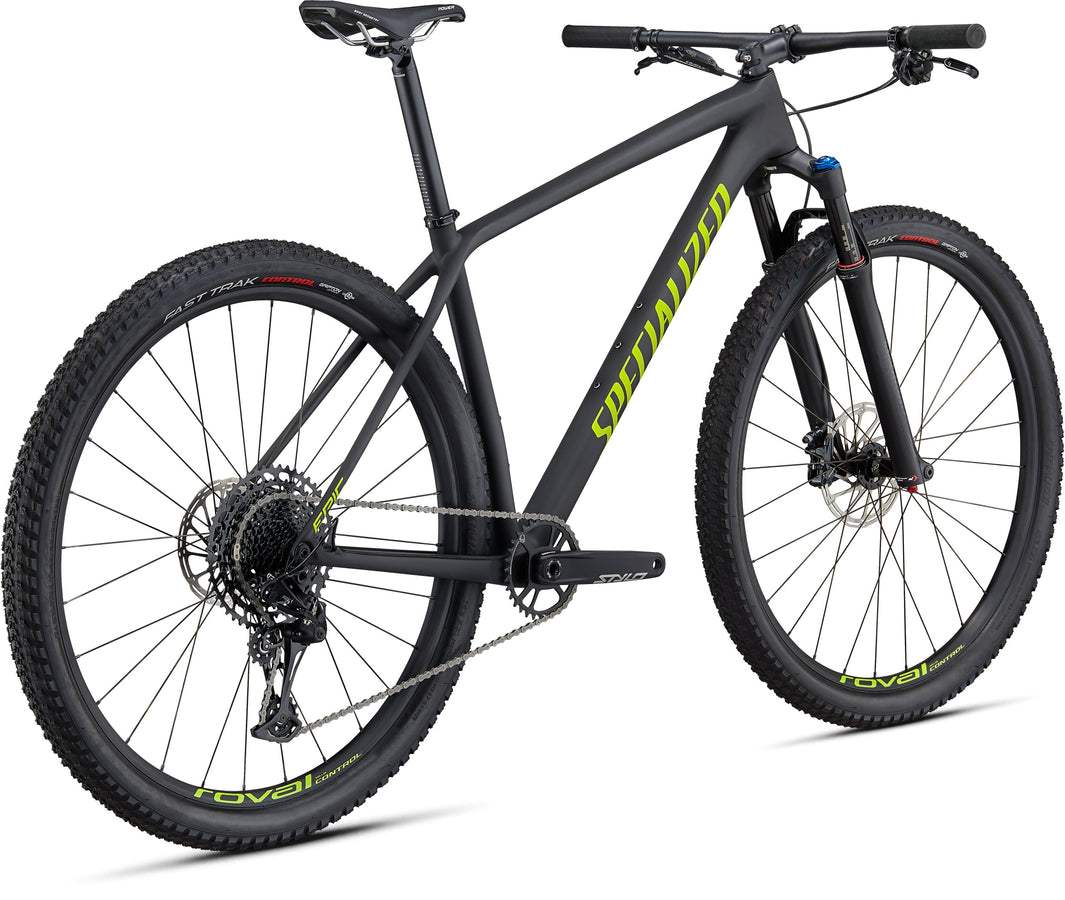

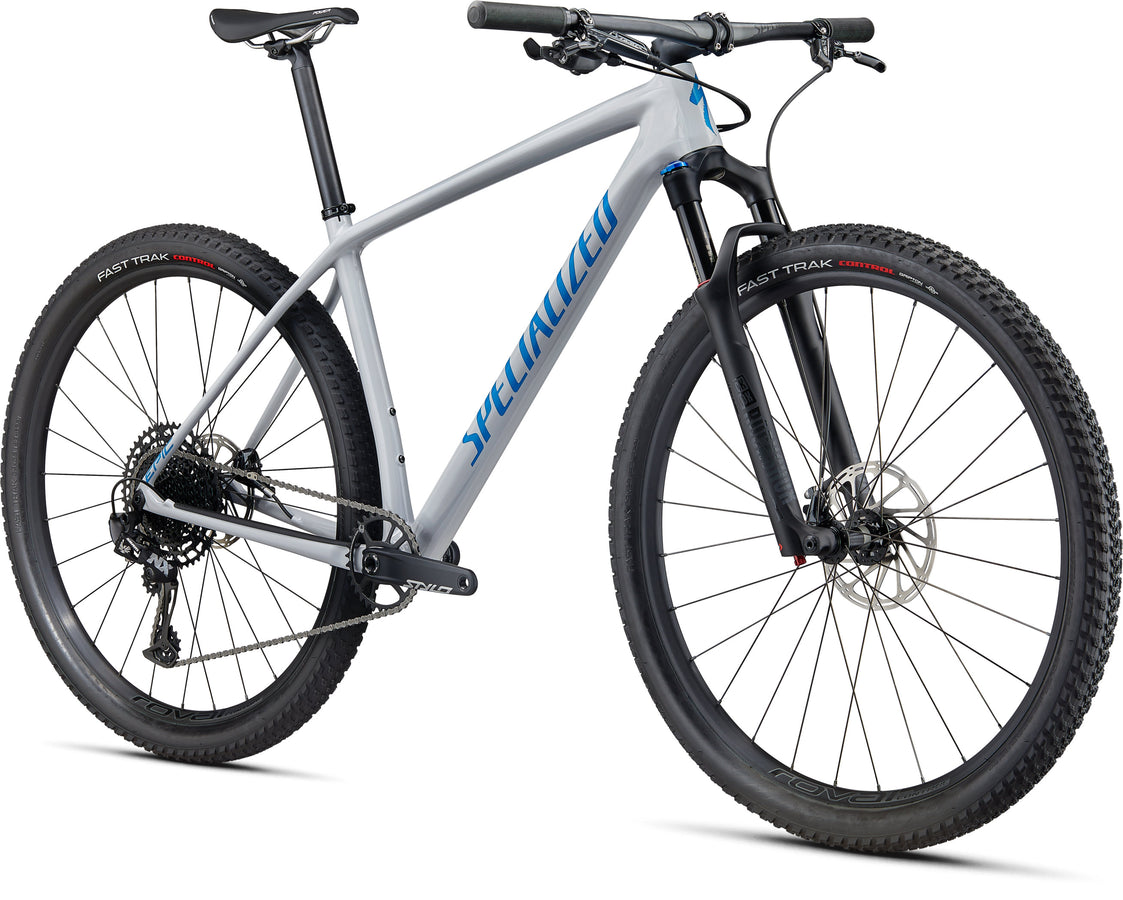

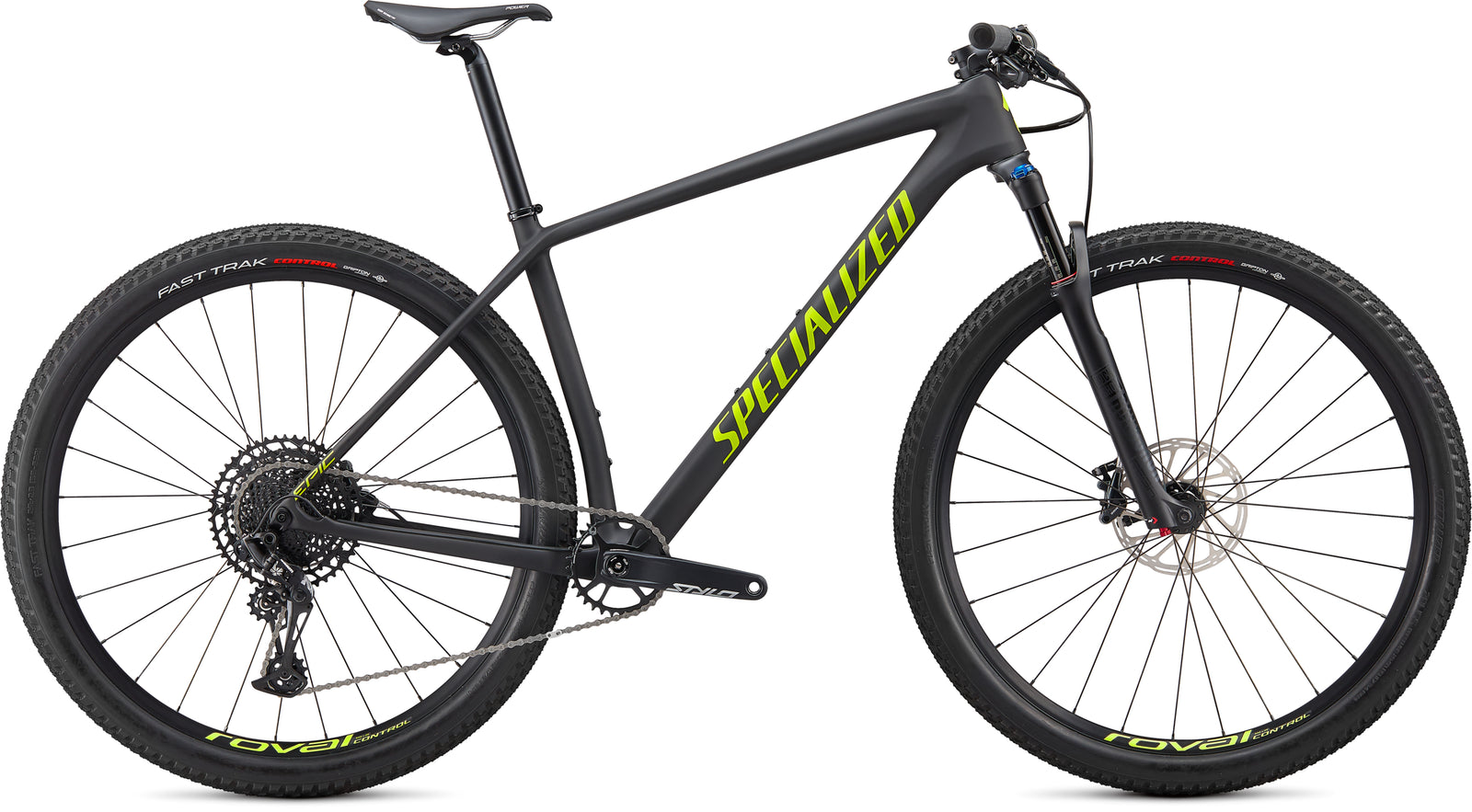

Epic Hardtail Comp

Part No. 91320-5004

Notify me when this product is available:

Color
Size
Size Chart
A podium-caliber racing machine that doesn"t cost a mint. The Comp combines a stunningly lightweight carbon chassis with a RockShox Reba RL fork and plenty of gearing to take on the steepest climbs, courtesy of its SRAM NX Eagle 12-speed drivetrain. THE GAME CHANGER The Epic Hardtail sports one of the lightest production frames to date, but it"s a hell of a lot more than that. We designed the most capable and comfortable racing chassis ever created, because you"re not fast if you"re being pummeled by the trail. It"s a game changer. p> MORE CONTROL MEANS MORE SPEED Looking to ride faster? Who isn"t? That"s why we relaxed its head angle and lengthened the reach. The Epic retains a short wheelbase for deft handling yet offers more predictable steering and a centered rider position for increased control and speed on any trail. • One of the lightest and most capable carbon hardtail frames ever created. • RockShox Reba RL 29 with 100mm of travel and Motion Control damper. • Wide-range SRAM NX Eagle 12-speed drivetrain gives you gearing to spare.

Technical Specifications

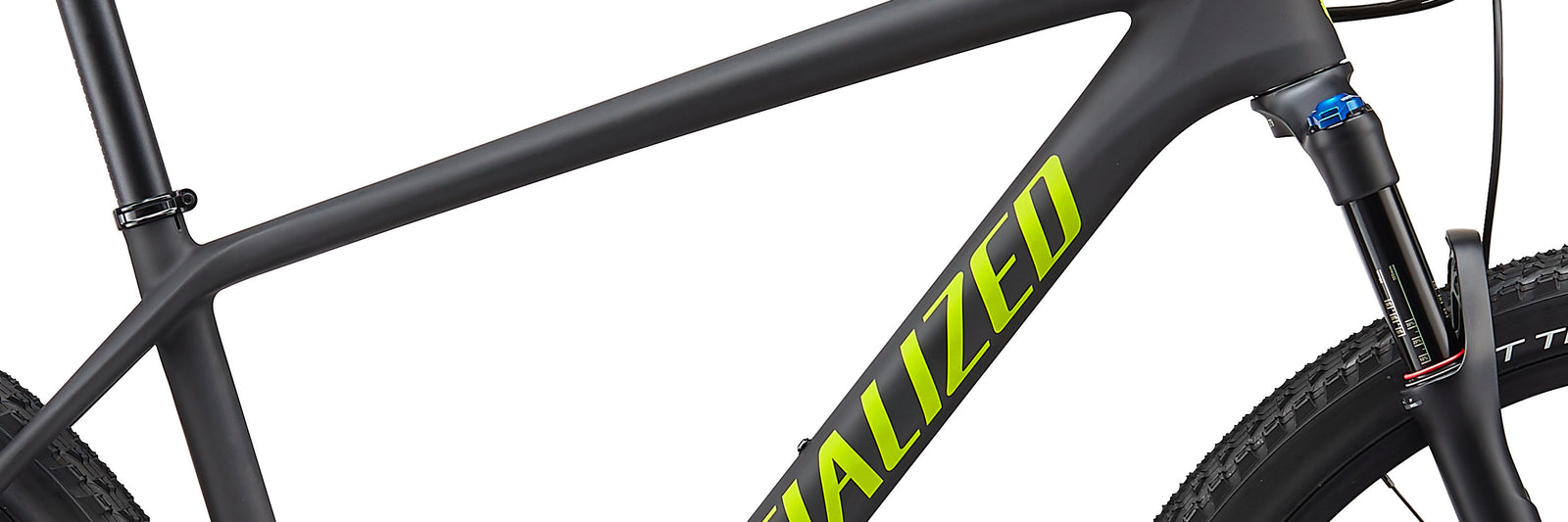

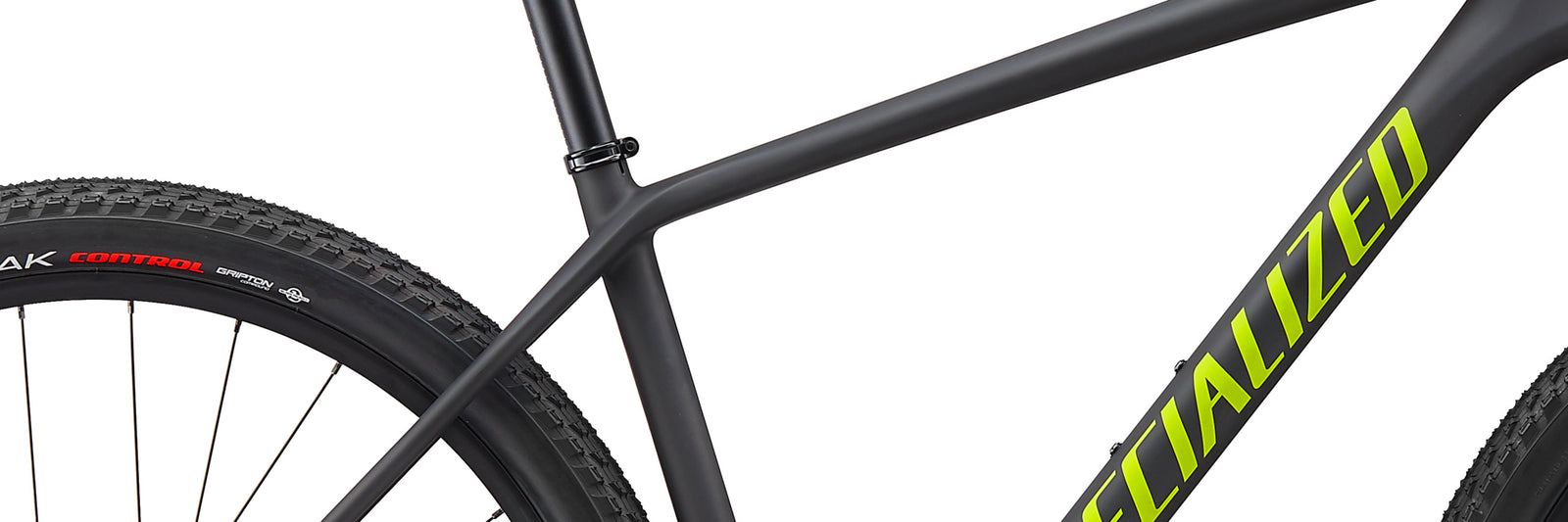

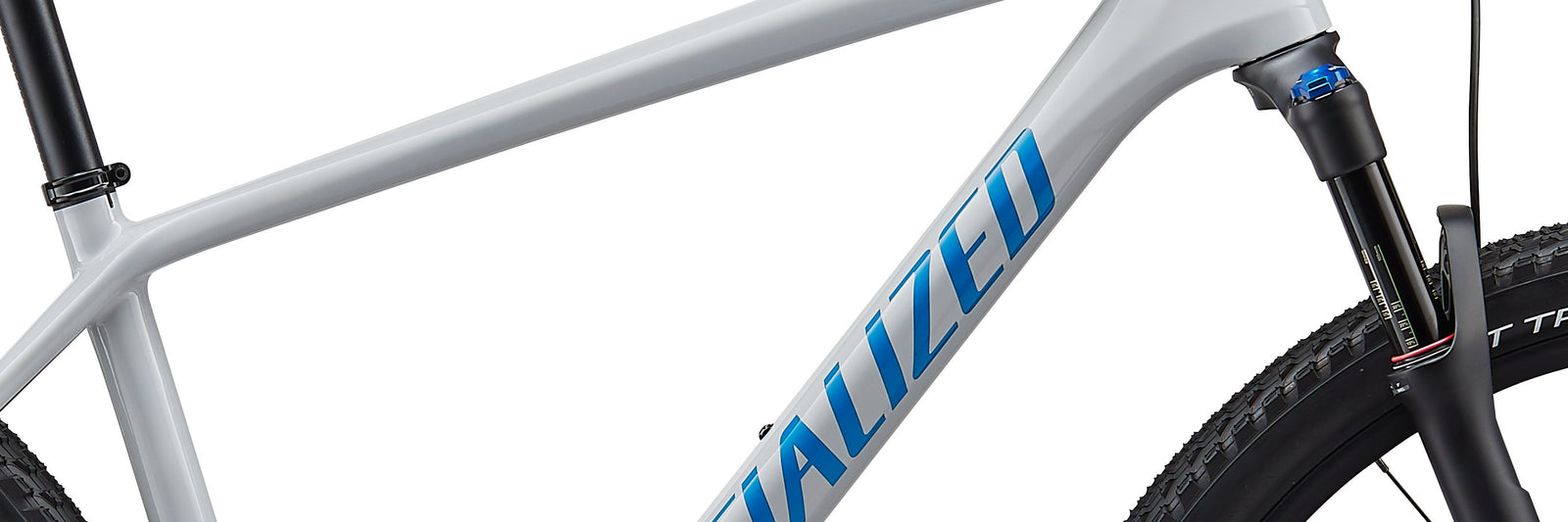

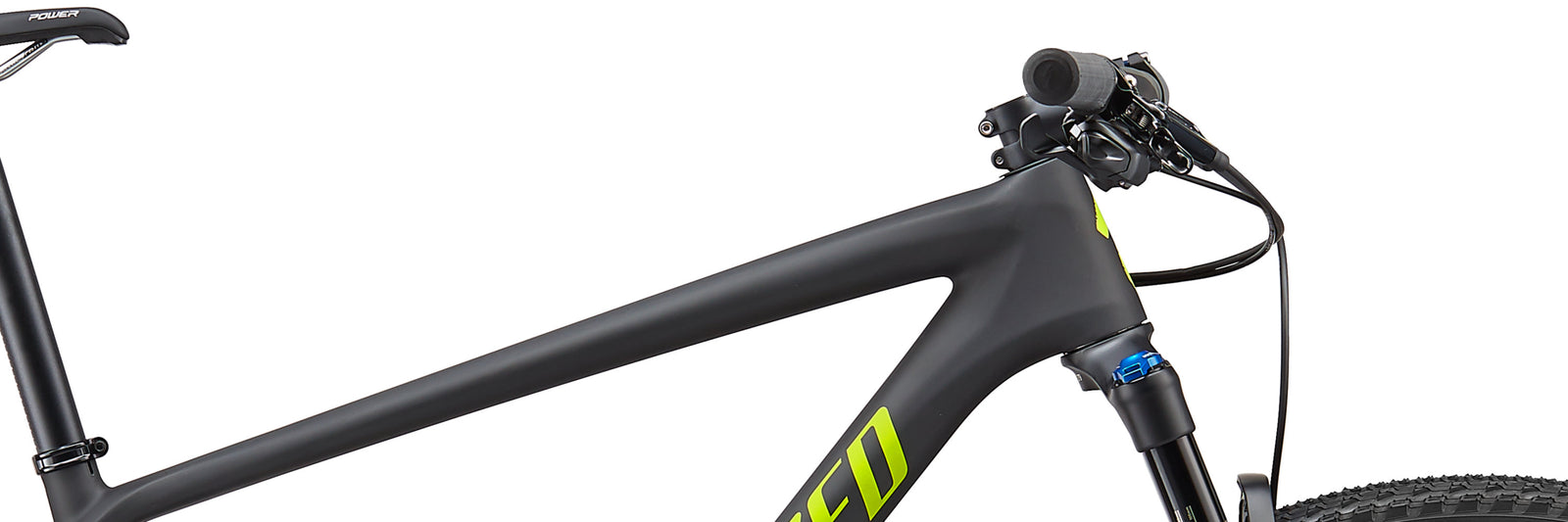

Frame Specialized FACT 11m, XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing
SWAT SWAT EMT Cage-Mount Tool

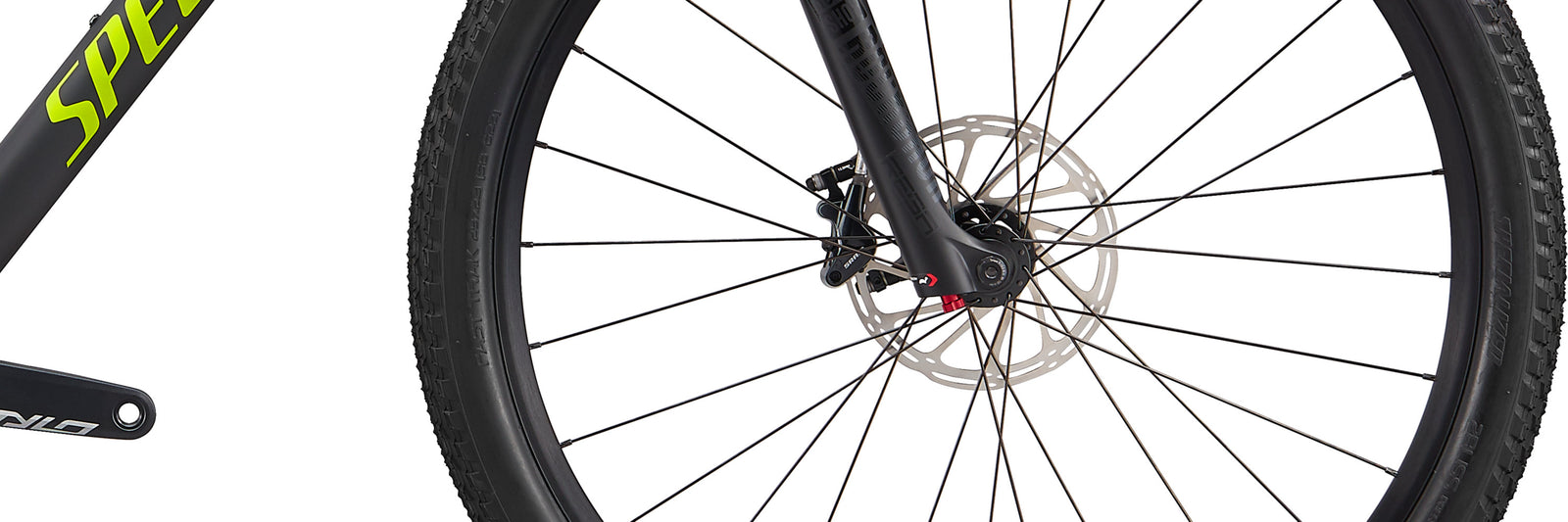

Fork RockShox Reba RL 29, Motion Control damper, 42mm offset, 15x110mm thru-axle, 100mm of travel
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebars Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Grips Specialized Trail Grips
Saddle Body Geometry Power Sport, steel rails
SeatPost Specialized, alloy, single-bolt, 30.9mm
Front Brake SRAM Level TL, 2-piston caliper, hydraulic disc
Rear Brake SRAM Level TL, 2-piston caliper, hydraulic disc

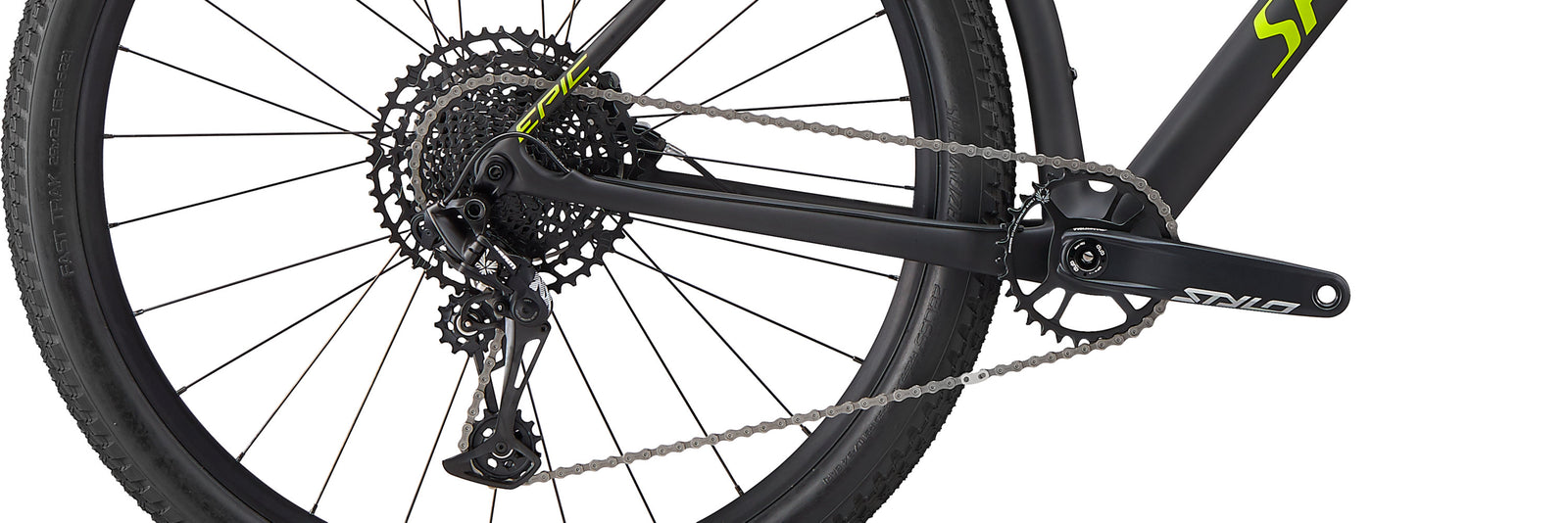

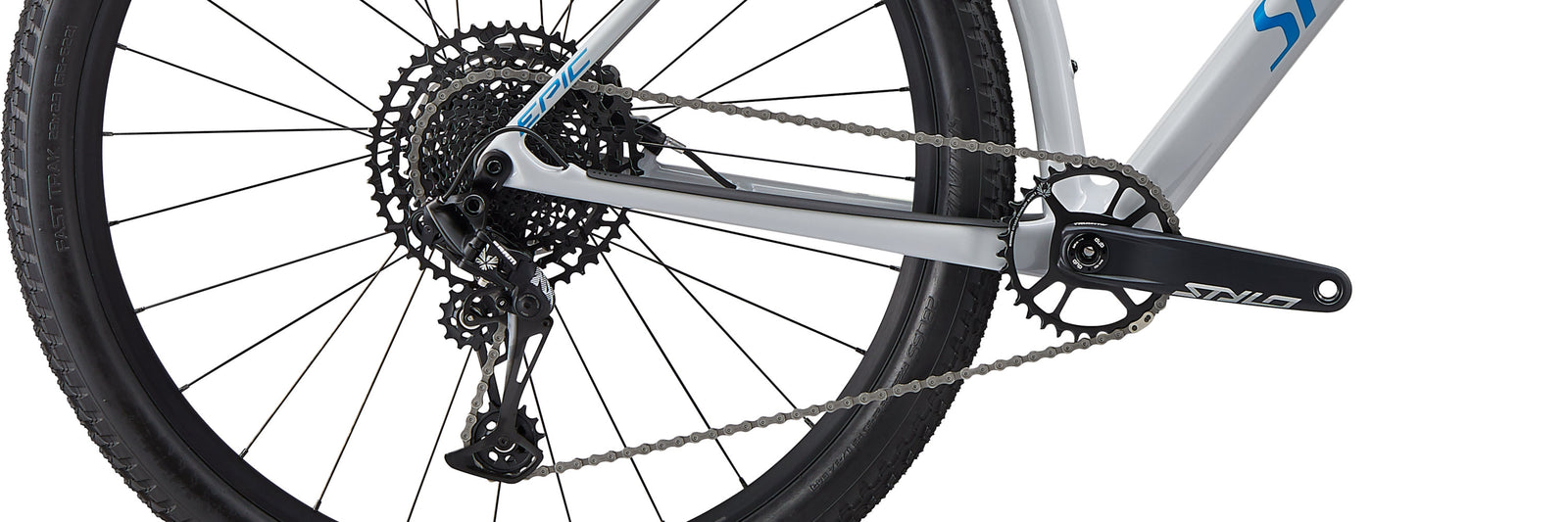

Rear Derailleur SRAM NX Eagle, 12-speed
Shift Levers SRAM NX Eagle, trigger, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
Chain SRAM NX Eagle, 12-speed

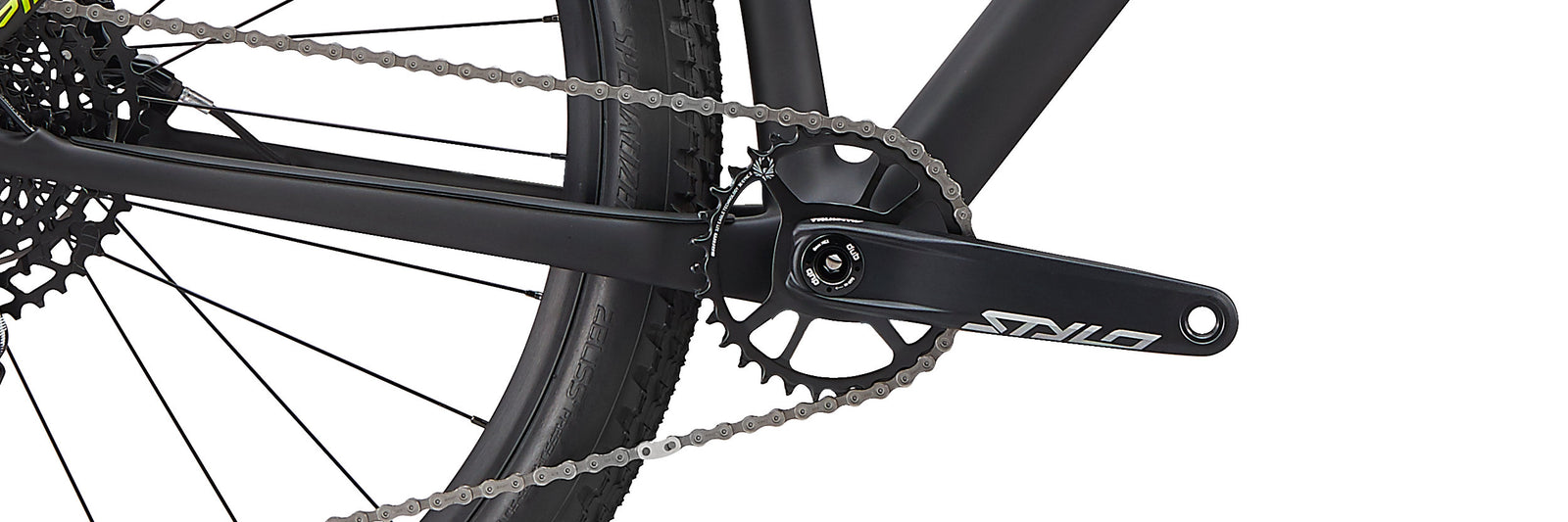

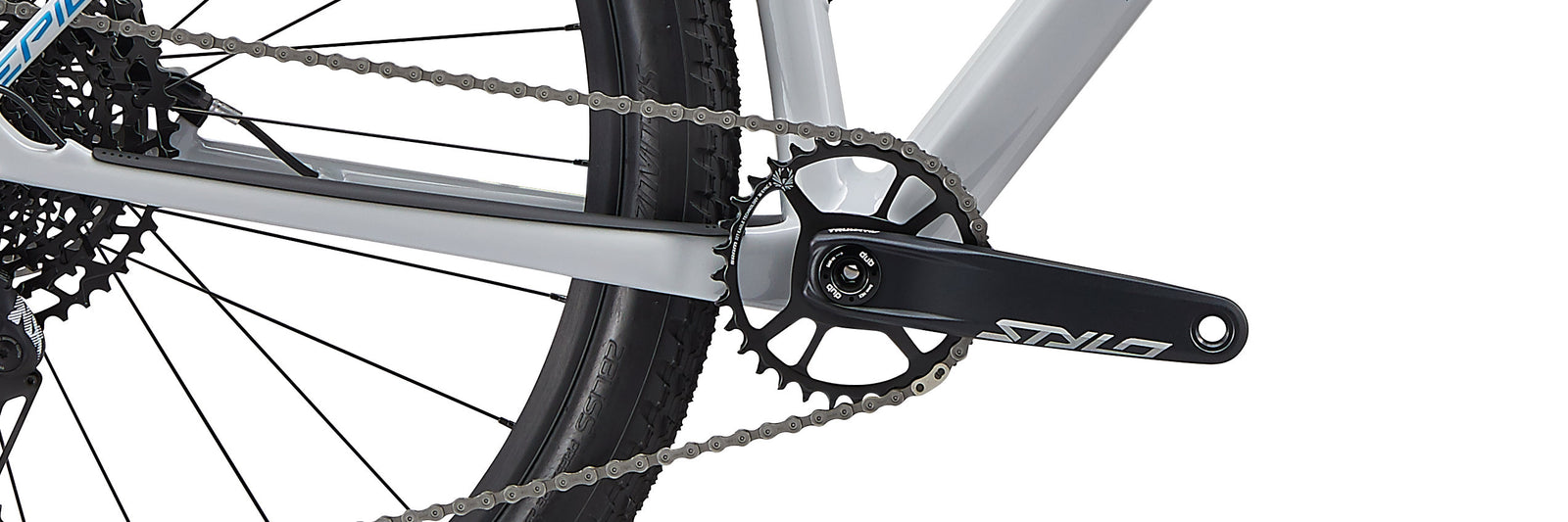

Crankset Truvativ STYLO, DUB
Chainrings Alloy, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Rims Specialized Alloy, Tubeless Ready, 25mm internal width, 28h
Front Hub Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes DT Swiss Industry
Front Tire Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"
Rear Tire Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"

Technical Specifications

Geometry

Geometry Chart

Geometry

  Size S M L XL
Stack 608mm 608mm 622mm 636mm
Reach 405mm 430mm 455mm 480mm
Head-Tube Length 95mm 95mm 110mm 125mm
Head-Tube Angle 68.5deg 68.5deg 68.5deg 68.5deg
B-B Height 309mm 309mm 309mm 309mm
B-B Drop 63mm 63mm 63mm 63mm
Trail 100mm 100mm 100mm 100mm
Fork Length (Full) 506mm 506mm 506mm 506mm
Fork Rake/Offset 42mm 42mm 42mm 42mm
Front-Center 669mm 694mm 724mm 754mm
Chain-Stay Length 430mm 430mm 430mm 430mm
Wheelbase 1091mm 1116mm 1147mm 1177mm
Top-Tube Length (Horizontal) 579mm 604mm 633mm 662mm
Bike Stand-Over Height 762mm 792mm 816mm 847mm
Seat-Tube Length 400mm 430mm 470mm 520mm
Seat-Tube Angle 74deg 74deg 74deg 74deg
