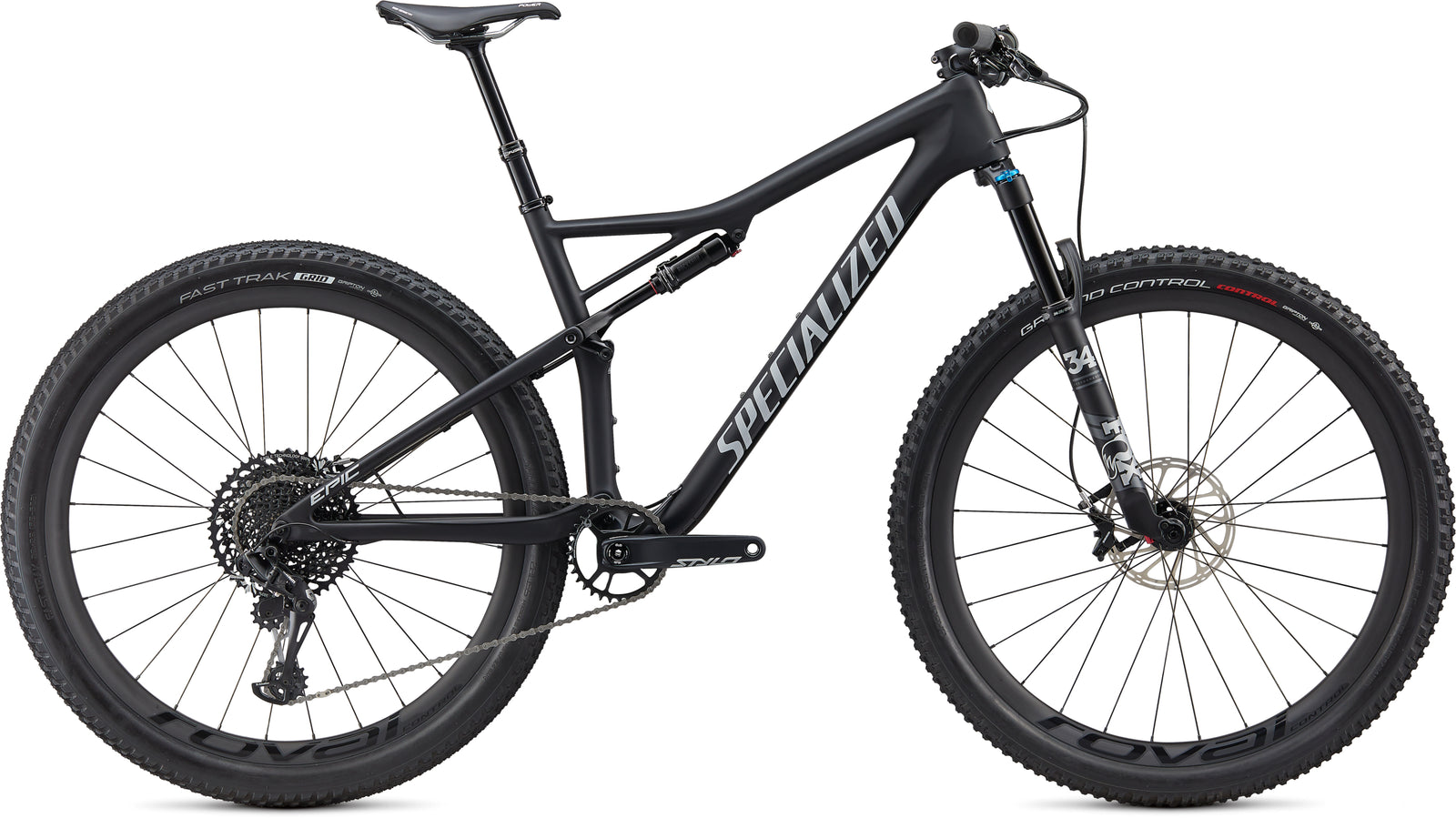

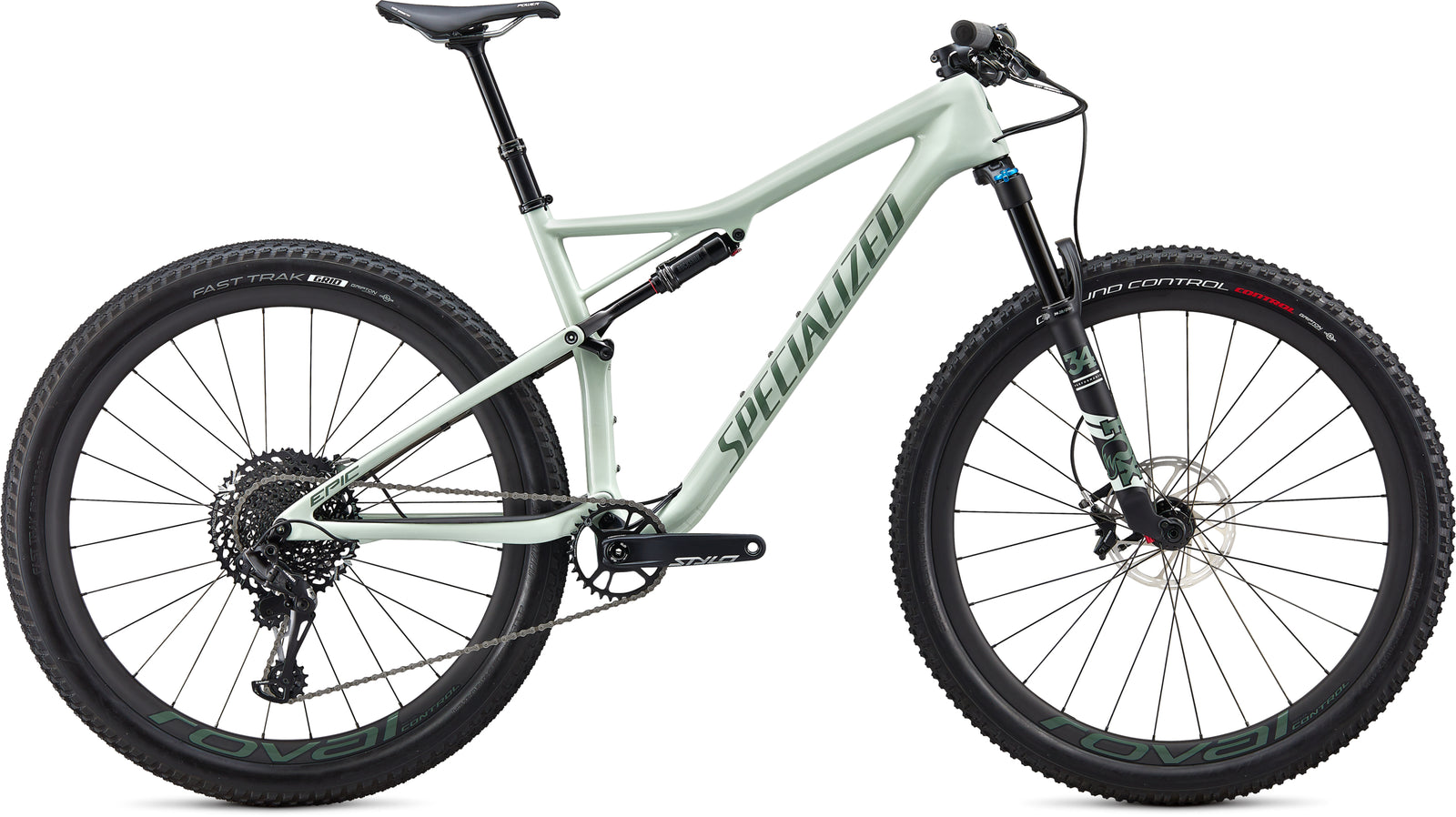

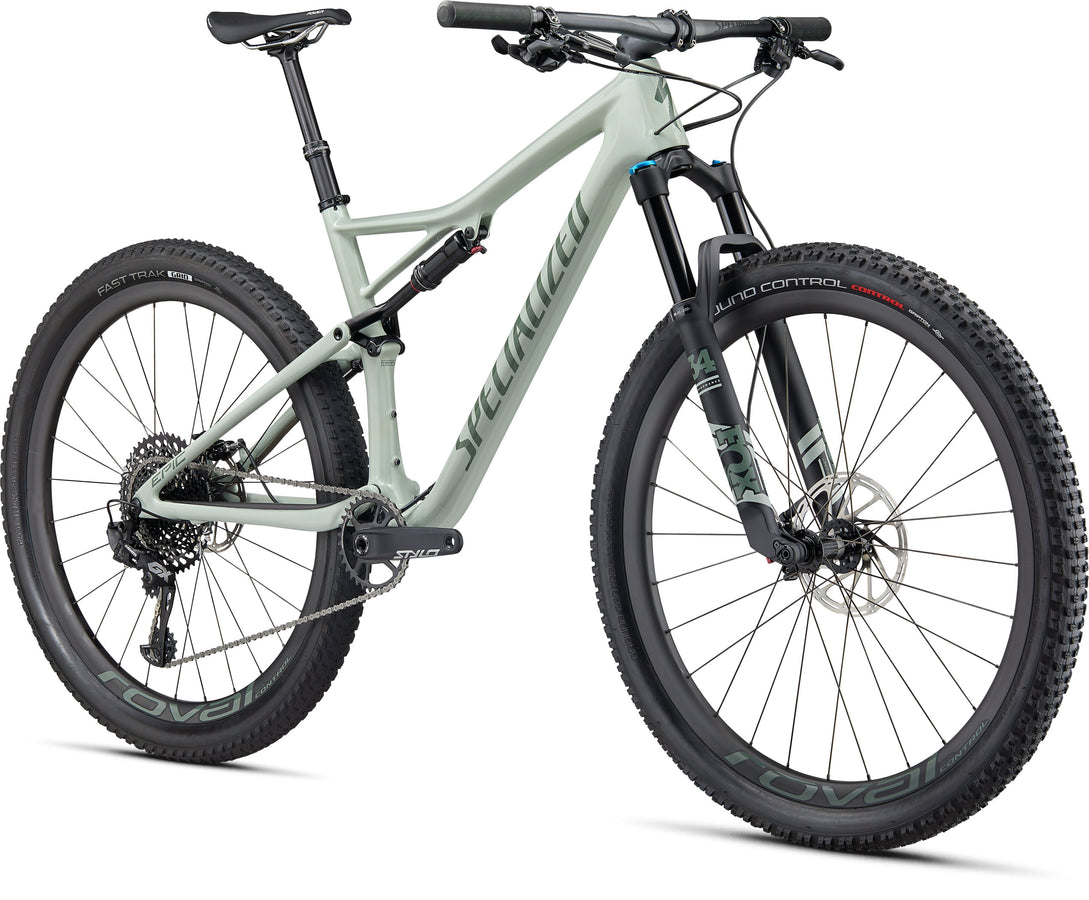

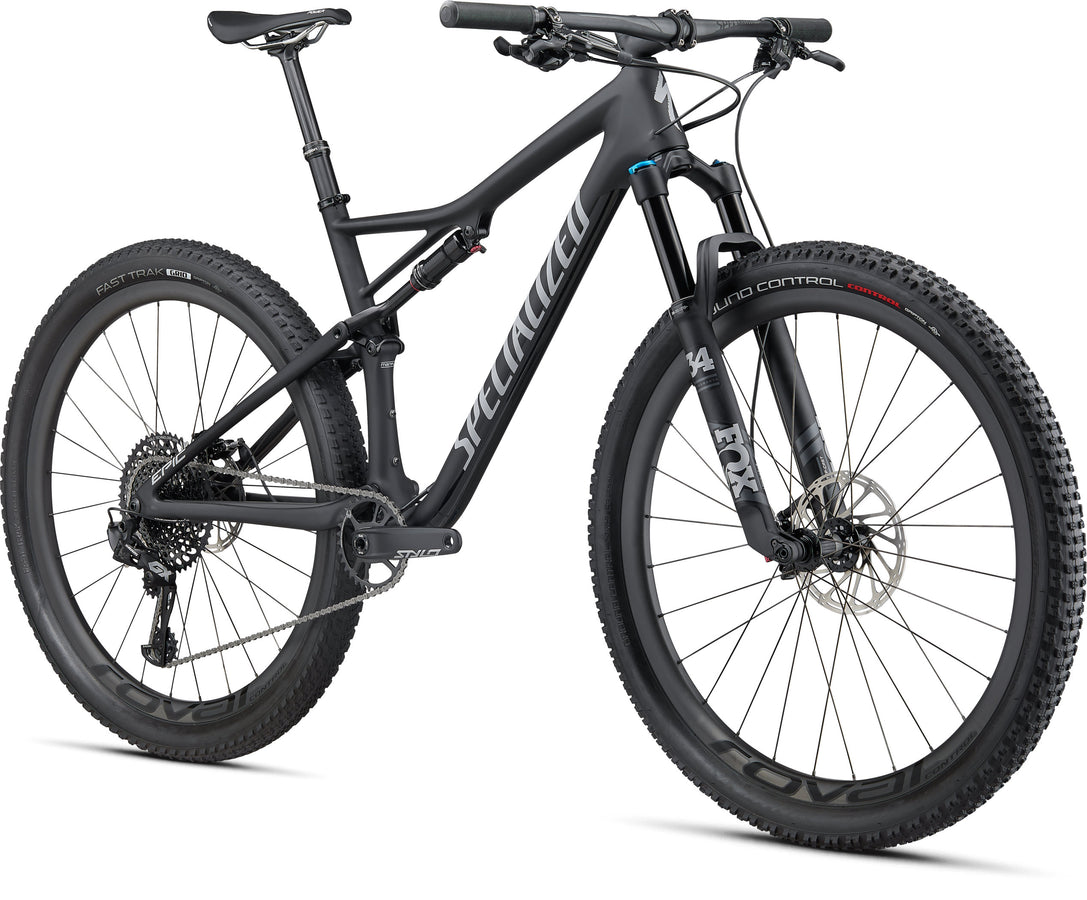

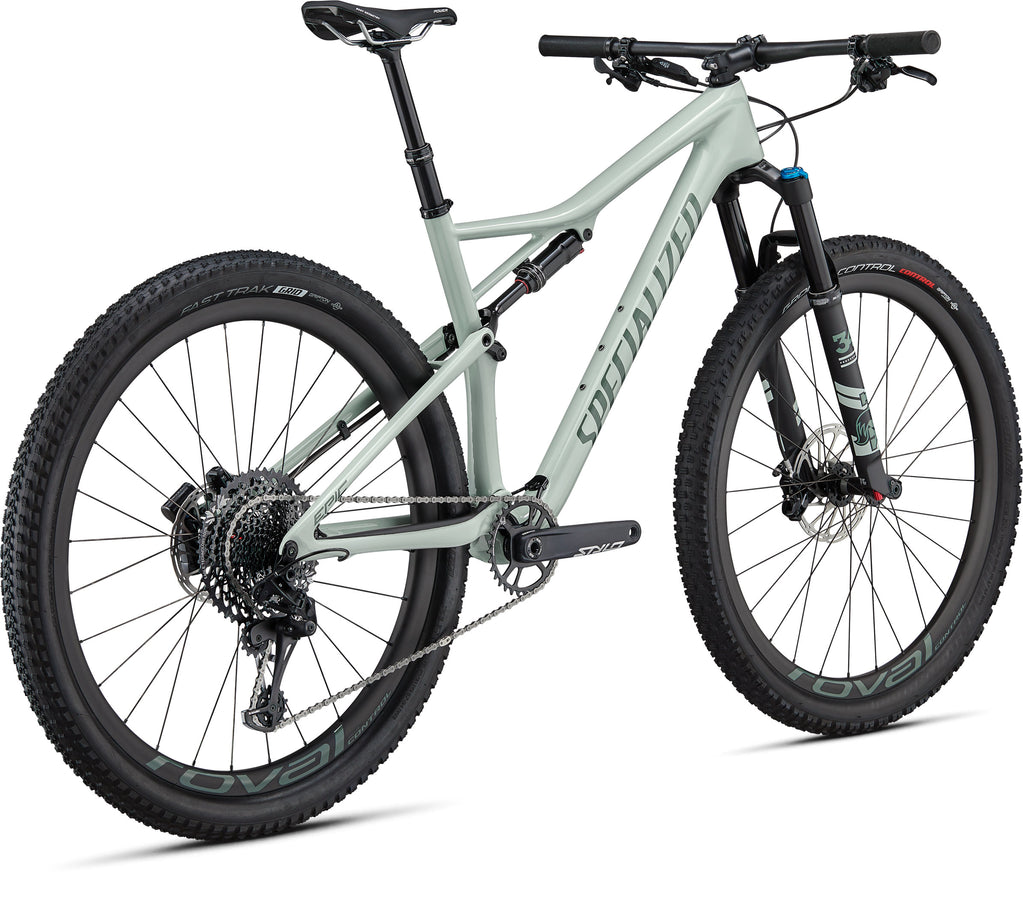

Epic Expert Carbon EVO

Epic Expert Carbon EVO

Part No.: 90320-3302

Notify me when this product is available:

Color
Size

Select a Size

Ripping around between the tape is one way to worship at the altar of speed, but for all the other long, fast rides or marathon races on technical terrain, there"s our all-new Epic Expert EVO. A MORE EPIC KIND OF EPIC Dropper posts and slightly l... Read More
Ripping around between the tape is one way to worship at the altar of speed, but for all the other long, fast rides or marathon races on technical terrain, there"s our all-new Epic Expert EVO. A MORE EPIC KIND OF EPIC Dropper posts and slightly l... Read More

wishlist message

Technical Specifications

Frame Specialized FACT 11m, XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
SWAT SWAT EMT Cage-Mount Tool
Rear Shock Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
Fork FOX Performance Step-Cast 34, Grip damper, Boost™, 44mm offset, 120mm of travel
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebars Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Grips Specialized Trail Grips
Saddle Body Geometry Power Sport, steel rails
SeatPost X-Fusion manic, 30.9mm, (S
Front Brake SRAM Guide RS, hydraulic disc, organic pads, Guide S4 4-piston caliper
Rear Brake SRAM Guide RS, hydraulic disc, organic pads, Guide S4 4-piston caliper
Rear Derailleur SRAM GX Eagle, 12-speed
Shift Levers SRAM GX Eagle, trigger, 12-speed
Cassette SRAM XG-1275 Eagle, 12-speed, 10-50t
Chain SRAM NX Eagle, 12-speed
Crankset Truvativ STYLO, DUB
Chainrings Alloy, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Rims Roval Control Carbon, 25mm internal width, tubeless-ready
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub DT Swiss 370, SRAM XD 3-pawl driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes DT Swiss Industry
Front Tire Ground Control, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"
Rear Tire Fast Trak, GRID casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"

Technical Specifications

Frame Specialized FACT 11m, XC Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
SWAT SWAT EMT Cage-Mount Tool
Rear Shock Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
Fork FOX Performance Step-Cast 34, Grip damper, Boost™, 44mm offset, 120mm of travel
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebars Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Grips Specialized Trail Grips
Saddle Body Geometry Power Sport, steel rails
SeatPost X-Fusion manic, 30.9mm, (S
Front Brake SRAM Guide RS, hydraulic disc, organic pads, Guide S4 4-piston caliper
Rear Brake SRAM Guide RS, hydraulic disc, organic pads, Guide S4 4-piston caliper
Rear Derailleur SRAM GX Eagle, 12-speed
Shift Levers SRAM GX Eagle, trigger, 12-speed
Cassette SRAM XG-1275 Eagle, 12-speed, 10-50t
Chain SRAM NX Eagle, 12-speed
Crankset Truvativ STYLO, DUB
Chainrings Alloy, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Rims Roval Control Carbon, 25mm internal width, tubeless-ready
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub DT Swiss 370, SRAM XD 3-pawl driver body, 12mm thru-axle, 148mm spacing, 28h
Spokes DT Swiss Industry
Front Tire Ground Control, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"
Rear Tire Fast Trak, GRID casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"

Epic - Geometry

Geometry

S M L XL
  S M L XL
Stack 595mm 605mm 619mm 638mm
Reach 398mm 423mm 446mm 465mm
Head-Tube Length 95mm 105mm 120mm 140mm
Head-Tube Angle 68.5deg 68.5deg 68.5deg 68.5deg
B-B Height 340mm 340mm 340mm 340mm
B-B Drop 32mm 32mm 32mm 32mm
Trail 99mm 99mm 99mm 99mm
Fork Length (Full) 526mm 526mm 526mm 526mm
Fork Rake/Offset 43mm 43mm 43mm 43mm
Front-Center 667mm 695mm 723mm 749mm
Chain-Stay Length 438mm 438mm 438mm 438mm
Wheelbase 1103mm 1132mm 1159mm 1186mm
Top-Tube Length (Horizontal) 571mm 599mm 626mm 650mm
Bike Stand-Over Height 772mm 777mm 782mm 804mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Seat-Tube Angle 73.8deg 73.8deg 73.8deg 73.8deg

Geometry

Geometry Chart

Geometry

  S M L XL
Stack 595mm 605mm 619mm 638mm
Reach 398mm 423mm 446mm 465mm
Head-Tube Length 95mm 105mm 120mm 140mm
Head-Tube Angle 68.5deg 68.5deg 68.5deg 68.5deg
B-B Height 340mm 340mm 340mm 340mm
B-B Drop 32mm 32mm 32mm 32mm
Trail 99mm 99mm 99mm 99mm
Fork Length (Full) 526mm 526mm 526mm 526mm
Fork Rake/Offset 43mm 43mm 43mm 43mm
Front-Center 667mm 695mm 723mm 749mm
Chain-Stay Length 438mm 438mm 438mm 438mm
Wheelbase 1103mm 1132mm 1159mm 1186mm
Top-Tube Length (Horizontal) 571mm 599mm 626mm 650mm
Bike Stand-Over Height 772mm 777mm 782mm 804mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Seat-Tube Angle 73.8deg 73.8deg 73.8deg 73.8deg
