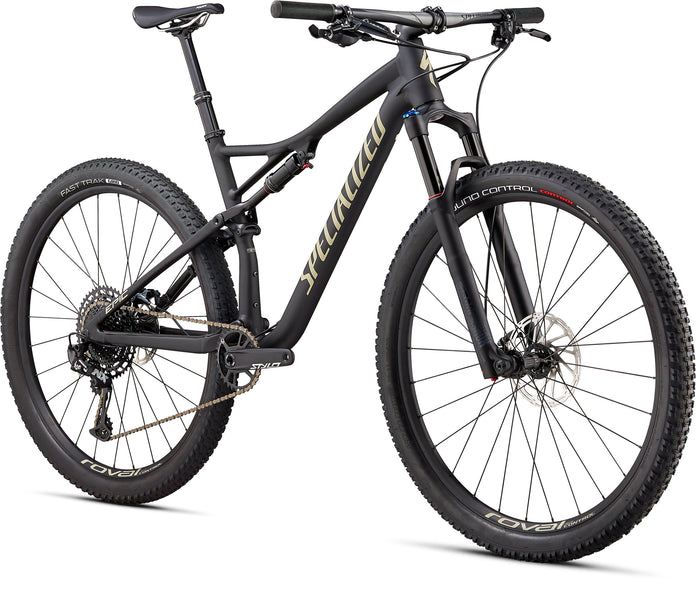

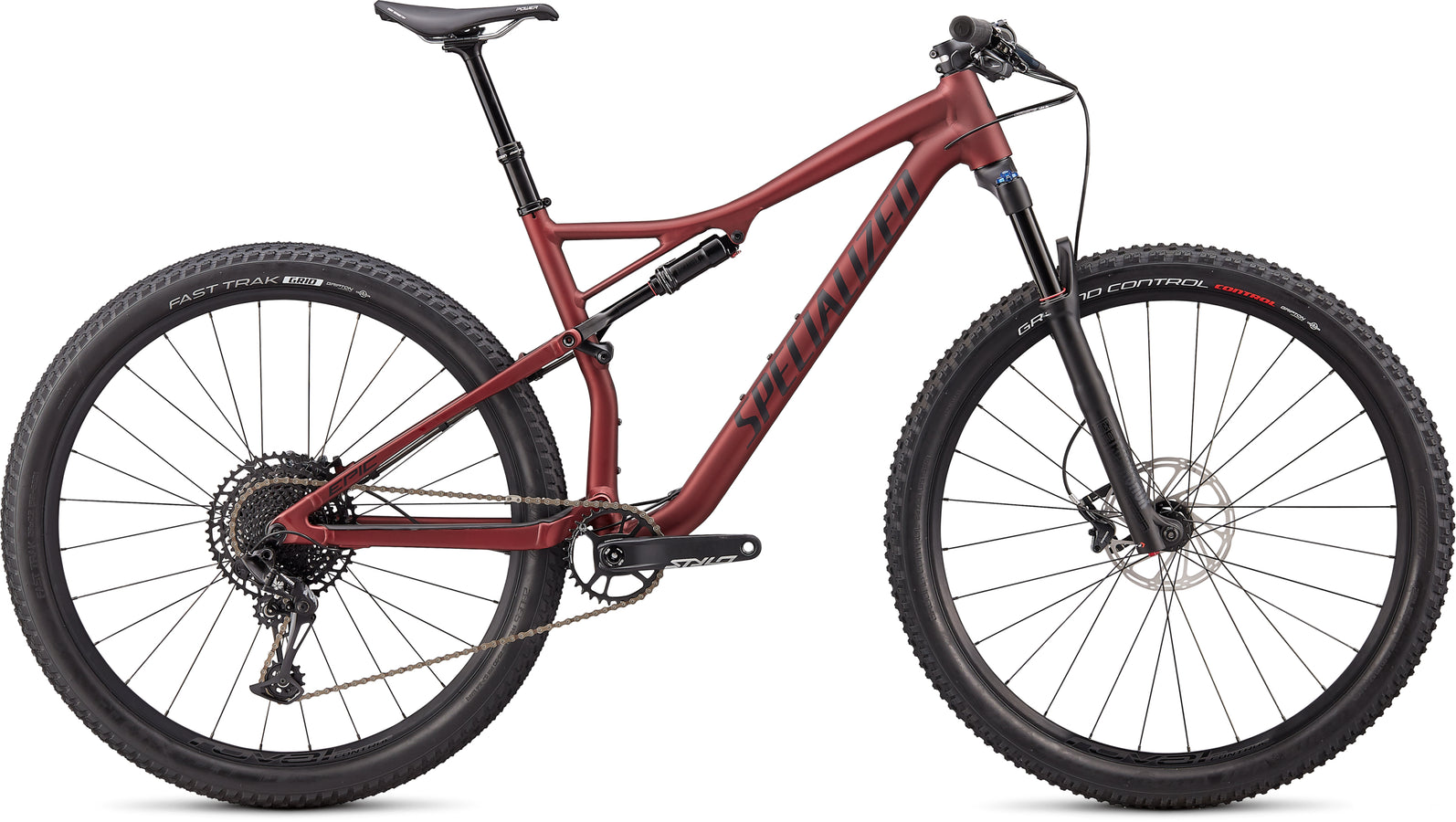

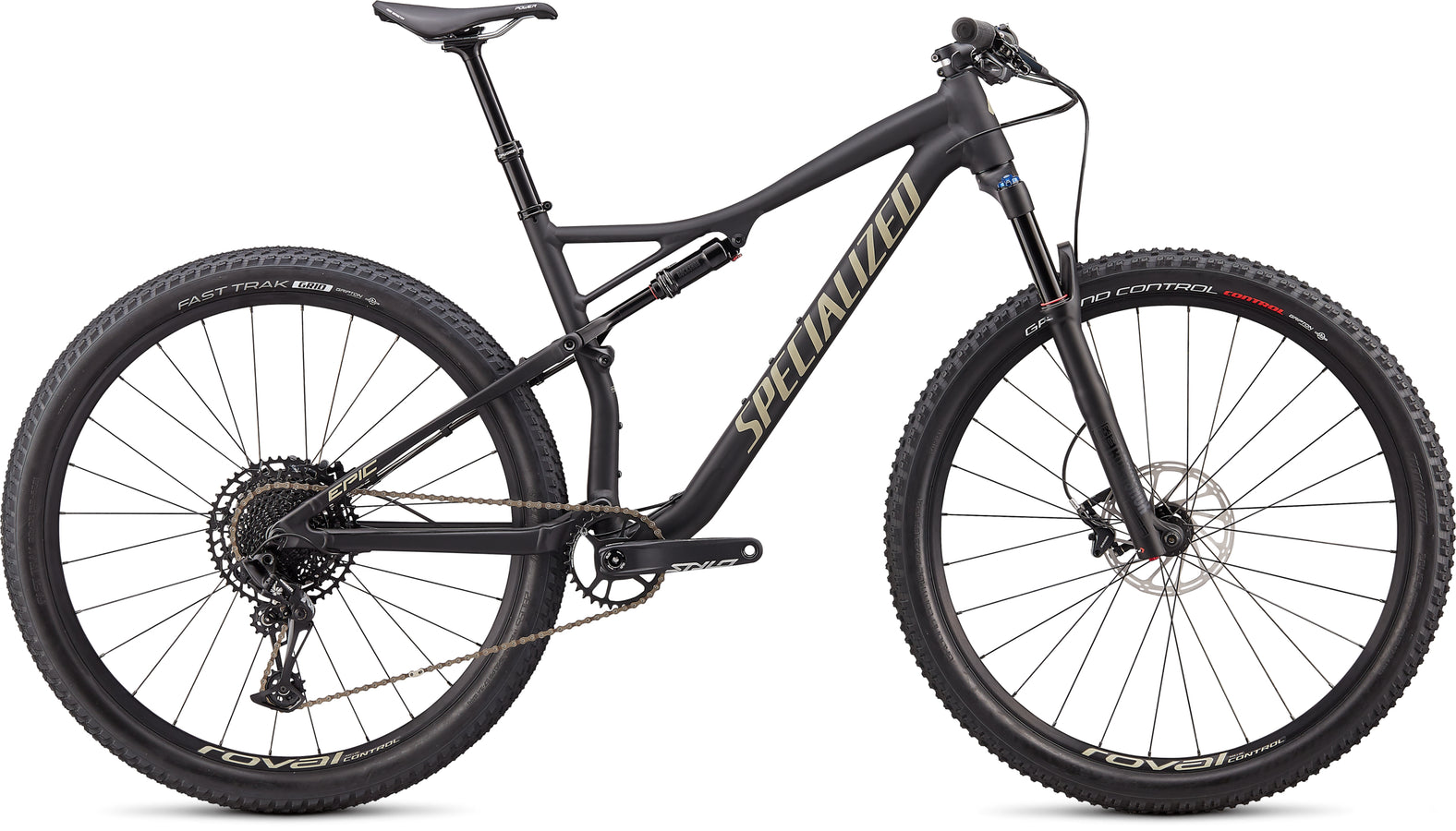

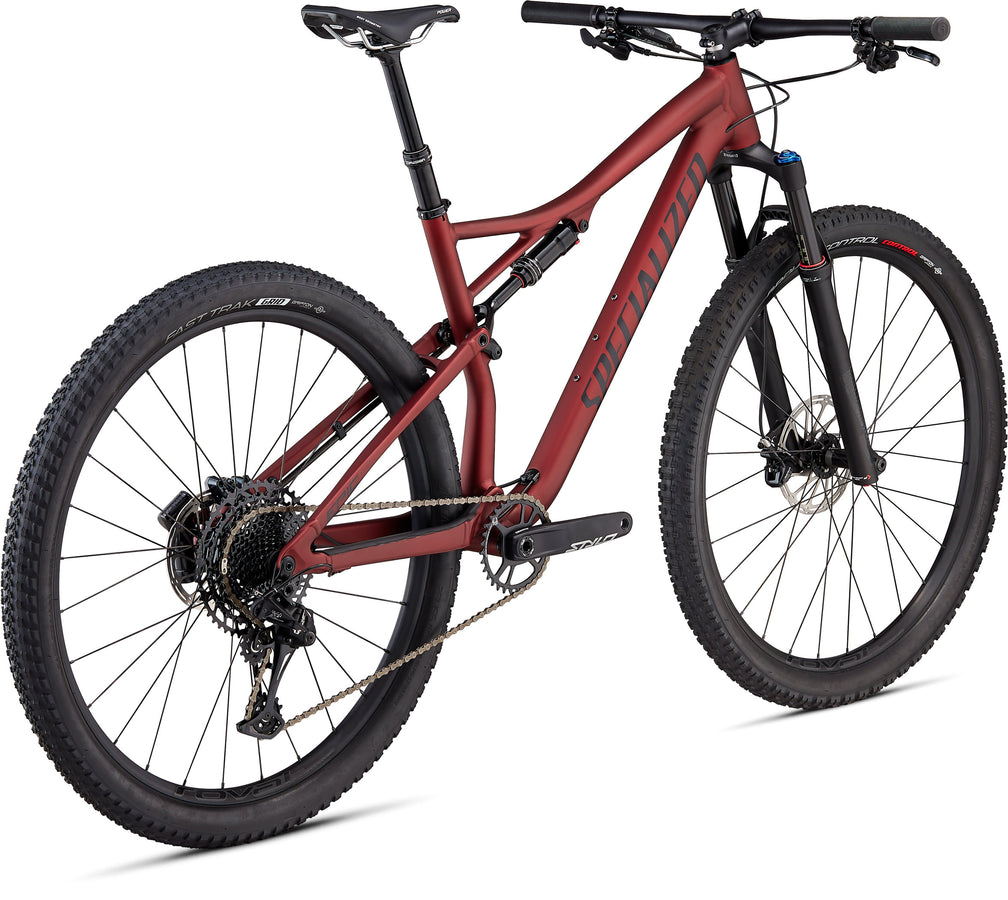

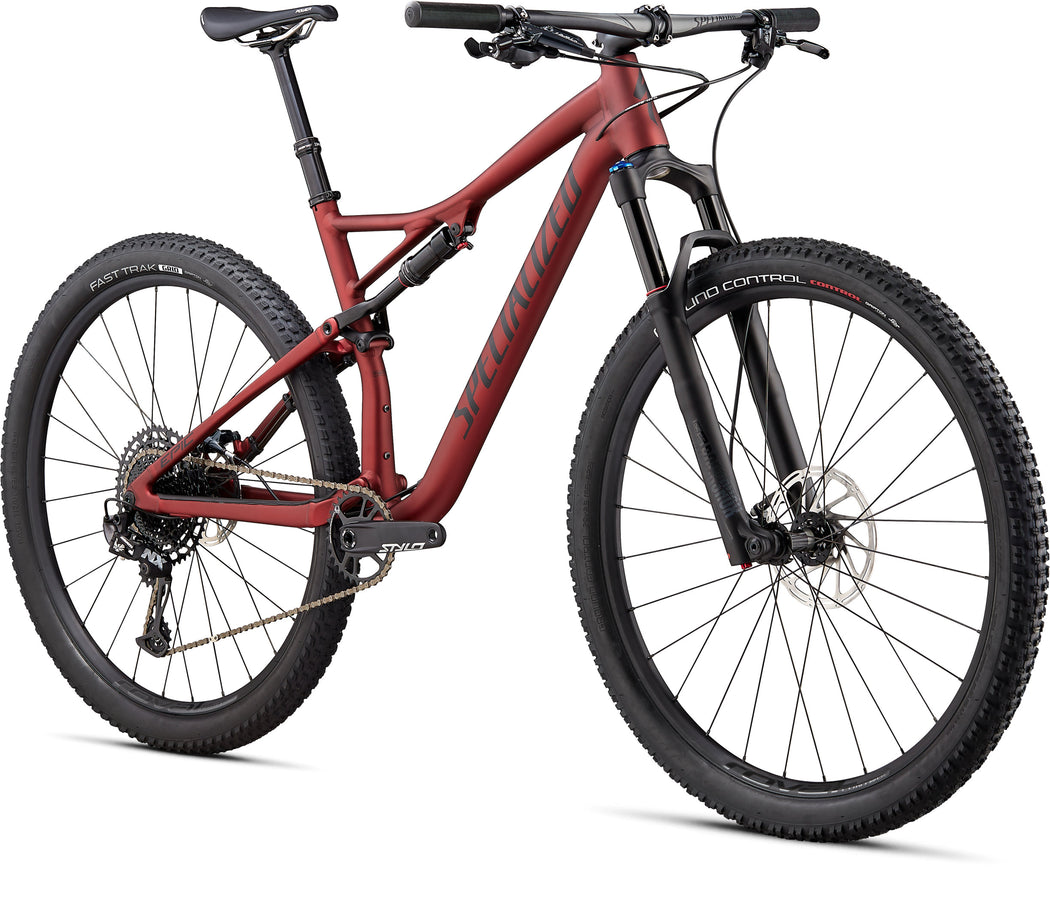

Epic Comp EVO

Epic Comp EVO

Part No.: 90320-5802

Notify me when this product is available:

Color
Size

Select a Size

EVO represents the rowdier side of our bike line and the Epic Comp EVO is no exception to the rule. We’ve added a longer travel fork and a dropper post to the Comp-level Epic to create a bike that’s just as fast, but offers even more control when ... Read More
EVO represents the rowdier side of our bike line and the Epic Comp EVO is no exception to the rule. We’ve added a longer travel fork and a dropper post to the Comp-level Epic to create a bike that’s just as fast, but offers even more control when ... Read More

wishlist message

Technical Specifications

Frame Specialized M5 Aluminum w/ D\'Aluisio Smartweld Technology, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Rear Shock Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
Fork RockShox Reba RL 29, Motion Control damper, 42mm offset, 15x110mm thru-axle, 120mm of travel
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebars Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Grips Specialized Trail Grips
Saddle Body Geometry Power Sport, steel rails
SeatPost X-Fusion manic, 30.9mm, (S
Front Brake SRAM Level TL, hydraulic disc
Rear Brake SRAM Level TL, hydraulic disc
Rear Derailleur SRAM NX Eagle, 12-speed
Shift Levers SRAM NX Eagle, trigger, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
Chain SRAM SX Eagle, 12-speed
Crankset Truvativ STYLO, DUB
Chainrings Steel, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Rims Specialized Alloy, Tubeless Ready, 25mm internal width, 28h
Front Hub Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes DT Swiss Industry
Front Tire Ground Control, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"
Rear Tire Fast Trak, GRID casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"

Technical Specifications

Frame Specialized M5 Aluminum w/ D\'Aluisio Smartweld Technology, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Rear Shock Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
Fork RockShox Reba RL 29, Motion Control damper, 42mm offset, 15x110mm thru-axle, 120mm of travel
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebars Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Grips Specialized Trail Grips
Saddle Body Geometry Power Sport, steel rails
SeatPost X-Fusion manic, 30.9mm, (S
Front Brake SRAM Level TL, hydraulic disc
Rear Brake SRAM Level TL, hydraulic disc
Rear Derailleur SRAM NX Eagle, 12-speed
Shift Levers SRAM NX Eagle, trigger, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
Chain SRAM SX Eagle, 12-speed
Crankset Truvativ STYLO, DUB
Chainrings Steel, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Rims Specialized Alloy, Tubeless Ready, 25mm internal width, 28h
Front Hub Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes DT Swiss Industry
Front Tire Ground Control, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"
Rear Tire Fast Trak, GRID casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"

Epic - Geometry

Geometry

S M L XL
  S M L XL
Stack 595mm 610mm 624mm 638mm
Reach 398mm 423mm 446mm 465mm
Head-Tube Length 95mm 110mm 125mm 140mm
Head-Tube Angle 68.5deg 68.5deg 68.5deg 68.5deg
B-B Height 340mm 340mm 340mm 340mm
B-B Drop 32mm 32mm 32mm 32mm
Trail 99mm 99mm 99mm 99mm
Fork Length (Full) 526mm 526mm 526mm 526mm
Fork Rake/Offset 43mm 43mm 43mm 43mm
Front-Center 667mm 695mm 723mm 749mm
Chain-Stay Length 438mm 438mm 438mm 438mm
Wheelbase 1103mm 1132mm 1159mm 1186mm
Top-Tube Length (Horizontal) 571mm 599mm 626mm 650mm
Bike Stand-Over Height 772mm 777mm 782mm 804mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Seat-Tube Angle 73.8deg 73.8deg 73.8deg 73.8deg
