Epic Comp EVO

Epic Comp EVO

Part No.: 90319-5503

Notify me when this product is available:

Color
Size

Select a Size

If we"re being honest with ourselves, alloy has always been at the heart of the EVO family. It"s tough, it"s stiff, and at least with our bikes, it"s pretty damn light. Basically, it embodies everything that"s good about mountain bikes, and that"s... Read More
If we"re being honest with ourselves, alloy has always been at the heart of the EVO family. It"s tough, it"s stiff, and at least with our bikes, it"s pretty damn light. Basically, it embodies everything that"s good about mountain bikes, and that"s... Read More

wishlist message

Technical Specifications

Frame Specialized M5 Aluminum w/ D\'Aluisio Smartweld Technology, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel

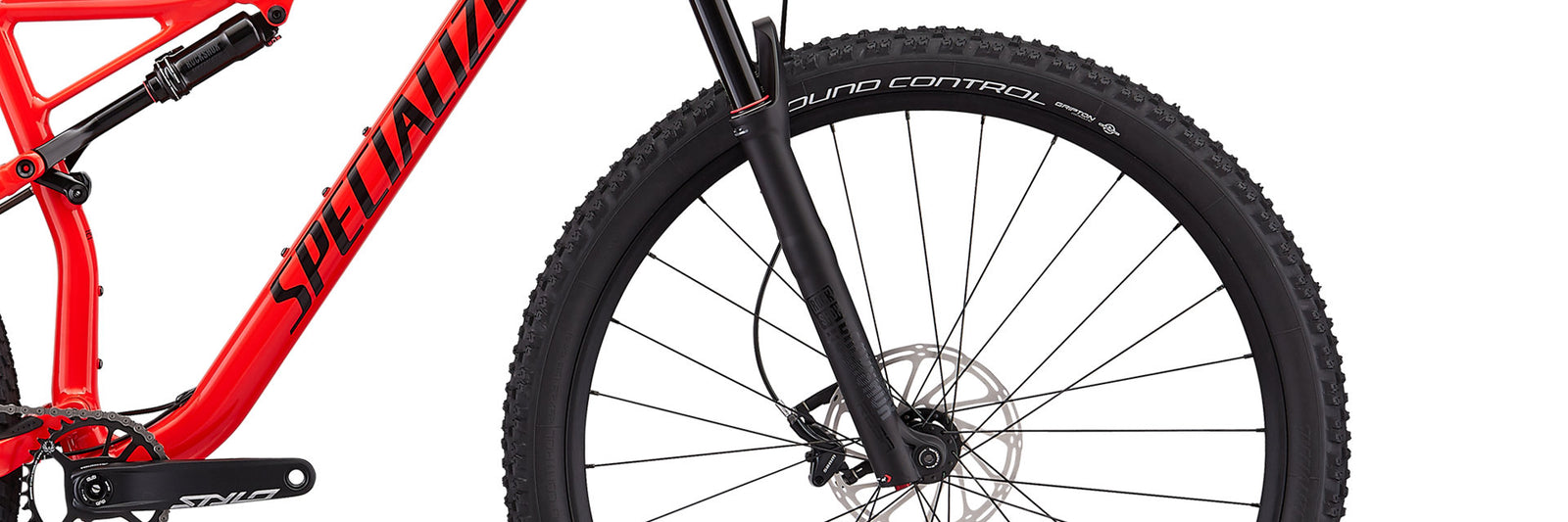

Fork RockShox Reba RL 29, Motion Control damper, 42mm offset, 15x110mm thru-axle, 120mm of travel

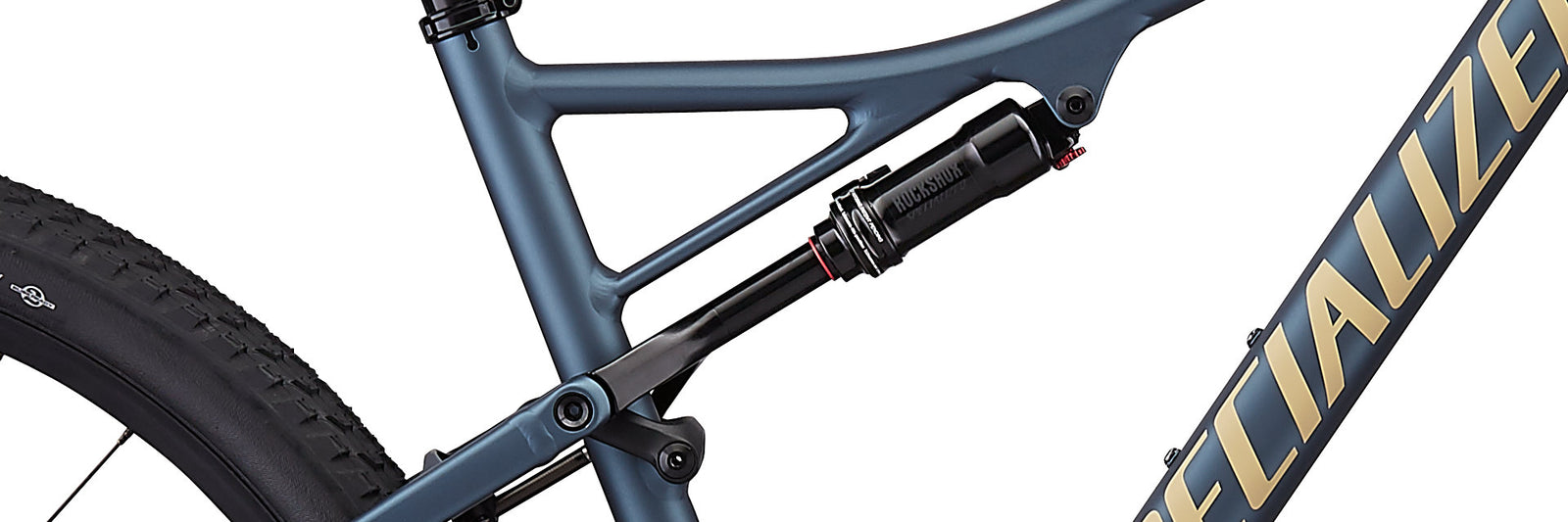

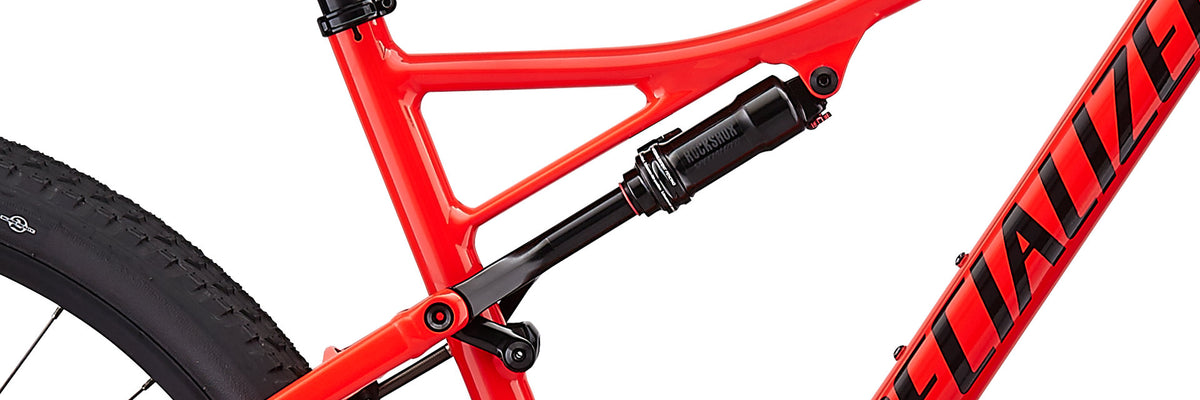

Rear Shock Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
Handlebars Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Grips Specialized Sip grip, half-waffle, S/M
Saddle Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost X-Fusion manic, 30.9mm, (S
Front Brake SRAM Level TL, hydraulic disc
Rear Brake SRAM Level TL, hydraulic disc
Shift Levers SRAM NX Eagle, trigger, 12-speed
Rear Derailleur SRAM NX Eagle, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
Crankset Truvativ STYLO, DUB
Chainrings SRAM Eagle, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Chain SRAM NX Eagle, 12-speed
Rims Specialized Alloy, Tubeless Ready, 25mm internal width, 28h
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
Spokes DT Swiss Industry
Front Tire Ground Control, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"
Rear Tire Fast Trak, GRID casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"

Technical Specifications

Frame Specialized M5 Aluminum w/ D\'Aluisio Smartweld Technology, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
Fork RockShox Reba RL 29, Motion Control damper, 42mm offset, 15x110mm thru-axle, 120mm of travel
Rear Shock Custom RockShox Micro Brain shock w/ Spike Valve, AUTOSAG, 51x257mm
Handlebars Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Grips Specialized Sip grip, half-waffle, S/M
Saddle Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
Seatpost X-Fusion manic, 30.9mm, (S
Front Brake SRAM Level TL, hydraulic disc
Rear Brake SRAM Level TL, hydraulic disc
Shift Levers SRAM NX Eagle, trigger, 12-speed
Rear Derailleur SRAM NX Eagle, 12-speed
Cassette SRAM NX Eagle, 12-speed, 11-50t
Crankset Truvativ STYLO, DUB
Chainrings SRAM Eagle, 32T
Bottom Bracket SRAM DUB, BSA 73mm, Threaded
Chain SRAM NX Eagle, 12-speed
Rims Specialized Alloy, Tubeless Ready, 25mm internal width, 28h
Front Hub Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
Spokes DT Swiss Industry
Front Tire Ground Control, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"
Rear Tire Fast Trak, GRID casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3\"

Epic - Geometry

Geometry

S M L XL
  S M L XL
Stack 595mm 605mm 619mm 638mm
Reach 398mm 423mm 446mm 465mm
Head-Tube Length 95mm 105mm 120mm 140mm
Head-Tube Angle 68.5deg 68.5deg 68.5deg 68.5deg
B-B Height 340mm 340mm 340mm 340mm
B-B Drop 32mm 32mm 32mm 32mm
Trail 99mm 99mm 99mm 99mm
Fork Length (Full) 526mm 526mm 526mm 526mm
Fork Rake/Offset 43mm 43mm 43mm 43mm
Front-Center 667mm 695mm 723mm 749mm
Chain-Stay Length 438mm 438mm 438mm 438mm
Wheelbase 1103mm 1132mm 1159mm 1186mm
Top-Tube Length (Horizontal) 571mm 599mm 626mm 650mm
Bike Stand-Over Height 772mm 777mm 782mm 804mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Seat-Tube Angle 73.8deg 73.8deg 73.8deg 73.8deg

Geometry

Geometry Chart

Geometry

  S M L XL
Stack 595mm 605mm 619mm 638mm
Reach 398mm 423mm 446mm 465mm
Head-Tube Length 95mm 105mm 120mm 140mm
Head-Tube Angle 68.5deg 68.5deg 68.5deg 68.5deg
B-B Height 340mm 340mm 340mm 340mm
B-B Drop 32mm 32mm 32mm 32mm
Trail 99mm 99mm 99mm 99mm
Fork Length (Full) 526mm 526mm 526mm 526mm
Fork Rake/Offset 43mm 43mm 43mm 43mm
Front-Center 667mm 695mm 723mm 749mm
Chain-Stay Length 438mm 438mm 438mm 438mm
Wheelbase 1103mm 1132mm 1159mm 1186mm
Top-Tube Length (Horizontal) 571mm 599mm 626mm 650mm
Bike Stand-Over Height 772mm 777mm 782mm 804mm
Seat-Tube Length 400mm 434mm 470mm 520mm
Seat-Tube Angle 73.8deg 73.8deg 73.8deg 73.8deg
