Enduro Expert

Enduro Expert

Part No.: 93621-3002

Notify me when this product is available:

Color
Size

Select a Size

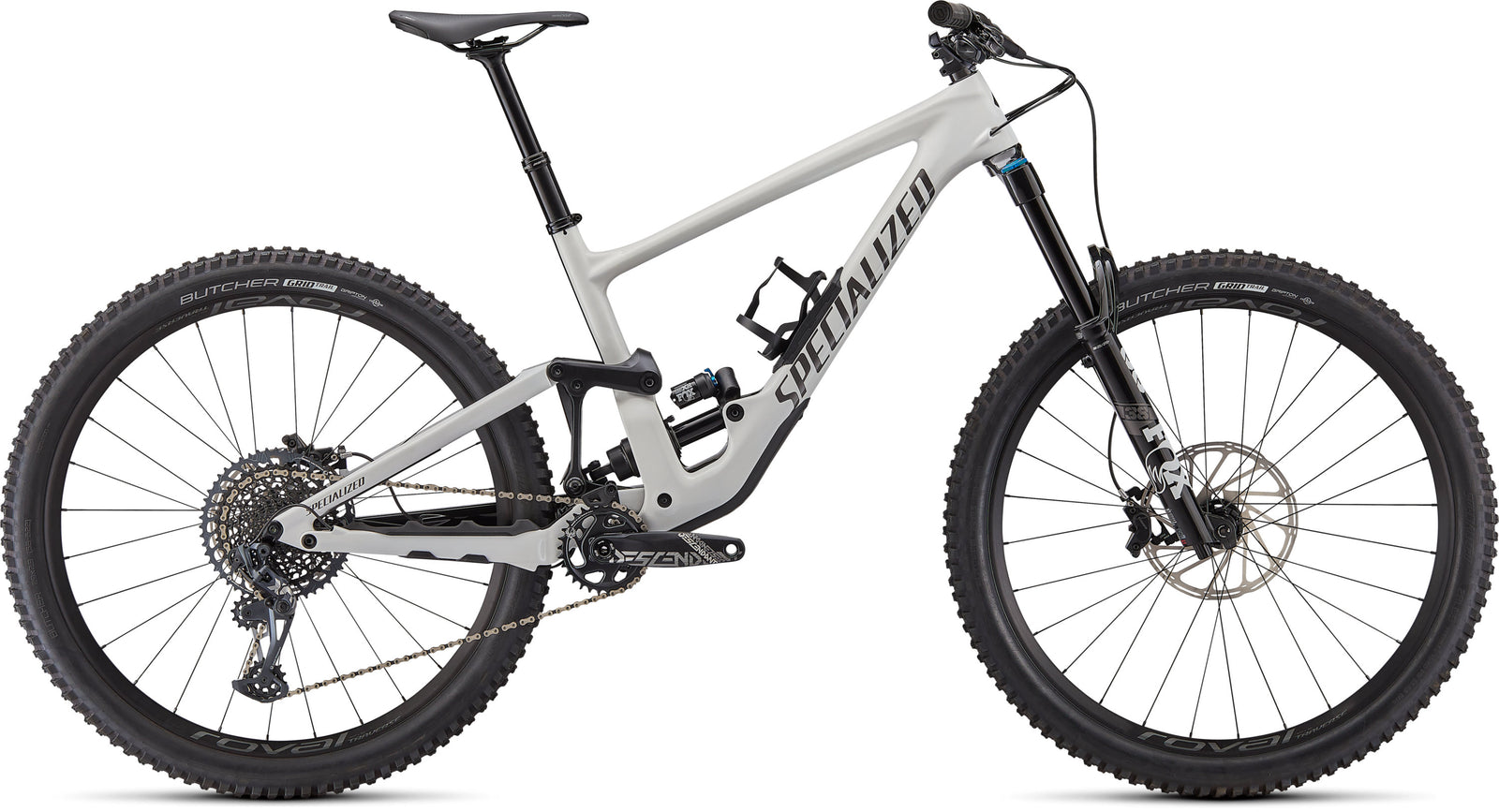

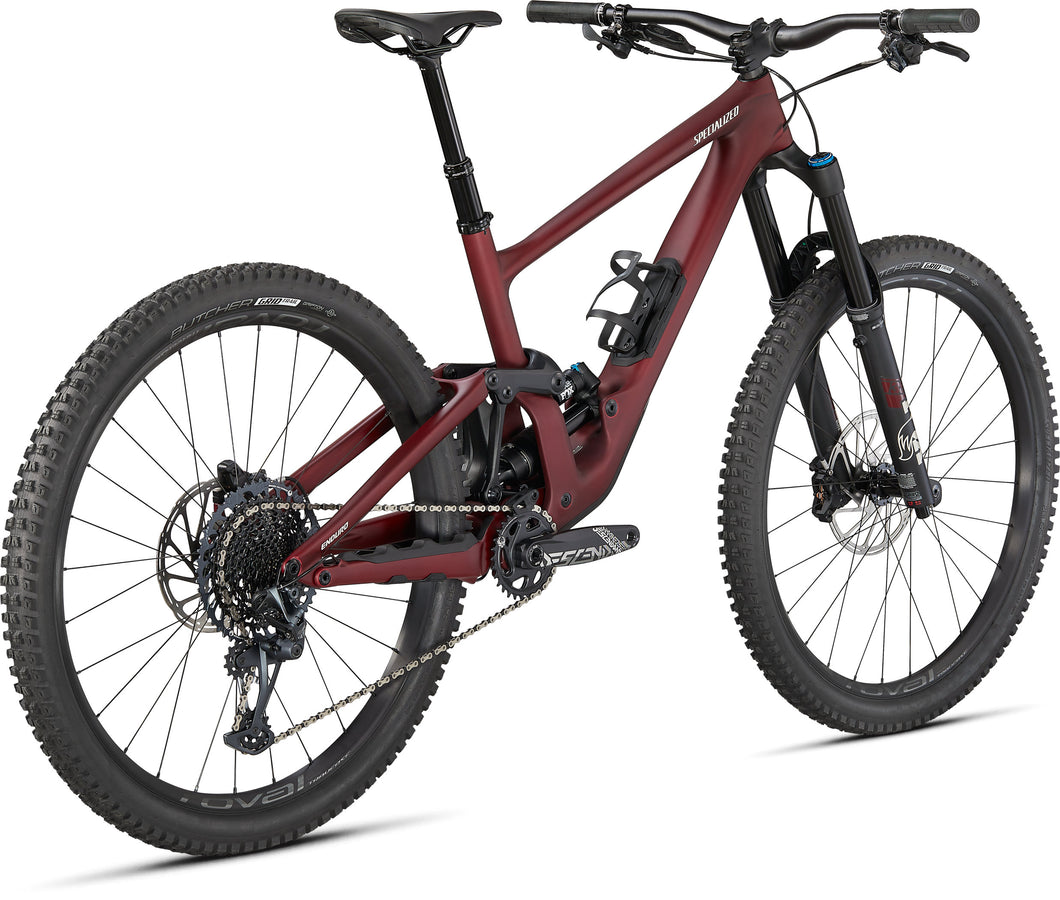

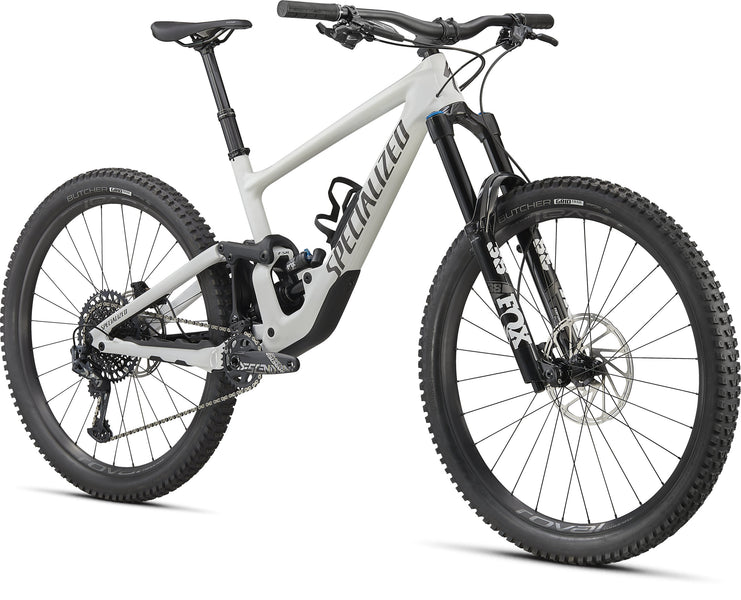

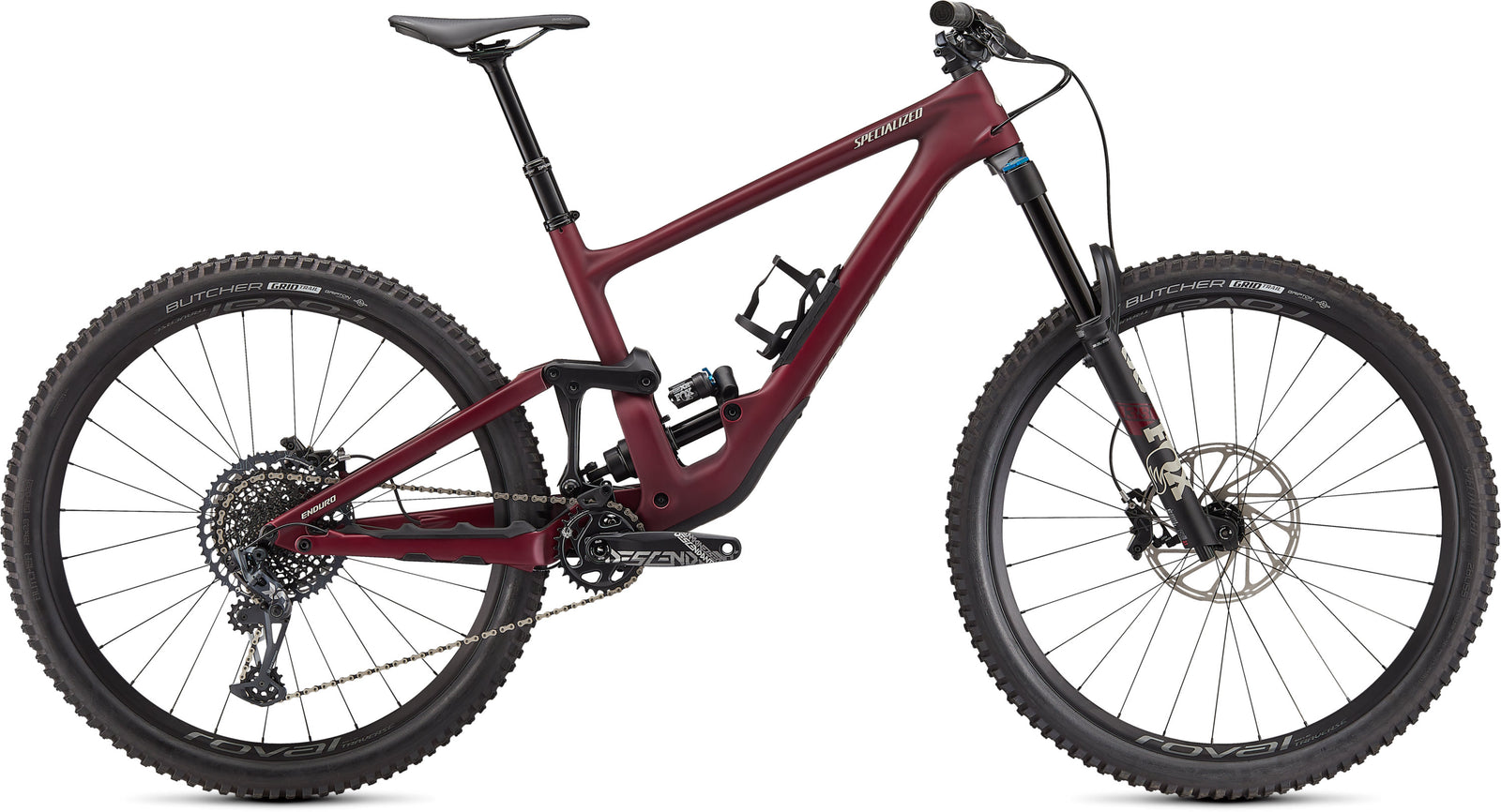

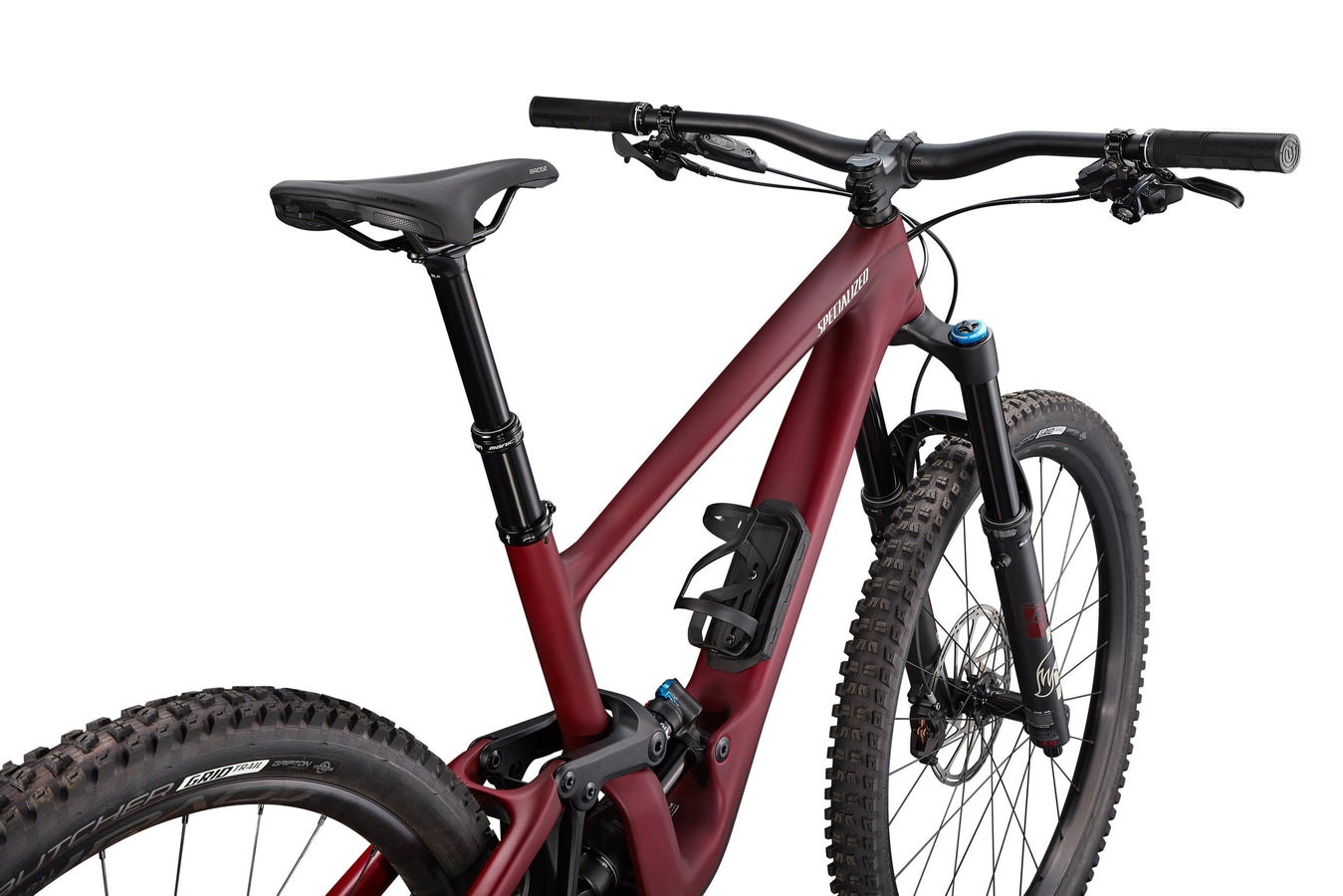

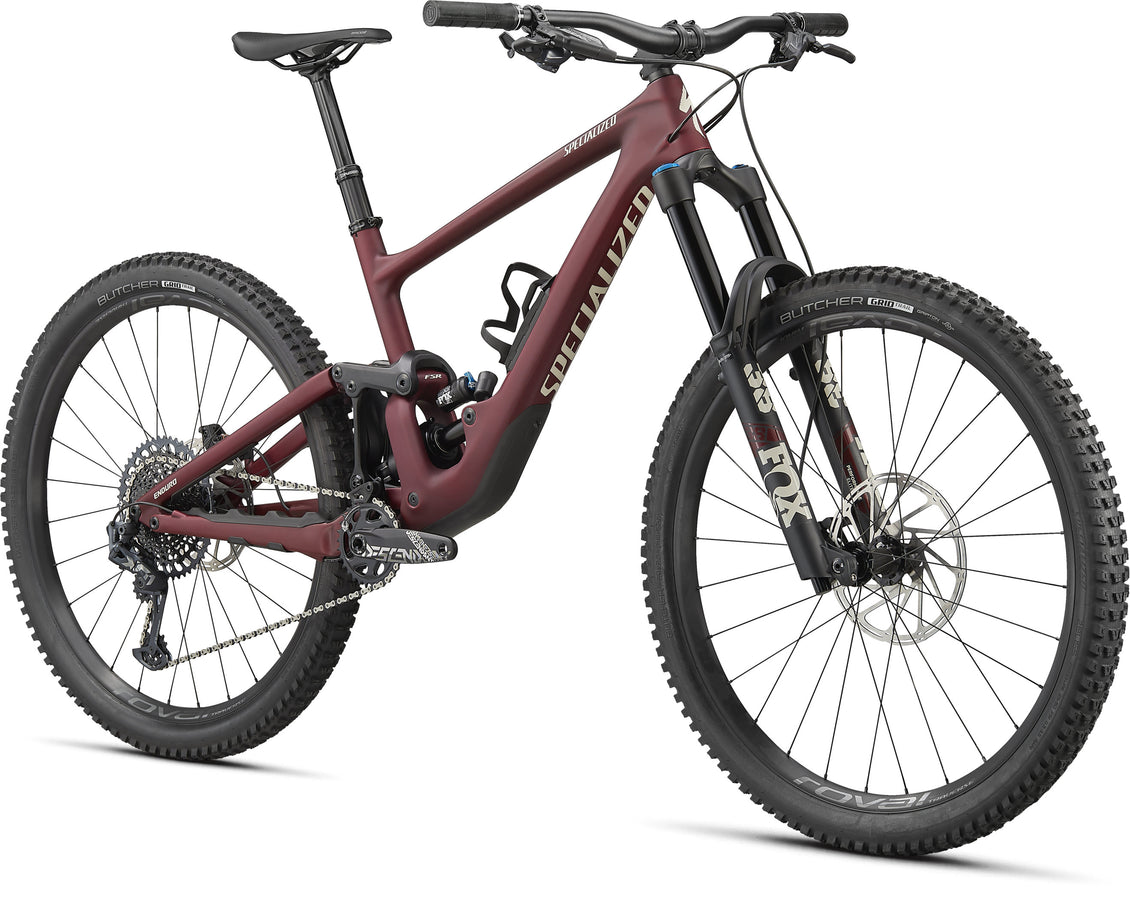

The Enduro Expert has always packed a serious punch and it's never been so true. You get 170-millimeters of the most capable downhill performance that gains elevation with surprising ease. Full FOX suspension, powerful disc brakes, and a robust al... Read More
The Enduro Expert has always packed a serious punch and it's never been so true. You get 170-millimeters of the most capable downhill performance that gains elevation with surprising ease. Full FOX suspension, powerful disc brakes, and a robust al... Read More

wishlist message

Technical Specifications

Rims Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready
Rear Hub Roval DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rear Tire Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Spokes DT Swiss Competition Race
Front Hub Roval, sealed cartridge bearings, 15x110mm spacing, 28h
Front Tire Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Inner Tubes Standard, Presta valve

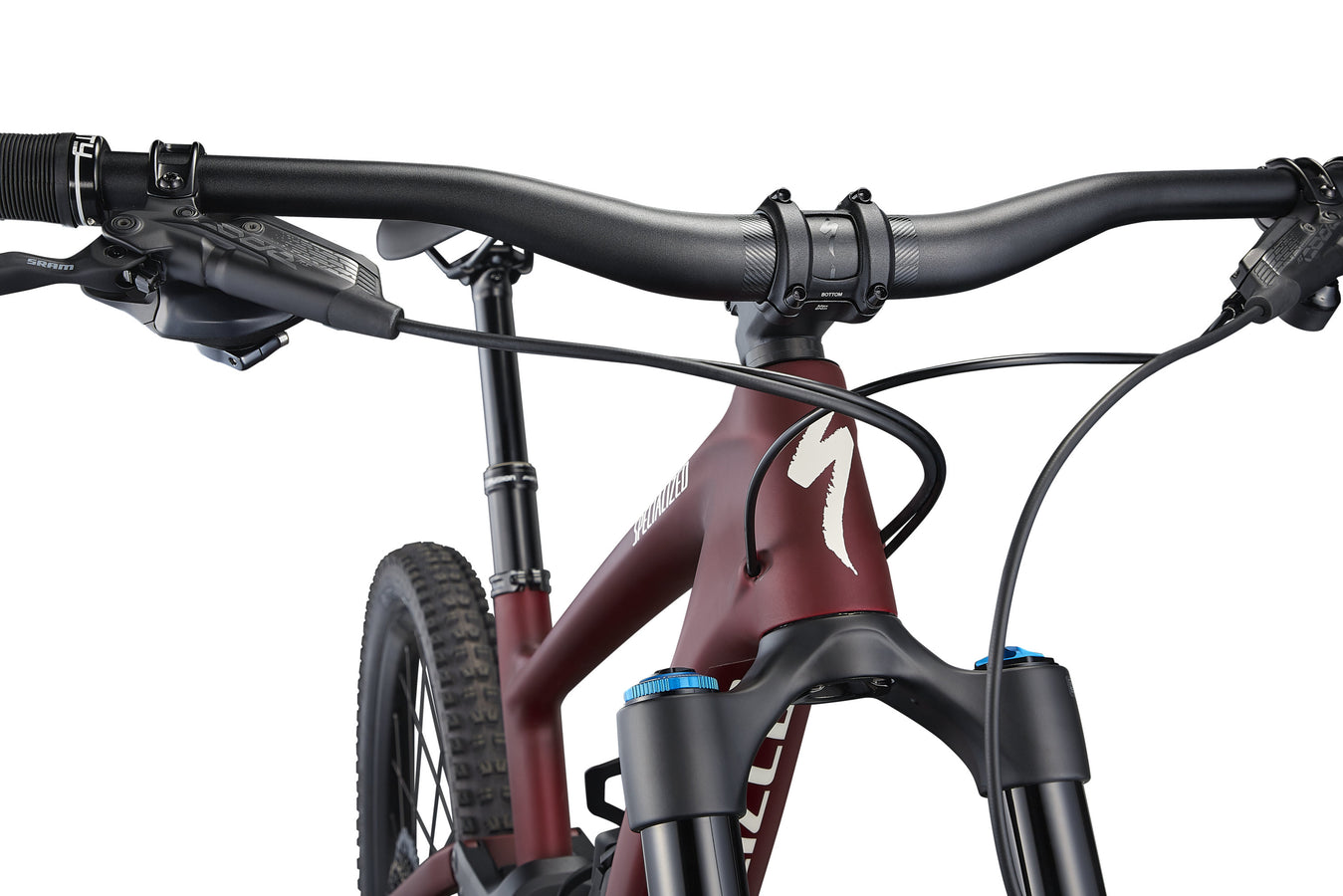

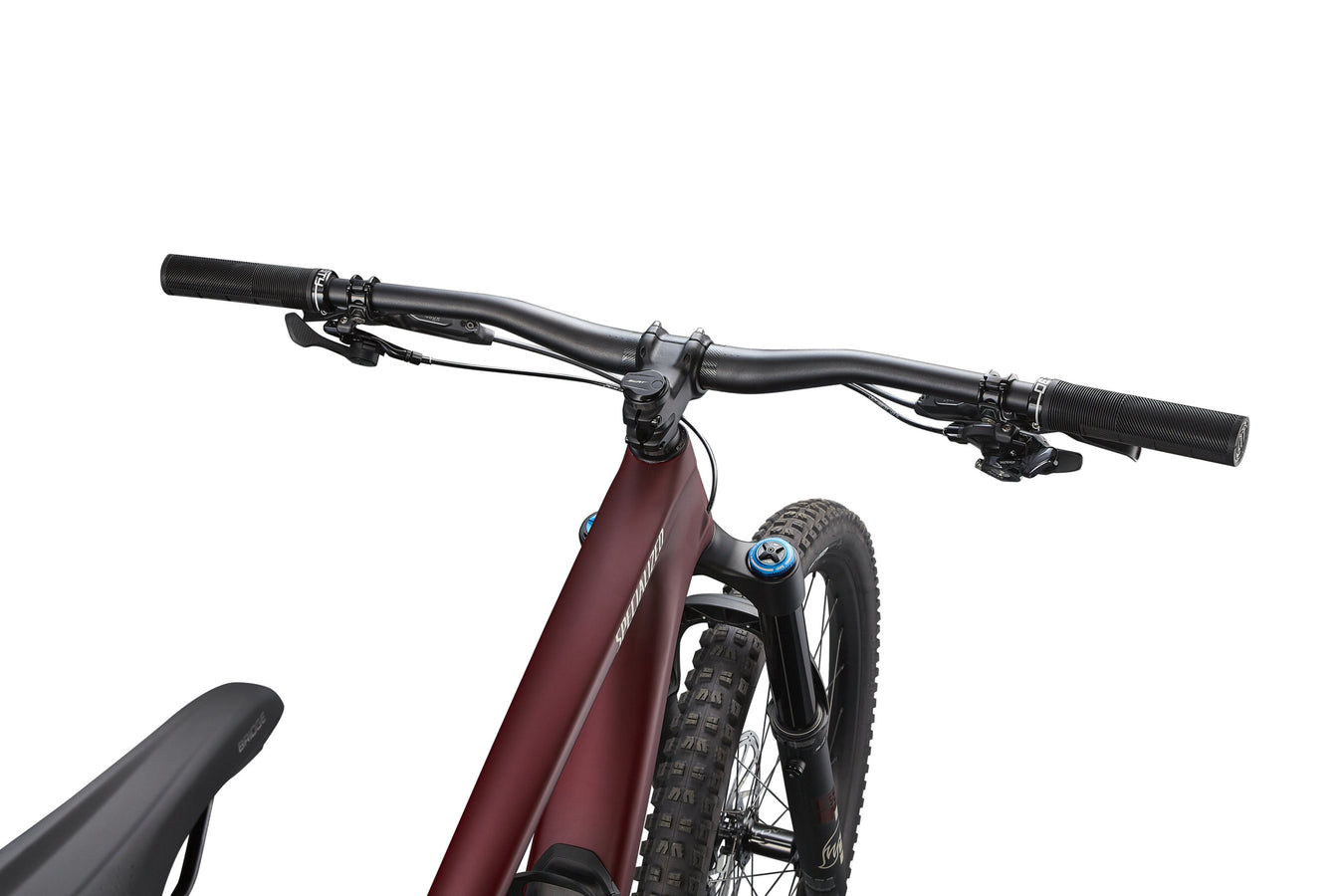

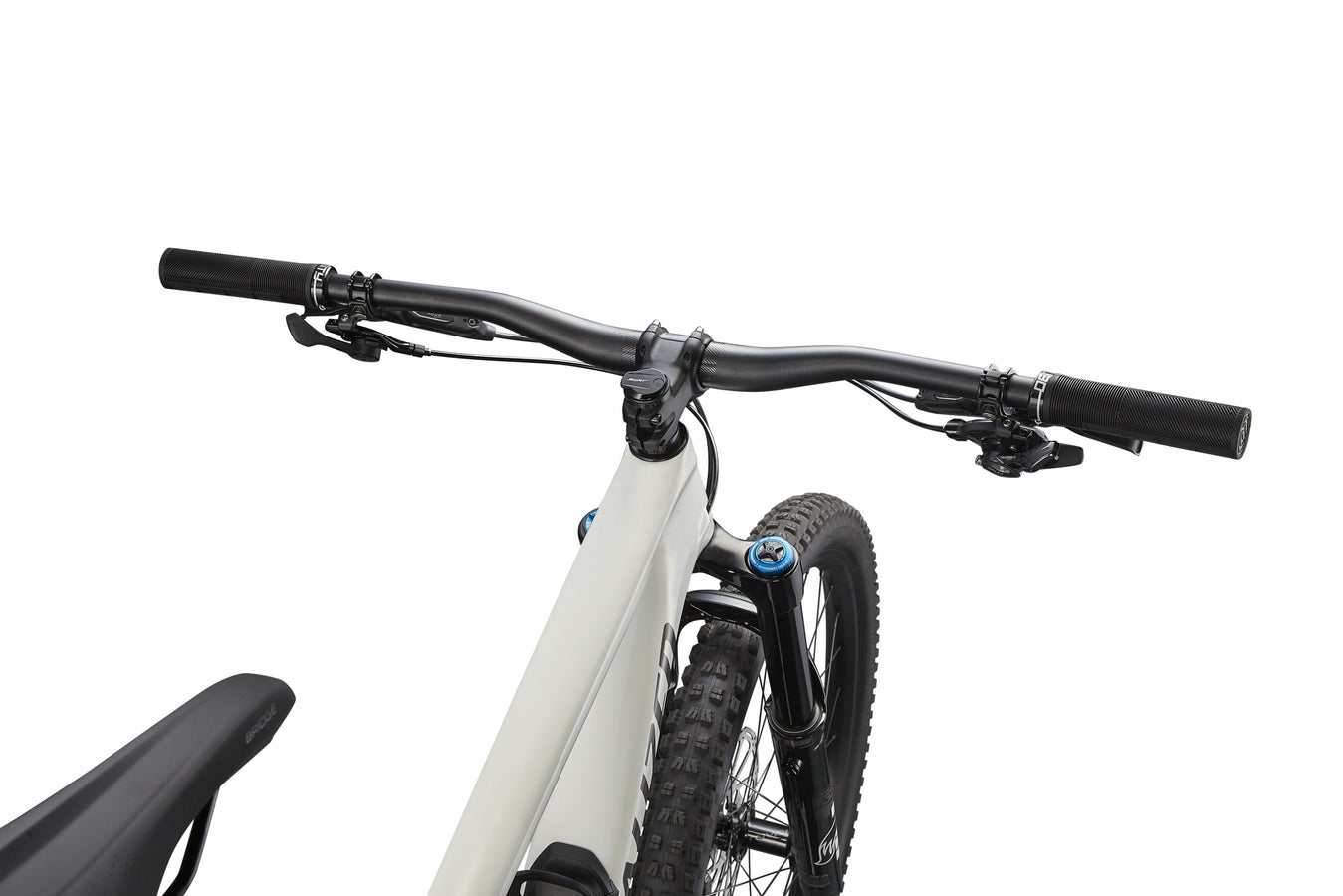

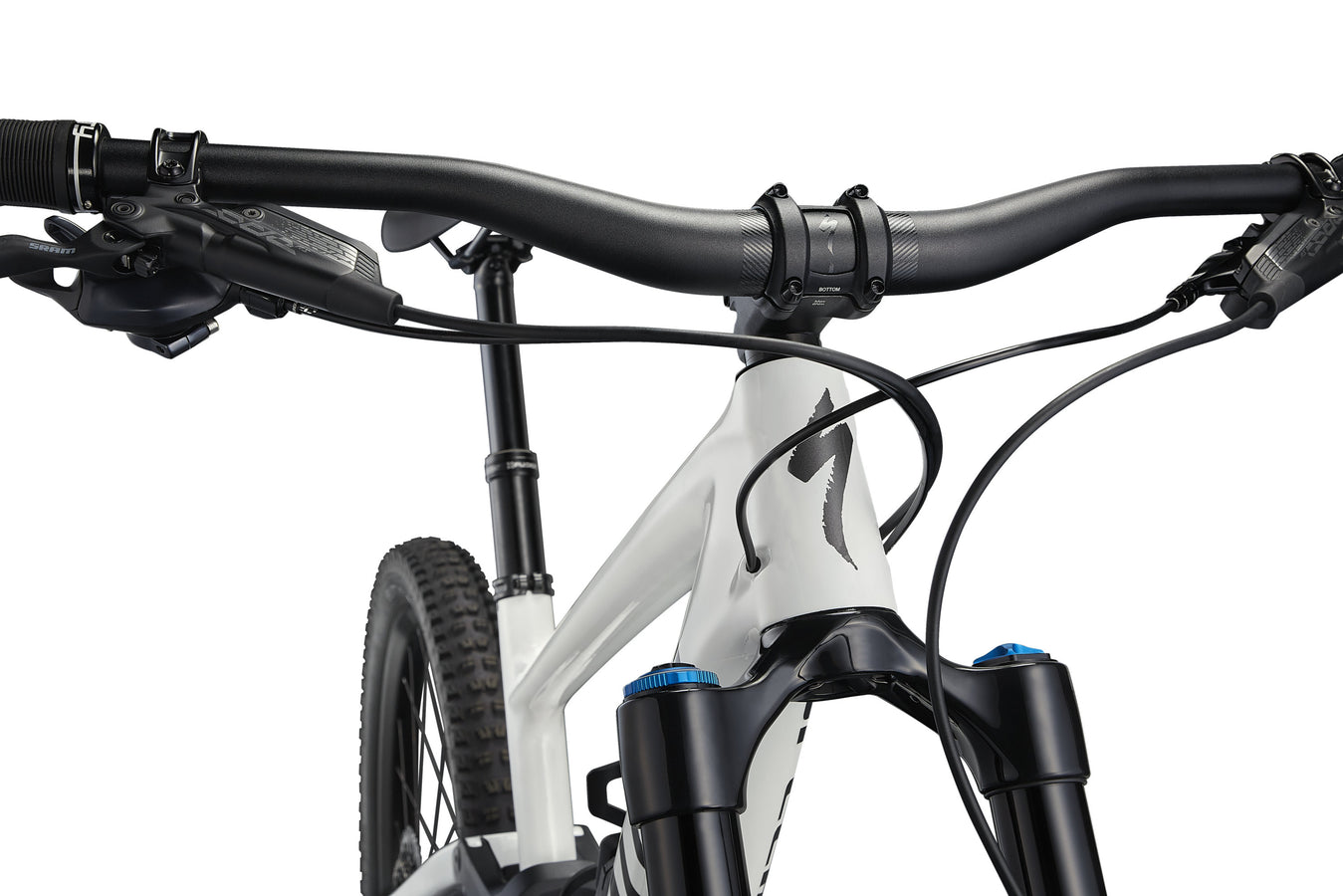

Handlebars Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
SeatPost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S2-S3
Stem Alloy Trail Stem, 35mm bar bore
Saddle Bridge Comp, Hollow Cr-mo rails, 155/143mm
Grips Deity, Knuckleduster, Black
Chainrings Steel, 30T
Rear Derailleur Sram X01 Eagle, 12-speed
Cassette SRAM XG-1275, 12-speed, 10-52t
Bottom Bracket SRAM DUB, BSA 73mm, threaded
Crankset SRAM Descendant 7K, DUB,170mm
Shift Levers SRAM X01 Eagle, trigger, 12-speed
Chain SRAM GX Eagle, 12-speed
Seat Binder Alloy, 38.6
Frame The new Enduro features a full-carbon frameset, boasting 170mm of suspension travel in an all-new design that increases your control and speed over the roughest sections of trail, yet also boasts exceptional pedaling efficiency. We’ve also given the new Enduro aggressive “long, low and slack” geometry for a more balanced and confident feel at speed. Finally, you’ll find a host smart details, including our SWAT™ Door down tube storage integration, a creak-free threaded BB, and painless internal cable routing.
SWAT strike, no bladder on SJ chassis
Rear Brake SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Front Brake SRAM Code RS, 4-piston caliper, hydraulic disc, 220mm
Fork FORK - FOX FLOAT 38 Performance Elite, GRIP2 damper, 15x110mm, 44mm offset, 170mm of travel

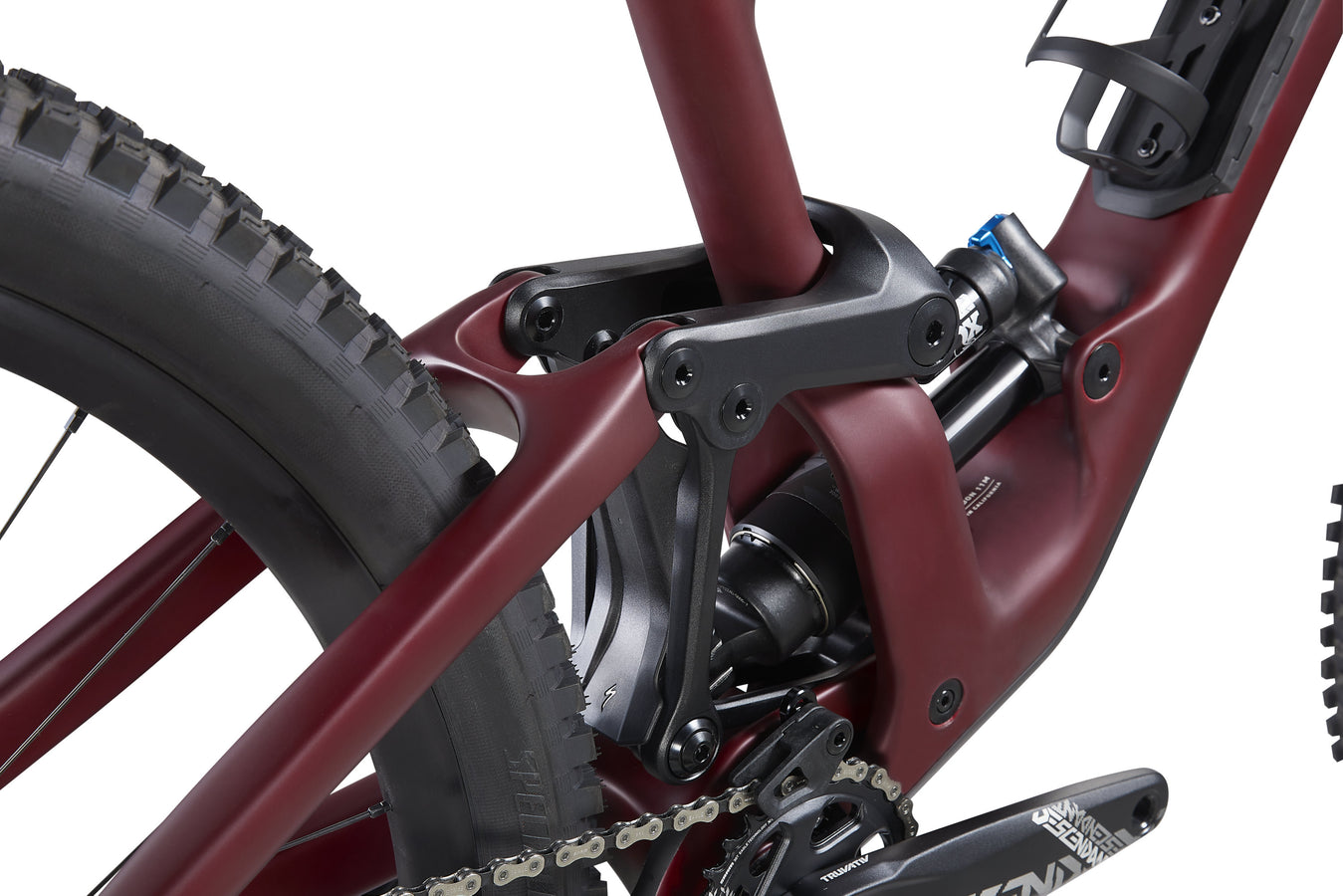

Rear Shock 2021, FLOAT X2, P-S, A, 2pos-Adj, Trunnion, Specialized, Enduro, 205, 60, CL001, RF001, Rezi CM, Standard, Neutral Logo, N/M
Pedals

Technical Specifications

Rims Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready
Rear Hub Roval DT Swiss 360, 3-pawl design, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
Rear Tire Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Spokes DT Swiss Competition Race
Front Hub Roval, sealed cartridge bearings, 15x110mm spacing, 28h
Front Tire Butcher, GRID TRAIL casing, GRIPTON® compound, 29x2.3"
Inner Tubes Standard, Presta valve
Handlebars Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
SeatPost X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S2-S3
Stem Alloy Trail Stem, 35mm bar bore
Saddle Bridge Comp, Hollow Cr-mo rails, 155/143mm
Grips Deity, Knuckleduster, Black
Chainrings Steel, 30T
Rear Derailleur Sram X01 Eagle, 12-speed
Cassette SRAM XG-1275, 12-speed, 10-52t
Bottom Bracket SRAM DUB, BSA 73mm, threaded
Crankset SRAM Descendant 7K, DUB,170mm
Shift Levers SRAM X01 Eagle, trigger, 12-speed
Chain SRAM GX Eagle, 12-speed
Seat Binder Alloy, 38.6
Frame The new Enduro features a full-carbon frameset, boasting 170mm of suspension travel in an all-new design that increases your control and speed over the roughest sections of trail, yet also boasts exceptional pedaling efficiency. We’ve also given the new Enduro aggressive “long, low and slack” geometry for a more balanced and confident feel at speed. Finally, you’ll find a host smart details, including our SWAT™ Door down tube storage integration, a creak-free threaded BB, and painless internal cable routing.
SWAT strike, no bladder on SJ chassis
Rear Brake SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm
Front Brake SRAM Code RS, 4-piston caliper, hydraulic disc, 220mm
Fork FORK - FOX FLOAT 38 Performance Elite, GRIP2 damper, 15x110mm, 44mm offset, 170mm of travel
Rear Shock 2021, FLOAT X2, P-S, A, 2pos-Adj, Trunnion, Specialized, Enduro, 205, 60, CL001, RF001, Rezi CM, Standard, Neutral Logo, N/M
Pedals

Epic - Geometry

Geometry

  S2 S3 S4 S5
Crank Length 170mm 170mm 170mm 170mm
Stem Length 40mm 50mm 50mm 50mm
Handlebar Width 800mm 800mm 800mm 800mm
Saddle Width 155mm 143mm 143mm 143mm
Seatpost Length 150 mm 150 mm 170 mm 170 mm
Stack (low BB) 616mm 620mm 629mm 638mm
Reach (low BB) 437mm 464mm 487mm 511mm
Head-Tube Length 95mm 100mm 110mm 120mm
Head-Tube Angle (low BB) 63.9deg 63.9deg 63.9deg 63.9deg
Head-Tube Angle 64.3mm 64.3mm 64.3mm 64.3mm
B-B Height (low BB) 347mm 347mm 347mm 347mm
B-B Height 354mm 354mm 354mm 354mm
B-B Drop (low BB) 28mm 28mm 28mm 28mm
B-B Drop 21mm 21mm 21mm 21mm
Trail (low BB) 132mm 132mm 132mm 132mm
Fork Length (full) 581mm 581mm 581mm 581mm
Fork Rake/Offset 46mm 46mm 46mm 46mm
Front-Center (low BB) 777mm 806mm 833mm 862mm
Chain-Stay Length 442mm 442mm 442mm 442mm
Wheelbase 1217mm 1246mm 1274mm 1302mm
Seat-Tube Length 400mm 420mm 440mm 465mm
Seat-Tube Angle 76deg 76deg 76deg 76deg
Top Tube Length (Horizontal) 591mm 619mm 644mm 670mm

Geometry
