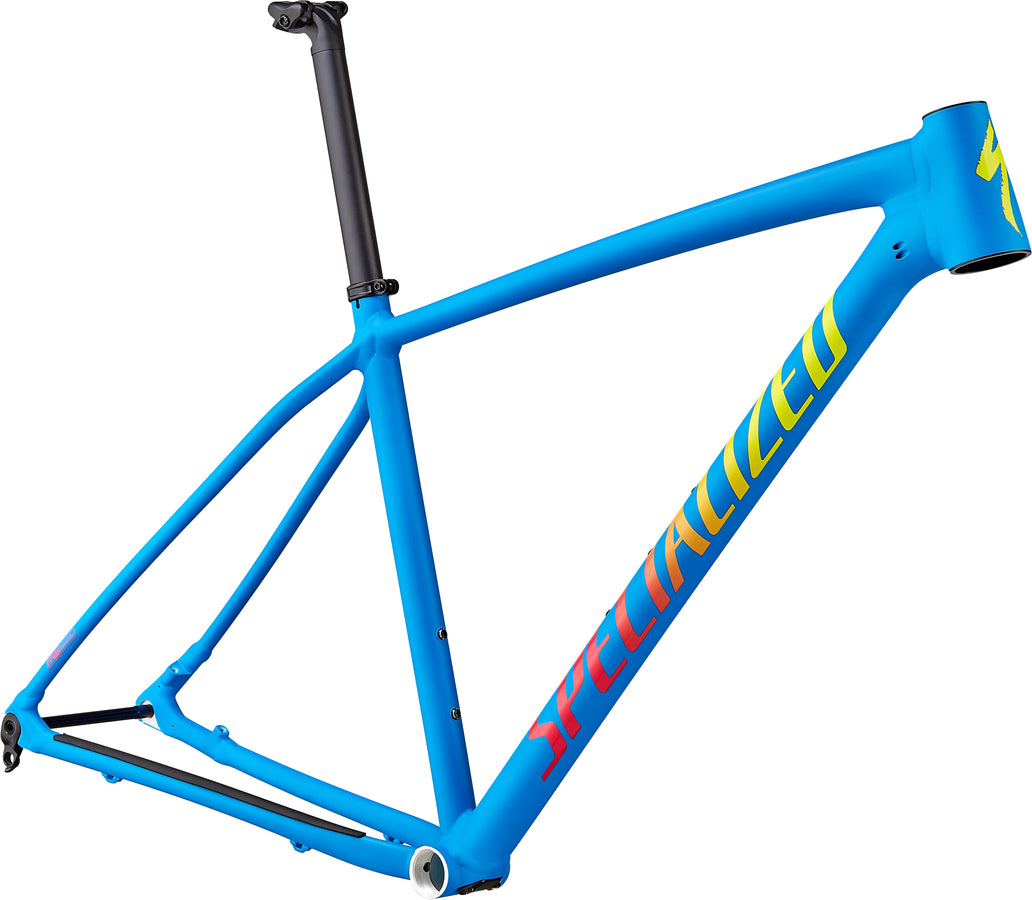

Chisel Frameset

Chisel Frameset

Part No.: 71720-7001

Notify me when this product is available:

Color
Size

Select a Size

Carbon isn't the only material that gets to have all the fun—the alloy Chisel frameset is the perfect combination of light overall weight, stiffness, durability, and alloy. Consider it the perfect start to your XC build.

ONE VERY SMAR... Read More

Carbon isn't the only material that gets to have all the fun—the alloy Chisel frameset is the perfect combination of light overall weight, stiffness, durability, and alloy. Consider it the perfect start to your XC build.

ONE VERY SMAR... Read More

wishlist message

Technical Specifications

SeatPost Specialized Alloy, Single Bolt, 30.9mm
Seat Binder Alloy, 30.8mm
Frame Specialized D\'Aluisio Smartweld M5 Alloy, XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, triangulated post-mount 160mm brake

Technical Specifications

SeatPost Specialized Alloy, Single Bolt, 30.9mm
Seat Binder Alloy, 30.8mm
Frame Specialized D\'Aluisio Smartweld M5 Alloy, XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, triangulated post-mount 160mm brake

Epic - Geometry

Geometry

XS S M L XL
  XS S M L XL
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Stack 586mm 595mm 605mm 619mm 633mm
Reach 380mm 395mm 418mm 441mm 462mm
Head Tube Length 95mm 95mm 95mm 110mm 125mm
Head Tube Angle 69.8deg 69.8deg 69.8deg 69.8deg 69.8deg
BB Height 312.5mm 312.5mm 312.5mm 312.5mm 312.5mm
BB Drop 57.5mm 57.5mm 57.5mm 57.5mm 57.5mm
Trail 82mm 82mm 82mm 82mm 82mm
Fork Length, Full 486mm 496mm 506mm 506mm 506mm
Fork Rake/Offset 51mm 51mm 51mm 51mm 51mm
Front Center 631mm 650mm 676mm 704mm 730mm
Chainstay Length 430mm 430mm 430mm 430mm 430mm
Wheelbase 1055mm 1073mm 1100mm 1128mm 1154mm
Top Tube Length, Horizontal 548mm 567mm 594mm 622mm 648mm
Bike Standover Height 731mm 760mm 790mm 814mm 845mm
Seat Tube Length 370mm 400mm 430mm 470mm 520mm
Seat Tube Angle 74deg 74deg 74deg 74deg 74deg

Geometry

Geometry Chart

Geometry

  XS S M L XL
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Stack 586mm 595mm 605mm 619mm 633mm
Reach 380mm 395mm 418mm 441mm 462mm
Head Tube Length 95mm 95mm 95mm 110mm 125mm
Head Tube Angle 69.8deg 69.8deg 69.8deg 69.8deg 69.8deg
BB Height 312.5mm 312.5mm 312.5mm 312.5mm 312.5mm
BB Drop 57.5mm 57.5mm 57.5mm 57.5mm 57.5mm
Trail 82mm 82mm 82mm 82mm 82mm
Fork Length, Full 486mm 496mm 506mm 506mm 506mm
Fork Rake/Offset 51mm 51mm 51mm 51mm 51mm
Front Center 631mm 650mm 676mm 704mm 730mm
Chainstay Length 430mm 430mm 430mm 430mm 430mm
Wheelbase 1055mm 1073mm 1100mm 1128mm 1154mm
Top Tube Length, Horizontal 548mm 567mm 594mm 622mm 648mm
Bike Standover Height 731mm 760mm 790mm 814mm 845mm
Seat Tube Length 370mm 400mm 430mm 470mm 520mm
Seat Tube Angle 74deg 74deg 74deg 74deg 74deg
