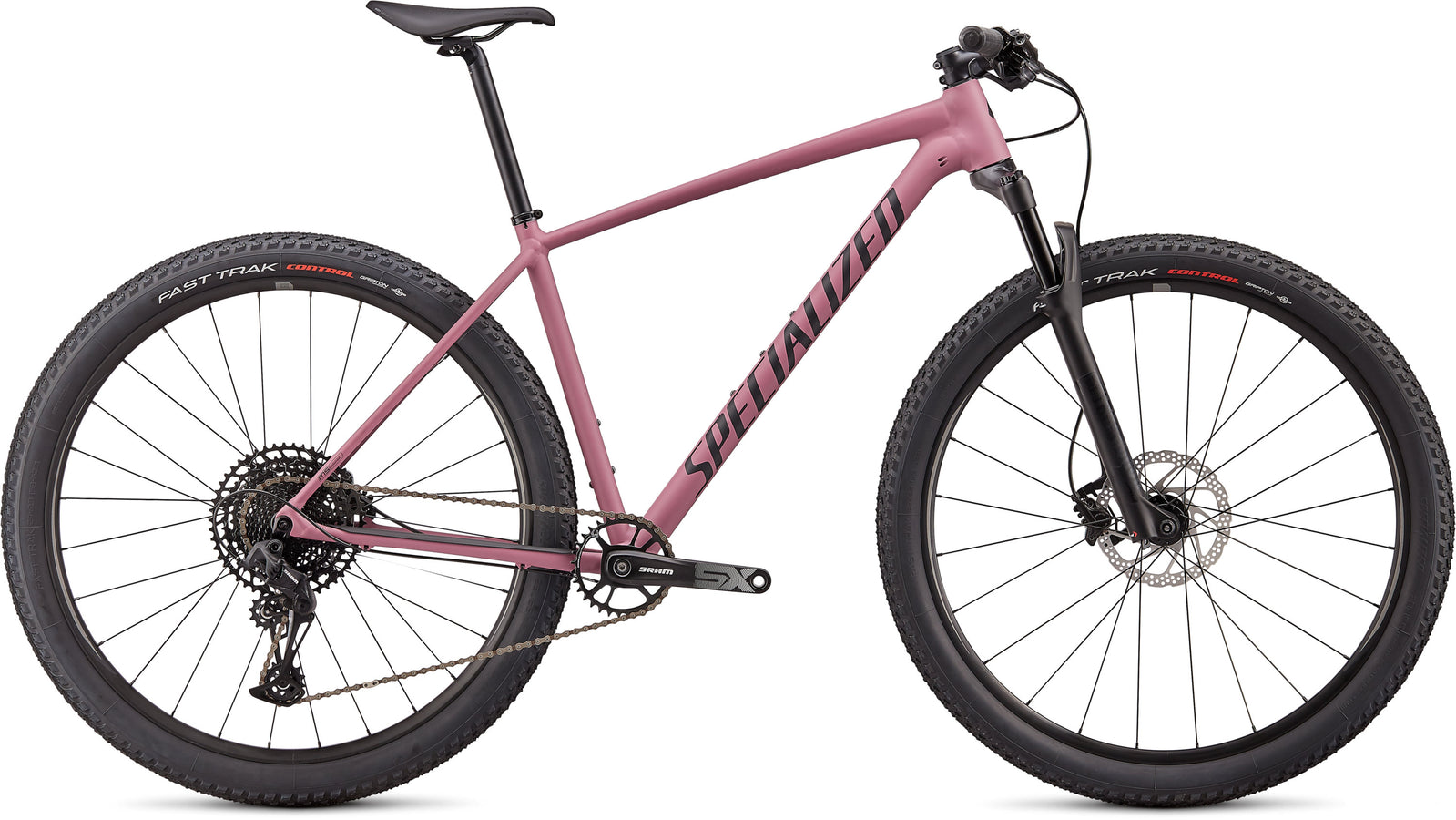

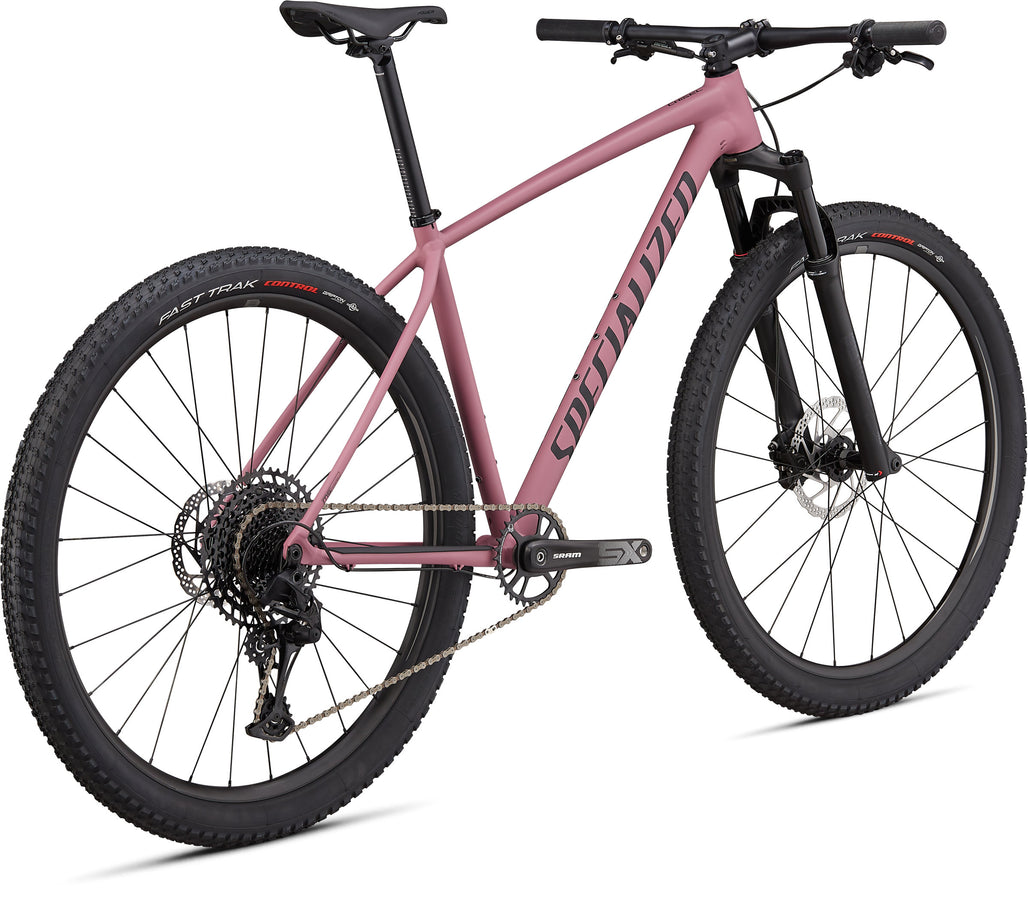

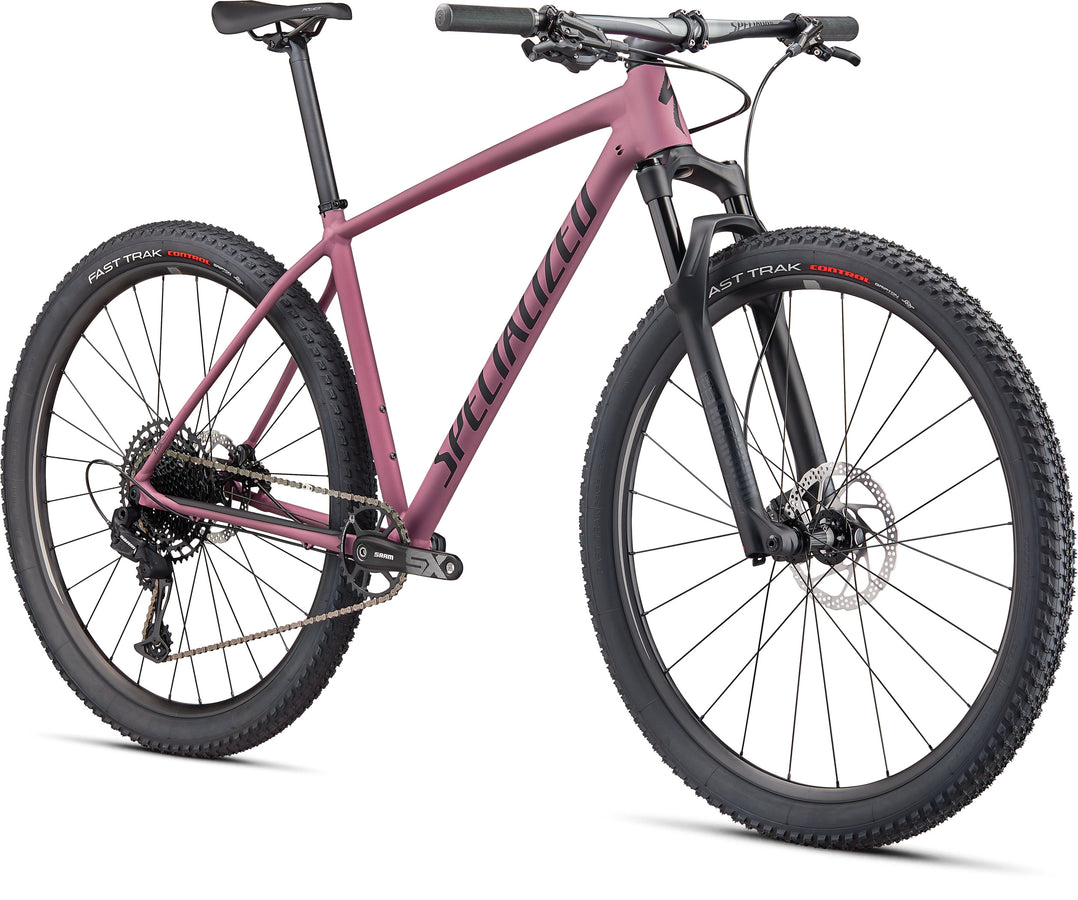

Chisel Comp

Chisel Comp

Part No.: 91720-5001

Notify me when this product is available:

Color
Size

Select a Size

The Chisel Comp gives you everything you need to reach the top of the podium… at a price that doesn’t break the bank. Ultralight aluminum frameset that’s stiff in all the right places, yet surprisingly compliant? Check. Stellar components? Chec... Read More

The Chisel Comp gives you everything you need to reach the top of the podium… at a price that doesn’t break the bank. Ultralight aluminum frameset that’s stiff in all the right places, yet surprisingly compliant? Check. Stellar components? Chec... Read More

wishlist message

Technical Specifications

Pedals
Chainrings 48/35T
Cassette SRAM PG-1210 Eagle, 11-50t
Bottom Bracket SRAM Powerspline
Chain SRAM SX Eagle, 12-speed
Rear Derailleur SRAM SX Eagle, 12-speed
Crankset SRAM SX Eagle, Powerspline, 165/170/175mm, 32T
Shift Levers SRAM SX Eagle, trigger, 12-speed
Saddle Body Geometry Power Sport, steel rails
Handlebars Specialized Alloy Minirise, 6.5mm rise, 750mm, 31.8mm clamp
SeatPost Specialized Alloy, Single Bolt, 27.2mm
Tape Specialized Trail Grips
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Rear Tire Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Front Tire Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Hub Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h
Inner Tubes Standard, Presta valve
Rims Stout XC 29, 25mm internal width, disc-specific
Seat Binder Integrated w/ frame
Frame Specialized D'Aluisio Smartweld M5 Alloy, XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, triangulated post-mount 160mm brake
Fork RockShox Judy Gold 29, Solo Air, Motion Control damper, 51mm offset, 15x110mm thru-axle (XS
Front Brake Shimano MT-501, hydraulic disc, resin pad
Rear Brake Shimano MT-501, hydraulic disc, resin pad
Spokes Stainless, 14g

Technical Specifications

Pedals
Chainrings 48/35T
Cassette SRAM PG-1210 Eagle, 11-50t
Bottom Bracket SRAM Powerspline
Chain SRAM SX Eagle, 12-speed
Rear Derailleur SRAM SX Eagle, 12-speed
Crankset SRAM SX Eagle, Powerspline, 165/170/175mm, 32T
Shift Levers SRAM SX Eagle, trigger, 12-speed
Saddle Body Geometry Power Sport, steel rails
Handlebars Specialized Alloy Minirise, 6.5mm rise, 750mm, 31.8mm clamp
SeatPost Specialized Alloy, Single Bolt, 27.2mm
Tape Specialized Trail Grips
Stem Specialized XC, 3D-forged alloy, 4-bolt, 6-degree rise
Rear Tire Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Front Tire Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Hub Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h
Inner Tubes Standard, Presta valve
Rims Stout XC 29, 25mm internal width, disc-specific
Seat Binder Integrated w/ frame
Frame Specialized D'Aluisio Smartweld M5 Alloy, XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, triangulated post-mount 160mm brake
Fork RockShox Judy Gold 29, Solo Air, Motion Control damper, 51mm offset, 15x110mm thru-axle (XS
Front Brake Shimano MT-501, hydraulic disc, resin pad
Rear Brake Shimano MT-501, hydraulic disc, resin pad
Spokes Stainless, 14g

Epic - Geometry

Geometry

XS S M L XL
  XS S M L XL
Crank Length 165mm 170mm 175mm 175mm 175mm
Stem Length 60mm 60mm 70mm 80mm 90mm
Handlebar Width 750mm 750mm 750mm 750mm 750mm
Saddle Width 155mm 155mm 143mm 143mm 143mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Stack 586mm 595mm 605mm 619mm 633mm
Reach 380mm 395mm 418mm 441mm 462mm
Head Tube Length 95mm 95mm 95mm 110mm 125mm
Head Tube Angle 69.8deg 69.8deg 69.8deg 69.8deg 69.8deg
BB Height 312.5mm 312.5mm 312.5mm 312.5mm 312.5mm
BB Drop 57.5mm 57.5mm 57.5mm 57.5mm 57.5mm
Trail 82mm 82mm 82mm 82mm 82mm
Fork Length, Full 486mm 496mm 506mm 506mm 506mm
Fork Rake/Offset 51mm 51mm 51mm 51mm 51mm
Front Center 631mm 650mm 676mm 704mm 730mm
Chainstay Length 430mm 430mm 430mm 430mm 430mm
Wheelbase 1055mm 1073mm 1100mm 1128mm 1154mm
Top Tube Length, Horizontal 548mm 567mm 594mm 622mm 648mm
Bike Standover Height 731mm 760mm 790mm 814mm 845mm
Seat Tube Length 370mm 400mm 430mm 470mm 520mm
Seat Tube Angle 74deg 74deg 74deg 74deg 74deg

Geometry

Geometry Chart

Geometry

  XS S M L XL
Crank Length 165mm 170mm 175mm 175mm 175mm
Stem Length 60mm 60mm 70mm 80mm 90mm
Handlebar Width 750mm 750mm 750mm 750mm 750mm
Saddle Width 155mm 155mm 143mm 143mm 143mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Stack 586mm 595mm 605mm 619mm 633mm
Reach 380mm 395mm 418mm 441mm 462mm
Head Tube Length 95mm 95mm 95mm 110mm 125mm
Head Tube Angle 69.8deg 69.8deg 69.8deg 69.8deg 69.8deg
BB Height 312.5mm 312.5mm 312.5mm 312.5mm 312.5mm
BB Drop 57.5mm 57.5mm 57.5mm 57.5mm 57.5mm
Trail 82mm 82mm 82mm 82mm 82mm
Fork Length, Full 486mm 496mm 506mm 506mm 506mm
Fork Rake/Offset 51mm 51mm 51mm 51mm 51mm
Front Center 631mm 650mm 676mm 704mm 730mm
Chainstay Length 430mm 430mm 430mm 430mm 430mm
Wheelbase 1055mm 1073mm 1100mm 1128mm 1154mm
Top Tube Length, Horizontal 548mm 567mm 594mm 622mm 648mm
Bike Standover Height 731mm 760mm 790mm 814mm 845mm
Seat Tube Length 370mm 400mm 430mm 470mm 520mm
Seat Tube Angle 74deg 74deg 74deg 74deg 74deg
