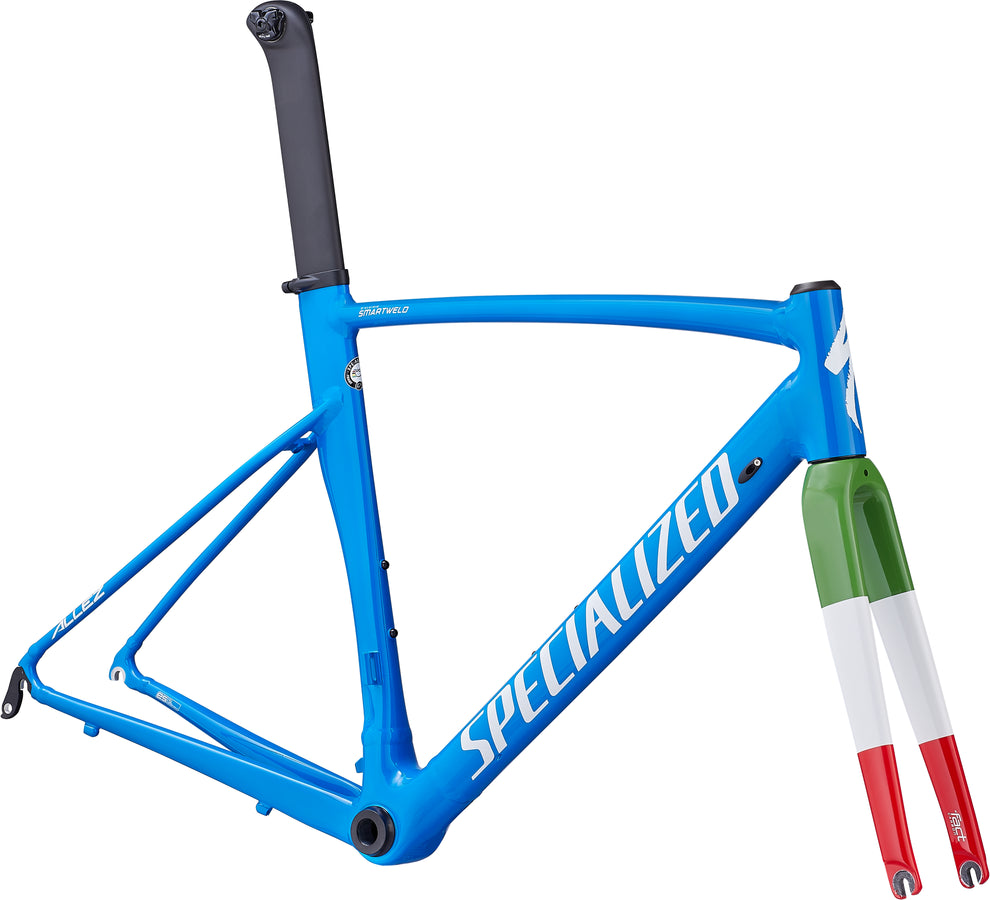

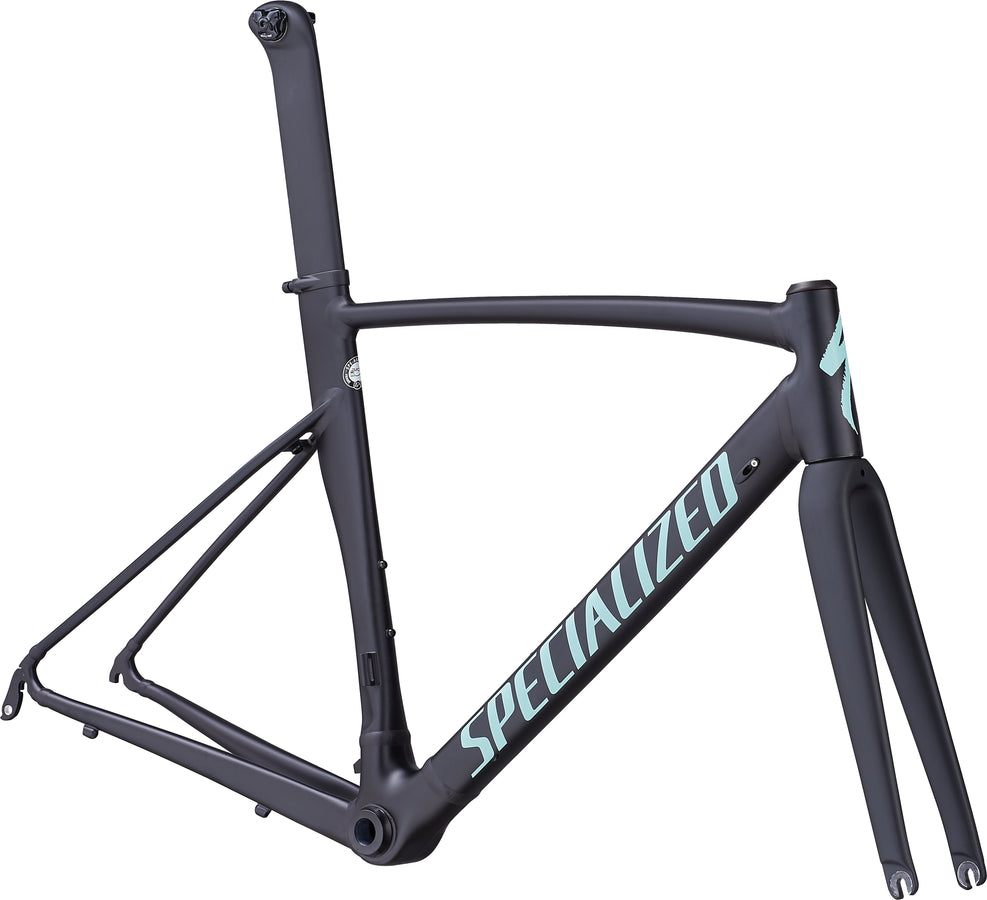

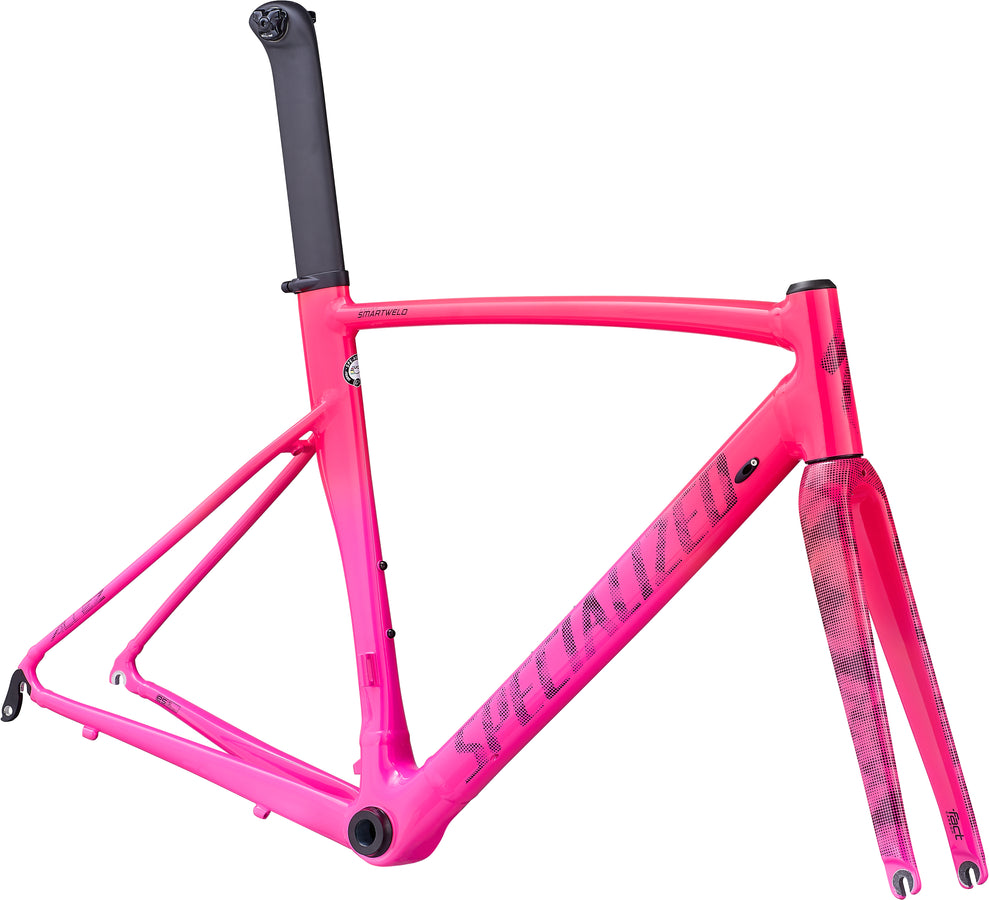

Allez Sprint Frameset

Allez Sprint Frameset

Part No.: 70019-7254

Color
Size

Select a Size

Climbs, corners, flat-out sprints—the Allez Sprint does it all. Being the most advanced alloy road bike we"ve ever made, the Allez Sprint is capable as a crit-racing weapon or an everyday road steed. But even better, it performs all of the above a... Read More
Climbs, corners, flat-out sprints—the Allez Sprint does it all. Being the most advanced alloy road bike we"ve ever made, the Allez Sprint is capable as a crit-racing weapon or an everyday road steed. But even better, it performs all of the above a... Read More

wishlist message

Technical Specifications

Frame Specialized E5 Premium Aluminum w/ D\'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB
Fork S-Works FACT full carbon, size-specific taper
SeatPost Specialized Venge Aero seatpost, FACT carbon
Bottom Bracket OSBB, Praxis bearings

Technical Specifications

Frame Specialized E5 Premium Aluminum w/ D\'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB
Fork S-Works FACT full carbon, size-specific taper
SeatPost Specialized Venge Aero seatpost, FACT carbon
Bottom Bracket OSBB, Praxis bearings

Epic - Geometry

Geometry

  49 52 54 56 58 61
Stack 502mm 514mm 533mm 554mm 583mm 604mm
Reach 375mm 380mm 385mm 395mm 400mm 405mm
Head-Tube Length 100mm 110mm 130mm 150mm 180mm 200mm
Head-Tube Angle 72.25deg 73deg 73deg 73.5deg 73.5deg 74deg
B-B Height 272.5mm 272.5mm 272.5mm 272.5mm 272.5mm 272.5mm
B-B Drop 69mm 69mm 69mm 69mm 69mm 69mm
Trail 63mm 58mm 58mm 55mm 55mm 52mm
Fork Length (Full) 368mm 368mm 368mm 368mm 368mm 368mm
Fork Rake/Offset 44mm 44mm 44mm 44mm 44mm 44mm
Front-Center 564mm 566mm 577mm 589mm 602mm 608mm
Chain-Stay Length 405mm 405mm 405mm 405mm 405mm 407mm
Wheelbase 959mm 961mm 972mm 984mm 997mm 1005mm
Top-Tube Length (Horizontal) 519mm 527mm 538mm 554mm 567mm 578mm
Bike Stand-Over Height 732.3mm 745.8mm 765.5mm 784.3mm 808.3mm 833.8mm
Seat-Tube Length 460mm 480mm 500mm 520mm 540mm 570mm
Seat-Tube Angle 74deg 74deg 74deg 74deg 74deg 74deg
