Allez Sprint Comp Disc

Part No. 90020-5149

Notify me when this product is available:

Color
Size
Size Chart

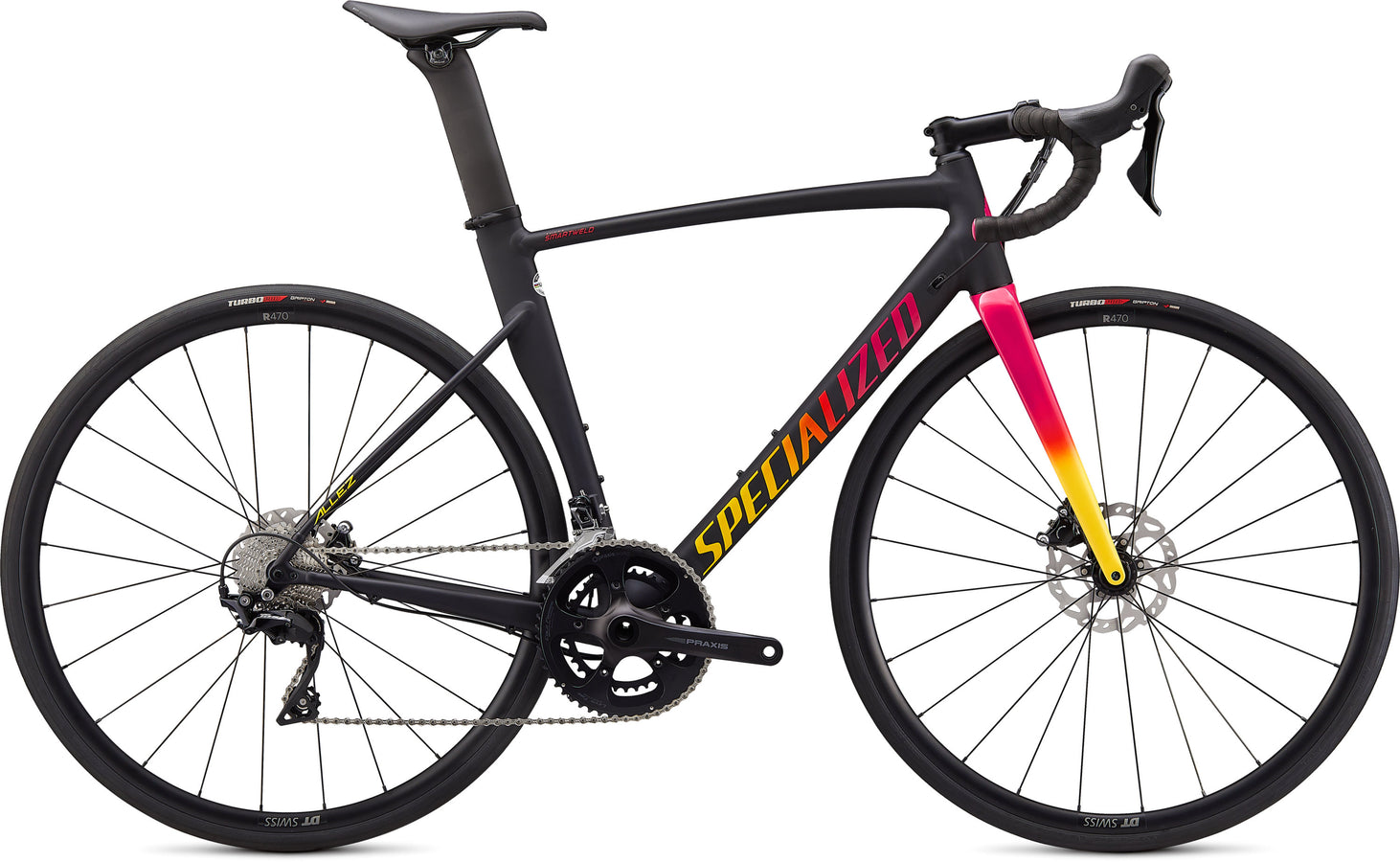

Climbs, corners, flat-out sprints—the Allez Sprint does it all. Being the most advanced alloy road bike we've ever made, and one that often out-performs the carbon fiber bikes of other brands, the Allez Sprint is capable as a crit-racing tool or an everyday road steed. But even better, it performs all of the above at a price that's affordable for any racer's budget.

For the build, this Allez meshes performance and value with Shimano 105 shifting and hydraulic disc brakes, DT R470 Disc alloy wheels, and a fan-favorite Body Geometry Power saddle.

  • At the heart of the Allez Sprint is our D'Aluisio Smartweld Technology, which strategically places more welding material where it's needed, resulting in an aluminum bike that's more compliant and considerably stiffer. How stiff, exactly? It's the stiffest alloy bike we've ever tested, let alone made. Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.
  • To make sure that every single watt you produce gets transferred to the road, we gave it short chainstays that create an extremely stiff and rigid rear triangle. But it goes beyond just pure rigidity, as the hydroformed tube shapes have also been aerodynamically optimized to slice through the wind, while also providing tons of built-in compliance.
  • Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.
  • Our top-tier Tarmac Disc FACT carbon fiber fork provides incredible stiffness and front-end steering response, while also efficiently absorbing road chatter.

Technical Specifications

FRONT BRAKE Shimano 105, Hydraulic disc
REAR BRAKE Shimano 105, Hydraulic disc
FRONT HUB

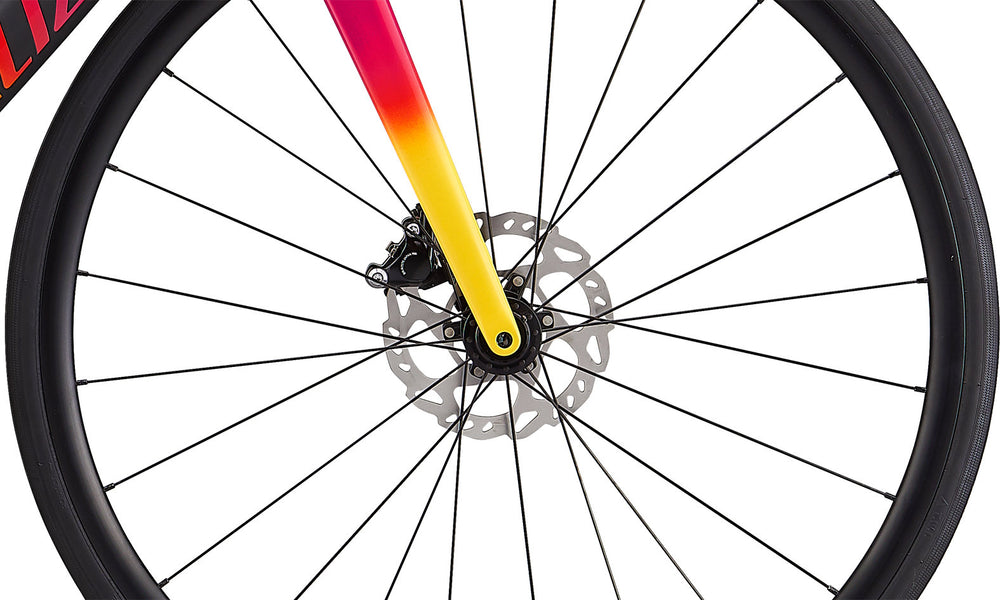

FRONT WHEEL DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
INNER TUBES Presta, 40mm valve
REAR TIRE Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x26mm
REAR WHEEL DT Swiss R470 rim, 20mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, alloy freehub body, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples.
FRONT TIRE Turbo Pro, 60 TPI, folding bead, BlackBelt protection, 700x26mm
PEDALS
SEAT BINDER Allez Sprint Aero
HANDLEBARS Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
STEM Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
SADDLE Body Geometry Power Sport, steel rails
SEATPOST Allez Sprint Seatpost, 20mm setback
TAPE Specialized S-Wrap
CASSETTE Shimano 105, 11-speed, 11-28t
FRONT DERAILLEUR Shimano R7000, clamp-on
CRANKSET Praxis Alba
CHAIN KMC X11 Extra Lightweight, 11-speed
SHIFT LEVERS Shimano 105 R7020 hydraulic disc
BOTTOM BRACKET Praxis 6806 bearings
CHAINRINGS Praxis, 46T, 110BCD
REAR DERAILLEUR Shimano 105 R7000 GS, medium cage, 11-speed
FRAME Specialized E5 Premium Aluminum Disc frame w/ D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB
FORK Specialized FACT carbon, 1-1/8" to 1-3/8" taper, fender eyelets

Technical Specifications

Geometry

Geometry Chart

Geometry

  56 61 49 52 54 58
Crank Length 172.5 175 165 170 172.5 175
Stem Length 100 110 80 90 100 110
Handlebar Width 420 440 380 400 420 440
Saddle Width 143 143 155 155 143 143
Seatpost Length 330 330 330 330 330 330
